NSN 1680-00-169-0629 48265311, 4826531-1, 00-169-0629
Product Details | SPECIAL MOUNTING
1680-00-169-0629
Part Alternates: 48265311, 4826531-1, 1680-00-169-0629, 00-169-0629, 1680001690629, 001690629
Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 11 DEC 1970 | 00-169-0629 | 77777 ( ) |

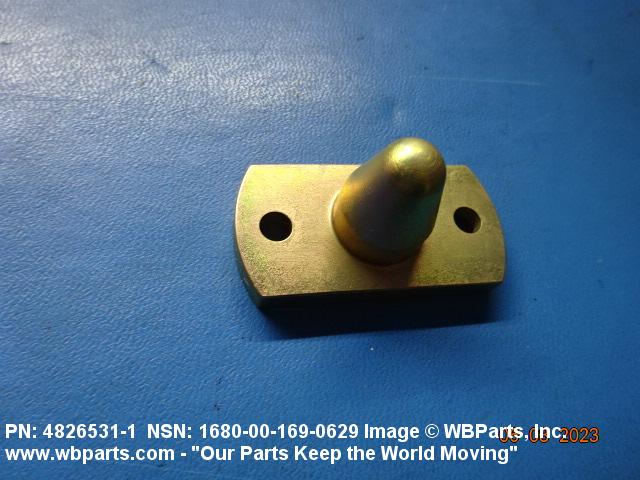

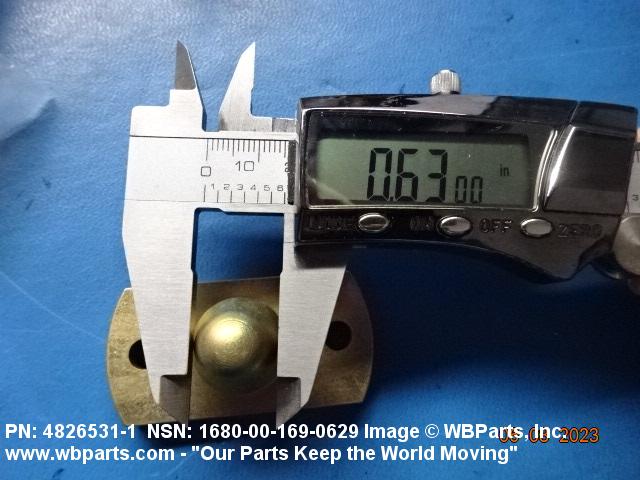

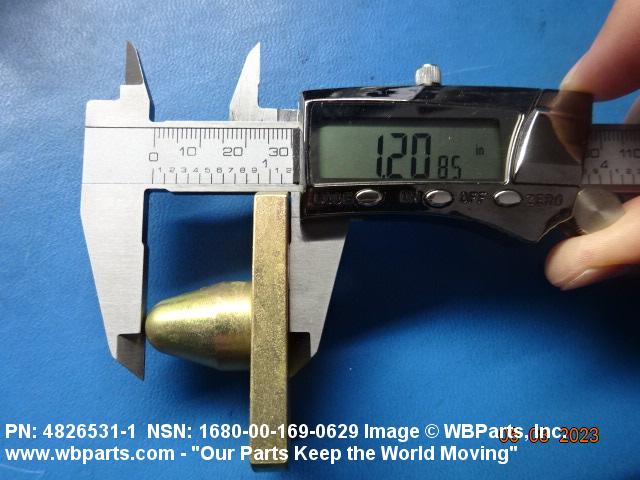

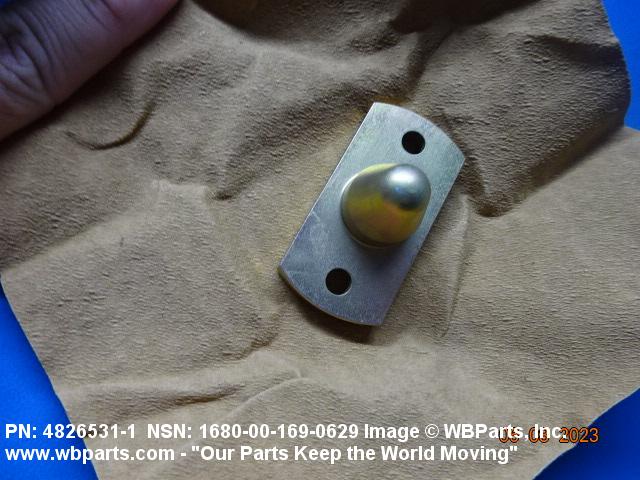

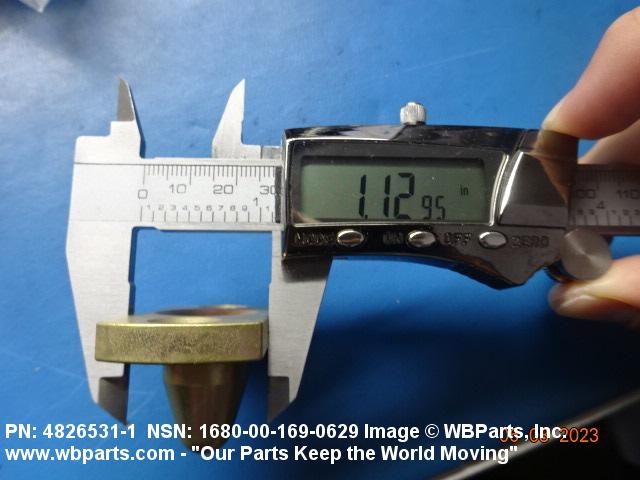

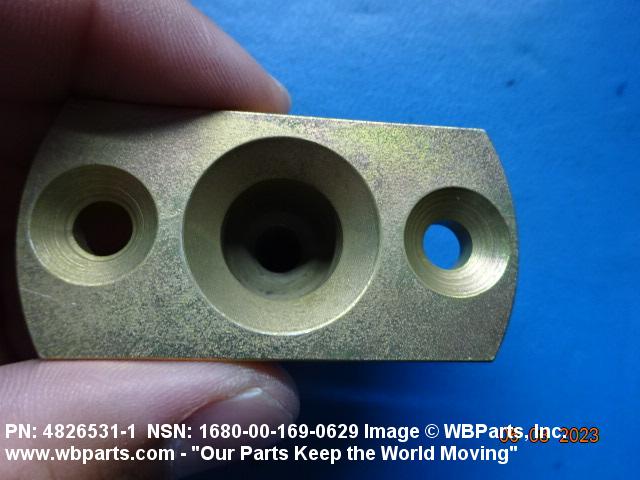

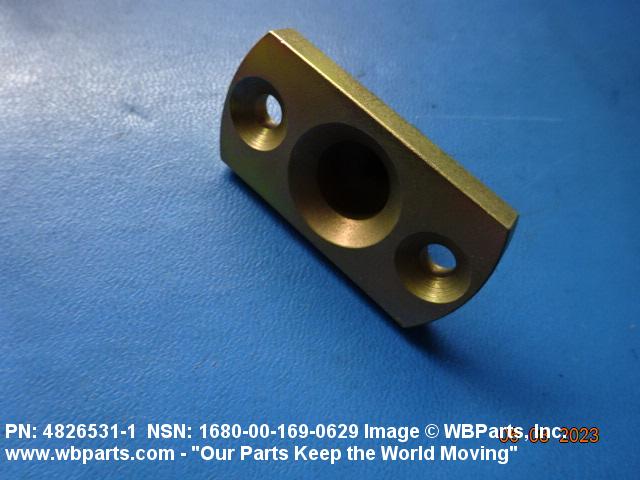

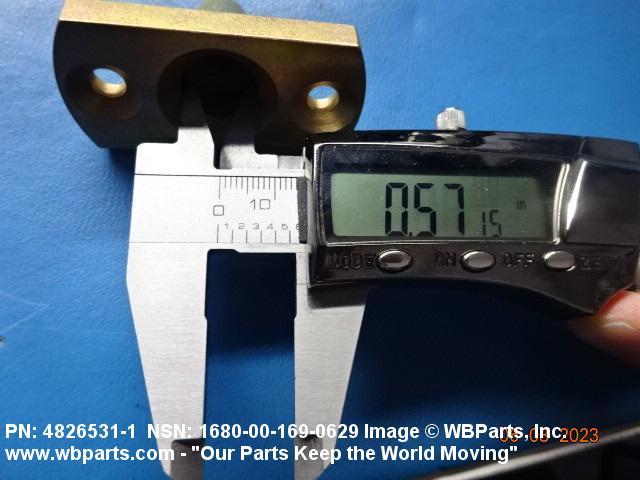

Drawings & Photos | NSN 1680-00-169-0629
Demand History | NSN 1680-00-169-0629
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1680-00-169-0629 | 2024-10-283 | 202 | DIBBS |
| 1680-00-169-0629 | 2024-06-171 | 200 | DIBBS |
| 1680-00-169-0629 | 2023-12-353 | 250 | DIBBS |
| 1680-00-169-0629 | 2023-06-158 | 900 | United States |
| 1680-00-169-0629 | 2023-05-142 | 40 | United States |
| 1680-00-169-0629 | 2023-05-136 | 450 | DIBBS |
| 1680-00-169-0629 | 2023-04-101 | 200 | DIBBS |
| 1680-00-169-0629 | 2023-03-71 | 297 | DIBBS |
| 1680-00-169-0629 | 2017-09-257 | 295 | DIBBS |
| 1680-00-169-0629 | 2017-01-13 | 16 | US |
| 1680-00-169-0629 | 2016-08-221 | 420 | US |
| 1680-00-169-0629 | 2006-05-125 | 1600 | DIBBS |
Cross Reference | NSN 1680-00-169-0629
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4826531-1 | 88277 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1680-00-169-0629
Related Products | NSN 1680-00-169-0629
Technical Data | NSN 1680-00-169-0629
| Characteristic | Specifications |
|---|---|
| GENERAL CHARACTERISTICS ITEM DESCRIPTION | STEEL,MIL-S-5000 COMP E4340,1.125 IN. WIDE,2 MOUNTING HOLES 0.267 IN. MIN 0.275 IN. MAX DIA THREADED |
| MANUFACTURERS CODE | 88277 |
| DESIGN CONTROL REFERENCE | 4826531-1 |
Restrictions/Controls & Freight Information | NSN 1680-00-169-0629
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093600 | BRACKETS/BUSHINGS/JOINTS/MOUNTS ETC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1680-00-169-0629
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
