Product Details | SAFETY ALERT COVER

1670-01-061-5086

Part Alternates: S1344 , S-1344, 1670-01-061-5086, 01-061-5086, 1670010615086, 010615086

Aircraft Components and Accessories | Parachutes; Aerial Pick Up, Delivery, Recovery Systems; and Cargo Tie Down Equipment

Supply Group (FSG) NSN Assign. NIIN
16 22 JUN 1978 01-061-5086

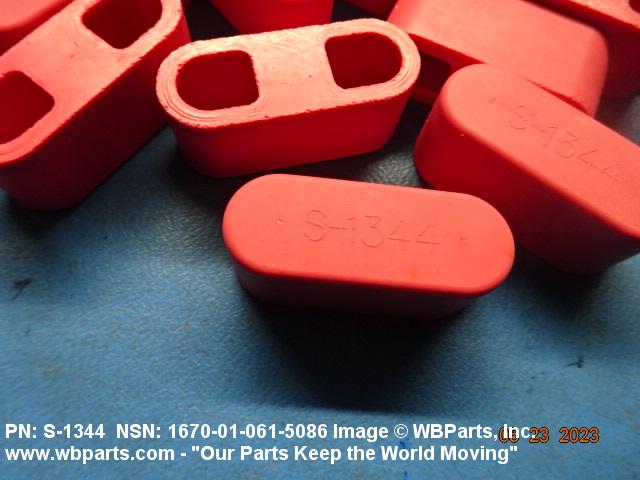

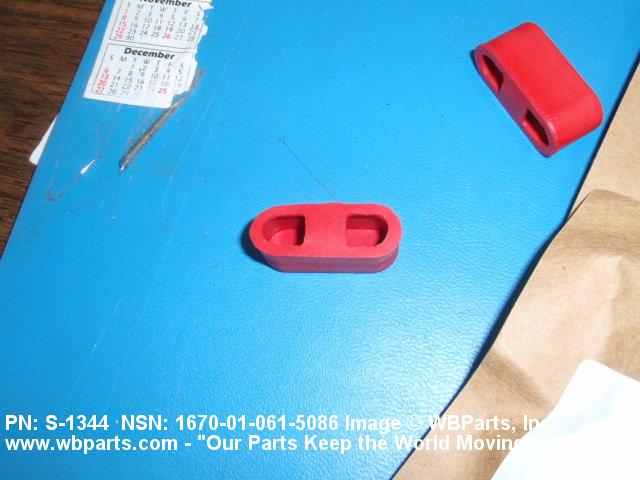

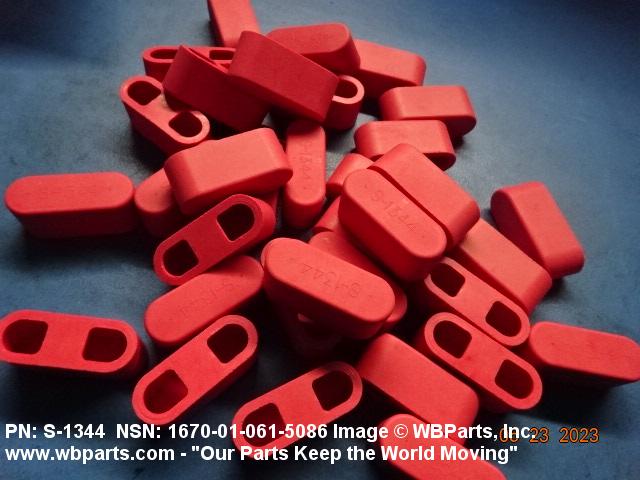

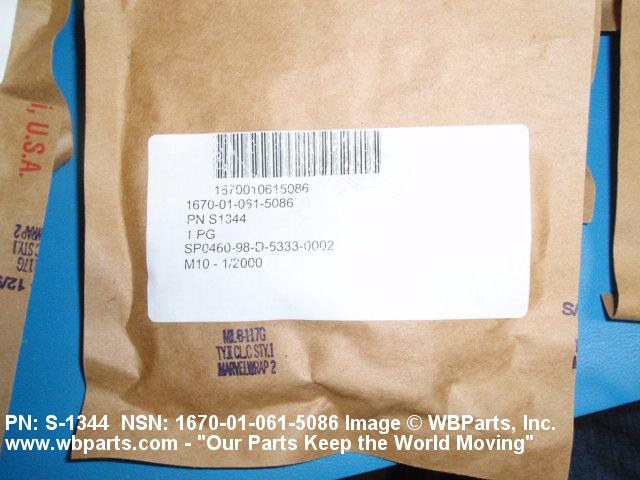

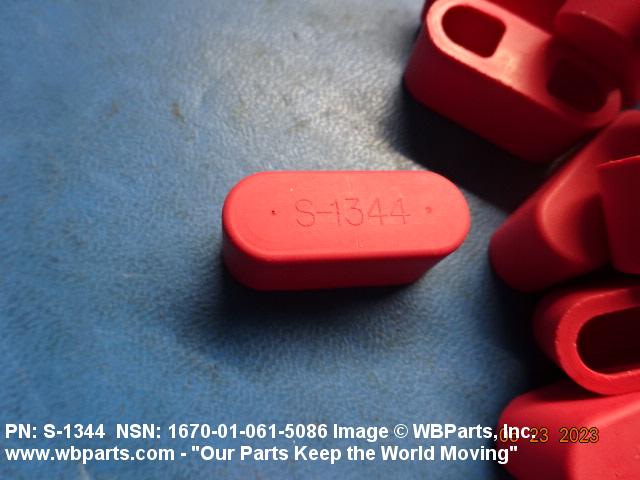

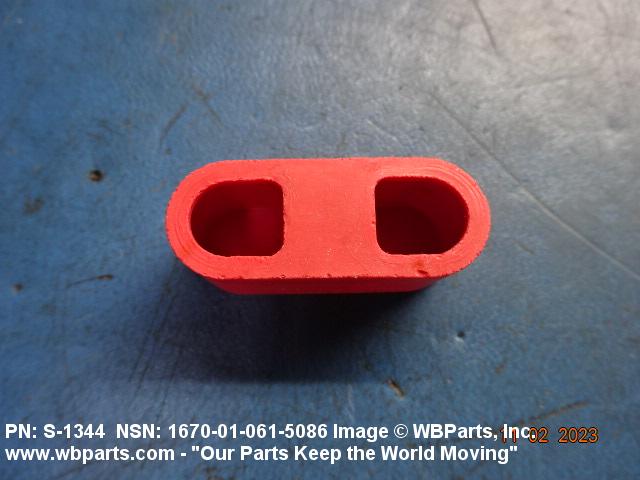

Drawings & Photos | NSN 1670-01-061-5086


Demand History | NSN 1670-01-061-5086

Part Number Request Date QTY Origin
1670-01-061-5086 2023-10-286 102 Taiwan
1670-01-061-5086 2023-03-73 34 Taiwan
1670-01-061-5086 2022-08-228 1500 Singapore
1670-01-061-5086 2022-08-214 70 Taiwan
1670-01-061-5086 2021-02-53 40 US
1670-01-061-5086 2021-02-42 1 DIBBS-RFPs
1670-01-061-5086 2020-10-296 1 DIBBS-RFPs
1670-01-061-5086 2019-12-356 20 United States
1670-01-061-5086 2019-02-49 1400 Singapore
1670-01-061-5086 2015-09-256 1205 DIBBS
1670-01-061-5086 2015-08-224 1 DIBBS-RFPs
1670-01-061-5086 2015-06-160 7142 DIBBS
1670-01-061-5086 2015-05-124 3769 DIBBS
1670-01-061-5086 2015-03-77 1256 DIBBS
1670-01-061-5086 2014-11-314 5453 DIBBS
1670-01-061-5086 2014-11-309 1363 DIBBS
1670-01-061-5086 2014-11-307 70 DIBBS
1670-01-061-5086 2014-11-307 115 DIBBS
1670-01-061-5086 2014-09-255 50 US
1670-01-061-5086 2014-08-241 1 DIBBS-RFPs
1670-01-061-5086 2012-04-108 20 US
1670-01-061-5086 2010-07-196 400 Singapore
1670-01-061-5086 2009-09-253 50 United States

Cross Reference | NSN 1670-01-061-5086

Part Number Cage Code Manufacturer
S1344 78673 SWITLIK PARACHUTE COMPANY INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 1670-01-061-5086

Technical Data | NSN 1670-01-061-5086

Characteristic Specifications

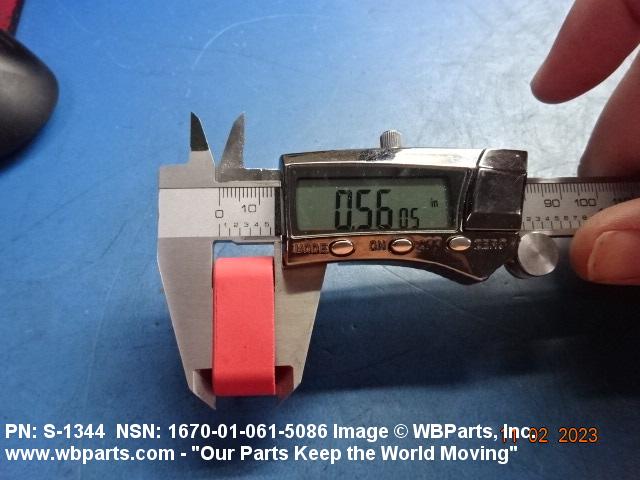

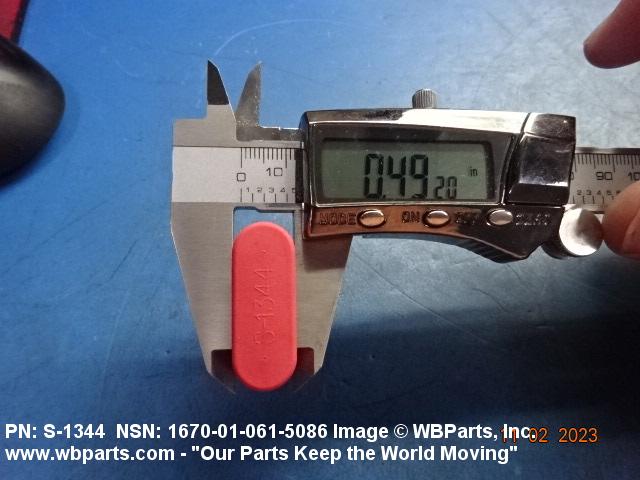

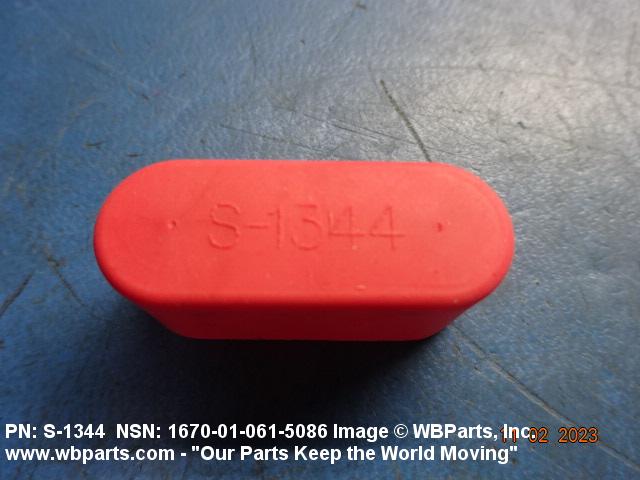

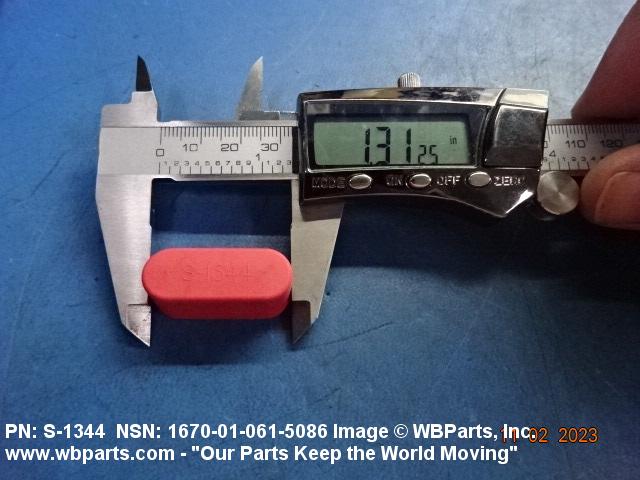

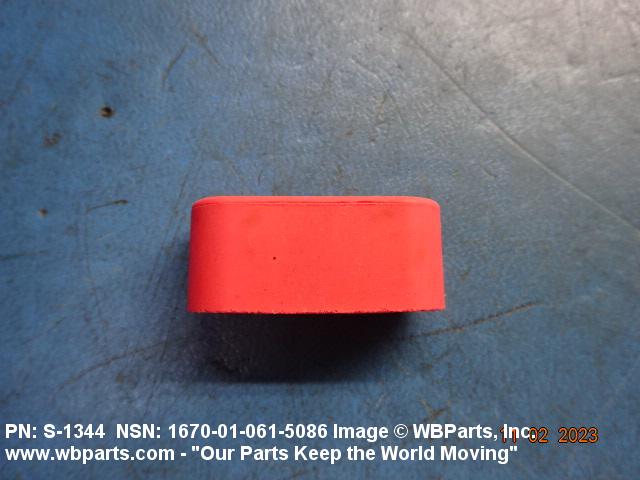

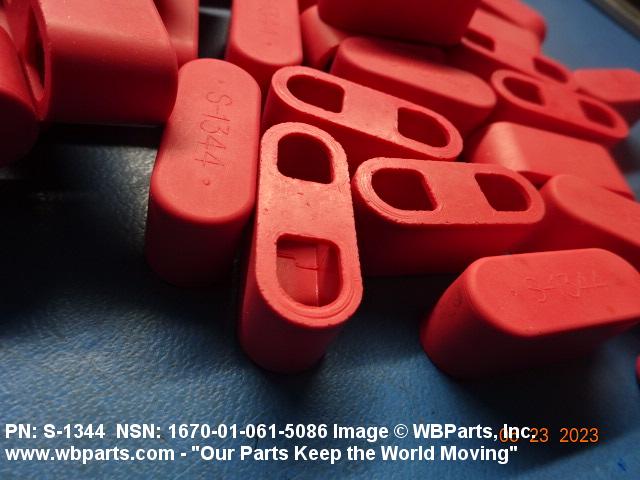

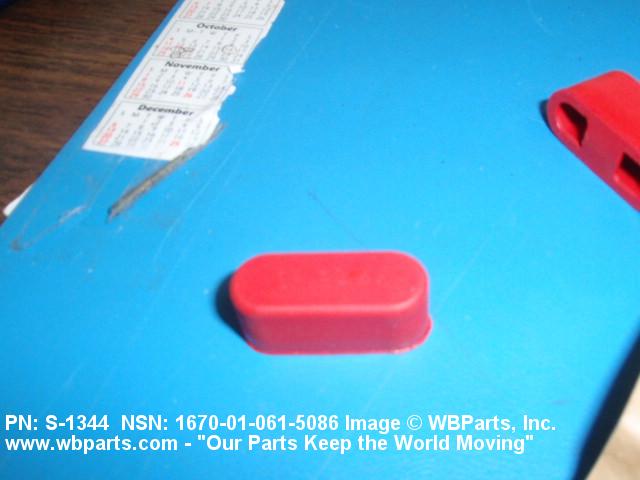

GENERAL CHARACTERISTICS ITEM DESCRIPTION NEOPRENE,RED,1.312 IN. LG,0.500 IN. W,0.562 IN. H
III END ITEM IDENTIFICATION P/O CONNECTOR LINK
MANUFACTURERS CODE 78673
DESIGN CONTROL REFERENCE S-1344

Restrictions/Controls & Freight Information | NSN 1670-01-061-5086

Category Code Description
Shelf-Life Code:S60 months
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:QStrategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.”
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 154610 PARACHUTES NOI
Less than car load rating W Rating Variable
Less than truck load rating F 150.0
Water commodity Code 722 unknown
Originating Activity Code SE San Antonio Air Logistics Center
Kelly AFB, TX 78241-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity K Clothing, including clothing equipment (other than arms and chemical supplies) cordage, fabrics and leather, parachutes, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 1670-01-061-5086

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation CodeMHTG:LIFE SUPPORT SYSTEM 412A
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life CodeS60 months
Purchasing QTY
UOM
1
PG : Package
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life CodeS60 months
Purchasing QTY
UOM
1
PG : Package
