NSN 1660-01-504-9323 173785, 01-504-9323, 015049323
Product Details | COMPRESSED GAS CYLINDER VALVE CONNECTIONS ADAPTER
1660-01-504-9323 An adapter designed to connect a compressed gas cylinder valve outlet to a regulator, charging connection, or other mating part having a different connection for the same gas.20416600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment42200038Marine Lifesaving and Diving Equipment42400027Safety and Rescue Equipment81200039Commercial and Industrial Gas Cylinders
Part Alternates: 173785, 1660-01-504-9323, 01-504-9323, 1660015049323, 015049323
Aircraft Components and Accessories | Aircraft Air Conditioning, Heating, and Pressurizing Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 13 FEB 2003 | 01-504-9323 | 21309 ( ADAPTER, COMPRESSED GAS CYLINDER VALVE CONNECTIONS ) |
Drawings & Photos | NSN 1660-01-504-9323
Demand History | NSN 1660-01-504-9323
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 173785 | 2019-01-03 | 1 | Germany |
| 173785 | 2018-04-102 | 1 | Germany |
| 173785 | 2017-05-139 | 3 | Germany |
| 173785 | 2017-05-128 | 2 | Germany |
| 173785 | 2016-03-63 | 1 | Germany |
| 1660-01-504-9323 | 2013-11-331 | 1 | ES |
| 1660-01-504-9323 | 2013-05-126 | 2 | DK |
| 1660-01-504-9323 | 2013-05-126 | 2 | DK |
| 1660-01-504-9323 | 2013-04-91 | 10 | United States |
| 1660-01-504-9323 | 2013-02-37 | 1 | ES |
| 1660-01-504-9323 | 2012-01-23 | 1 | AT |
| 173785 | 2011-02-45 | 3 | US |
| 1660-01-504-9323 | 2010-06-159 | 1 | Russian Federation |
| 1660-01-504-9323 | 2010-02-39 | 6 | Canada |
| 1660-01-504-9323 | 2008-04-92 | 1 | US |
Cross Reference | NSN 1660-01-504-9323
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 173785 | 16827 | BE AEROSPACE, INC. DIV LIFE SUPPORT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1660-01-504-9323
Technical Data | NSN 1660-01-504-9323
| Characteristic | Specifications |
|---|---|
| MATERIAL | BRASS |
| SPECIFIC GAS FOR WHICH DESIGNED | OXYGEN |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL GAS CYLINDER |

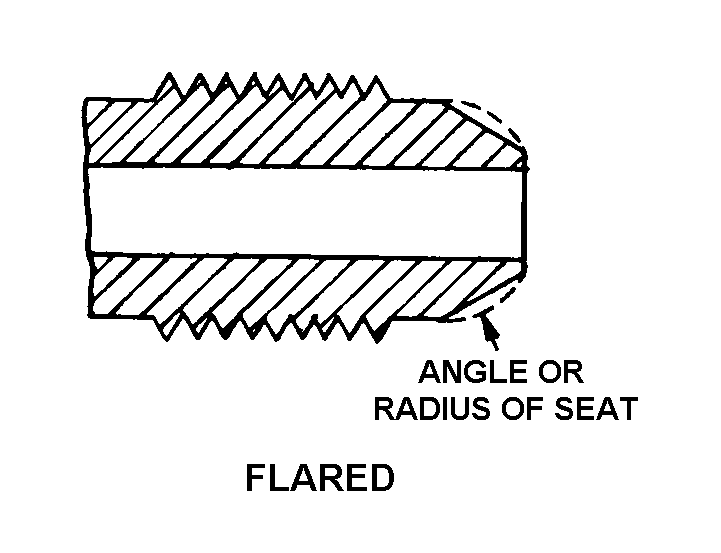

| FIRST END STYLE DESIGNATOR | 43 FLARED |
| FIRST END THREAD SIZE | 1/2-20 |
| FIRST END THREAD SERIES/TYPE DESIGNATOR | UNF |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END REDUCED PASSAGE INSIDE DIAMETER | 0.3125 INCHES NOMINAL |

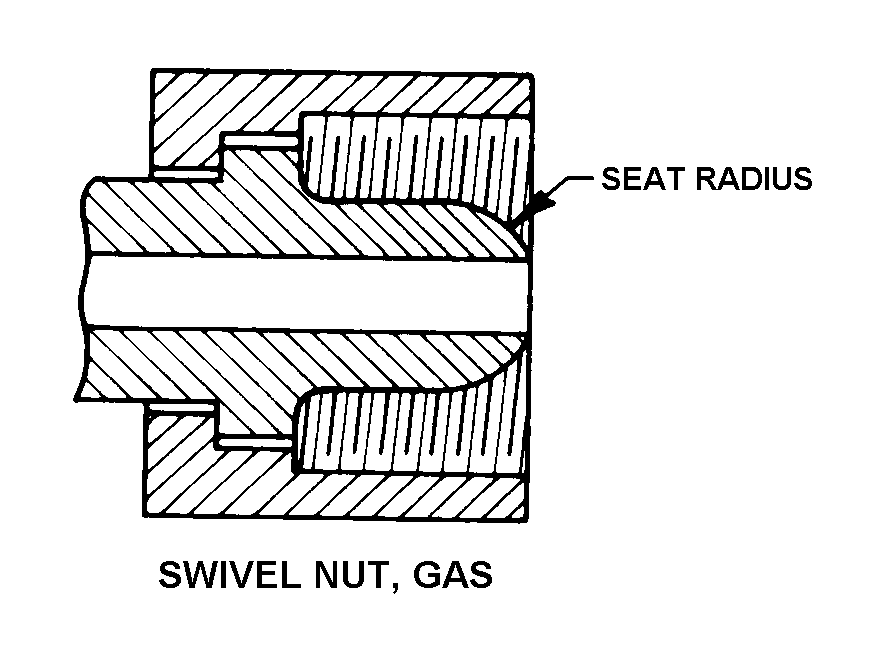

| SECOND END STYLE DESIGNATOR | 16 SWIVEL NUT, GAS |
| SECOND END THREAD SIZE | 3/8-24 |
| SECOND END THREAD SERIES/TYPE DESIGNATOR | UNF |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| UNION END | NOT INCLUDED |
| WRENCHING FACILITY | NOT INCLUDED |
| OVERALL LENGTH | 2.300 INCHES MINIMUM AND 2.440 INCHES MAXIMUM |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | CHARGING ADAPTER 5/16 IN TUBE TO AND10089-3 |
Restrictions/Controls & Freight Information | NSN 1660-01-504-9323
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
