NSN 1660-01-140-8406 16VY1030022, 16VY103002-2, 62707631
Product Details | AIRCRAFT AIR TEM ELECTRICAL/ELECTRONIC CONTROL BOX
1660-01-140-8406 A metal inclosure which includes mounts and protects any quantity and/or combination of electrical/electronic devices such as resistors, relays, potentiometers, receptacles, rectifiers, bridge networks and the like. If electrical, it may not contain electronic tubes and/or resistors. It may have adjustment controls. Designed to produce an electrical signal to control air temperature for an aircraft cabin, cockpit, window, windshield and other comparments for the purpose of anti-icing, defogging or heating.
Part Alternates: 16VY1030022, 16VY103002-2, 62707631, 627076-3-1, 1660-01-140-8406, 01-140-8406, 1660011408406, 011408406
Aircraft Components and Accessories | Aircraft Air Conditioning, Heating, and Pressurizing Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 19 OCT 1982 | 01-140-8406 | 42426 ( CONTROL BOX, ELECTRICAL-ELECTRONIC, AIRCRAFT AIR TEMPERATURE ) |

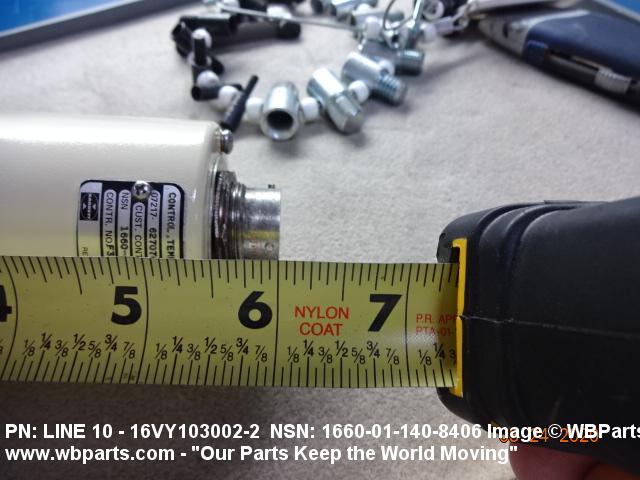

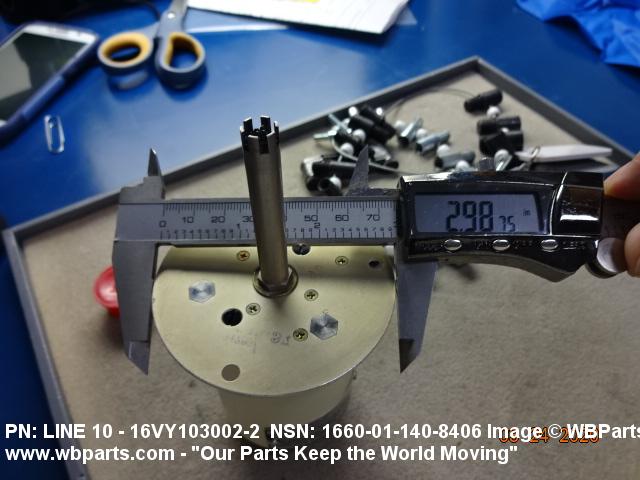

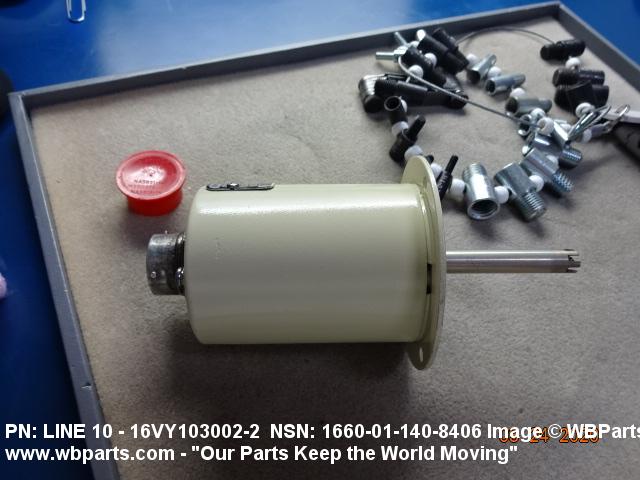

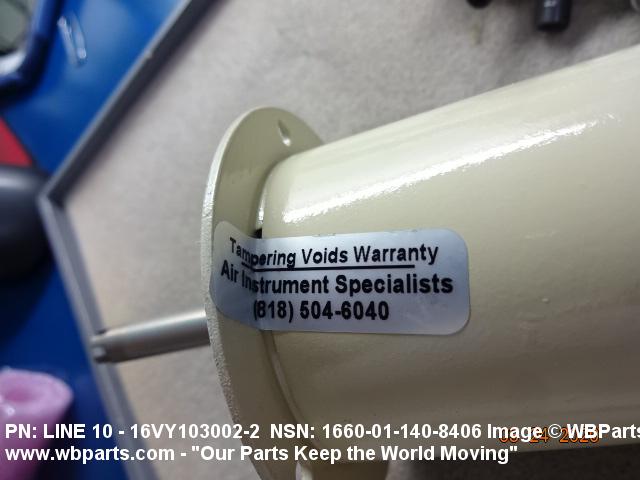

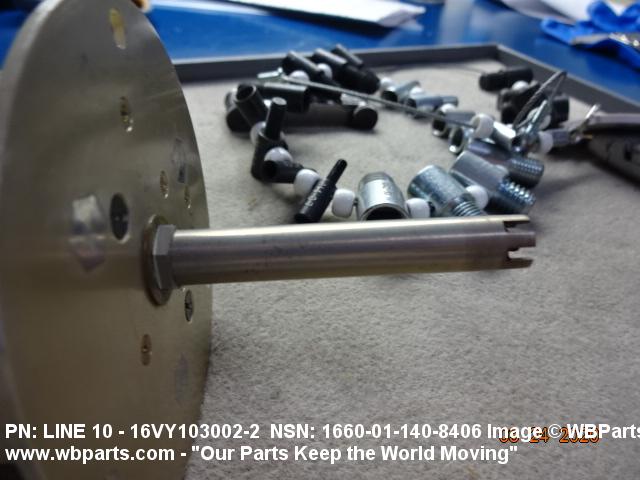

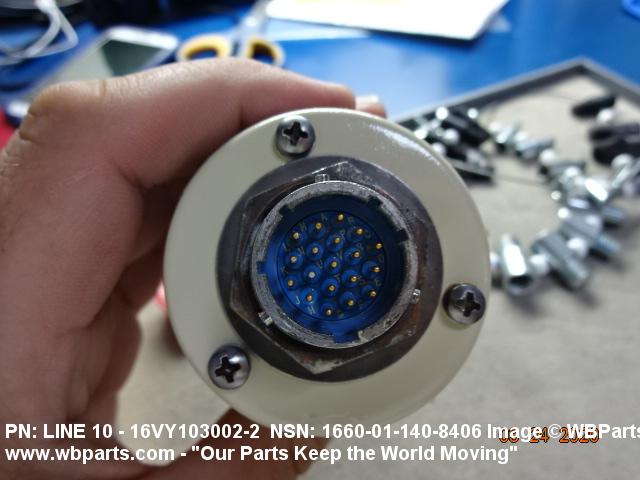

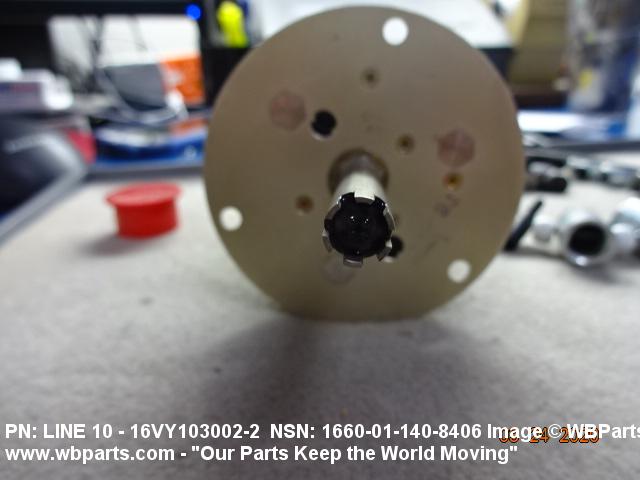

Drawings & Photos | NSN 1660-01-140-8406
Demand History | NSN 1660-01-140-8406
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 16VY1030022 | 2020-02-49 | 1 | United States |
| 16VY1030022 | 2020-02-43 | 1 | United States |
| 1660-01-140-8406 | 2018-04-106 | 5 | Portugal |
| 1660-01-140-8406 | 2017-04-114 | 1 | US |
| 627076-3-1 | 2015-08-219 | 3 | |
| 1660-01-140-8406 | 2015-08-218 | 3 | NECO |
| 62707631 | 2015-05-142 | 1 | PL |
| 1660-01-140-8406 | 2015-04-98 | 1 | MANUAL |
| 627076-3-1 | 2015-04-98 | 1 | US |
| 1660011408406 | 2015-01-16 | 1 | PL |
| 62707631 | 2013-05-127 | 1 | US |
| 1660-01-140-8406 | 2013-03-78 | 1659 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1660-01-140-8406
Related Products | NSN 1660-01-140-8406
Technical Data | NSN 1660-01-140-8406
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | O/A DIMS 3.000 IN. OD MAX; 6.280 IN. LG |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | SENSOR,CONTROLLER |
| MANUFACTURERS CODE | 07217 |
| DESIGN CONTROL REFERENCE | 627076-3-1 |
Restrictions/Controls & Freight Information | NSN 1660-01-140-8406
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061480 | CONTROLLERS/PARTS NOI O/T PLASTIC |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1660-01-140-8406
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | FHZ | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7R | Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia |
| Special Material ID | FB | FIGHTERAIRCRAFT(F-16N) |
| Issue Repair, or Requisition | AR | Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
