NSN 1660-00-783-1137 202706, 00-783-1137, 007831137
Product Details | AIRCRAFT COOLING TURBINE IMPELLER WHEEL

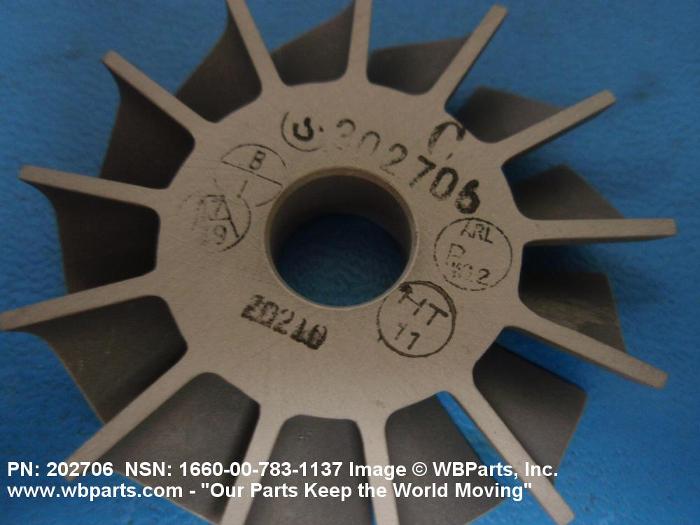

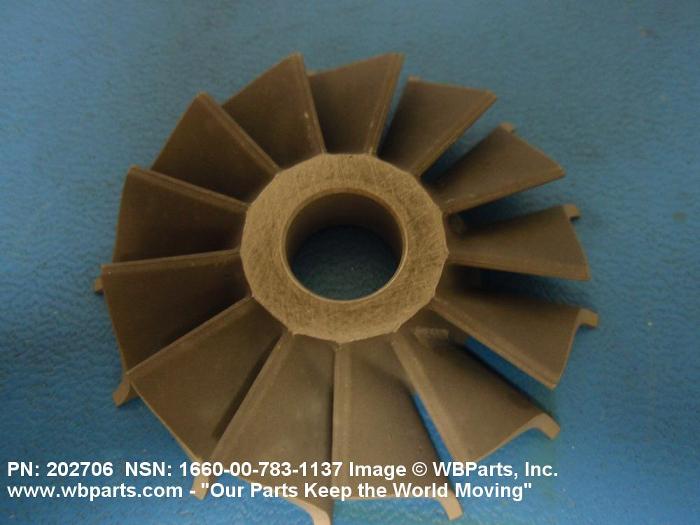

1660-00-783-1137 An item consisting of blades, vanes or paddles equally spaced around the periphery or face of a hub, rotor or wheel. It is turbine wheel or shaft driven. Designed primarily as a means for absorbing the energy and to act as a governing force for a turbine wheel. Also aids in drawing ram air through a heat exchanger. May be used to compress the air required to drive the turbine wheel. It is a rotating part of an aircraft cooling turbine.
Part Alternates: 202706, 1660-00-783-1137, 00-783-1137, 1660007831137, 007831137
Aircraft Components and Accessories | Aircraft Air Conditioning, Heating, and Pressurizing Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1962 | 00-783-1137 | 61421 ( IMPELLER WHEEL, AIRCRAFT COOLING TURBINE ) |

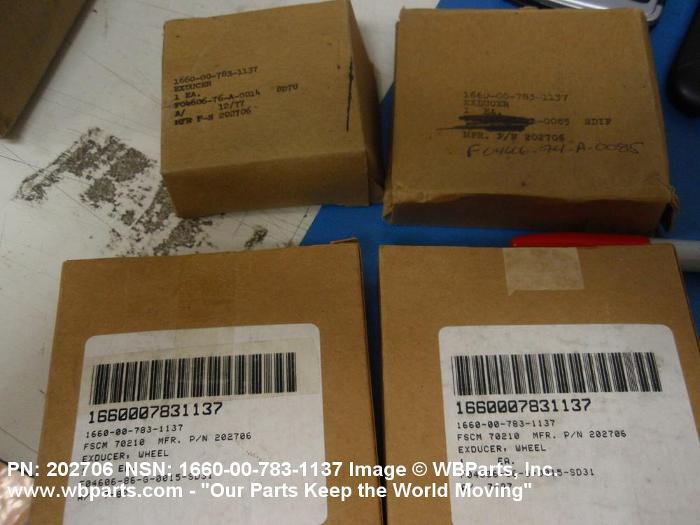

Drawings & Photos | NSN 1660-00-783-1137
Demand History | NSN 1660-00-783-1137
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1660-00-783-1137 | 2011-04-94 | 0 | United States |
| 1660-00-783-1137 | 2011-01-04 | 23 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1660-00-783-1137
Related Products | NSN 1660-00-783-1137
Technical Data | NSN 1660-00-783-1137
| Characteristic | Specifications |
|---|---|
| BLADE QUANTITY | 13 |
| SPECIAL FEATURES | ALUMINUM ALLOY,AIRSEARCH EMS410,COND T4; 2.211 IN. MIN. TO 2.217 IN. MAX. OD; 0.472 IN. ID; 0.354 IN. MIN. TO 0.358 IN. MAX. H; ROTATION COUNTER CLOCKWISE |
| FSC APPLICATION DATA | HEAT AND VENT SYSTEM,AIR CONDITIONING,AIRCRAFT |
| MANUFACTURERS CODE | 70210 |
| DESIGN CONTROL REFERENCE | 202706 |
Restrictions/Controls & Freight Information | NSN 1660-00-783-1137
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1660-00-783-1137
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
