NSN 1660-00-136-6603 8010541, 801054-1, 00-136-6603
Product Details | AIRCRAFT COOLING TURBINE TURBINE WHEEL
1660-00-136-6603 An item consisting of blades or vanes equally spaced around the periphery or face of a hub, rotor or wheel. Designed to receive the energy of compressed air directed through nozzle vanes and impinged upon the blades of the turbine wheel creating rotary energy and motion. Drives an impeller or fan and discharges cool air. Consists of a single one piece wheel. It is a rotating part of an aircraft cooling turbine.
Part Alternates: 8010541, 801054-1, 1660-00-136-6603, 00-136-6603, 1660001366603, 001366603
Aircraft Components and Accessories | Aircraft Air Conditioning, Heating, and Pressurizing Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 17 JAN 1969 | 00-136-6603 | 61430 ( TURBINE WHEEL, AIRCRAFT COOLING TURBINE ) |

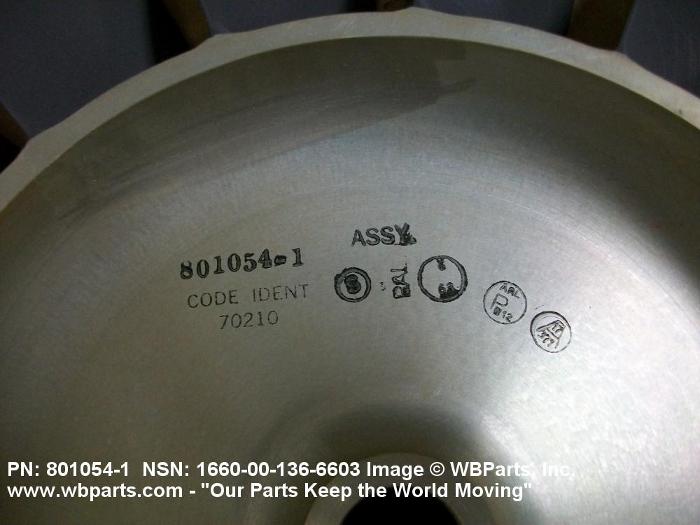

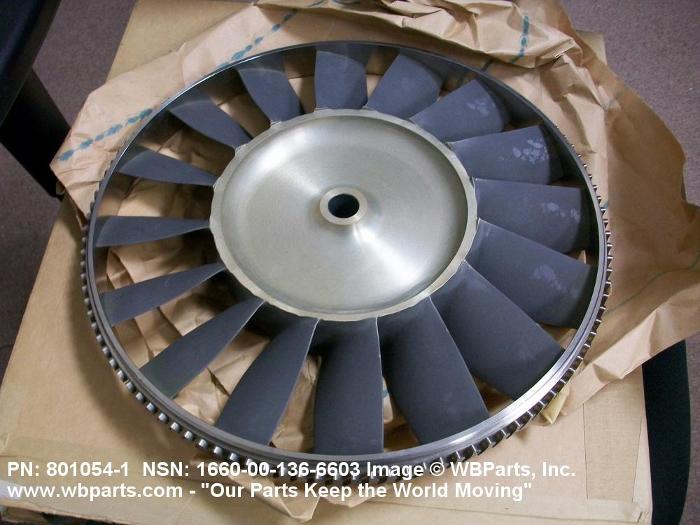

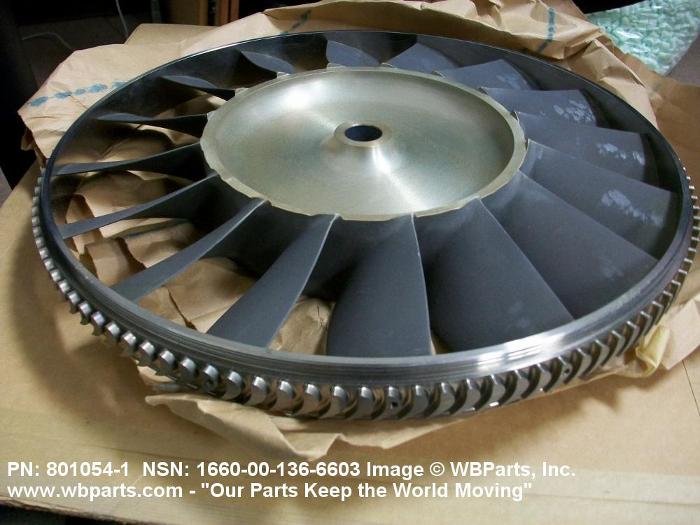

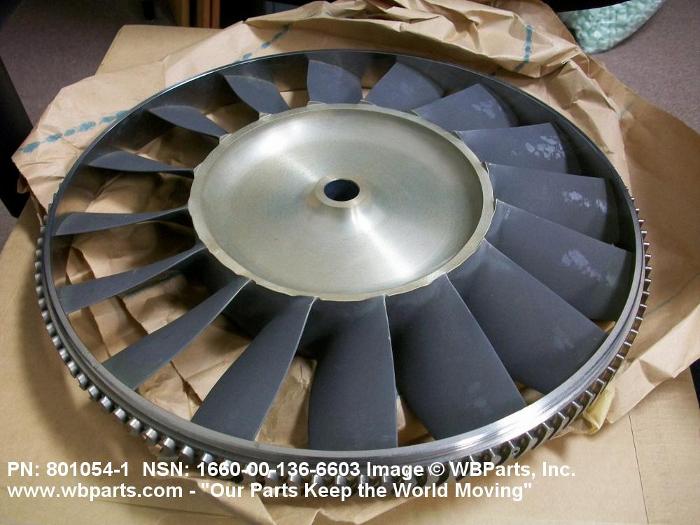

Drawings & Photos | NSN 1660-00-136-6603
Demand History | NSN 1660-00-136-6603
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1660-00-136-6603 | 2020-05-151 | 1 | United States |
| 1660-00-136-6603 | 2020-02-57 | 1 | US |
| 801054-1 | 2019-08-213 | 2 | DIBBS |
| 801054-1 | 2019-07-202 | 2 | DIBBS |
| 801054-1 | 2019-05-136 | 2 | DIBBS |
| 801054-1 | 2019-04-93 | 10 | DIBBS |
| 1660-00-136-6603 | 2018-12-340 | 3 | DIBBS |
| 1660-00-136-6603 | 2017-05-122 | 3 | DIBBS |
| 1660-00-136-6603 | 2011-12-349 | 0 | United States |
| 1660-00-136-6603 | 2011-12-346 | 2 | United States |
| 1660-00-136-6603 | 2011-12-339 | 2 | DIBBS |
| 1660-00-136-6603 | 2011-09-263 | 3 | DIBBS |
| 1660-00-136-6603 | 2011-09-259 | 0 | United States |
| 1660-00-136-6603 | 2011-01-20 | 2 | DIBBS |
Cross Reference | NSN 1660-00-136-6603
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 801054-1 | 70210 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1660-00-136-6603
Technical Data | NSN 1660-00-136-6603
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | 13.327 IN. OD; 0.750 IN. BORE DIA,USED ON P/N 801210-1-1 TURBINE |
| MANUFACTURERS CODE | 70210 |
| DESIGN CONTROL REFERENCE | 801054-1 |
Restrictions/Controls & Freight Information | NSN 1660-00-136-6603
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 011790 | AIRCRAFT PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1660-00-136-6603
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
