NSN 1660-00-071-9388 104506, 00-071-9388, 000719388
Product Details | COMPRESSED GAS CYLINDER VALVE CONNECTIONS ADAPTER
1660-00-071-9388 An adapter designed to connect a compressed gas cylinder valve outlet to a regulator, charging connection, or other mating part having a different connection for the same gas.20416600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment42200038Marine Lifesaving and Diving Equipment42400027Safety and Rescue Equipment81200039Commercial and Industrial Gas Cylinders
Part Alternates: 104506, 1660-00-071-9388, 00-071-9388, 1660000719388, 000719388
Aircraft Components and Accessories | Aircraft Air Conditioning, Heating, and Pressurizing Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 20 JUL 1967 | 00-071-9388 | 21309 ( ADAPTER, COMPRESSED GAS CYLINDER VALVE CONNECTIONS ) |
Drawings & Photos | NSN 1660-00-071-9388
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1660-00-071-9388
Technical Data | NSN 1660-00-071-9388
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM |
| FIRST END CONNECTION TYPE | THREADED INTERNAL GAS CYLINDER |

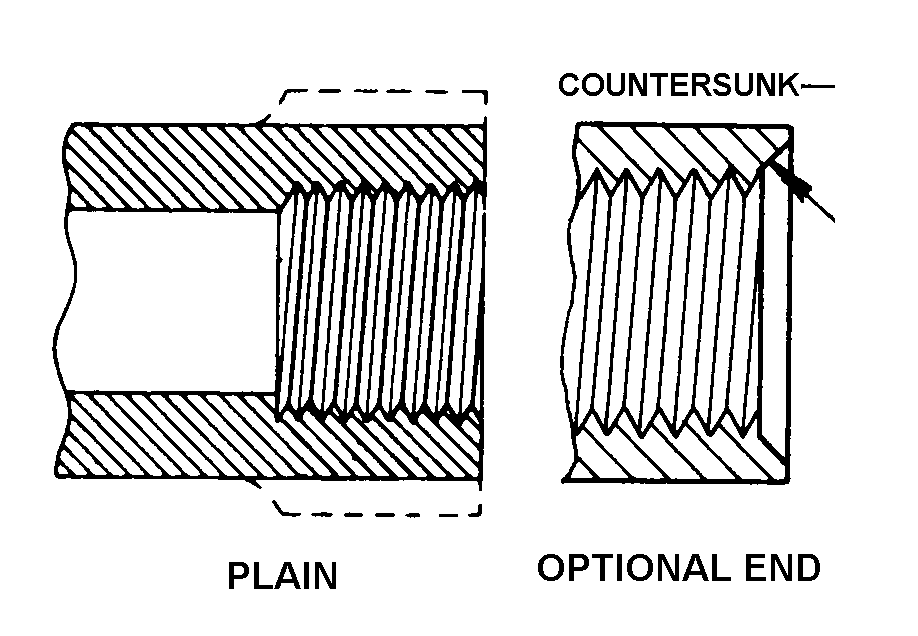

| FIRST END STYLE DESIGNATOR | 4 PLAIN |
| FIRST END THREAD SIZE | 1/4-28 |
| FIRST END THREAD SERIES/TYPE DESIGNATOR | UNF |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| UNION END | NOT INCLUDED |
| WRENCHING FACILITY | NOT INCLUDED |
| OVERALL LENGTH | 4.970 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 1660-00-071-9388
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
