Product Details | AIRCRAFT HYDRAULIC SWIVEL JOINT

1650-01-549-8008 A mechanical fluid passage joint designed for linkage of aircraft rigid hydraulic lines and components subject to pivotal, linear, or rotational position changes. The device allows two-directional flow of high pressure fluid and permits single plane rotation upon its axis. It may also allow for angular movement. Excludes SWIVEL JOINT, PIPE; and SWIVEL JOINT, TUBE.

Part Alternates: AE95614G, 1650-01-549-8008, 01-549-8008, 1650015498008, 015498008

Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components

Supply Group (FSG) NSN Assign. NIIN
16 29 MAR 2007 01-549-8008

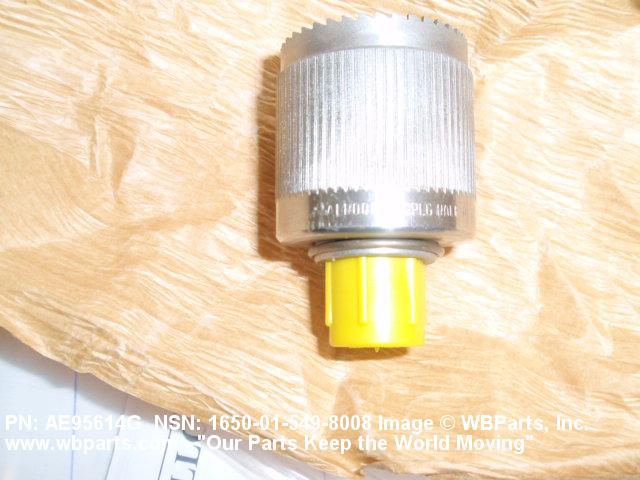

Drawings & Photos | NSN 1650-01-549-8008


Demand History | NSN 1650-01-549-8008

Part Number Request Date QTY Origin
AE95614G 2010-01-12 2 Canada

Cross Reference | NSN 1650-01-549-8008

Part Number Cage Code Manufacturer
AE95614G 00624 EATON CORPORATION DBA AEROSPACE DIV

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 1650-01-549-8008

Technical Data | NSN 1650-01-549-8008

Characteristic Specifications
III END ITEM IDENTIFICATION AIRCRAFT DC-10
III PART NAME ASSIGNED BY CONTROLLING AGENCY COUPLING

Restrictions/Controls & Freight Information | NSN 1650-01-549-8008

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
