NSN 1650-01-438-0582 708346, 01-438-0582, 014380582
Product Details | CYLINDER SLEEVE
1650-01-438-0582 A tubular metal item designed primarily as a replaceable wear surface within the cylinder bore of a piston type internal combustion engine, compressor, or reciprocating pump.20716500058Aircraft Hydraulic, Vacuum, and De-icing System Components28050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps43200020Power and Hand Pumps
Part Alternates: 708346, 1650-01-438-0582, 01-438-0582, 1650014380582, 014380582
Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 30 OCT 1996 | 01-438-0582 | 16756 ( CYLINDER SLEEVE ) |
Drawings & Photos | NSN 1650-01-438-0582
Cross Reference | NSN 1650-01-438-0582
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 708346 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1650-01-438-0582
Technical Data | NSN 1650-01-438-0582
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| METALLIC HARDNESS RATING | NOT RATED |
| DESIGN TYPE | WET |

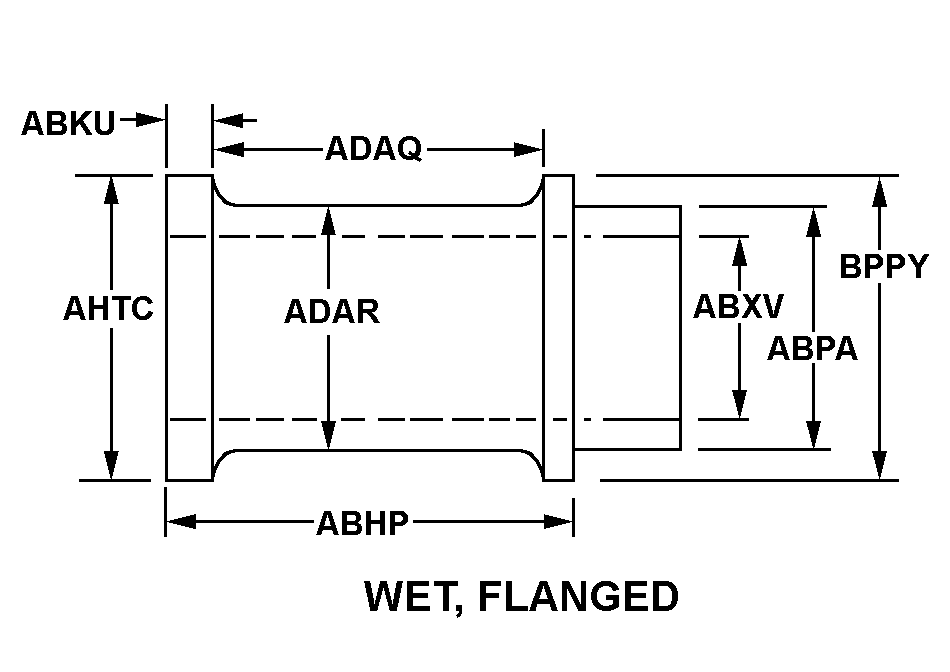

| STYLE DESIGNATOR | A13 WET, FLANGED |
| OVERALL LENGTH | 1.243 INCHES NOMINAL |
| FLANGE THICKNESS | 0.300 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.812 INCHES NOMINAL |
| BORE DIAMETER | 0.556 INCHES NOMINAL |
| BODY LENGTH | 0.136 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.756 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 0.922 INCHES NOMINAL |
| LARGEST OUTSIDE DIAMETER UNDER FLANGE | 0.922 INCHES NOMINAL |
| VALVE RECESS | NOT INCLUDED |
| TOP INSIDE CHAMFER | NOT INCLUDED |
| BOTTOM INSIDE CHAMFER | NOT INCLUDED |
| TOP INTAKE PORT | NOT INCLUDED |
| INTAKE HOLE | NOT INCLUDED |
| III END ITEM IDENTIFICATION | COAST GUARD HU25 CONSTANT SPEED MOTOR ASSEMBLY |
| MANUFACTURERS CODE | 99167 |
| DESIGN CONTROL REFERENCE | 708346 |
Restrictions/Controls & Freight Information | NSN 1650-01-438-0582
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
