NSN 1650-01-355-0581 DAA3122A002, DAA3122A00224, DAA3122A002-24
Product Details | LINEAR ACTUATING CYLINDER
1650-01-355-0581 A cylinder designed to house a piston and other necessary component parts of a CYLINDER ASSEMBLY, ACTUATING, LINEAR. Do not use if a more specific name applies.20411900057Specialized Test and Handling Equipment, Nuclear Ordnance16500058Aircraft Hydraulic, Vacuum, and De-icing System Components1710000030400042Miscellaneous Power Transmission Equipment
Part Alternates: DAA3122A002, DAA3122A00224, DAA3122A002-24, 1650-01-355-0581, 01-355-0581, 1650013550581, 013550581
Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 11 MAR 1992 | 01-355-0581 | 22017 ( CYLINDER, ACTUATING, LINEAR ) |
Drawings & Photos | NSN 1650-01-355-0581
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1650-01-355-0581
Technical Data | NSN 1650-01-355-0581
| Characteristic | Specifications |
|---|---|
| OVERALL DIAMETER | 4.930 INCHES NOMINAL |
| BORE DIAMETER | 2.493 INCHES NOMINAL |
| (NON-CORE DATA) FIRST PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| (NON-CORE DATA) SECOND PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| MOUNTING TYPE AND LOCATION | FLANGE CYLINDER HEAD END |
| MOUNTING PROVISION | UNTHREADED MOUNTING HOLES |
| MOUNTING PROVISION ARRANGEMENT STYLE | 31 SIX HOLE BOLT CIRCLE |
| MOUNTING FACILITY CIRCLE DIAMETER | 6.020 INCHES NOMINAL |
| PORT LOCATION AND QUANTITY | 1 CYLINDER HEAD END 1 PISTON ROD END |

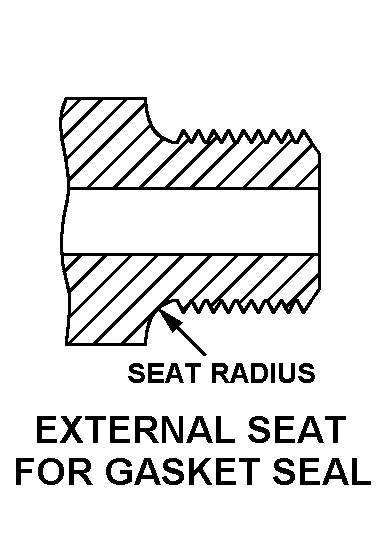

| PORT STYLE | 25 EXTERNAL SEAT FOR GASKET SEAL |
| PORT THREAD SERIES DESIGNATOR | UNJC |
| PORT THREAD DIAMETER | 0.112 INCHES NOMINAL |
| PORT THREAD QUANTITY PER INCH | 40 |
| PORT THREAD CLASS | 3B |
| SEAT RADIUS | 0.060 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 1650-01-355-0581
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 1650-01-355-0581
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BQ | TN:B-2 TSSP, NORTHROP GRUMMAN |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F59 | Northrop Grumman IS ACS 2501 Liberty Parkway, Suite 101 Midwest, OK 73110-2885 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
