NSN 1650-01-289-4686 HP13231002, HP1323100-2, 145HS6562
Product Details | HYDRAULIC ACCUMULATOR
1650-01-289-4686 An accumulator in which liquids are stored under pressure for momentary energy in a hydraulic system. Excludes ACCUMULATOR, HYDRAULIC, SQUIB ACTUATED.20716500058Aircraft Hydraulic, Vacuum, and De-icing System Components20900039Miscellaneous Ship and Marine Equipment25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components25900034Miscellaneous Vehicular Components30400042Miscellaneous Power Transmission Equipment44700016Nuclear Reactors49200058Aircraft Maintenance and Repair Shop Specialized Equipment
Part Alternates: HP13231002, HP1323100-2, 145HS6562, 145HS656-2, 145HS6562B, 145HS656-2B, 1650-01-289-4686, 01-289-4686, 1650012894686, 012894686
Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 23 NOV 1988 | 01-289-4686 | 20977 ( ACCUMULATOR, HYDRAULIC ) |

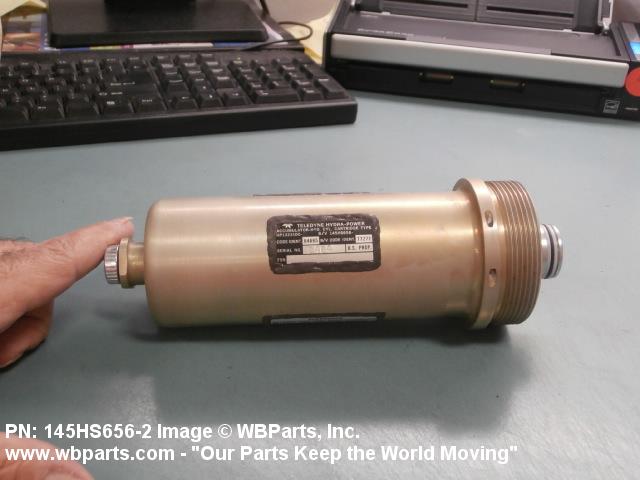

Drawings & Photos | NSN 1650-01-289-4686
Demand History | NSN 1650-01-289-4686
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HP13231002 | 2023-08-242 | 5 | US |
| 145HS6562 | 2023-08-221 | 5 | United Arab Emirates |
| 145HS6562 | 2020-10-294 | 4 | US |
| 145HS6562 | 2016-06-154 | 3 | US |
| 145HS656-2 | 2016-03-90 | 3 | KR |
| 1650-01-289-4686 | 2015-05-133 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1650-01-289-4686
Related Products | NSN 1650-01-289-4686
Technical Data | NSN 1650-01-289-4686
| Characteristic | Specifications |
|---|---|
| SHAPE | CYLINDRICAL |
| OVERALL LENGTH | 6.500 INCHES NOMINAL |
| OVERALL DIAMETER | 3.000 INCHES NOMINAL |
| PORT SCREW THREAD DIAMETER | 2.625 INCHES NOMINAL |
| PORT SCREW THREAD QUANTITY PER INCH | 12.000 |
| PORT SCREW THREAD SERIES DESIGNATOR | UNJF |
| THREAD CLASS | 3B |
| BLEEDER OPENING | NOT INCLUDED |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY SOURCE CONTROL DWG NO. 145HS656-2 |
| III END ITEM IDENTIFICATION | CH-47D HELICOPTER,CARGO-TR |
| MANUFACTURERS CODE | 77272 |
| MFR SOURCE CONTROLLING REFERENCE | 145HS656-2 |
| MANUFACTURERS CODE | 70236 |
| DESIGN CONTROL REFERENCE | HP1323100-2 |
Restrictions/Controls & Freight Information | NSN 1650-01-289-4686
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 125850 | MUFFLER/EXHAUST SYS/PIPE/ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1650-01-289-4686
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BK | CH-47 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | F | If condemned or uneconomically repairable, then dispose at Direct Support (DS) level. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9W | Navy-owned stocks of material managed by the Army within the Army Troop Support and Aviation Materiel Readiness Command Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | B17 | US Army Aviation and Missile Command (Air) ATTN: AMSMI-LC-MM-C Redstone Arsenal, AL 35898-5230 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
