NSN 1650-01-196-1405 M8815/20, M881520, MIL-F-8815/20

Product Details | FLUID FILTER ELEMENT

1650-01-196-1405 A replaceable device designed to remove solid particles from fluids ranging in density from heavy liquids to gases. The removal of particles is accomplished by porous material (metallic or non-metallic), stacked disks, wound wire, or the like, constructed so the fluid can flow through the device while the solid particles are retained. It may be designed to fit into a FILTER, FLUID (or similar cavity), or it may have an integral outer casing and mounting facilities and be designed to connect directly to an engine, compressor, or the like. The degree of removal of particles must be nominally rated at less than 50 microns or absolutely rated at less than 75 microns. Excludes FILTER ELEMENT, AIR CONDITIONING. See also STRAINER ELEMENT, SEDIMENT.20916500058Aircraft Hydraulic, Vacuum, and De-icing System Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters5999000065300053Hospital Furniture, Equipment, Utensils, and Supplies66300029Chemical Analysis Instruments

Part Alternates: M8815/20, M881520, MIL-F-8815/20, MILF881520, 2110376, 21-10376, 1650-01-196-1405, 01-196-1405, 1650011961405, 011961405

Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
16	07 DEC 1984	01-196-1405	32624 ( FILTER ELEMENT, FLUID )

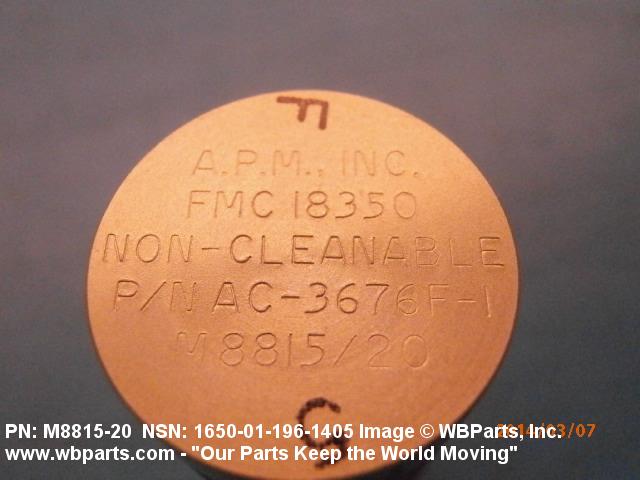

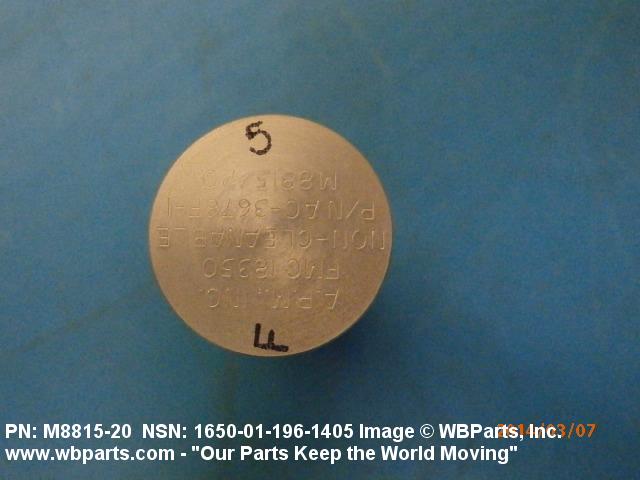

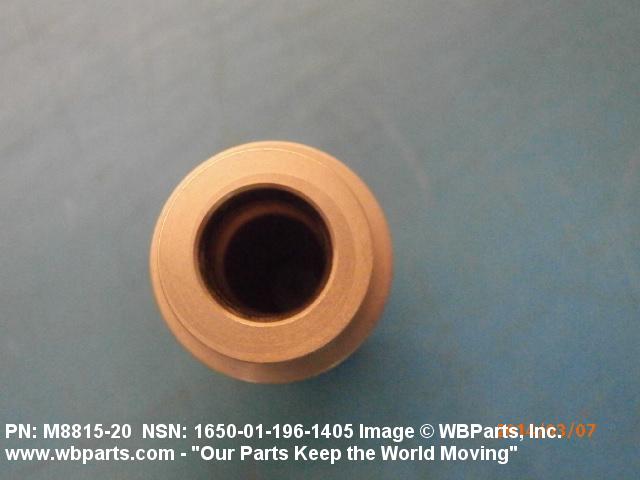

Drawings & Photos | NSN 1650-01-196-1405

Part Number	Request Date	QTY	Origin
1650-01-196-1405	2024-07-200	64	DIBBS
1650-01-196-1405	2024-03-80	104	DIBBS
1650-01-196-1405	2023-11-323	89	DIBBS
1650-01-196-1405	2023-09-255	1	US
1650-01-196-1405	2019-07-196	1	DIBBS-RFPs
1650-01-196-1405	2019-02-36	500	US
M881520	2018-11-324	1	United States
M881520	2018-06-170	1	Austria
M881520	2017-02-41	1	United States
1650-01-196-1405	2016-08-236	75	DIBBS
1650-01-196-1405	2016-03-67	1	DIBBS-RFPs
1650-01-196-1405	2015-01-05	150	DIBBS
1650-01-196-1405	2014-08-227	239	DIBBS
1650-01-196-1405	2014-05-143	239	DIBBS
1650-01-196-1405	2014-04-91	2	CL
1650-01-196-1405	2014-03-79	1	DIBBS-RFPs
1650-01-196-1405	2014-02-51	1	United States
1650-01-196-1405	2013-08-230	209	DIBBS
1650-01-196-1405	2012-09-258	134	DIBBS
1650-01-196-1405	2012-08-220	134	DIBBS
1650-01-196-1405	2011-04-116	161	DIBBS
1650-01-196-1405	2010-07-187	40	DIBBS
1650-01-196-1405	2010-04-99	15	DIBBS
1650-01-196-1405	2009-12-344	18	DIBBS
1650-01-196-1405	2009-11-307	4	DIBBS
1650-01-196-1405	2009-10-282	2	DIBBS

Cross Reference | NSN 1650-01-196-1405

Part Number	Cage Code	Manufacturer
21-10376	96124	TRANSDIGM INC DBA AEROCONTROLEX
M8815/20	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-F-8815/20	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 1650-01-196-1405

Compare

Related Products | NSN 1650-01-196-1405

1650-01-196-3613, 1650-01-196-3614, 1650-01-196-3616, 1650-01-196-3617, 1650-01-196-3618

Technical Data | NSN 1650-01-196-1405

Characteristic	Specifications
STYLE DESIGNATOR	A6 CYLINDRICAL W/OUT CONTAINER

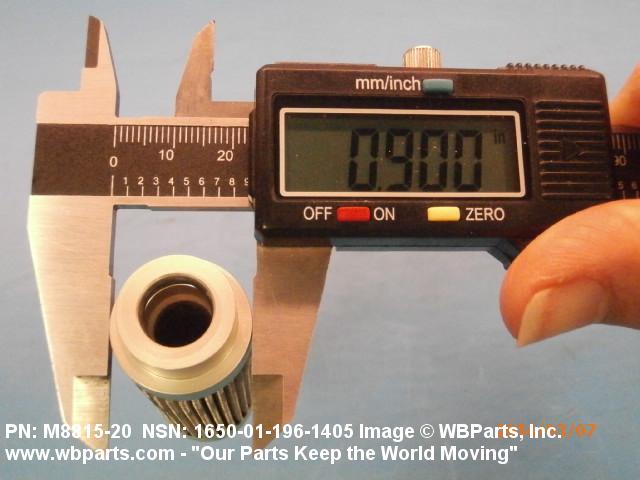

BODY DIAMETER	0.906 INCHES NOMINAL
BODY INSIDE DIAMETER	0.445 INCHES NOMINAL

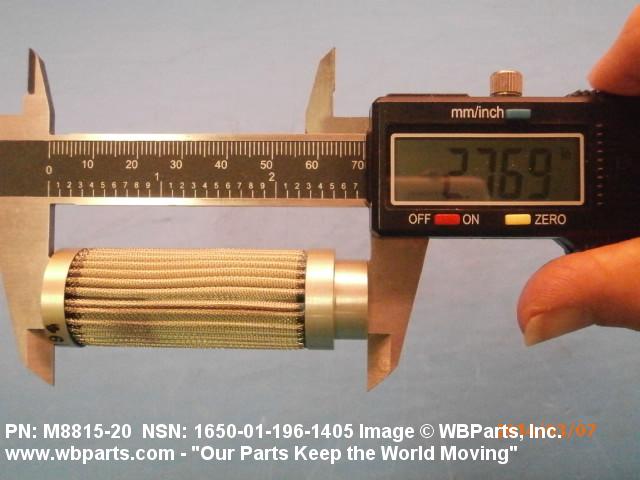

BODY OVERALL LENGTH	2.781 INCHES NOMINAL
