NSN 1650-01-172-3626 57977, 01-172-3626, 011723626
Product Details | LINEAR ACTUATING CYLINDER PISTON
1650-01-172-3626 A cylindrical item which moves or reciprocates in a linear actuating cylinder to convert fluid energy to mechanical force. It may include an integral rod.20611900057Specialized Test and Handling Equipment, Nuclear Ordnance11950030Miscellaneous Nuclear Ordnance16500058Aircraft Hydraulic, Vacuum, and De-icing System Components28350096Gas Turbines and Jet Engines; Non-Aircraft Prime Mover, Aircraft Non-Prime Mover, and Components28400068Gas Turbines and Jet Engines, Aircraft, Prime Moving; and Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: 57977, 1650-01-172-3626, 01-172-3626, 1650011723626, 011723626
Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 20 FEB 1984 | 01-172-3626 | 61724 ( PISTON, LINEAR ACTUATING CYLINDER ) |

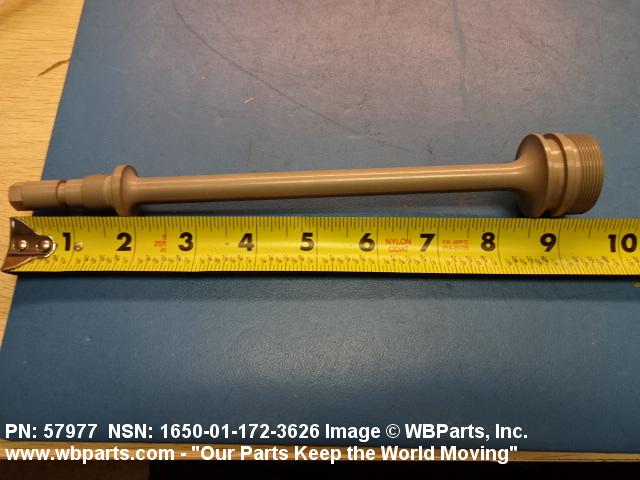

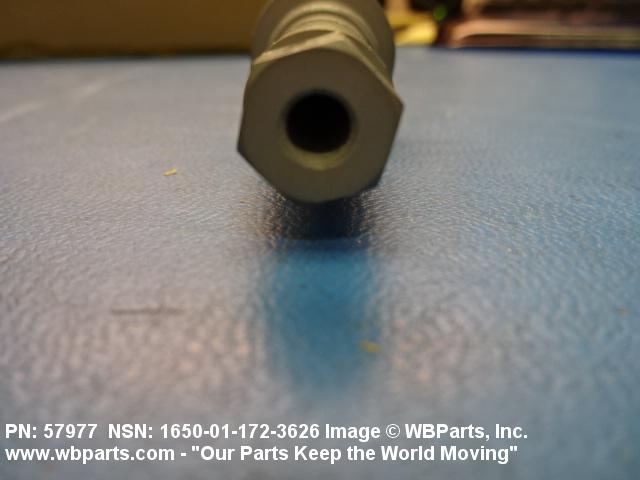

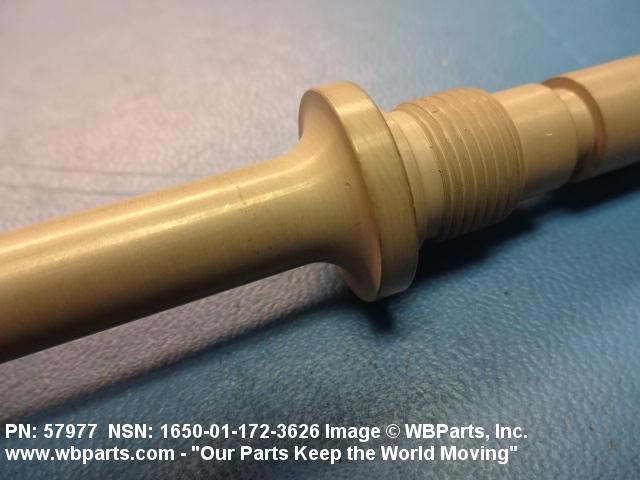

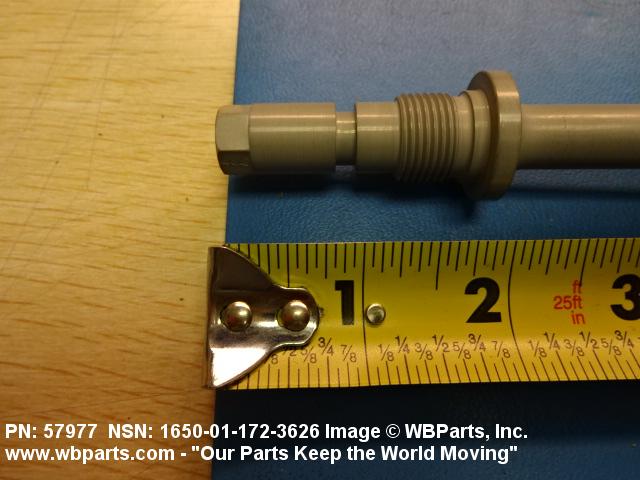

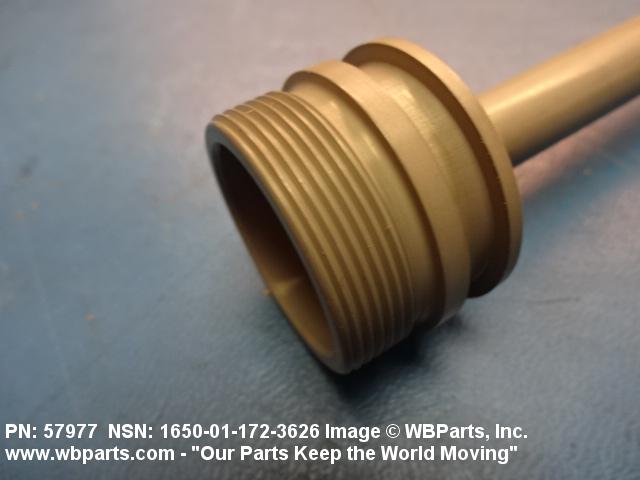

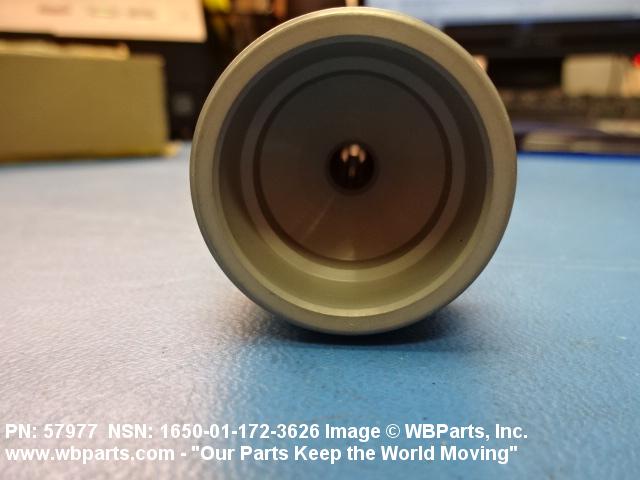

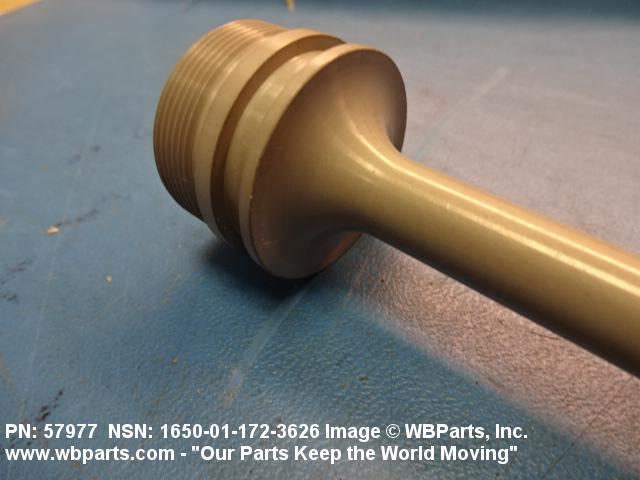

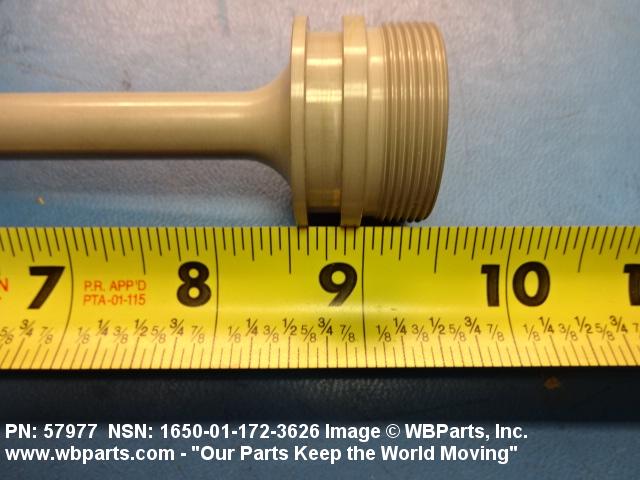

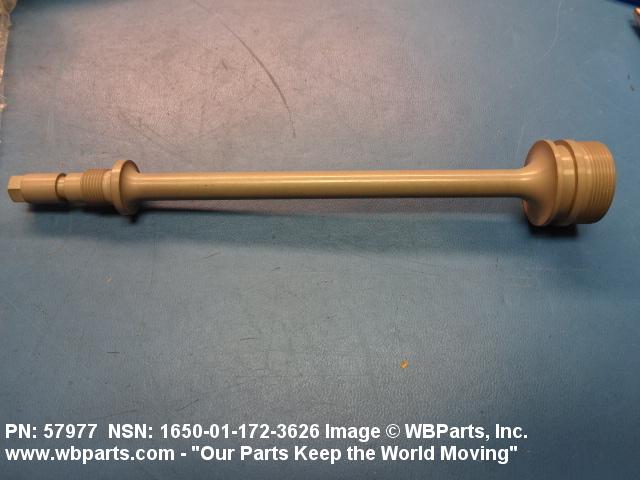

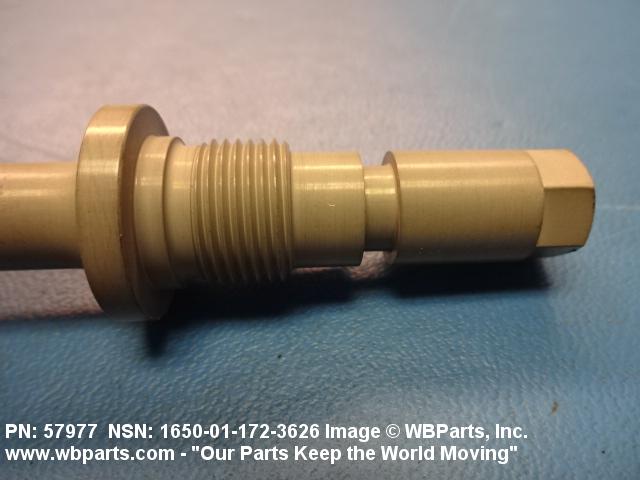

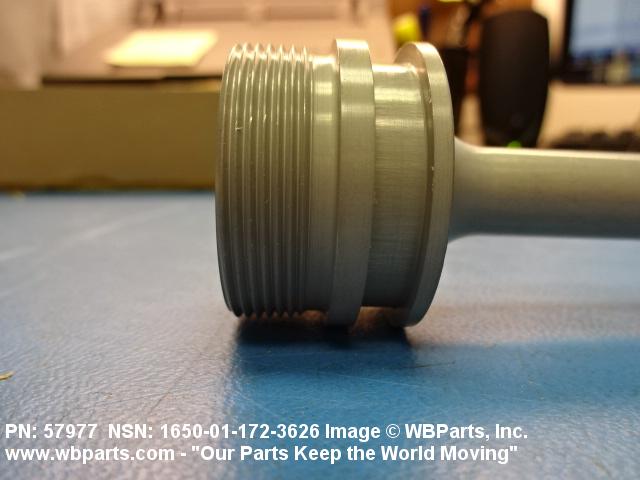

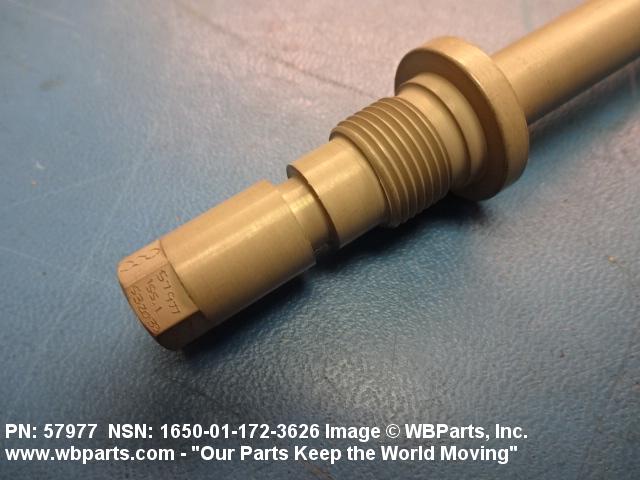

Drawings & Photos | NSN 1650-01-172-3626
Demand History | NSN 1650-01-172-3626
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 57977 | 2019-04-92 | 16 | DIBBS |
| 57977 | 2019-01-24 | 16 | DIBBS |
| 57977 | 2019-01-08 | 16 | DIBBS |
| 1650-01-172-3626 | 2017-07-204 | 3 | DIBBS |
| 1650-01-172-3626 | 2017-04-120 | 2 | DIBBS |
| 1650-01-172-3626 | 2017-04-117 | 1 | United States |
| 1650-01-172-3626 | 2017-03-83 | 2 | DIBBS |
| 1650-01-172-3626 | 2017-01-22 | 1 | DIBBS |
| 1650-01-172-3626 | 2017-01-22 | 2 | DIBBS |
| 1650-01-172-3626 | 2017-01-04 | 1 | DIBBS |
| 1650-01-172-3626 | 2015-12-356 | 1 | DIBBS |
Cross Reference | NSN 1650-01-172-3626
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 57977 | K0659 | CLAVERHAM LTD DBA CLAVERHAM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1650-01-172-3626
Technical Data | NSN 1650-01-172-3626
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 9.400 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.373 INCHES NOMINAL |
| SPECIAL FEATURES | MATL,ALUMINUM ALLOY;0.190 IN. ID;1 5/16-20 UN2A THD ONE END;5/8-20 UN2A THD OPPOSITE END;USED ON AIRCRAFT MODEL AV-8 |
| MANUFACTURERS CODE | K0659 |
| DESIGN CONTROL REFERENCE | 57977 |
Restrictions/Controls & Freight Information | NSN 1650-01-172-3626
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1650-01-172-3626
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
