Product Details | HYDRAULIC ACCUMULATOR CYLINDER

1650-01-139-2439 A cylinder designed to house a piston and other necessary component parts of a hydraulic accumulator.20516500058Aircraft Hydraulic, Vacuum, and De-icing System Components20900039Miscellaneous Ship and Marine Equipment25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components25900034Miscellaneous Vehicular Components30400042Miscellaneous Power Transmission Equipment

Part Alternates: 10106118 , 2493741, 2885193, 1650-01-139-2439, 01-139-2439, 1650011392439, 011392439

Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components

Supply Group (FSG) NSN Assign. NIIN
16 27 SEP 1982 01-139-2439

Drawings & Photos | NSN 1650-01-139-2439


Demand History | NSN 1650-01-139-2439

Part Number Request Date QTY Origin
1650-01-139-2439 2021-03-63 1 DIBBS-RFPs
2885193 2020-05-127 8 DIBBS
1650-01-139-2439 2018-10-298 18 DIBBS
1650-01-139-2439 2018-08-219 13 DIBBS
1650-01-139-2439 2018-04-92 12 DIBBS
1650-01-139-2439 2018-02-39 12 DIBBS
1650-01-139-2439 2017-09-249 17 DIBBS
1650-01-139-2439 2017-03-72 21 DIBBS
1650-01-139-2439 2017-02-43 21 DIBBS
1650-01-139-2439 2014-09-268 21 DIBBS
1650-01-139-2439 2014-09-257 21 DIBBS
1650-01-139-2439 2013-04-101 55 DIBBS
1650-01-139-2439 2011-12-335 47 DIBBS
2493741 2009-04-120 5 Canada
1650-01-139-2439 2007-11-319 117 DIBBS
1650-01-139-2439 2007-09-253 100 DIBBS

Cross Reference | NSN 1650-01-139-2439

Part Number Cage Code Manufacturer
2493741 99551 GOODRICH CORPORATION DIV POWER TRANSMISSION SYSTEMS
2885193 99551 GOODRICH CORPORATION DIV POWER TRANSMISSION SYSTEMS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 1650-01-139-2439

Technical Data | NSN 1650-01-139-2439

Characteristic Specifications
OVERALL LENGTH 6.020 INCHES MAXIMUM
BODY OUTSIDE DIAMETER 1.598 INCHES MINIMUM AND 1.600 INCHES MAXIMUM
BODY MATERIAL ALUMINUM ALLOY
BORE DIAMETER 1.441 INCHES MINIMUM AND 1.443 INCHES MAXIMUM
MOUNTING TYPE AND LOCATION FLANGE CYLINDER HEAD END
MOUNTING PROVISION UNTHREADED MOUNTING HOLES

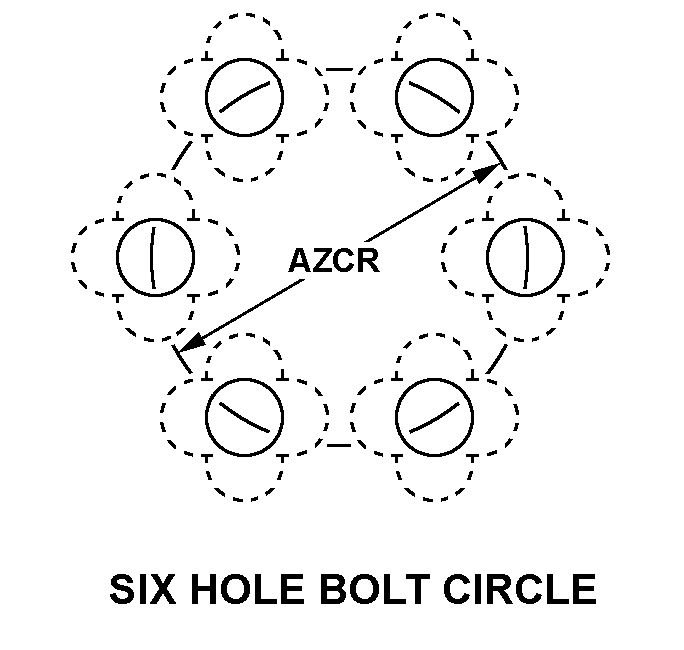

MOUNTING PROVISION ARRANGEMENT STYLE 31 SIX HOLE BOLT CIRCLE
MOUNTING FACILITY CIRCLE DIAMETER 2.470 INCHES NOMINAL
MOUNTING FACILITY DIAMETER 0.182 INCHES MINIMUM AND 0.192 INCHES MAXIMUM
TEMP RATING NOT RATED
SPECIAL FEATURES ANODIZED MIL-A-8625,TYPE 1; MICROINCH FINISH 16
MANUFACTURERS CODE 99551
DESIGN CONTROL REFERENCE 2885193

Restrictions/Controls & Freight Information | NSN 1650-01-139-2439

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:QStrategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.”
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 119260 CYLINDERS:HYDRAULIC/PNEUMATIC
Less than car load rating Q 70
Less than truck load rating Q 70.0
Water commodity Code 671 unknown
Originating Activity Code KE Naval ICP
Philadelphia, PA 19111
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 1650-01-139-2439

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Special Material IDTNJET ENGINES(F404)
Special Material Content9 Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
