NSN 1650-01-072-5321 AC9806F30, 731085, 01-072-5321
Product Details | FLUID FILTER ELEMENT
1650-01-072-5321 A replaceable device designed to remove solid particles from fluids ranging in density from heavy liquids to gases. The removal of particles is accomplished by porous material (metallic or non-metallic), stacked disks, wound wire, or the like, constructed so the fluid can flow through the device while the solid particles are retained. It may be designed to fit into a FILTER, FLUID (or similar cavity), or it may have an integral outer casing and mounting facilities and be designed to connect directly to an engine, compressor, or the like. The degree of removal of particles must be nominally rated at less than 50 microns or absolutely rated at less than 75 microns. Excludes FILTER ELEMENT, AIR CONDITIONING. See also STRAINER ELEMENT, SEDIMENT.20916500058Aircraft Hydraulic, Vacuum, and De-icing System Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters5999000065300053Hospital Furniture, Equipment, Utensils, and Supplies66300029Chemical Analysis Instruments
Part Alternates: AC9806F30, 731085, 1650-01-072-5321, 01-072-5321, 1650010725321, 010725321
Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 02 MAR 1979 | 01-072-5321 | 32624 ( FILTER ELEMENT, FLUID ) |

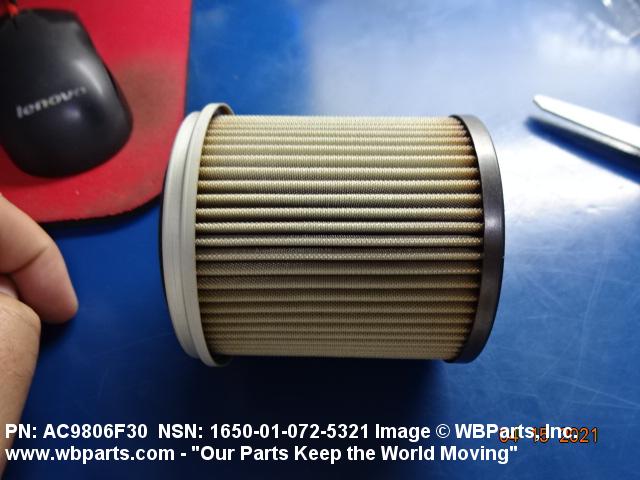

Drawings & Photos | NSN 1650-01-072-5321
Demand History | NSN 1650-01-072-5321
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1650-01-072-5321 | 2021-04-102 | 2 | United States |
| 1650-01-072-5321 | 2019-09-268 | 100 | Taiwan |
| 731085 | 2016-11-318 | 50 | IR |
| 731085 | 2016-11-318 | 50 | IR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1650-01-072-5321
Technical Data | NSN 1650-01-072-5321
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A19 CYLINDRICAL W/CLOSED ENDS |
| BODY DIAMETER | 3.250 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 1.500 INCHES NOMINAL |
| BODY OVERALL LENGTH | 3.500 INCHES NOMINAL |
| FILTERING MEDIA DESIGN | PLEATED SINGLE FILTERING MEDIA RESPONSE |
| DESIGN TYPE | NONREUSABLE |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | 731085 |
Restrictions/Controls & Freight Information | NSN 1650-01-072-5321
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
