NSN 1650-01-033-4594 AC9780F1, AC-9780F-1, AC9780F1Y3
Product Details | FLUID FILTER ELEMENT
1650-01-033-4594 A replaceable device designed to remove solid particles from fluids ranging in density from heavy liquids to gases. The removal of particles is accomplished by porous material (metallic or non-metallic), stacked disks, wound wire, or the like, constructed so the fluid can flow through the device while the solid particles are retained. It may be designed to fit into a FILTER, FLUID (or similar cavity), or it may have an integral outer casing and mounting facilities and be designed to connect directly to an engine, compressor, or the like. The degree of removal of particles must be nominally rated at less than 50 microns or absolutely rated at less than 75 microns. Excludes FILTER ELEMENT, AIR CONDITIONING. See also STRAINER ELEMENT, SEDIMENT.20916500058Aircraft Hydraulic, Vacuum, and De-icing System Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters5999000065300053Hospital Furniture, Equipment, Utensils, and Supplies66300029Chemical Analysis Instruments
Part Alternates: AC9780F1, AC-9780F-1, AC9780F1Y3, 56400, 7579077, 03849831, 038498-31, 1650-01-033-4594, 01-033-4594, 1650010334594, 010334594
Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 07 JAN 1977 | 01-033-4594 | 32624 ( FILTER ELEMENT, FLUID ) |

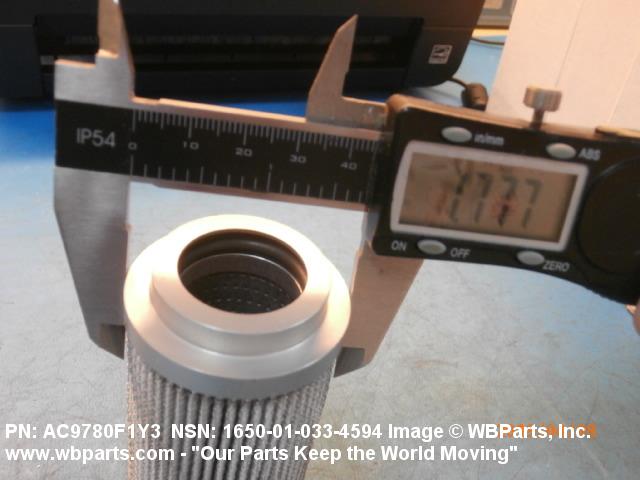

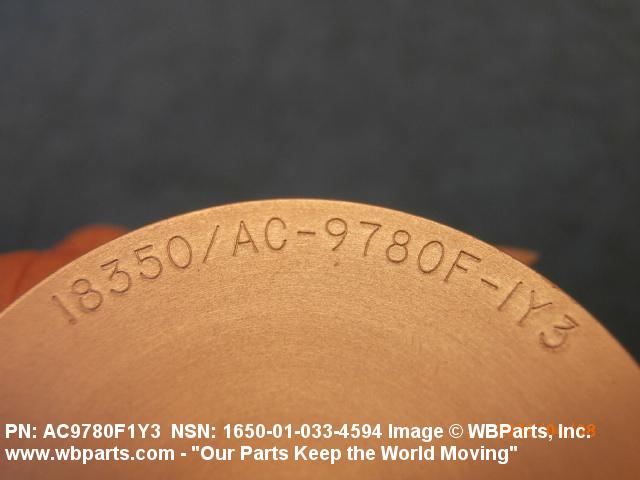

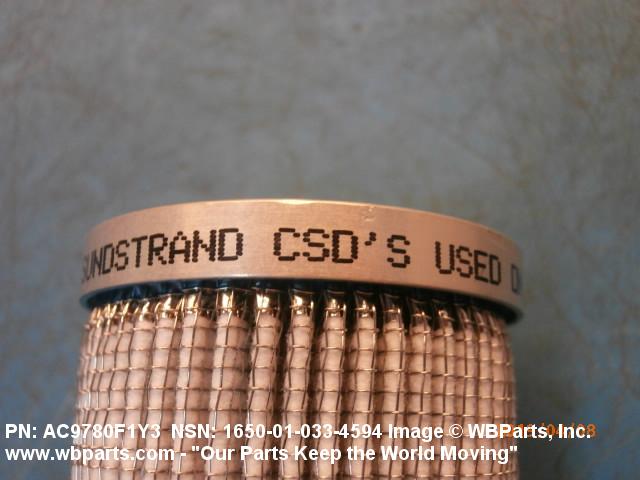

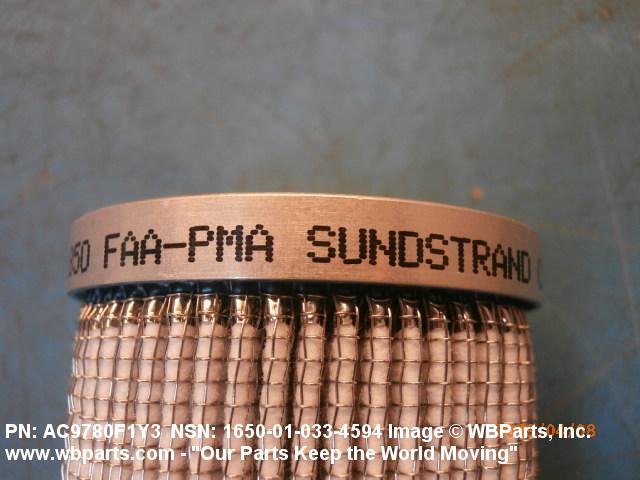

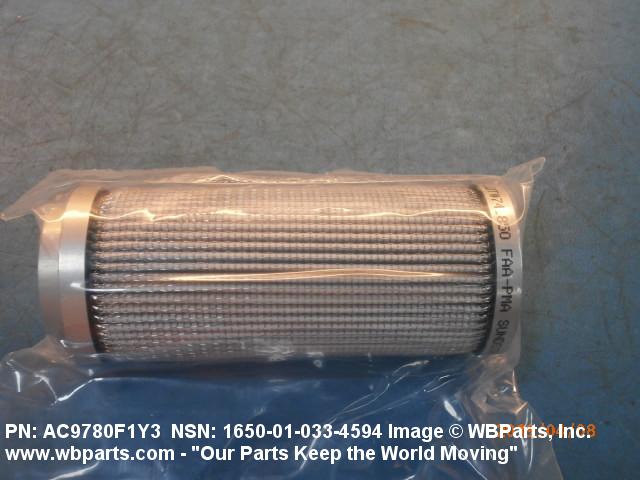

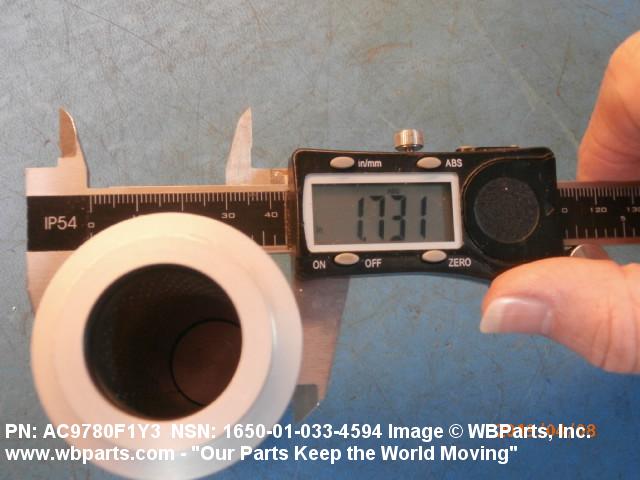

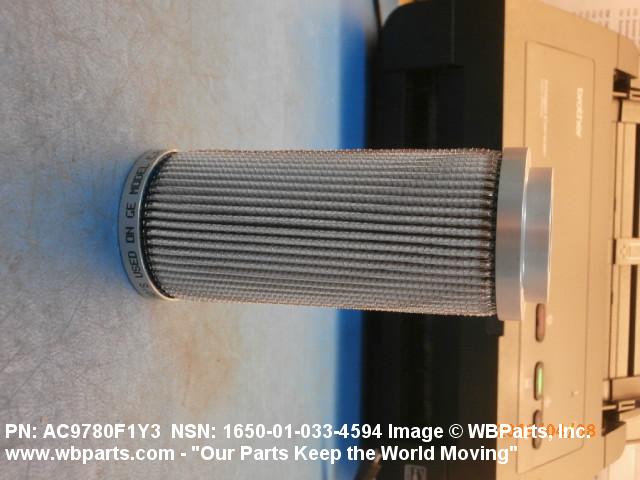

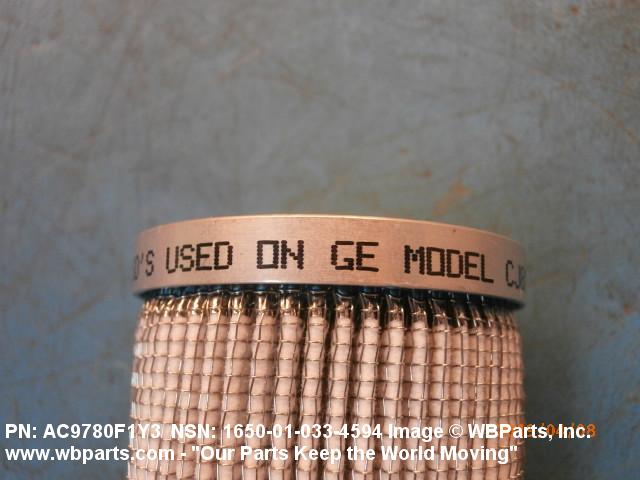

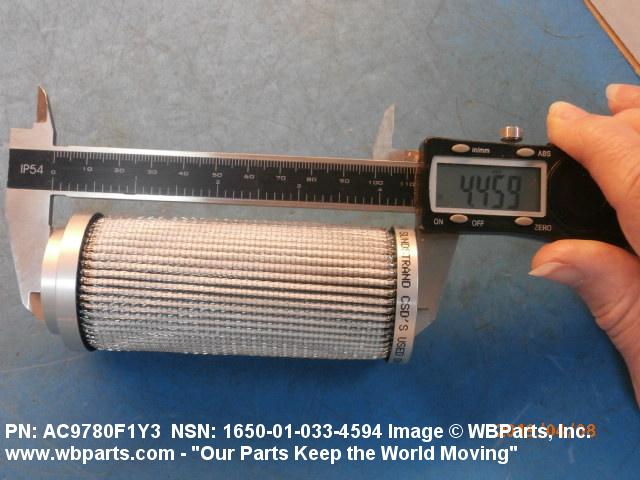

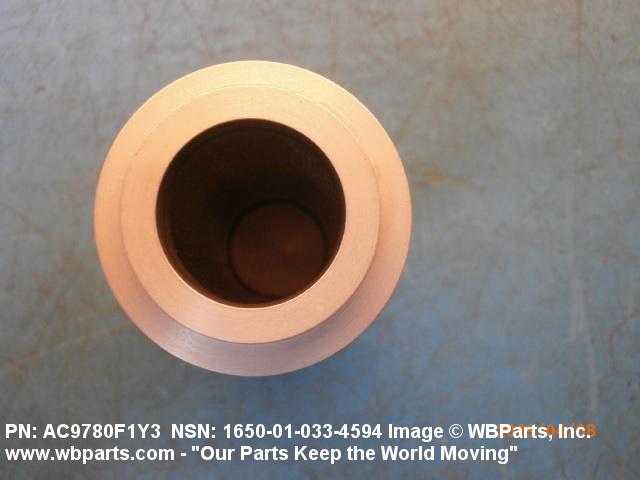

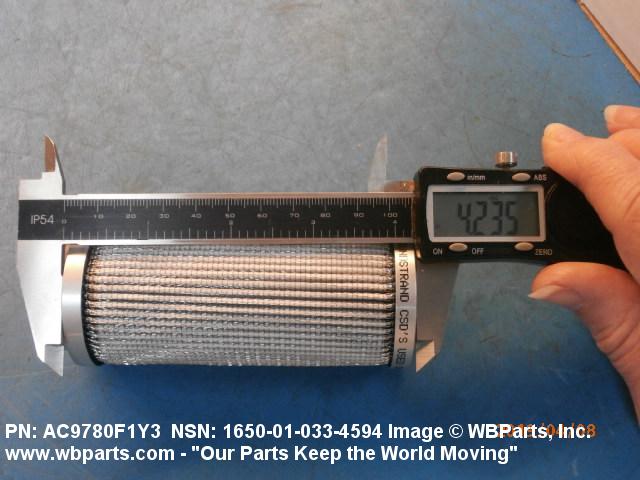

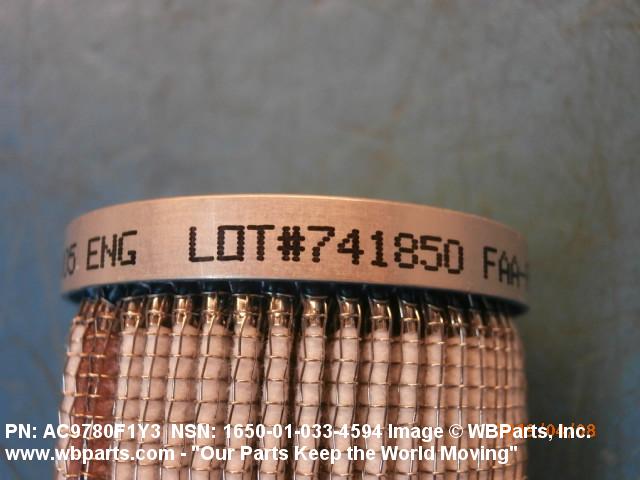

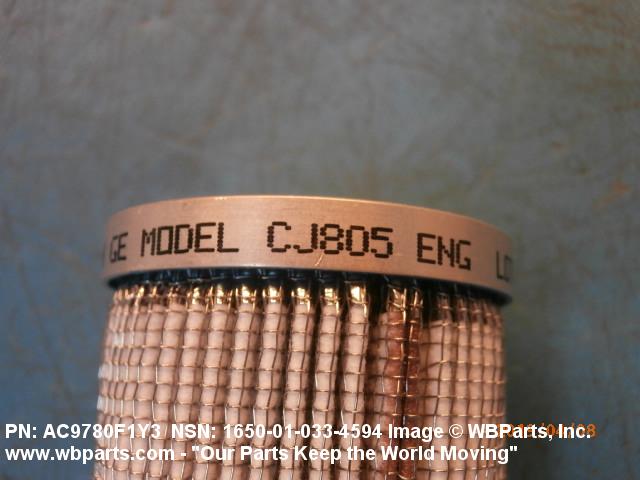

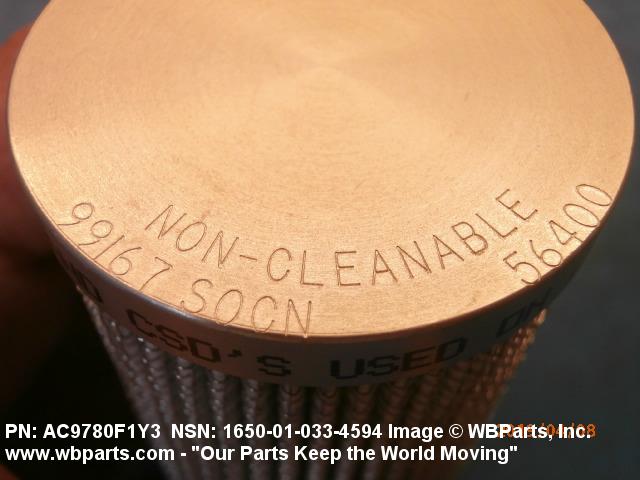

Drawings & Photos | NSN 1650-01-033-4594
Demand History | NSN 1650-01-033-4594
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AC9780F1Y3 | 2019-03-14 | 12 | United Kingdom |
| 1650-01-033-4594 | 2018-01-01 | 427 | DIBBS |
| 1650-01-033-4594 | 2017-11-14 | 1 | DIBBS-RFPs |
| 1650-01-033-4594 | 2017-10-01 | 966 | DIBBS |
| 1650-01-033-4594 | 2013-07-30 | 1917 | DIBBS |
| 7579077 | 2010-03-17 | 7 | US |
| 1650-01-033-4594 | 2009-02-26 | 2262 | DIBBS |
| 1650-01-033-4594 | 2008-11-14 | 1933 | DIBBS |
| 1650-01-033-4594 | 2008-11-11 | 1531 | DIBBS |
| 1650-01-033-4594 | 2008-10-20 | 1339 | DIBBS |
| 1650-01-033-4594 | 2008-09-18 | 1175 | DIBBS |
| 1650-01-033-4594 | 2007-01-26 | 338 | DIBBS |
Cross Reference | NSN 1650-01-033-4594
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1650-01-033-4594
Technical Data | NSN 1650-01-033-4594
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A28 BOWL |
| BODY DIAMETER | 1.750 INCHES NOMINAL |
| BODY OVERALL LENGTH | 4.438 INCHES NOMINAL |
| DESIGN TYPE | NONREUSABLE |
| FILTRATION RATING IN MICRONS | 20.0 ABSOLUTE AND 40.0 NOMINAL |
| FLOW DIRECTION | PARALLEL |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON |
| TEMP RATING | NOT RATED |
| DROP PRESSURE | NOT RATED |
| DIFFERENTIAL PRESSURE | 1800.0 POUNDS PER SQUARE INCH |
| III FSC APPLICATION DATA | AIRCRAFT HYDRAULIC SYSTEM |
| MANUFACTURERS CODE | 99167 |
| MFR SOURCE CONTROLLING REFERENCE | 56400 |
Restrictions/Controls & Freight Information | NSN 1650-01-033-4594
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069100 | FILTERS:FILTERS,NOI SUB6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1650-01-033-4594
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
