NSN 1650-00-764-4694 M8815/24, M881524, AC9416F16

Product Details | FLUID FILTER

1650-00-764-4694 A filter having inlet and outlet connections and designed to be connected in a pipe, tube or hose line. For spin-on, base-mounted filtering devices with integral outer casings, see FILTER ELEMENT, FLUID. Excludes AIR CONDITIONER.21516500058Aircraft Hydraulic, Vacuum, and De-icing System Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving41300045Refrigeration and Air Conditioning Components43300057Centrifugals, Separators, and Pressure and Vacuum Filters4930000063500059Miscellaneous Alarm, Signal, and Security Detection Systems65150057Medical and Surgical Instruments, Equipment, and Supplies65300053Hospital Furniture, Equipment, Utensils, and Supplies65400047Ophthalmic Instruments, Equipment, and Supplies66300029Chemical Analysis Instruments

Part Alternates: M8815/24, M881524, AC9416F16, AC9416F16L, AC9416F16Y1, AC9416F-16Y1, MIL-F-8815/24, MILF881524, 7586589, 10106069, 1650-00-764-4694, 00-764-4694, 1650007644694, 007644694

Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
16	07 OCT 1972	00-764-4694	32622 ( FILTER, FLUID )

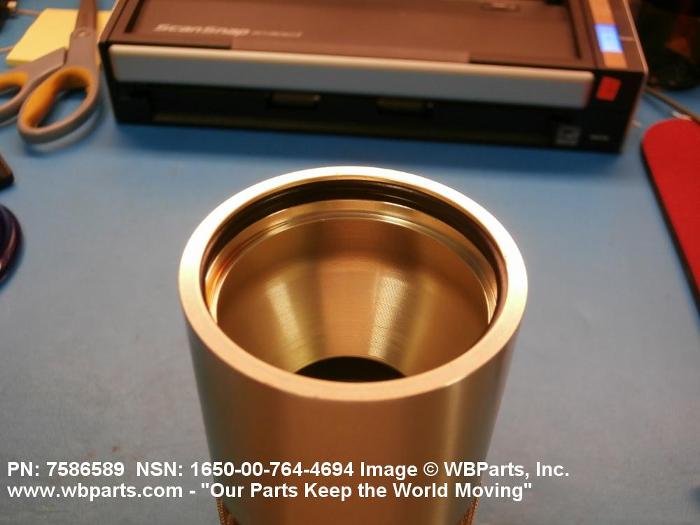

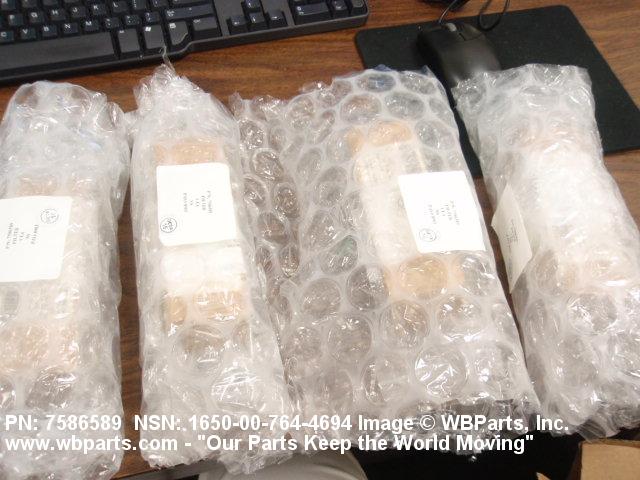

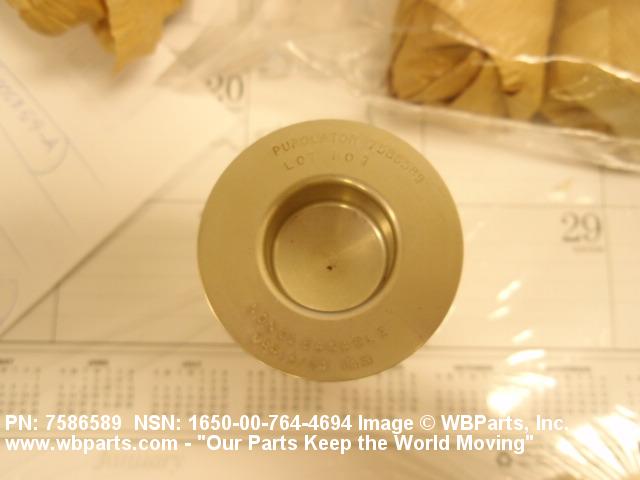

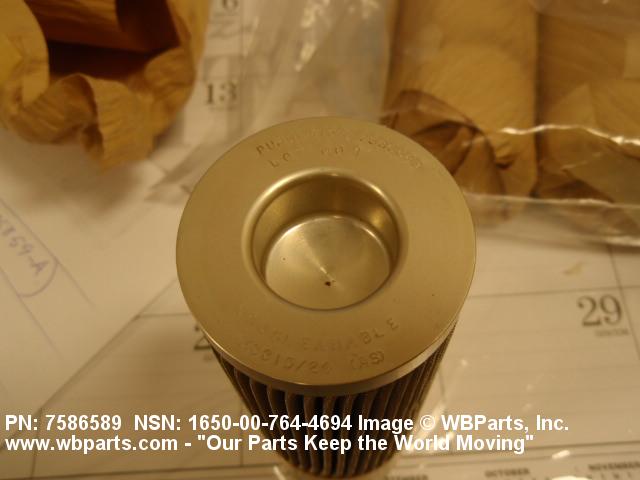

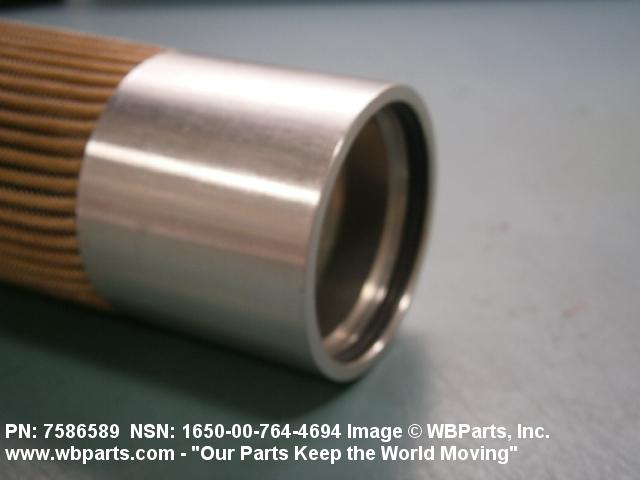

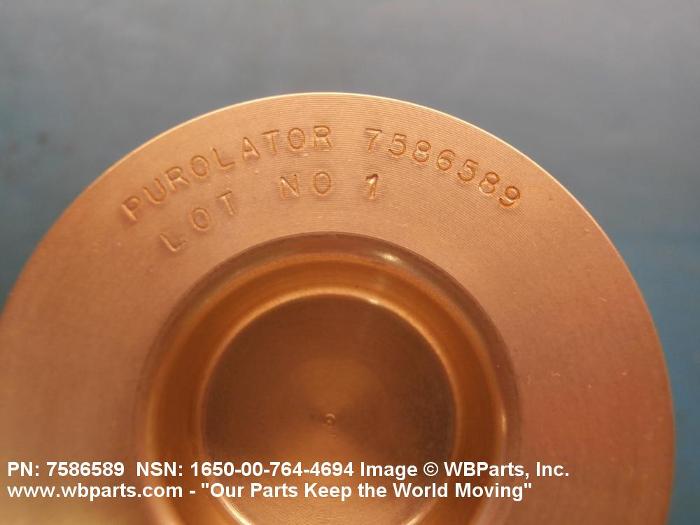

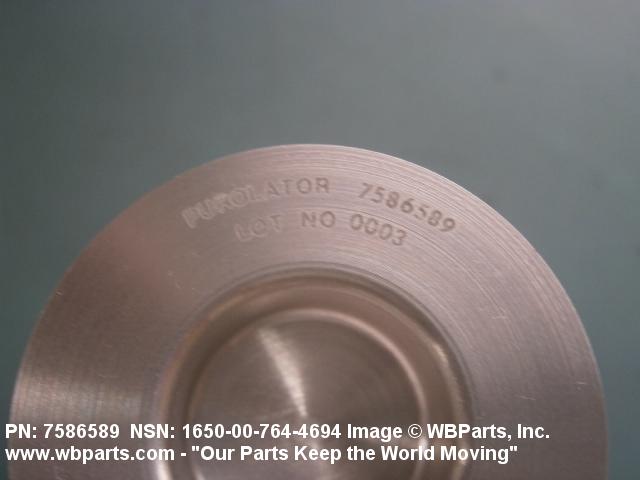

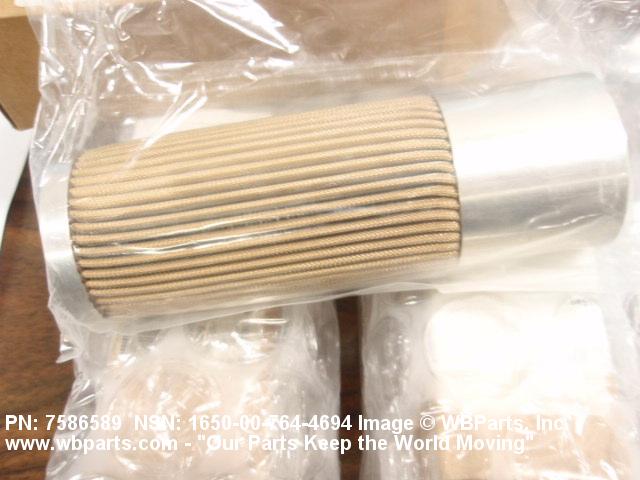

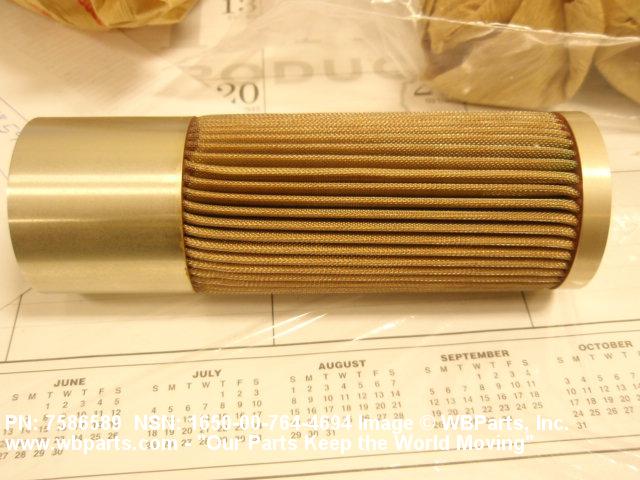

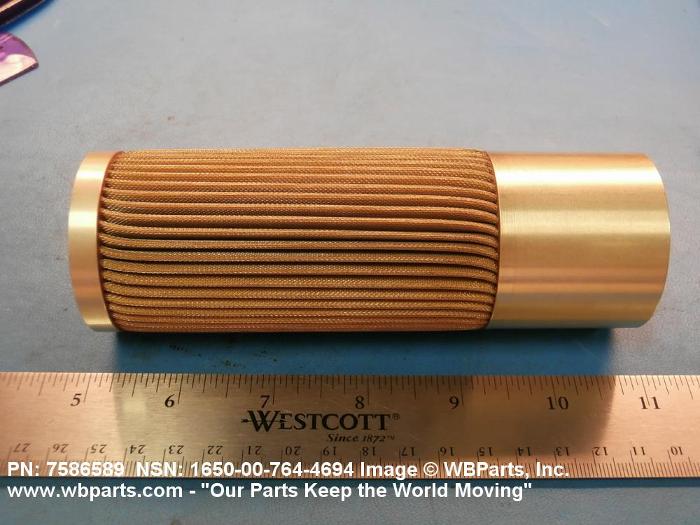

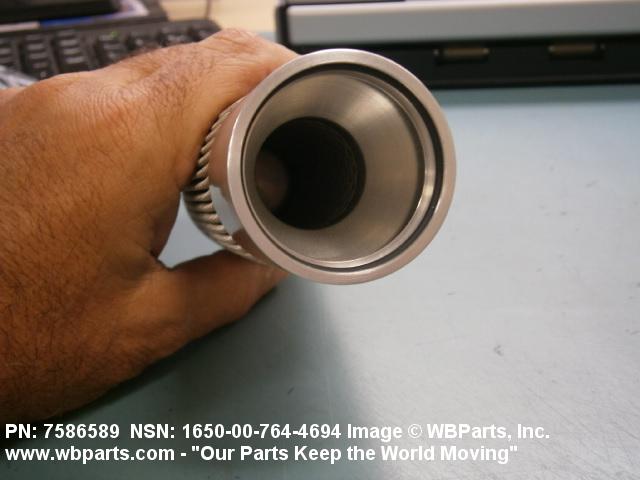

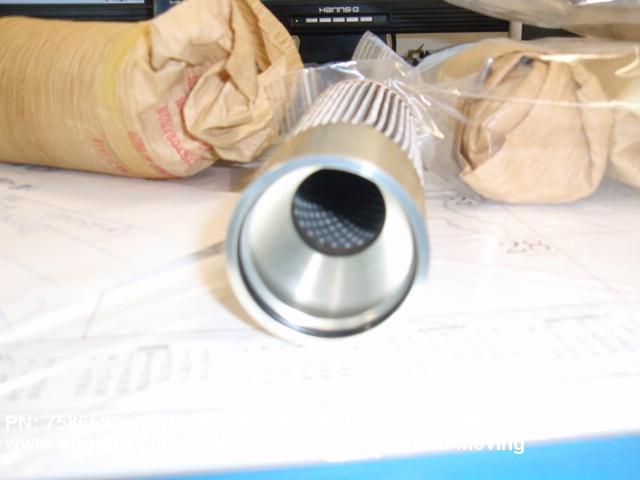

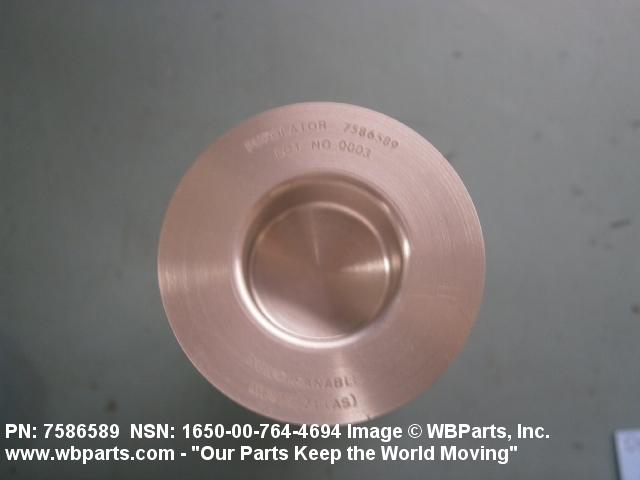

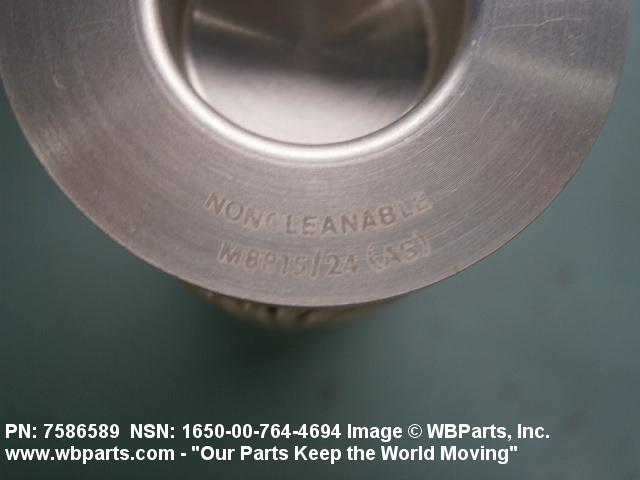

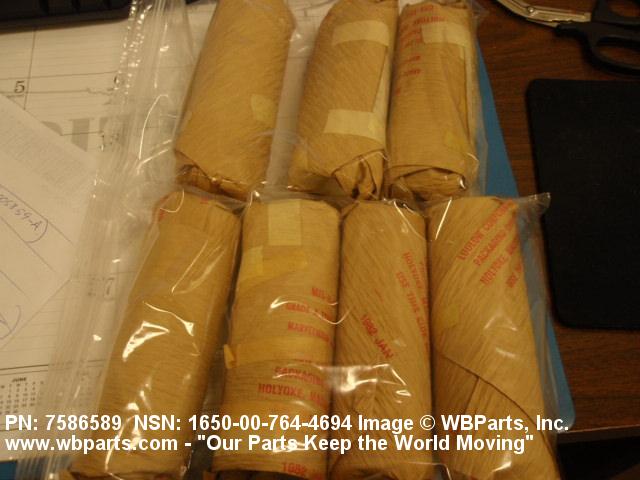

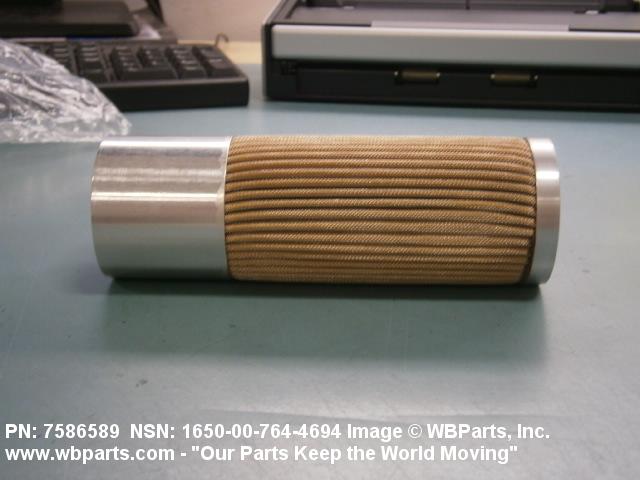

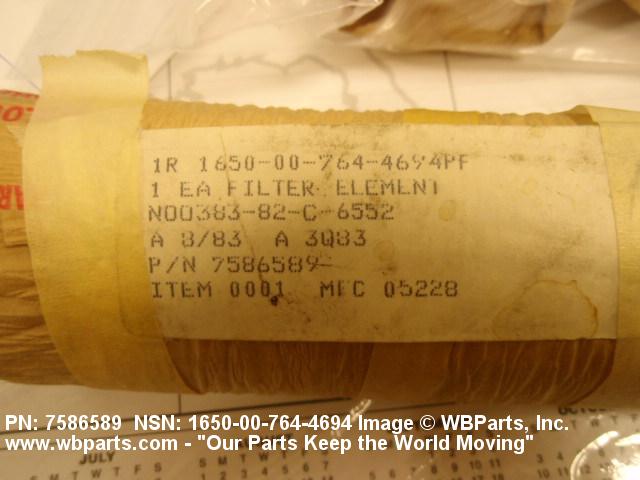

Drawings & Photos | NSN 1650-00-764-4694

Part Number	Request Date	QTY	Origin
1650-00-764-4694	2022-06-175	186	Malaysia
1650-00-764-4694	2022-06-173	3	us
1650-00-764-4694	2022-06-173	100	us
1650-00-764-4694	2022-06-172	186	Malaysia
1650-00-764-4694	2022-06-171	186	Malaysia
M881524	2022-06-152	8	US
1650-00-764-4694	2021-06-160	34	AE
M881524	2020-08-239	1	us
AC9416F16Y1	2020-02-41	36	United States
1650-00-764-4694	2018-01-29	8	United States
1650-00-764-4694	2017-01-04	1	DIBBS-RFPs
1650-00-764-4694	2016-09-270	6	United States
1650-00-764-4694	2014-03-64	5	US
1650-00-764-4694	2014-03-64	10	US
AC9416F16Y1	2013-09-248	5	United States
AC9416F16	2013-07-212	40	US
1650-00-764-4694	2013-07-210	40	US
AC9416F16Y1	2013-03-84	4	United States
M881524	2012-11-319	23	US
1650-00-764-4694	2012-09-256	86	DIBBS
1650-00-764-4694	2012-08-242	86	DIBBS
1650-00-764-4694	2012-06-171	40	MANUAL
AC9416F16	2012-06-171	40	TR
1650-00-764-4694	2012-03-79	565	DIBBS
AC9416F16Y1	2011-06-160	8	United States
1650-00-764-4694	2011-03-67	1537	DIBBS
AC9416F16Y1	2011-02-54	8	United States
7586589	2010-08-221	4	United States
7586589	2010-08-221	8	United States
AC9416F16	2010-08-221	8	United States
AC9416F16Y1	2010-08-221	8	United States
AC9416F16Y1	2010-08-216	8	United States
1650-00-764-4694	2010-04-112	1500	DIBBS
M881524	2010-04-104	123	US
7586589	2009-12-338	8	United States
AC9416F16Y1	2009-12-338	8	United States
MILF881524	2009-05-148	1	United States
1650-00-764-4694	2009-05-140	12	US
M881524	2008-10-284	7	United States

Cross Reference | NSN 1650-00-764-4694

Part Number	Cage Code	Manufacturer
7586589	05228	PTI TECHNOLOGIES INC.
AC9416F-16Y1	18350	PALL AEROPOWER CORPORATION
AC9416F16	18350	PALL AEROPOWER CORPORATION
AC9416F16L	18350	PALL AEROPOWER CORPORATION
M8815/24	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-F-8815/24	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 1650-00-764-4694

Compare

Related Products | NSN 1650-00-764-4694

1650-00-764-4717, 1650-00-764-4746, 1650-00-764-5109, 1650-00-764-5369, 1650-00-764-5507

Technical Data | NSN 1650-00-764-4694

Characteristic	Specifications
STYLE DESIGNATOR	C32 TEE TYPE
BODY LENGTH	2.750 INCHES NOMINAL
BODY WIDTH	1.812 INCHES NOMINAL
BODY HEIGHT	7.660 INCHES NOMINAL
DISTANCE FROM BOTTOM OF BODY TO CENTER OF INLET	5.485 INCHES NOMINAL
MATERIAL	STEEL CORROSION RESISTING BODY STEEL CORROSION RESISTING FILTERING MEDIUM
FILTERING MEDIA DESIGN	CORRUGATED SINGLE FILTERING MEDIA RESPONSE
DESIGN TYPE	NONREUSABLE
FILTERING ELEMENT QUANTITY	1
FILTRATION RATING IN MICRONS	15.0 ABSOLUTE
MEDIA FOR WHICH DESIGNED	FUEL/OIL, HYDROCARBON
MAXIMUM OPERATING PRESSURE	3000.0 POUNDS PER SQUARE INCH
TEMP RATING	-65.0 DEG FAHRENHEIT MINIMUM AND 275.0 DEG FAHRENHEIT MAXIMUM
DROP PRESSURE	10.0 POUNDS PER SQUARE INCH
DIFFERENTIAL PRESSURE	NOT RATED
FIRST INTAKE CONNECTION TYPE	THREADED INTERNAL TUBE HEAD SIDE
FIRST INTAKE THREAD SERIES DESIGNATOR	UNJF
FIRST INTAKE NOMINAL THREAD SIZE	0.437 INCHES
FIRST INTAKE THREAD CLASS	3B
FIRST INTAKE THREAD DIRECTION	RIGHT-HAND
FIRST DISCHARGE CONNECTION RELATIONSHIP TO INTAKE CONNECTION	IDENTICAL TO FIRST INTAKE CONNECTION
MOUNTING TYPE	INLET CONNECTION AND OUTLET CONNECTION HEAD SIDE
FILTERING SYSTEM FOR WHICH DESIGNED	FULL FLOW
FEATURES PROVIDED	DIFFERENTIAL PRESSURE INDICATOR
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-F-8815/24
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M8815/24

Restrictions/Controls & Freight Information | NSN 1650-00-764-4694

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	B	Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	069095	FILTERS LIQUID/GAS NOI SUB2
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	671	unknown
Originating Activity Code	KE	Naval ICP Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 1650-00-764-4694

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
