NSN 1650-00-756-1046 MF36390930Z2, MF36-3909-30Z2, MF36-3909-30Z-2
Product Details | HYDRAULIC MOTOR
1650-00-756-1046 A mechanical device designed to convert the energy of fluid pressure to rotary motion.20316500058Aircraft Hydraulic, Vacuum, and De-icing System Components25400035Vehicular Furniture and Accessories43200020Power and Hand Pumps
Part Alternates: MF36390930Z2, MF36-3909-30Z2, MF36-3909-30Z-2, R706915, 110178, 112542, 112544, 112545, 114SS6601, 114SS660-1, 8008702771, 80-08-70-2771, 1650-00-756-1046, 00-756-1046, 1650007561046, 007561046
Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1963 | 00-756-1046 | 06128 ( MOTOR, HYDRAULIC ) |

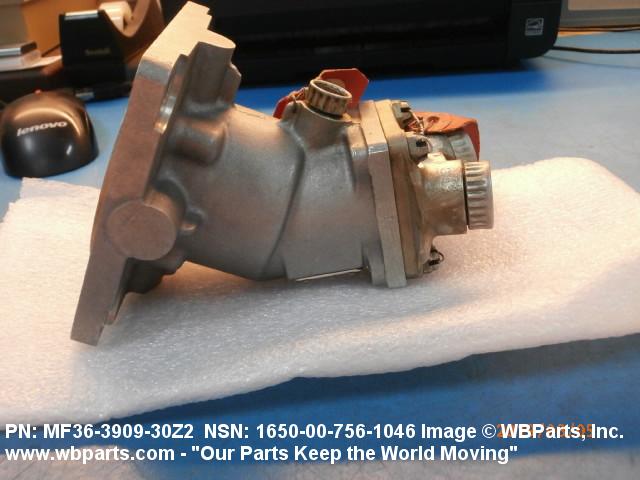

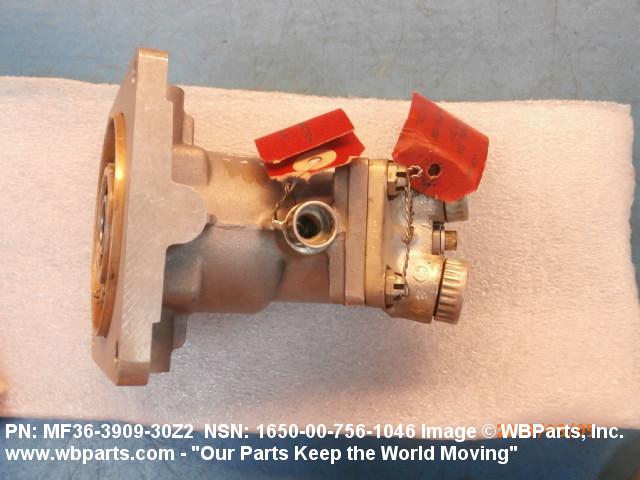

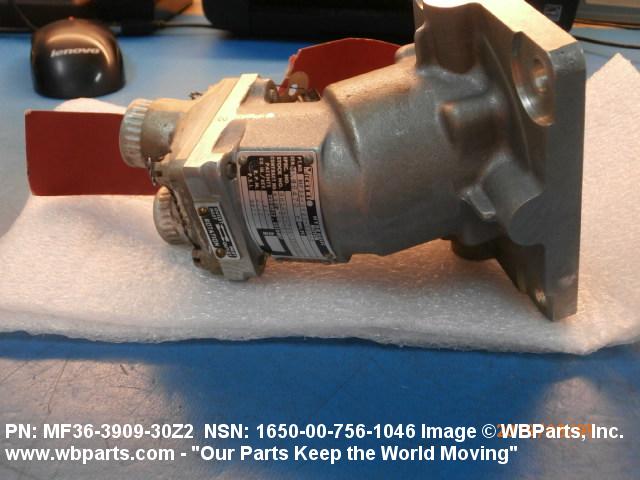

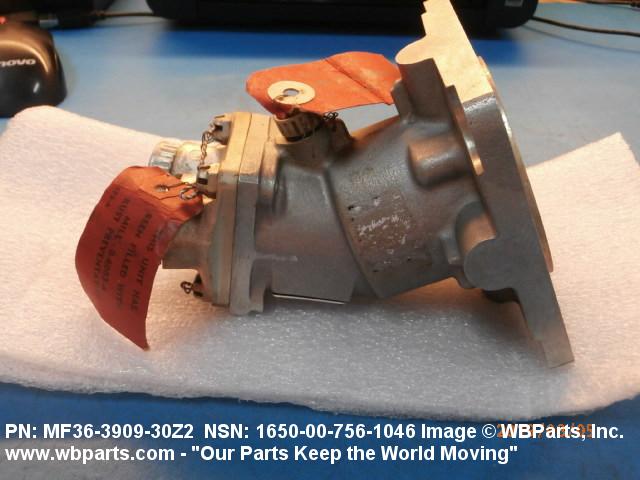

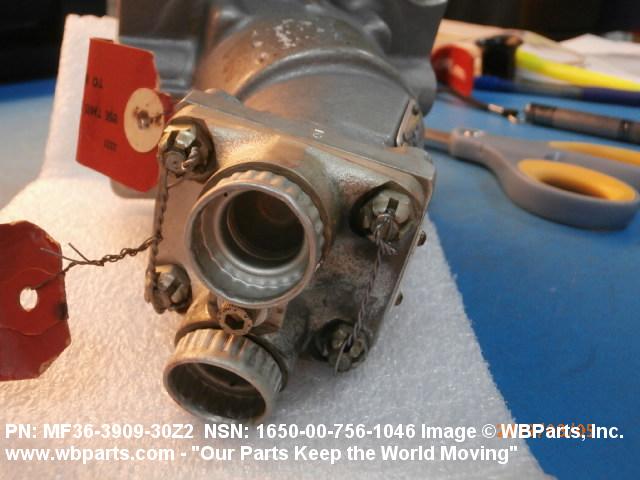

Drawings & Photos | NSN 1650-00-756-1046
Demand History | NSN 1650-00-756-1046
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1650-00-756-1046 | 2022-01-24 | 22 | US |
| 1650-00-756-1046 | 2020-06-167 | 1 | US |
| 1650-00-756-1046 | 2020-06-167 | 2 | US |
| MF36390930Z2 | 2019-07-205 | 1 | United States |
| 1650-00-756-1046 | 2010-07-204 | 1 | United States |
| MF36390930Z2 | 2007-08-239 | 1 | PR |
Cross Reference | NSN 1650-00-756-1046
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 110178 | 62983 | EATON AEROSPACE LLC |
| 112542 | 62983 | EATON AEROSPACE LLC |
| 112544 | 62983 | EATON AEROSPACE LLC |
| 112545 | 62983 | EATON AEROSPACE LLC |
| 114SS660-1 | 77272 | THE BOEING COMPANY DBA BOEING |
| 80-08-70-2771 | K0967 | MBDA UK LTD |
| 80-08-70-2771 | K1020 | MBDA UK LTD |
| MF36-3909-30Z-2 | FA3T1 | GOODRICH ACTUATION SYSTEMS SOA |
| MF36-3909-30Z2 | 62983 | EATON AEROSPACE LLC |
| MF36-3909-30Z2 | F1688 | GOODRICH ACTUATION SYSTEMS BUCVERNON SAS |
| MF36-3909-30Z2 | F6103 | LUCAS FRANCE SA DIV AEROSPACE FRANCE |
| MF36-3909-30Z2 | U1918 | FLIGHT REFUELLING LTD DBA COBHAM MACHINE EQUIPMENT |
| MF36-3909-30Z2 | U6441 | UTC AEROSPACE SYSTEMS LIMITED DBA GOODRICH SENSORS AND INTEGRATED |
| R706915 | F1688 | GOODRICH ACTUATION SYSTEMS BUCVERNON SAS |
| R706915 | F6103 | LUCAS FRANCE SA DIV AEROSPACE FRANCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1650-00-756-1046
Related Products | NSN 1650-00-756-1046
Technical Data | NSN 1650-00-756-1046
| Characteristic | Specifications |
|---|---|
| DISPLACEMENT TYPE | CONSTANT |
| SHAFT ROTATION DIRECTION | CLOCKWISE AND COUNTERCLOCKWISE |
| OPERATING SPEED AT RATED CAPACITY IN RPM | 3850.0 |
| MAXIMUM WORKING PRESSURE RATING AT SPECIFIED TEMP RANGE | 3000 PSI AT MINUS 65 DEG F TO PLUS 275 DEG F |
| TORQUE LOAD RATING | 175.2 INCH-POUNDS |
| CONSTANT DISPLACEMENT PER REVOLUTION | 0.367 CUBIC INCHES |
| CONNECTION TYPE | INLET OUTLET DRAIN |
| CONNECTION QUANTITY | 1 AND 1 AND 1 |
| CONNECTION GOVERNMENT SPEC/STD | MS33649-8 AND MS33649-8 AND MS33649-4 |
| CONNECTION DESIGN | THREADED AND THREADED AND THREADED |
| THREAD SIZE | 0.750-16 AND 0.750-16 AND 0.438-20 |
| SCREW THREAD SERIES DESIGNATOR | UNF AND UNF AND UNF |
| THREAD LOCATION | INTERNAL AND INTERNAL AND INTERNAL |
| THREAD DIRECTION | RIGHT-HAND AND RIGHT-HAND AND RIGHT-HAND |

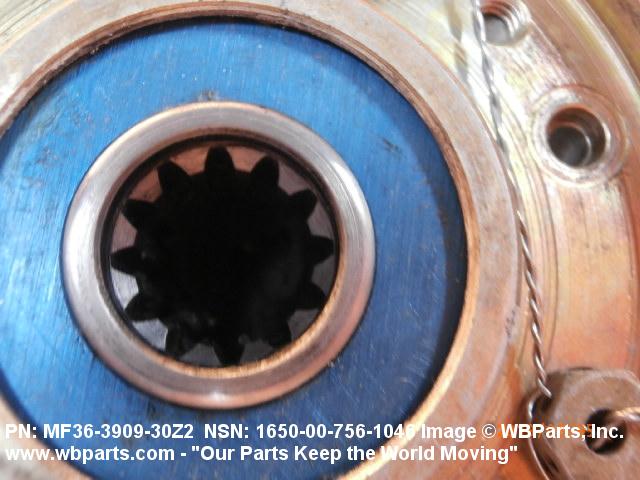

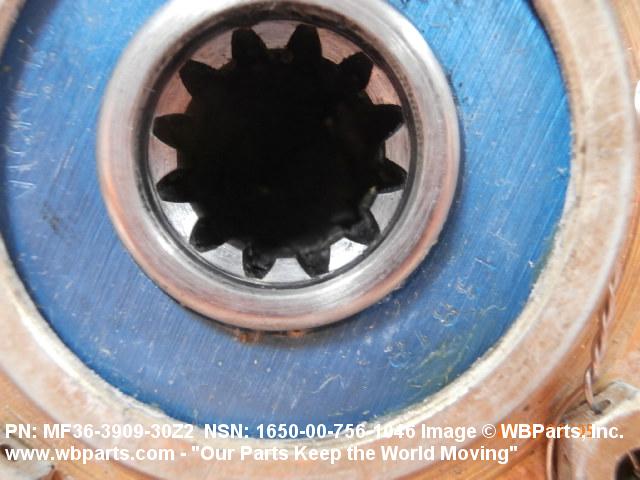

| DRIVE SHAFT TYPE | SPLINED, INVOLUTE INTERNAL |
| SPLINE QUANTITY | 12 |

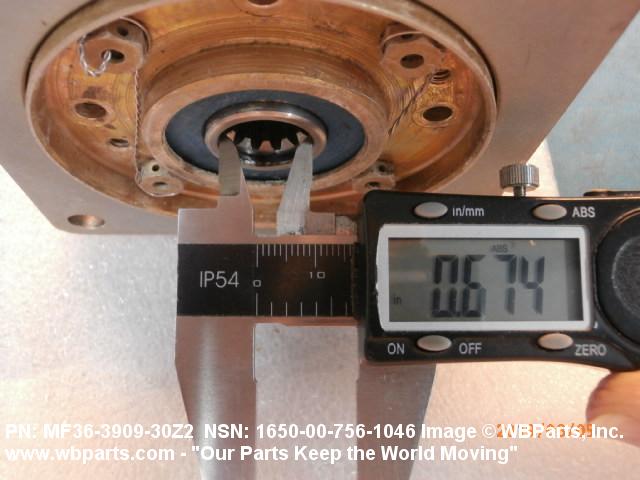

| SPLINE MAJOR DIAMETER | 0.664 INCHES NOMINAL |

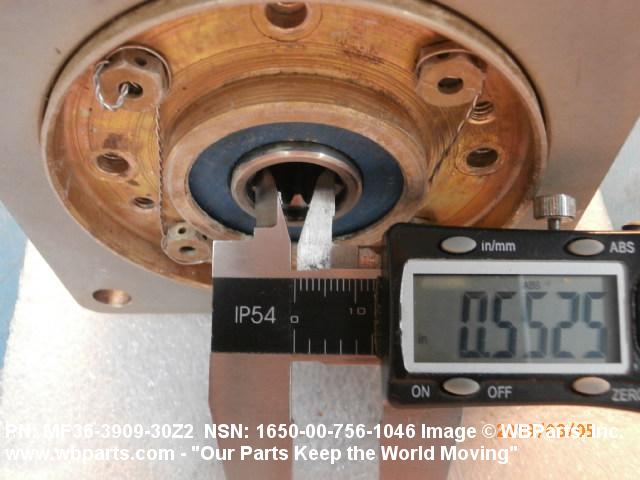

| SPLINE MINOR DIAMETER | 0.550 INCHES NOMINAL |
| SPLINE PITCH | 20/40 |
| PITCH DIAMETER | 0.600 INCHES NOMINAL |
| SPLINE PRESSURE ANGLE IN DEG | 30.0 |
| SPLINE LENGTH | 0.906 INCHES NOMINAL |

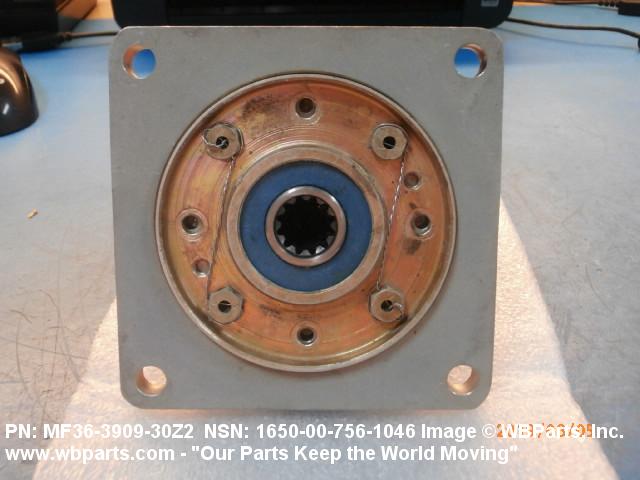

| MOUNTING TYPE | FLANGE |
| MOUNTING GOVERNMENT STANDARD | AND10261 |
| MOUNTING HOLE QUANTITY | 4 |

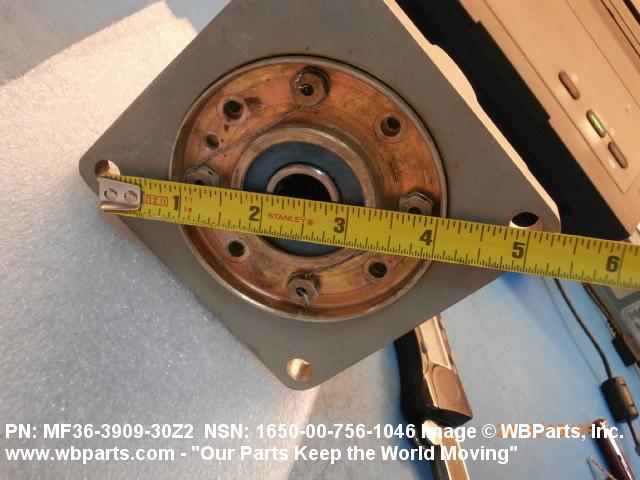

| MOUNTING BOLT CIRCLE DIAMETER | 5.000 INCHES NOMINAL |

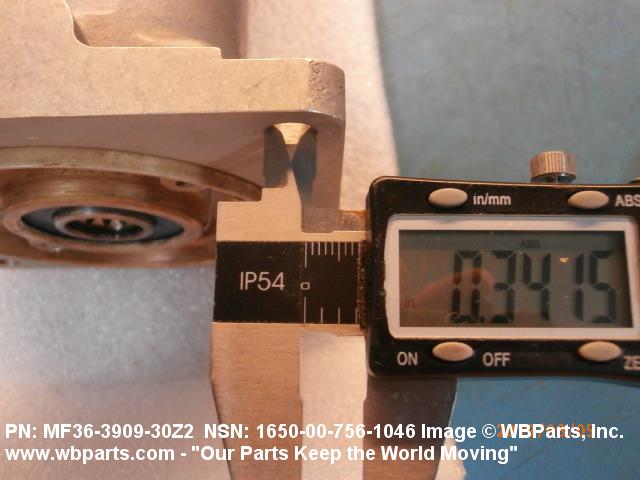

| MOUNTING HOLE DIAMETER | 0.344 INCHES NOMINAL |
| HOUSING MATERIAL | ALUMINUM ALLOY |
| HOUSING SURFACE TREATMENT | ANODIZED |
| III FSC APPLICATION DATA | HYDRAULIC SYSTEM AIRCRAFT |
| MANUFACTURERS CODE | 62983 |
| DESIGN CONTROL REFERENCE | MF36-3909-30Z2 |
Restrictions/Controls & Freight Information | NSN 1650-00-756-1046
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1650-00-756-1046
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | H | Aircraft, Air Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BK | CH-47 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | B17 | US Army Aviation and Missile Command (Air) ATTN: AMSMI-LC-MM-C Redstone Arsenal, AL 35898-5230 |
| Agency | DA | Department of the Army |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | D | When repair is beyond lower level maintenance capability, evacuate the item to depot. Disposal is not authorized below wholesale level. |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7R | Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia |
| Special Material ID | BH | HELICOPTERS(H2) |
| Issue Repair, or Requisition | AR | Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
