NSN 1650-00-533-2471 7727048-01, 00-533-2471, 772704801
Product Details | LINEAR ACTUATING CYLINDER
1650-00-533-2471 A cylinder designed to house a piston and other necessary component parts of a CYLINDER ASSEMBLY, ACTUATING, LINEAR. Do not use if a more specific name applies.20411900057Specialized Test and Handling Equipment, Nuclear Ordnance16500058Aircraft Hydraulic, Vacuum, and De-icing System Components1710000030400042Miscellaneous Power Transmission Equipment
Part Alternates: 7727048-01, 1650-00-533-2471, 00-533-2471, 1650005332471, 772704801, 005332471
Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1963 | 00-533-2471 | 22017 ( CYLINDER, ACTUATING, LINEAR ) |
Drawings & Photos | NSN 1650-00-533-2471
Cross Reference | NSN 1650-00-533-2471
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7727048-01 | 98748 | AIR FORCE UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1650-00-533-2471
Related Products | NSN 1650-00-533-2471
Technical Data | NSN 1650-00-533-2471
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 12.210 INCHES MINIMUM AND 12.220 INCHES MAXIMUM |
| BODY MATERIAL | STEEL |
| BORE DIAMETER | 2.002 INCHES NOMINAL |
| (NON-CORE DATA) FIRST PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| (NON-CORE DATA) SECOND PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| MOUNTING TYPE AND LOCATION | FLANGE CYLINDER HEAD END |
| MOUNTING PROVISION | UNTHREADED MOUNTING HOLES |
| MOUNTING PROVISION ARRANGEMENT STYLE | 19 FOUR HOLE RECTANGULAR |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 2.375 INCHES NOMINAL |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 2.375 INCHES NOMINAL |
| PORT LOCATION AND QUANTITY | 1 PISTON ROD END |

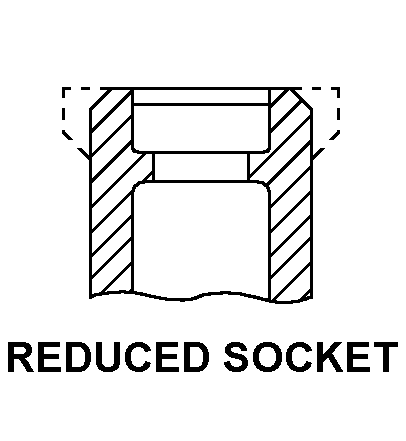

| PORT STYLE | 32 REDUCED SOCKET |
| INSIDE DIAMETER | 0.687 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| III FSC APPLICATION DATA | AIRCRAFT HYDRAULIC SYSTEM |
| MANUFACTURERS CODE | 98748 |
| DESIGN CONTROL REFERENCE | 7727048-01 |
