NSN 1650-00-471-9728 MF69390630BCS701, MF69-3906-30BCS701, BL6950
Product Details | HYDRAULIC MOTOR
1650-00-471-9728 A mechanical device designed to convert the energy of fluid pressure to rotary motion.20316500058Aircraft Hydraulic, Vacuum, and De-icing System Components25400035Vehicular Furniture and Accessories43200020Power and Hand Pumps
Part Alternates: MF69390630BCS701, MF69-3906-30BCS701, BL6950, 331612, 334552, 1650-00-471-9728, 00-471-9728, 1650004719728, 004719728
Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 13 JAN 1971 | 00-471-9728 | 06128 ( MOTOR, HYDRAULIC ) |

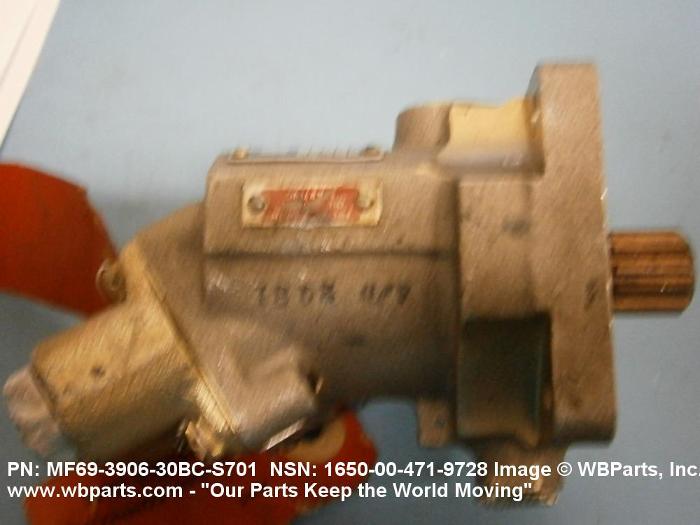

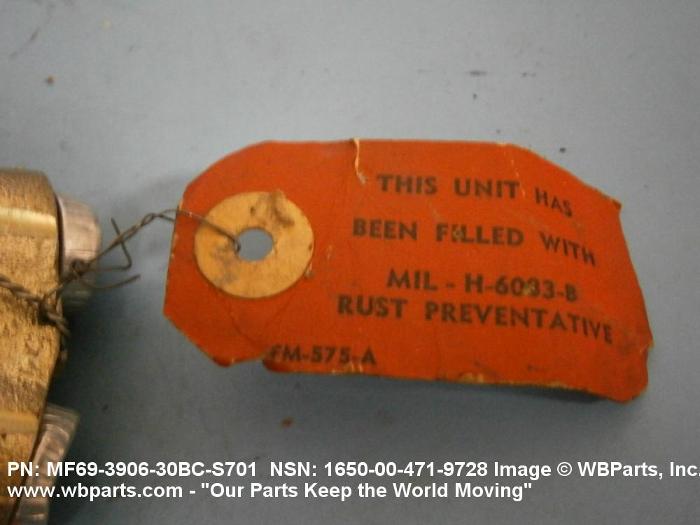

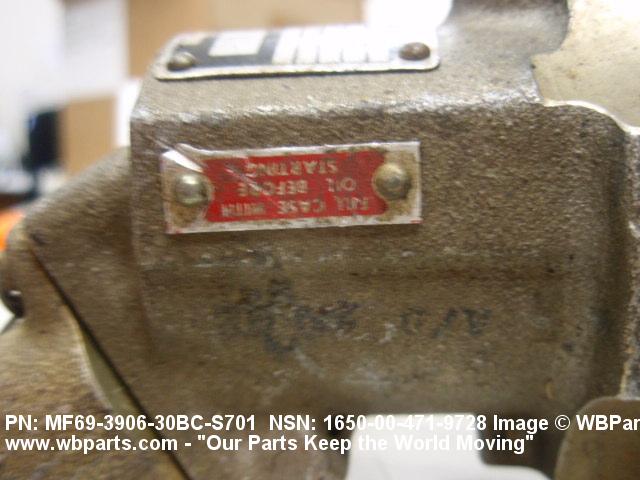

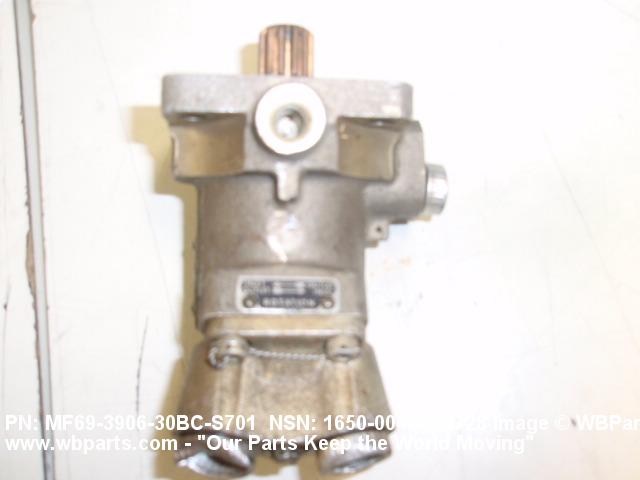

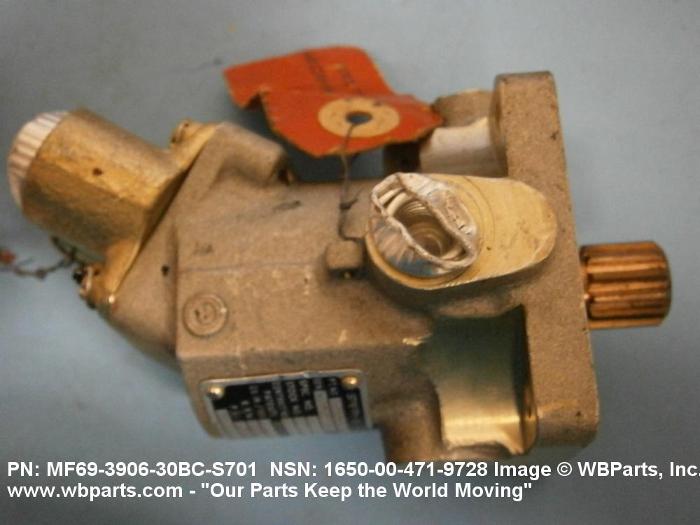

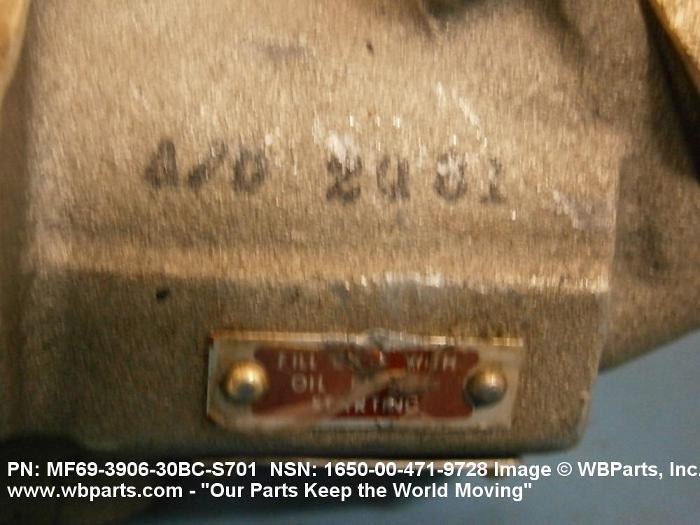

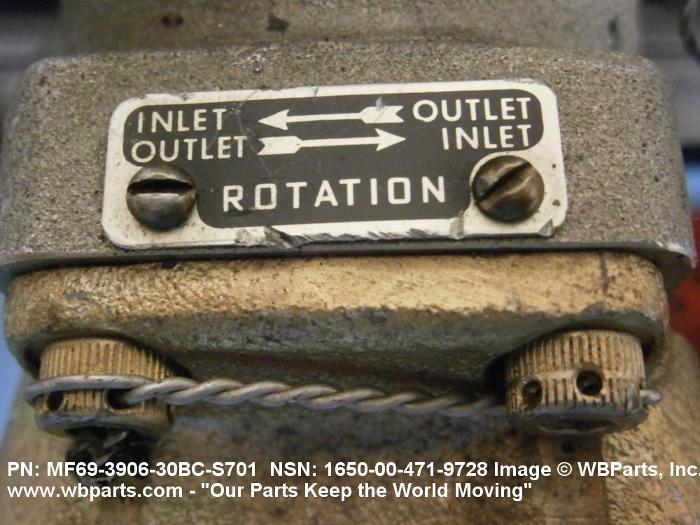

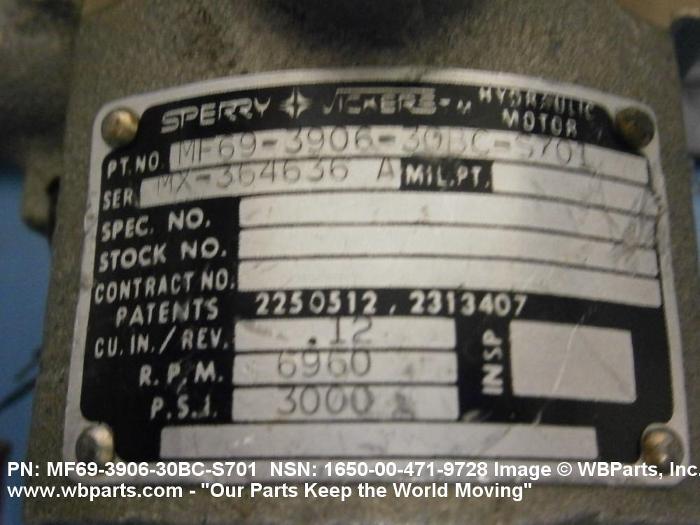

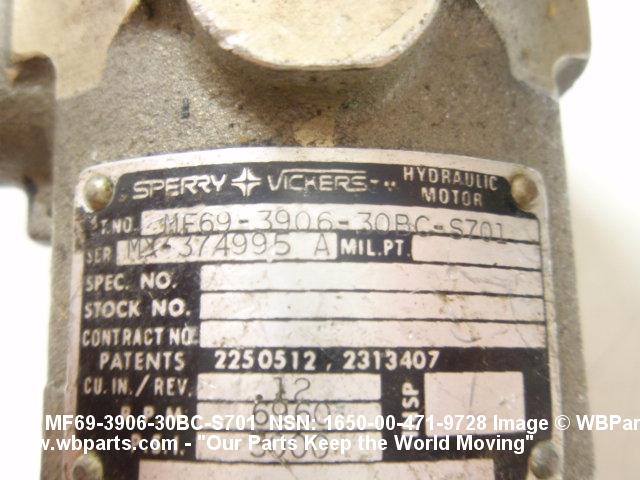

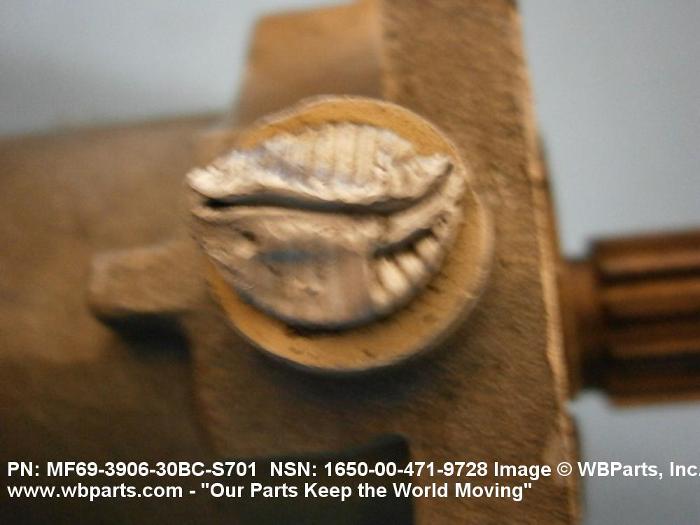

Drawings & Photos | NSN 1650-00-471-9728
Demand History | NSN 1650-00-471-9728
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 331612 | 2022-12-341 | 0 | |
| 1650-00-471-9728 | 2022-12-340 | 0 | NECO |
| 1650-00-471-9728 | 2022-05-144 | 1 | United States |
| 331612 | 2019-10-282 | 1 | FR |
| MF69390630BCS701 | 2019-05-122 | 1 | United States |
| MF69390630BCS701 | 2019-04-107 | 1 | Malaysia |
| 331612 | 2019-01-21 | 1 | United States |
| MF69390630BCS701 | 2018-11-333 | 1 | Malaysia |
| MF69390630BCS701 | 2018-11-333 | 1 | United States |
| 331612 | 2018-10-283 | 5 | United States |
| MF69390630BCS701 | 2018-05-138 | 1 | United States |
| MF69390630BCS701 | 2018-05-123 | 1 | Malaysia |
| 331612 | 2018-01-13 | 7 | |
| 1650-00-471-9728 | 2018-01-11 | 7 | NECO |
| 331612 | 2017-10-304 | 6 | |
| 1650-00-471-9728 | 2017-10-301 | 6 | NECO |
| 1650-00-471-9728 | 2017-07-199 | 3 | US |
| 1650-00-471-9728 | 2017-06-178 | 1 | US |
| BL6950 | 2017-02-46 | 1 | |
| 1650-00-471-9728 | 2017-02-45 | 1 | NECO |
| BL6950 | 2017-02-39 | 6 | |
| 1650-00-471-9728 | 2017-02-38 | 6 | NECO |
| 1650-00-471-9728 | 2016-10-292 | 1 | us |
| 1650-00-471-9728 | 2016-10-288 | 1 | US |
| MF69390630BCS701 | 2016-10-284 | 1 | United States |
| MF69390630BCS701 | 2016-09-271 | 1 | Malaysia |
| 1650-00-471-9728 | 2014-02-51 | 2 | Malaysia |
| MF69390630BCS701 | 2011-12-342 | 1 | Malaysia |
| MF69390630BCS701 | 2011-12-342 | 1 | Malaysia |
| MF69390630BCS701 | 2011-09-250 | 1 | Malaysia |
| MF69390630BCS701 | 2011-02-47 | 1 | Malaysia |
| MF69390630BCS701 | 2010-09-246 | 4 | IT |
| MF69390630BCS701 | 2010-03-74 | 1 | Malaysia |
| MF69390630BCS701 | 2009-09-256 | 1 | Australia |
| BL6950 | 2009-03-78 | 2 | Malaysia |
| 1650-00-471-9728 | 2009-03-78 | 2 | Malaysia |
| MF69390630BCS701 | 2009-03-75 | 2 | Malaysia |
| MF69390630BCS701 | 2009-03-74 | 2 | Malaysia |
| MF69390630BCS701 | 2009-03-71 | 2 | Malaysia |
| MF69390630BCS701 | 2009-03-69 | 2 | Malaysia |
| 1650-00-471-9728 | 2009-03-65 | 2 | Philippines |
| 1650-00-471-9728 | 2009-03-65 | 2 | Malaysia |
| MF69390630BCS701 | 2008-11-312 | 1 | South Korea |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1650-00-471-9728
Related Products | NSN 1650-00-471-9728
Technical Data | NSN 1650-00-471-9728
| Characteristic | Specifications |
|---|---|
| DISPLACEMENT TYPE | CONSTANT |
| SHAFT ROTATION DIRECTION | CLOCKWISE AND COUNTERCLOCKWISE |
| OPERATING SPEED AT RATED CAPACITY IN RPM | 6960.0 |
| MAXIMUM WORKING PRESSURE RATING AT SPECIFIED TEMP RANGE | 3000PSI AT NO SPECIFIC TEMP |
| TORQUE LOAD RATING | 57.3 INCH-POUNDS |
| CONSTANT DISPLACEMENT PER REVOLUTION | 0.120 CUBIC INCHES |

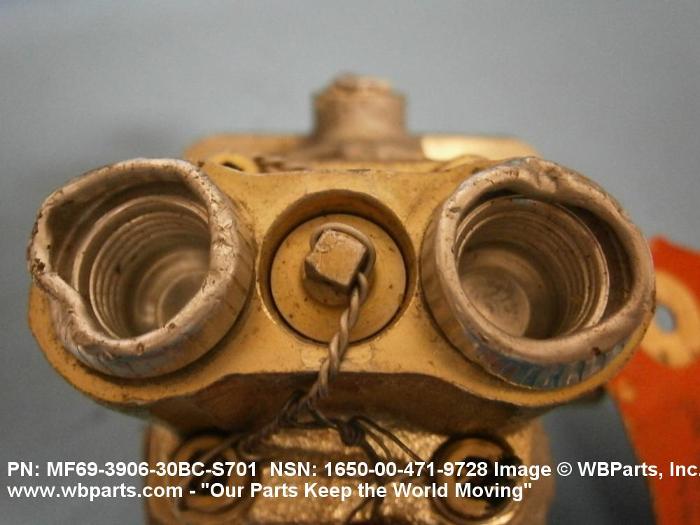

| CONNECTION TYPE | INLET OUTLET DRAIN |
| CONNECTION QUANTITY | 2 AND 1 AND 1 |
| CONNECTION GOVERNMENT SPEC/STD | AND10050-6 AND AND10050-4 AND AND10050-2 |
| CONNECTION DESIGN | THREADED |
| THREAD SIZE | 0.562-18 AND 0.437-20 AND 0.312-24 |
| SCREW THREAD SERIES DESIGNATOR | UNF |
| THREAD LOCATION | INTERNAL |
| THREAD DIRECTION | RIGHT-HAND |

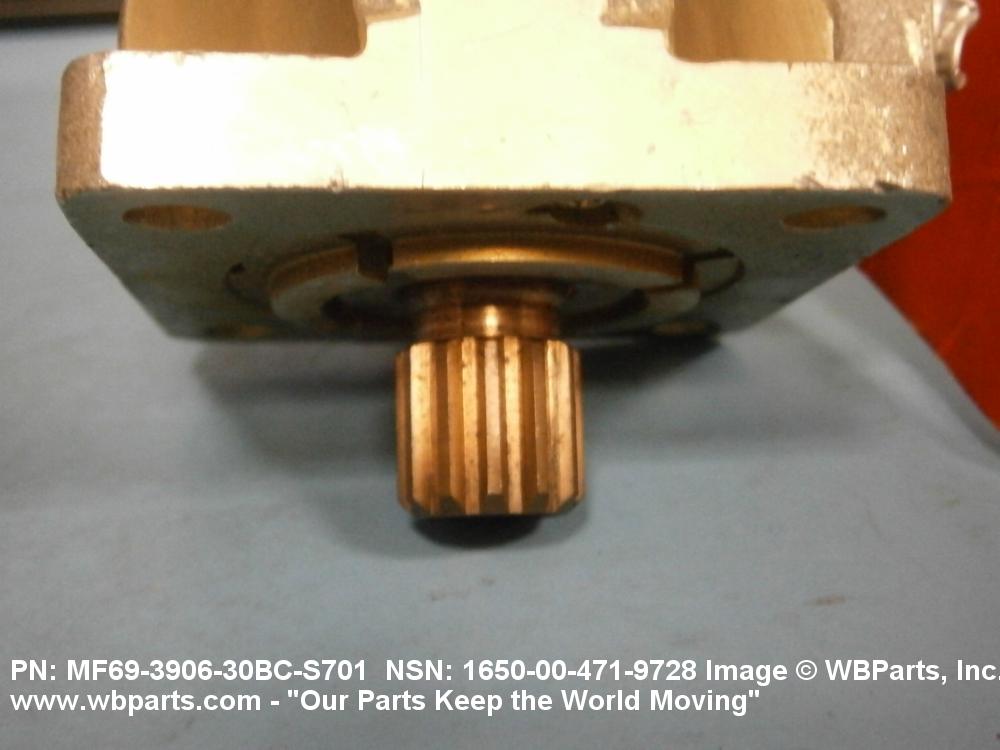

| DRIVE SHAFT TYPE | SPLINED, INVOLUTE EXTERNAL |
| SPLINE QUANTITY | 12 |
| SPLINE PITCH | 20/40 |
| PITCH DIAMETER | 0.600 INCHES NOMINAL |
| SPLINE PRESSURE ANGLE IN DEG | 30.0 |
| MOUNTING TYPE | FLANGE |
| MOUNTING HOLE QUANTITY | 4 |
| III FSC APPLICATION DATA | AIRCRAFT |
| MANUFACTURERS CODE | 62983 |
| DESIGN CONTROL REFERENCE | 334552 |
Restrictions/Controls & Freight Information | NSN 1650-00-471-9728
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 125820 | MOTORS/PUMPS HYDRAULIC ROTARY/PISTN |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1650-00-471-9728
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7R | Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia |
| Special Material ID | LU | HELICOPTERS(CH-53E) |
| Issue Repair, or Requisition | AR | Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
