NSN 1650-00-345-9287 L22604, L2260-4, 00-345-9287
Product Details | LINEAR ACTUATING CYLINDER
1650-00-345-9287 A cylinder designed to house a piston and other necessary component parts of a CYLINDER ASSEMBLY, ACTUATING, LINEAR. Do not use if a more specific name applies.20411900057Specialized Test and Handling Equipment, Nuclear Ordnance16500058Aircraft Hydraulic, Vacuum, and De-icing System Components1710000030400042Miscellaneous Power Transmission Equipment
Part Alternates: L22604, L2260-4, 1650-00-345-9287, 00-345-9287, 1650003459287, 003459287
Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1963 | 00-345-9287 | 22017 ( CYLINDER, ACTUATING, LINEAR ) |

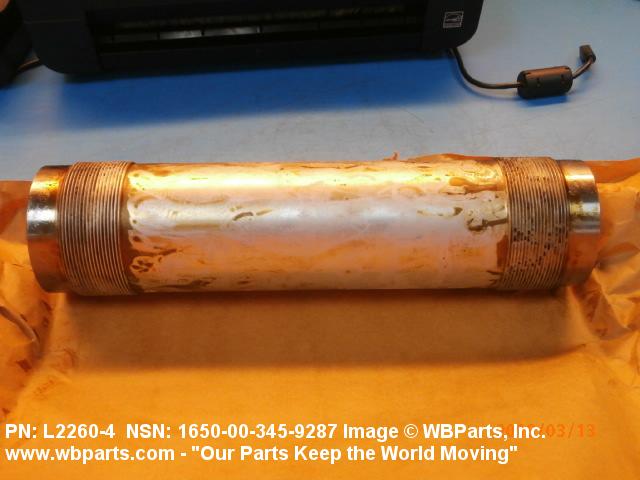

Drawings & Photos | NSN 1650-00-345-9287
Demand History | NSN 1650-00-345-9287
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| L22604 | 2018-02-59 | 1 | United States |
Cross Reference | NSN 1650-00-345-9287
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| L2260-4 | 78062 | DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1650-00-345-9287
Related Products | NSN 1650-00-345-9287
Technical Data | NSN 1650-00-345-9287
| Characteristic | Specifications |
|---|---|

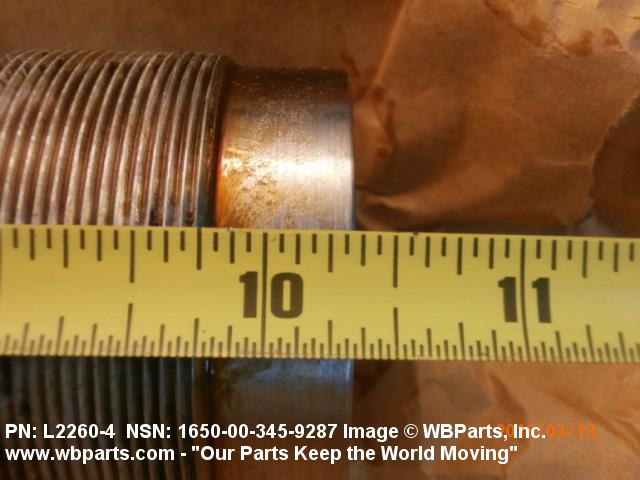

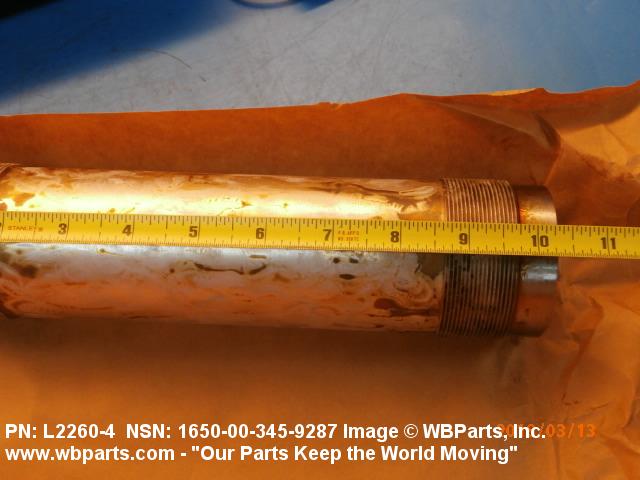

| OVERALL LENGTH | 10.370 INCHES NOMINAL |

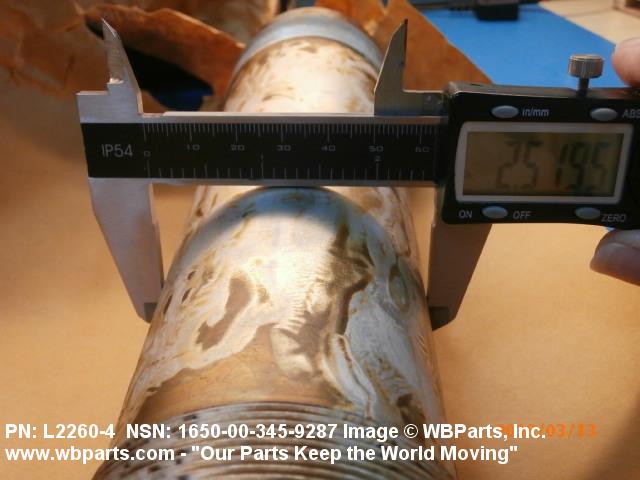

| OVERALL DIAMETER | 2.520 INCHES NOMINAL |
| BODY MATERIAL | STEEL |

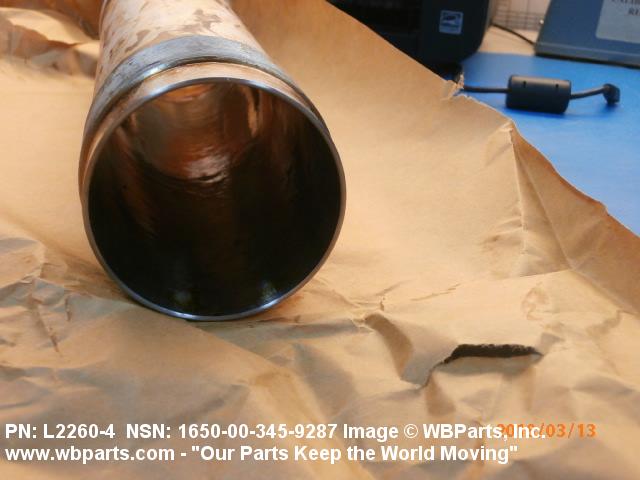

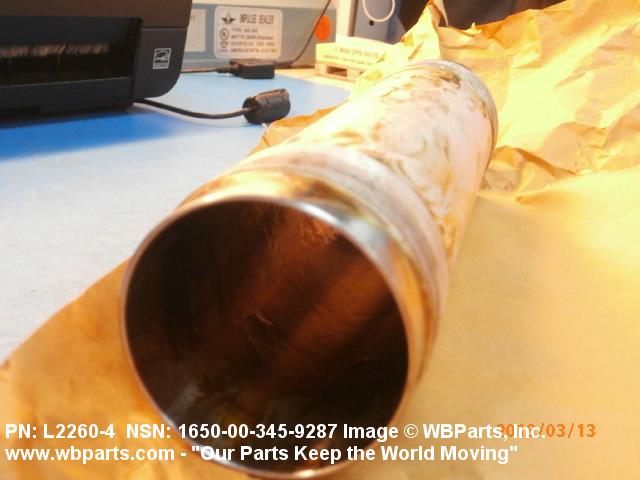

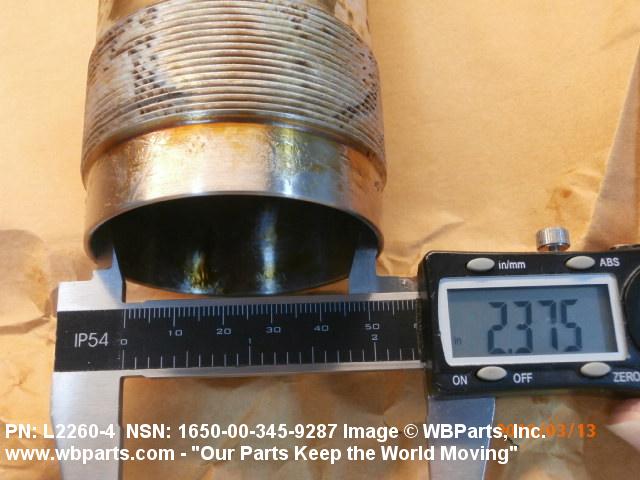

| BORE DIAMETER | 2.370 INCHES NOMINAL |
| MANUFACTURERS CODE | 78062 |
| DESIGN CONTROL REFERENCE | L2260-4 |
Restrictions/Controls & Freight Information | NSN 1650-00-345-9287
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 119260 | CYLINDERS:HYDRAULIC/PNEUMATIC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
