NSN 1650-00-288-6908 MS287206, MS28720-6, GHN102772

Product Details | FLUID FILTER

1650-00-288-6908 A filter having inlet and outlet connections and designed to be connected in a pipe, tube or hose line. For spin-on, base-mounted filtering devices with integral outer casings, see FILTER ELEMENT, FLUID. Excludes AIR CONDITIONER.21516500058Aircraft Hydraulic, Vacuum, and De-icing System Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving41300045Refrigeration and Air Conditioning Components43300057Centrifugals, Separators, and Pressure and Vacuum Filters4930000063500059Miscellaneous Alarm, Signal, and Security Detection Systems65150057Medical and Surgical Instruments, Equipment, and Supplies65300053Hospital Furniture, Equipment, Utensils, and Supplies65400047Ophthalmic Instruments, Equipment, and Supplies66300029Chemical Analysis Instruments

Part Alternates: MS287206, MS28720-6, GHN102772, GHN10277-2 , 22522100, 22522-100, 301090, 301-090, 50221, 567602, 569406, 700276, 1650-00-288-6908, 00-288-6908, 1650002886908, 002886908

Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
16	01 JAN 1963	00-288-6908	32622 ( FILTER, FLUID )

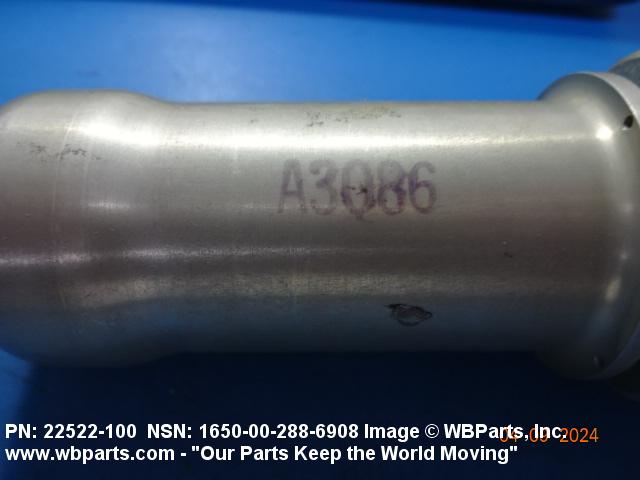

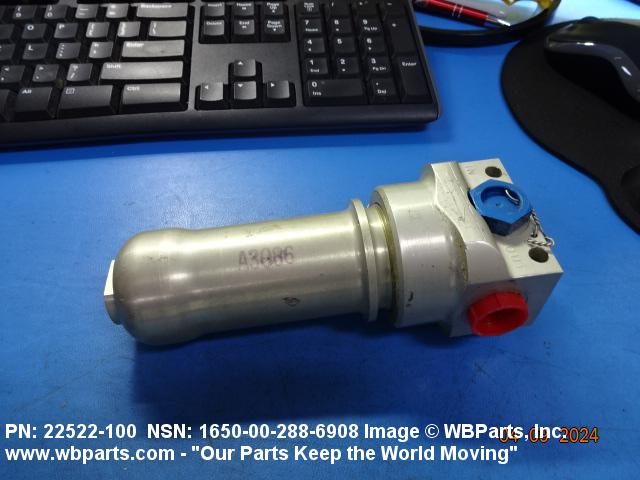

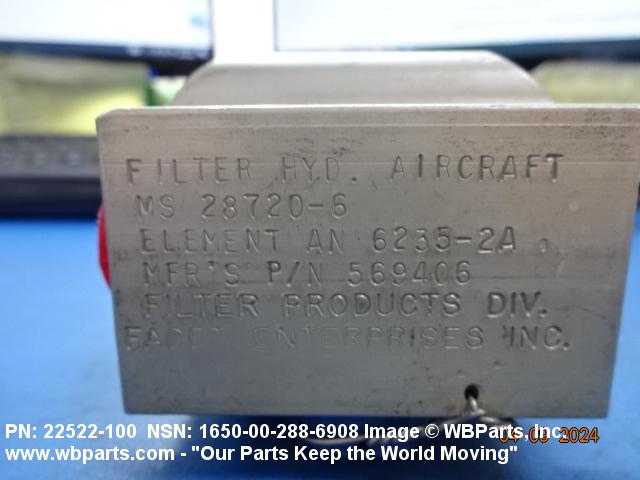

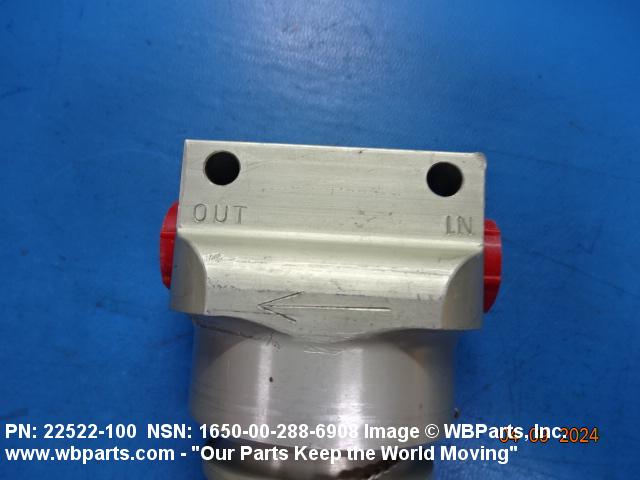

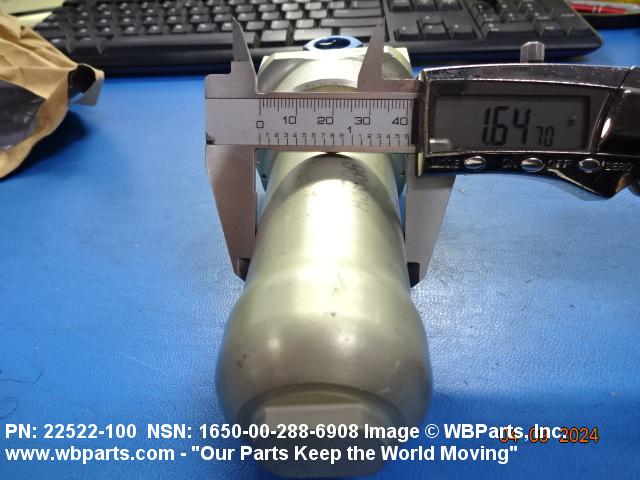

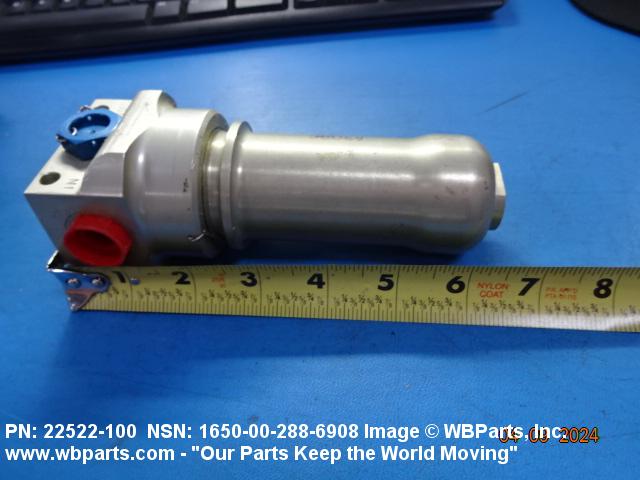

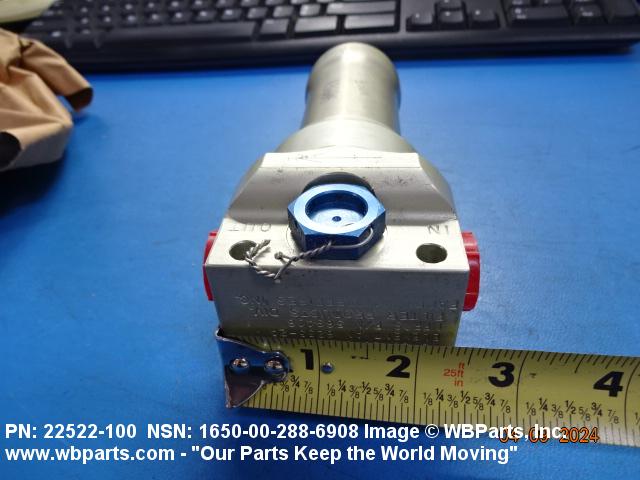

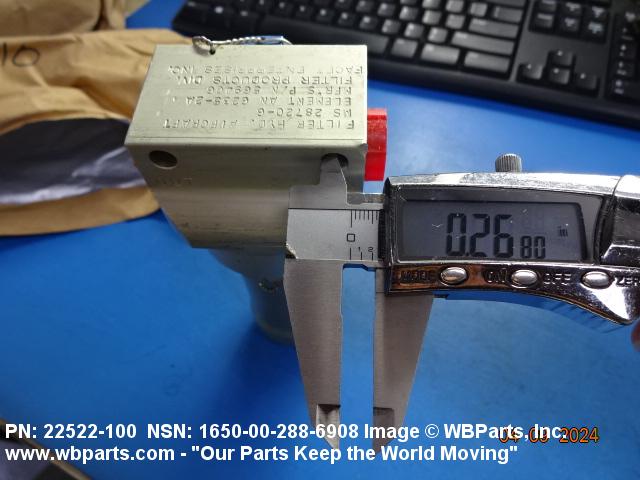

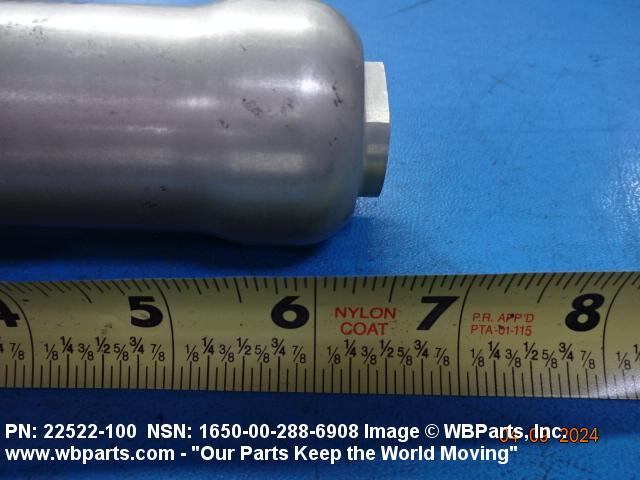

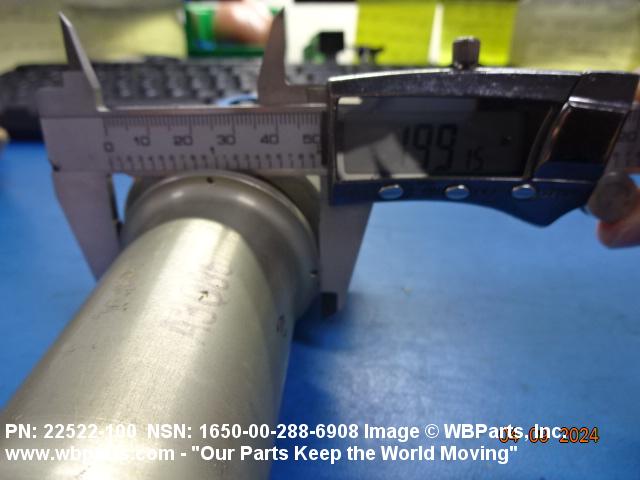

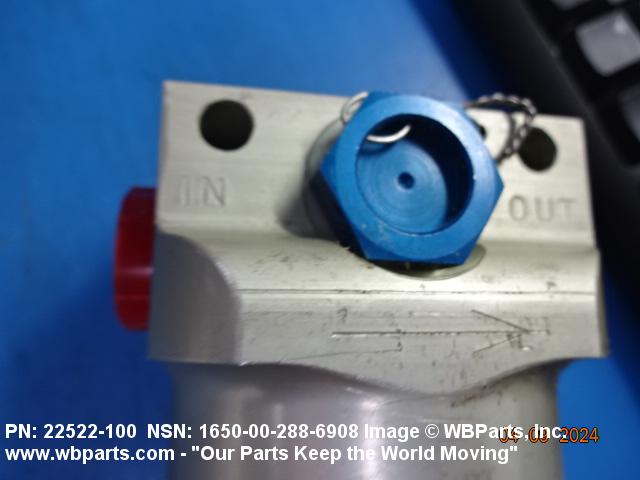

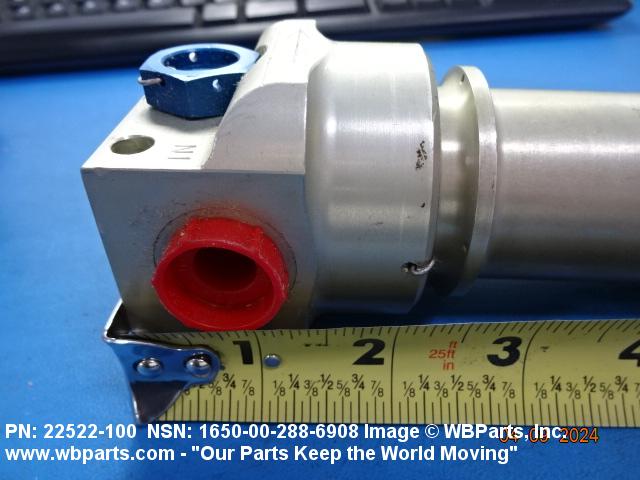

Drawings & Photos | NSN 1650-00-288-6908

Part Number	Request Date	QTY	Origin
1650-00-288-6908	2024-05-122	2	United States
1650-00-288-6908	2024-02-57	2	United States
1650-00-288-6908	2022-01-12	8	IL
1650-00-288-6908	2021-03-87	24	DIBBS
1650-00-288-6908	2021-02-36	1	DIBBS-RFPs
1650-00-288-6908	2020-12-355	38	DIBBS
569406	2016-06-165	1	United States
1650-00-288-6908	2014-11-310	1	Turkey
50221	2013-10-277	1	LK
1650-00-288-6908	2012-11-335	1	UK
MS287206	2012-05-139	10	US
569406	2012-05-139	10	US
1650-00-288-6908	2011-07-193	1	US
1650-00-288-6908	2011-07-187	1	US
MS287206	2011-06-179	1	US
1650-00-288-6908	2010-01-21	3	US
MS287206	2009-05-126	1	US
1650-00-288-6908	2009-01-08	131	DIBBS
1650-00-288-6908	2008-12-337	28	DIBBS

Cross Reference | NSN 1650-00-288-6908

Part Number	Cage Code	Manufacturer
22522-100	2N386	HYDRAULICS INTERNATIONAL, INC. Use CAGE Code 56529 for cataloging
301-090	82386	JAIDINGER MFG. CO., INC. DBA JAICO PRODUCTS
50221	05228	PTI TECHNOLOGIES INC.
50221	64829	ARVINMERITOR INC
567602	06840	BENDIX CORP THE
567602	90005	PUROLATOR FACET, INC.
569406	06840	BENDIX CORP THE
569406	90005	PUROLATOR FACET, INC.
700276	35076	AIRCRAFT APPLIANCES AND EQUIPMENT LIMITED
MS28720-6	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 1650-00-288-6908

Compare

Related Products | NSN 1650-00-288-6908

1650-00-288-9235, 1650-00-288-9236, 1650-00-288-9632, 1650-00-289-7937, 1650-00-289-9206

Technical Data | NSN 1650-00-288-6908

Characteristic	Specifications
STYLE DESIGNATOR	C32 TEE TYPE
BODY LENGTH	2.375 INCHES NOMINAL
BODY WIDTH	2.375 INCHES NOMINAL
BODY HEIGHT	6.937 INCHES NOMINAL
DISTANCE FROM BOTTOM OF BODY TO CENTER OF INLET	5.875 INCHES NOMINAL
MATERIAL	PAPER FILTERING MEDIUM ALUMINUM ALLOY SEDIMENT BOWL
FILTERING MEDIA DESIGN	ENCASED ALL FILTERING MEDIA RESPONSES
DESIGN TYPE	REUSABLE
FILTERING ELEMENT QUANTITY	1
FILTRATION RATING IN MICRONS	10.0 NOMINAL
MAXIMUM OPERATING PRESSURE	3000.0 POUNDS PER SQUARE INCH
DROP PRESSURE	NOT RATED
DIFFERENTIAL PRESSURE	NOT RATED
FIRST INTAKE CONNECTION TYPE	THREADED INTERNAL TUBE SIDE
FIRST INTAKE THREAD SERIES DESIGNATOR	UNF
FIRST INTAKE NOMINAL THREAD SIZE	0.562 INCHES
FIRST INTAKE THREAD CLASS	3B
FIRST INTAKE THREAD DIRECTION	RIGHT-HAND
FIRST DISCHARGE CONNECTION RELATIONSHIP TO INTAKE CONNECTION	IDENTICAL TO FIRST INTAKE CONNECTION
MOUNTING TYPE	UNTHREADED HOLE HEAD SIDE
MOUNTING HOLE QUANTITY	2

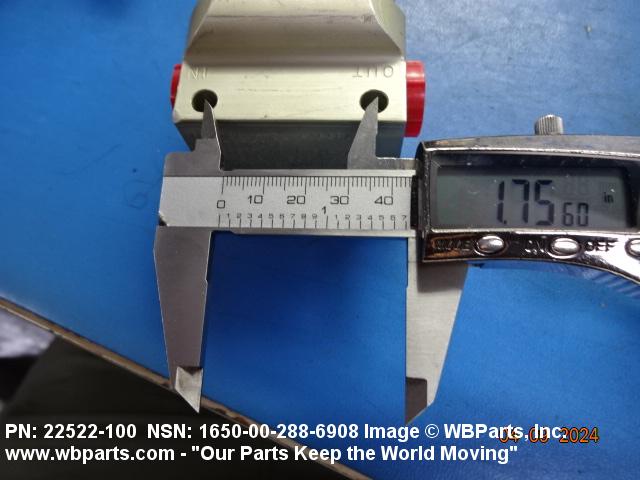

DISTANCE BETWEEN MOUNTING HOLE CENTERS	1.750 INCHES NOMINAL
MOUNTING HOLE DIAMETER	0.266 INCHES NOMINAL
FILTERING SYSTEM FOR WHICH DESIGNED	BY-PASS FLOW
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS28720-6

Restrictions/Controls & Freight Information | NSN 1650-00-288-6908

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	069100	FILTERS:FILTERS,NOI SUB6
Less than car load rating
Less than truck load rating	J	100.2
Water commodity Code	671	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 1650-00-288-6908

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	P	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	3B	Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg
Special Material ID	FZ	Special Projects (GFE)
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Reparability	D	Field Level Reparables
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
