NSN 1650-00-217-0577 AC6091F8Y8, 7583602, 00-217-0577

Product Details | FLUID FILTER ELEMENT

1650-00-217-0577 A replaceable device designed to remove solid particles from fluids ranging in density from heavy liquids to gases. The removal of particles is accomplished by porous material (metallic or non-metallic), stacked disks, wound wire, or the like, constructed so the fluid can flow through the device while the solid particles are retained. It may be designed to fit into a FILTER, FLUID (or similar cavity), or it may have an integral outer casing and mounting facilities and be designed to connect directly to an engine, compressor, or the like. The degree of removal of particles must be nominally rated at less than 50 microns or absolutely rated at less than 75 microns. Excludes FILTER ELEMENT, AIR CONDITIONING. See also STRAINER ELEMENT, SEDIMENT.20916500058Aircraft Hydraulic, Vacuum, and De-icing System Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters5999000065300053Hospital Furniture, Equipment, Utensils, and Supplies66300029Chemical Analysis Instruments

Part Alternates: AC6091F8Y8, 7583602, 1650-00-217-0577, 00-217-0577, 1650002170577, 002170577

Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
16	06 MAY 1973	00-217-0577	32624 ( FILTER ELEMENT, FLUID )

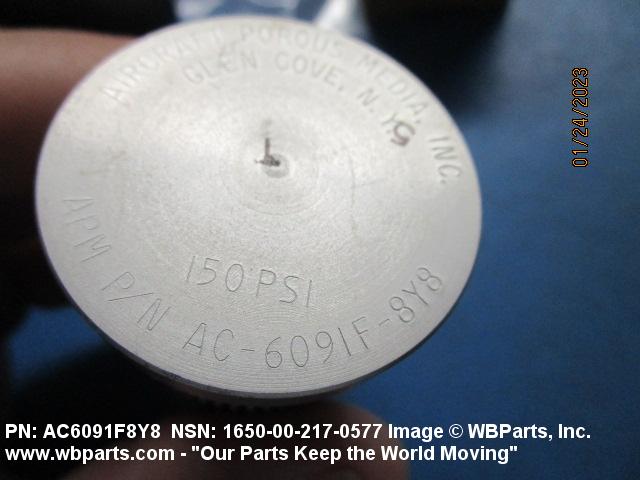

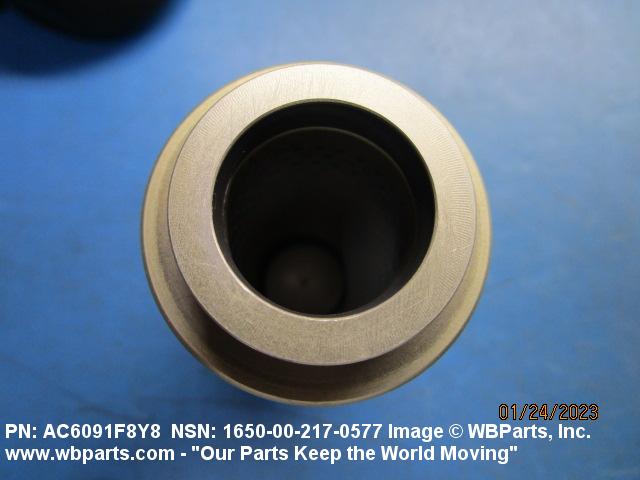

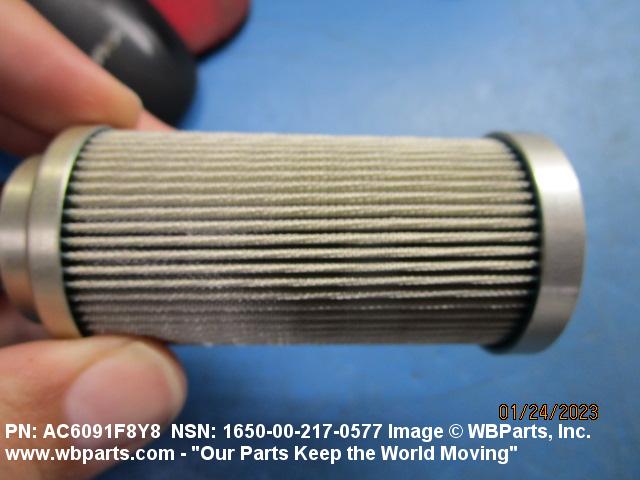

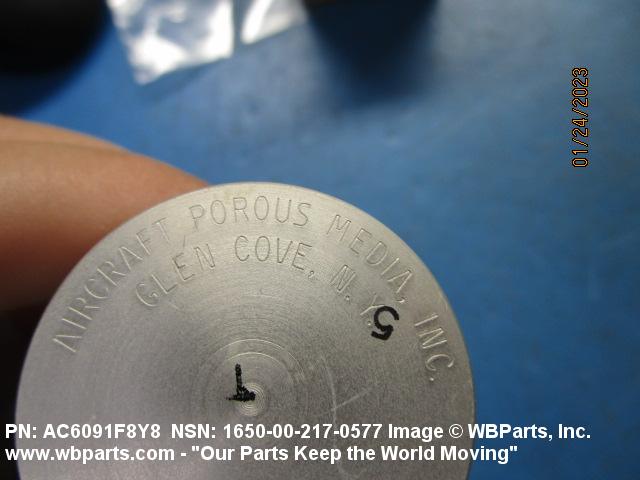

Drawings & Photos | NSN 1650-00-217-0577

Part Number	Request Date	QTY	Origin
AC6091F8Y8	2023-04-111	1	us
AC6091F8Y8	2023-01-04	1	us
AC6091F8Y8	2022-10-278	150	us
1650-00-217-0577	2022-08-228	30	US
1650-00-217-0577	2022-02-34	2	US
AC6091F8Y8	2021-11-305	4	MY
1650-00-217-0577	2021-09-272	20	RO
1650-00-217-0577	2021-09-271	4	MY
1650-00-217-0577	2021-07-207	10	Malaysia
AC6091F8Y8	2021-07-207	10	Malaysia
AC6091F8Y8	2021-06-159	4	Malaysia
AC6091F8Y8	2021-04-112	1	Malaysia
AC6091F8Y8	2021-04-102	1	Malaysia
AC6091F8Y8	2019-07-183	8	United States
1650-00-217-0577	2018-07-205	1	DIBBS-RFPs
1650-00-217-0577	2015-05-141	210	DIBBS
1650-00-217-0577	2015-02-55	198	DIBBS
1650-00-217-0577	2013-10-283	1	DIBBS-RFPs
1650-00-217-0577	2012-07-190	184	DIBBS
1650-00-217-0577	2012-06-170	181	DIBBS
1650-00-217-0577	2011-07-208	294	DIBBS
1650-00-217-0577	2010-12-348	294	DIBBS

Cross Reference | NSN 1650-00-217-0577

Part Number	Cage Code	Manufacturer
7583602	05228	PTI TECHNOLOGIES INC.
AC6091F8Y8	18350	PALL AEROPOWER CORPORATION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 1650-00-217-0577

Compare

Related Products | NSN 1650-00-217-0577

1650-00-217-0578, 1650-00-217-0624, 1650-00-217-0628, 1650-00-217-0642, 1650-00-217-0644

Technical Data | NSN 1650-00-217-0577

Characteristic	Specifications
STYLE DESIGNATOR	A6 CYLINDRICAL W/OUT CONTAINER

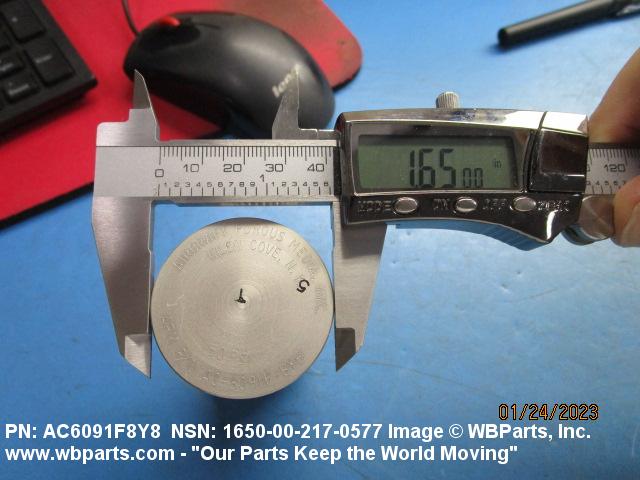

BODY DIAMETER	1.625 INCHES NOMINAL
BODY INSIDE DIAMETER	0.891 INCHES NOMINAL

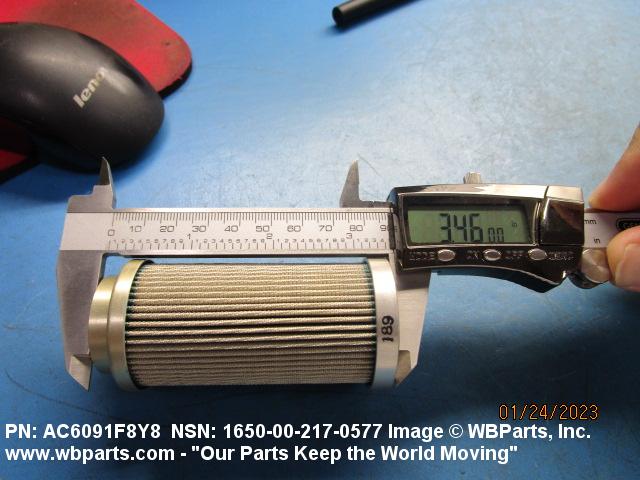

BODY OVERALL LENGTH	3.437 INCHES NOMINAL
FILTRATION RATING IN MICRONS	3.0 ABSOLUTE
MEDIA FOR WHICH DESIGNED	FUEL/OIL, HYDROCARBON
III FSC APPLICATION DATA	ACFT HYDRAULIC SYSTEM
MANUFACTURERS CODE	18350
DESIGN CONTROL REFERENCE	AC6091F8Y8

Restrictions/Controls & Freight Information | NSN 1650-00-217-0577

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	Q	Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.”
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	069100	FILTERS:FILTERS,NOI SUB6
Less than car load rating
Less than truck load rating	J	100.2
Water commodity Code	671	unknown
Originating Activity Code	SX	Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043
Air Dimension Code	Z	Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 1650-00-217-0577

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
