NSN 1650-00-174-8249 MF10591A, MF1-059-1A, 65651-04027-101
Product Details | HYDRAULIC MOTOR
1650-00-174-8249 A mechanical device designed to convert the energy of fluid pressure to rotary motion.20316500058Aircraft Hydraulic, Vacuum, and De-icing System Components25400035Vehicular Furniture and Accessories43200020Power and Hand Pumps
Part Alternates: MF10591A, MF1-059-1A, 65651-04027-101, 1650-00-174-8249, 00-174-8249, 1650001748249, 6565104027101, 001748249
Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 24 FEB 1973 | 00-174-8249 | 06128 ( MOTOR, HYDRAULIC ) |

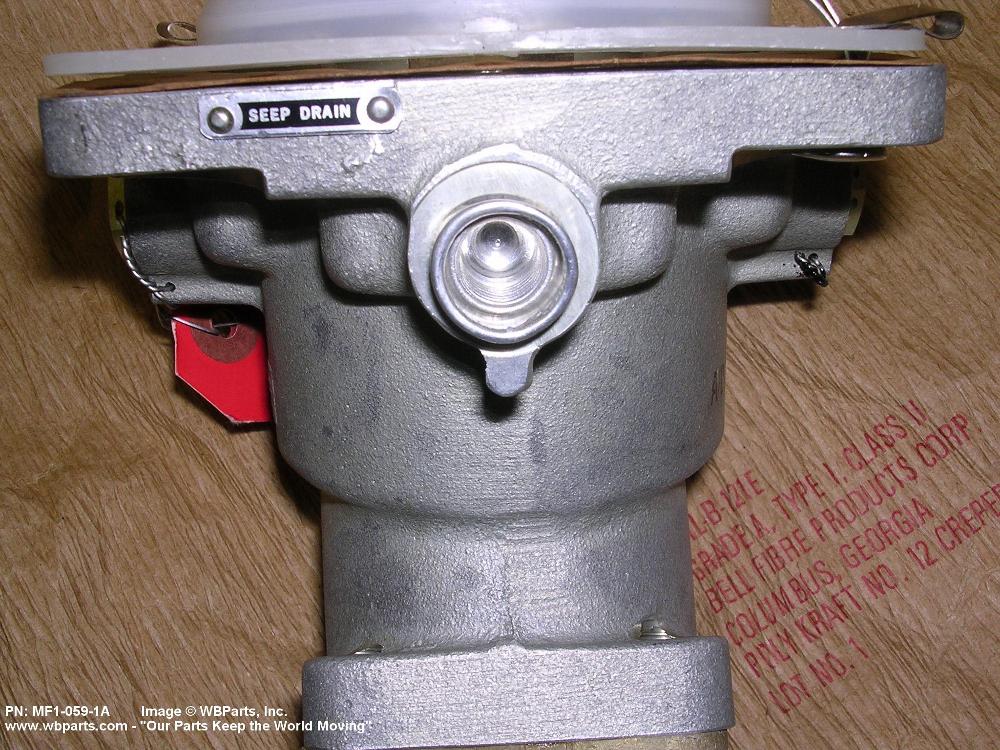

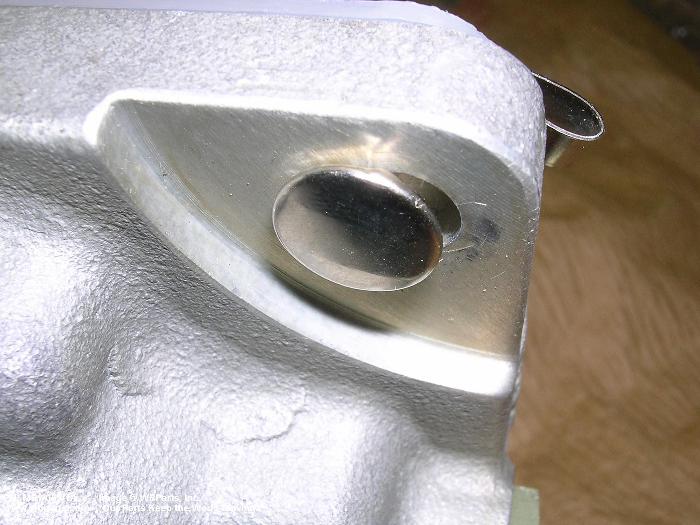

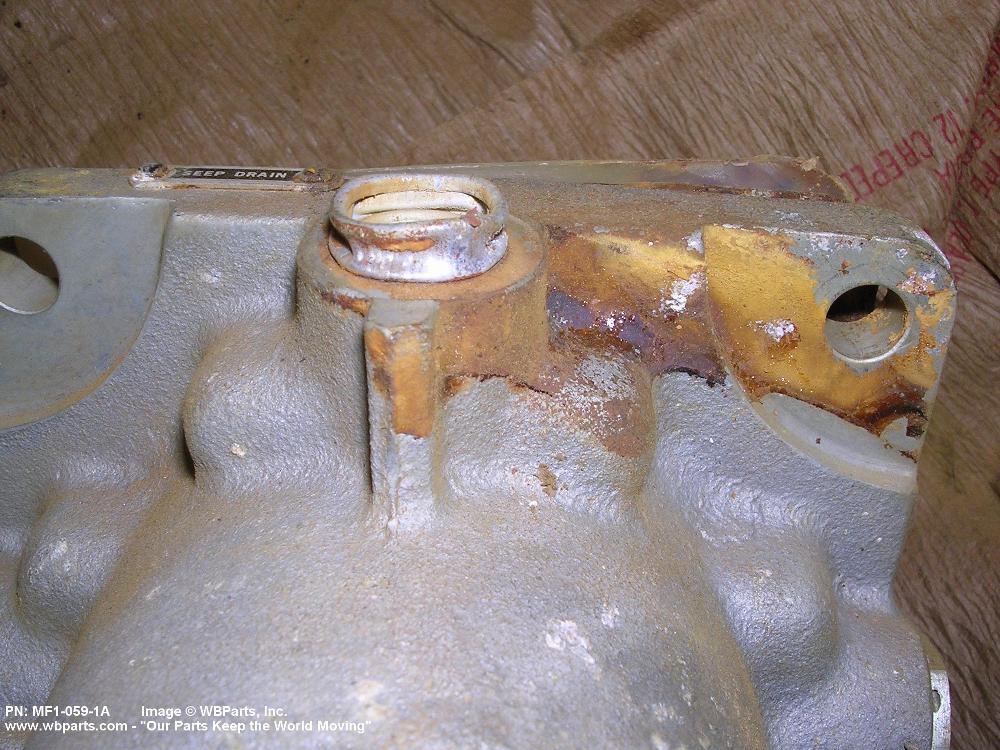

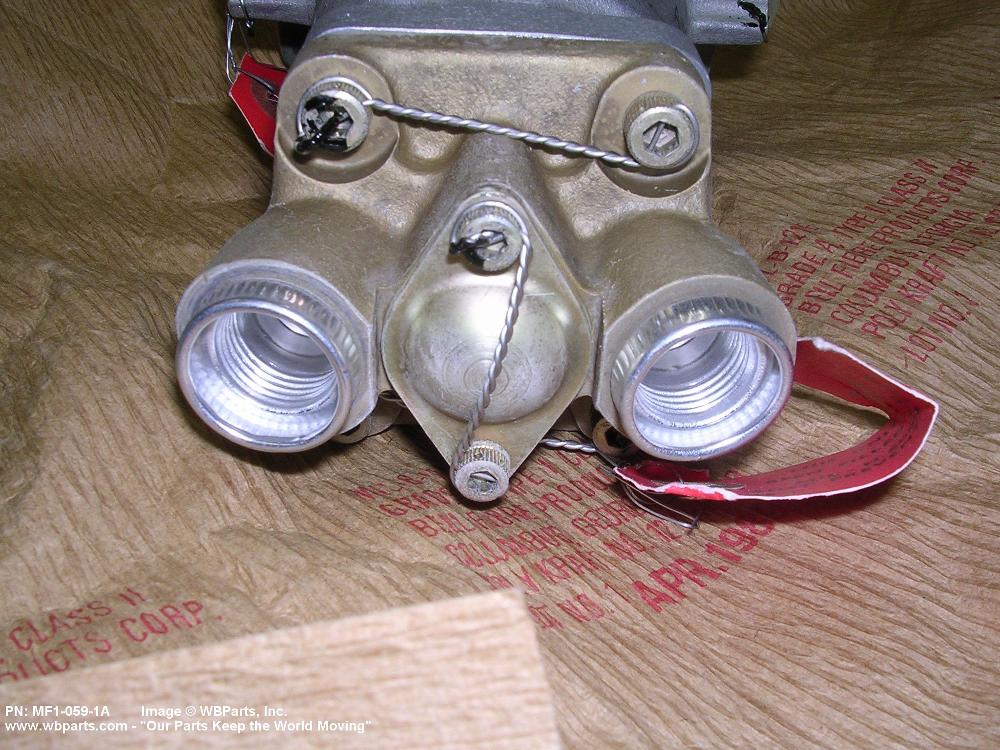

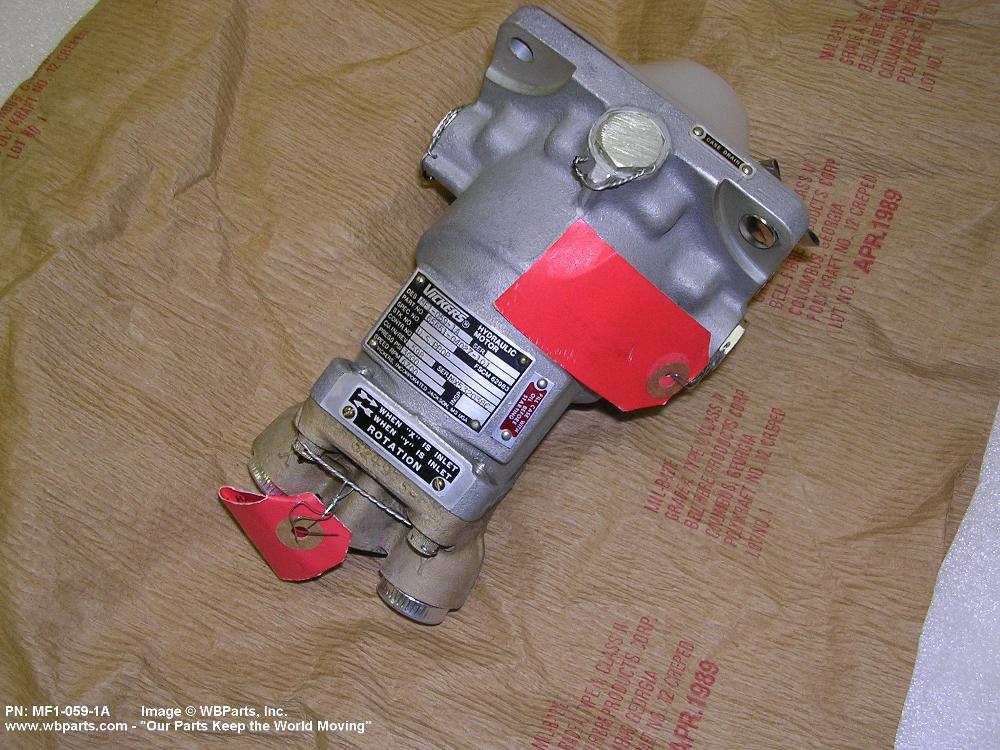

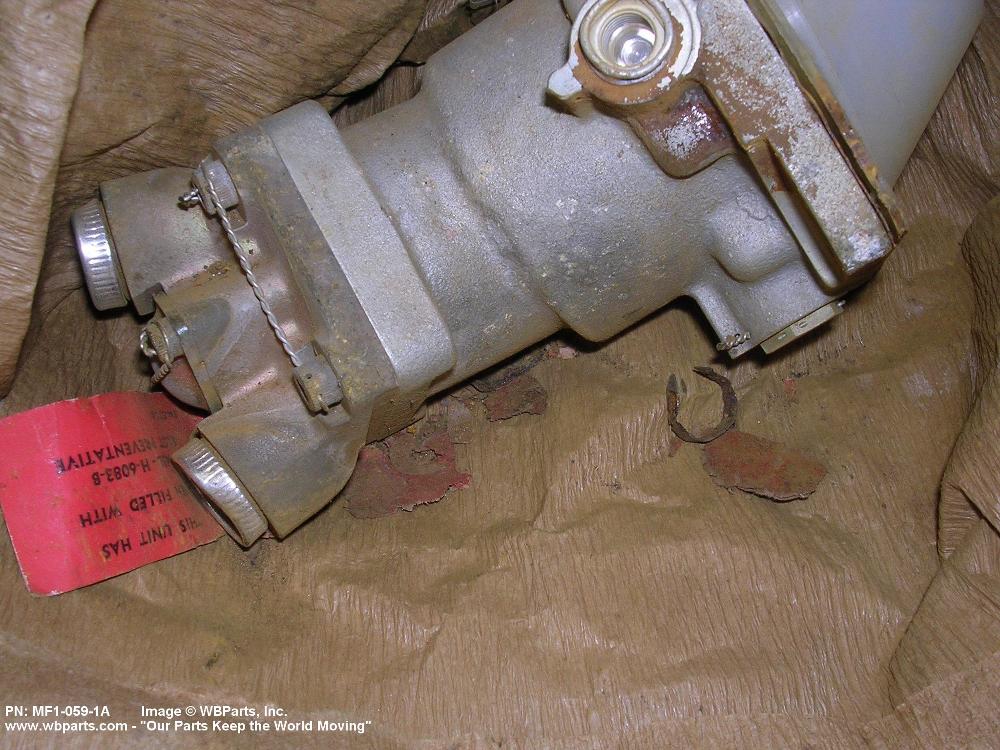

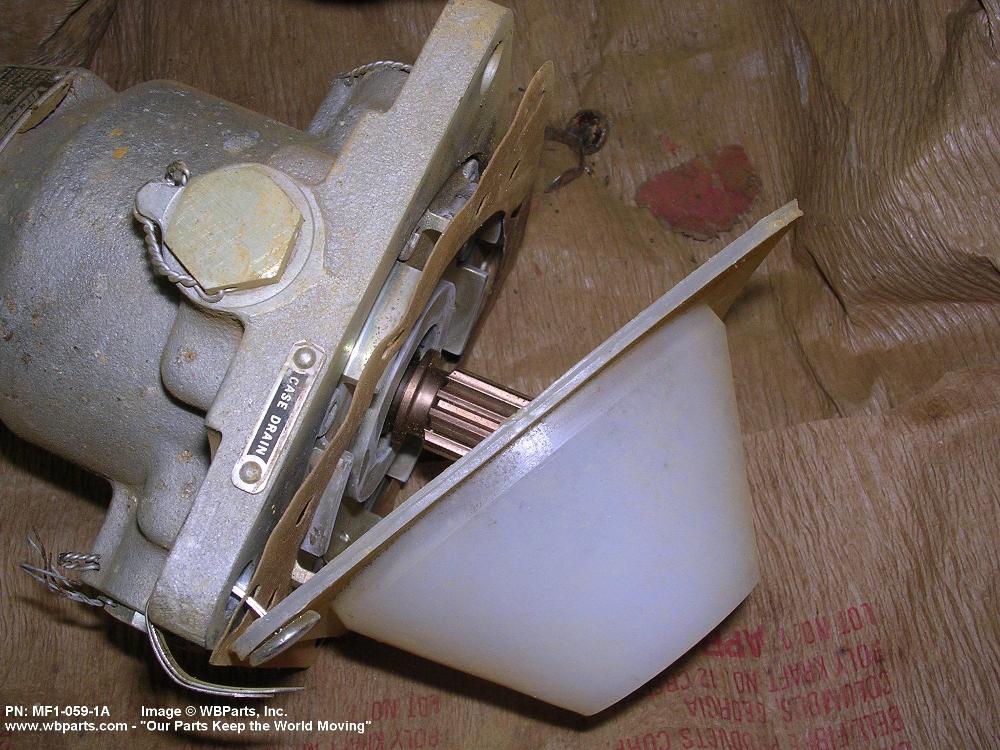

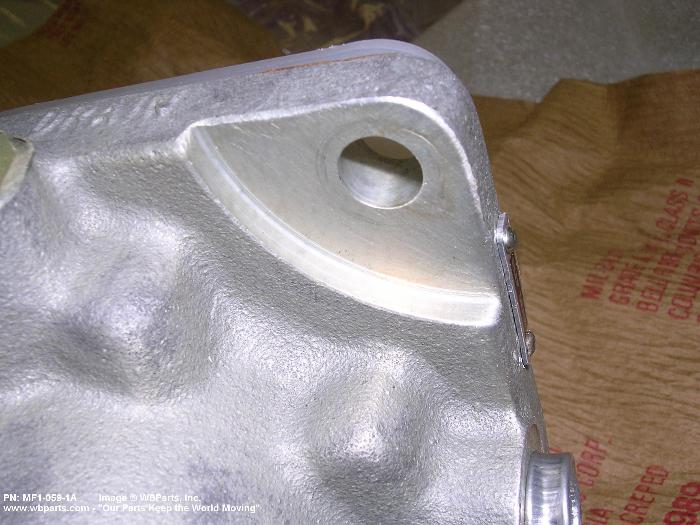

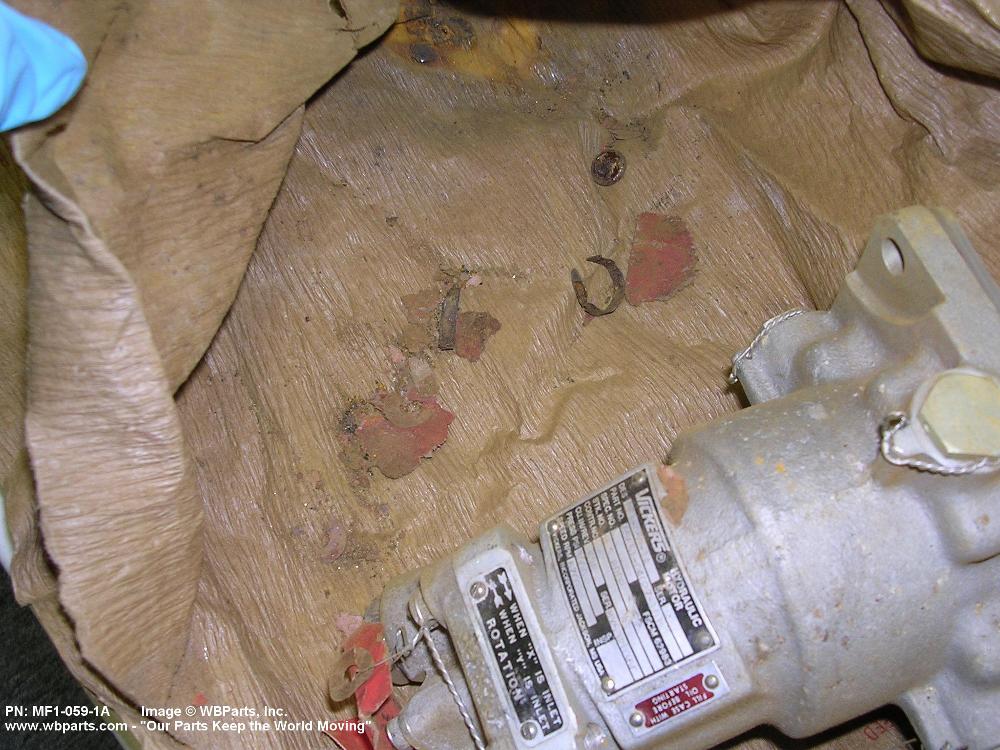

Drawings & Photos | NSN 1650-00-174-8249
Demand History | NSN 1650-00-174-8249
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MF1-059-1A | 2019-02-32 | 40 | |
| 1650-00-174-8249 | 2019-01-31 | 40 | NECO |
| MF1-059-1A | 2018-02-58 | 20 | |
| 1650-00-174-8249 | 2018-02-55 | 20 | NECO |
| 1650-00-174-8249 | 2009-10-288 | 1 | Canada |
| 1650-00-174-8249 | 2007-09-260 | 4 | US |
| MF10591A | 2007-08-219 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1650-00-174-8249
Related Products | NSN 1650-00-174-8249
Technical Data | NSN 1650-00-174-8249
| Characteristic | Specifications |
|---|---|
| DISPLACEMENT TYPE | CONSTANT |
| SHAFT ROTATION DIRECTION | CLOCKWISE |
| OPERATING SPEED AT RATED CAPACITY IN RPM | 4310.0 |
| MAXIMUM WORKING PRESSURE RATING AT SPECIFIED TEMP RANGE | 3000PSI AT MINUS 65 DEG F TO PLUS 360 DEG F |
| TORQUE LOAD RATING | 206.0 INCH-POUNDS |
| CONSTANT DISPLACEMENT PER REVOLUTION | NOT RATED |
| CONNECTION TYPE | INLET |
| CONNECTION QUANTITY | 4 |
| CONNECTION GOVERNMENT SPEC/STD | AND10050-4 |
| CONNECTION DESIGN | THREADED |
| THREAD SIZE | 0.437-20 |
| SCREW THREAD SERIES DESIGNATOR | UNF |
| THREAD LOCATION | INTERNAL |
| THREAD DIRECTION | RIGHT-HAND |
| DRIVE SHAFT TYPE | SPLINED, INVOLUTE EXTERNAL |
| SPLINE QUANTITY | 12 |
| SPLINE MAJOR DIAMETER | 0.650 INCHES NOMINAL |
| SPLINE MINOR DIAMETER | 0.550 INCHES NOMINAL |
| SPLINE PITCH | 20/40 |
| PITCH DIAMETER | 0.600 INCHES NOMINAL |
| SPLINE PRESSURE ANGLE IN DEG | 30.0 |
| SPLINE LENGTH | 0.812 INCHES NOMINAL |
| SHAFT PROTRUSION LENGTH | 0.966 INCHES NOMINAL |
| MOUNTING TYPE | FLANGE |
| MOUNTING GOVERNMENT STANDARD | AND10261 |
| MOUNTING HOLE QUANTITY | 4 |
| MOUNTING BOLT HOLE SPACING | 3.536 IN. BY 3.536 IN. |
| MOUNTING HOLE DIAMETER | 0.344 INCHES NOMINAL |
| HOUSING MATERIAL | STEEL |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY SOURCE CONTROL DWG 65651-04027-101 FSCM 78286 |
| MANUFACTURERS CODE | 78286 |
| MFR SOURCE CONTROLLING REFERENCE | 65651-04027-101 |
| MANUFACTURERS CODE | 62983 |
| DESIGN CONTROL REFERENCE | MF1-059-1A |
