NSN 1650-00-114-0074 001140074
Product Details | HELICAL COMPRESSION SPRING RETAINER
1650-00-114-0074 A cylindrical item specifically designed to fit over the end of, and completely encase the spring. The open end is usually flanged, the opposite end may be closed or have an orifice to accommodate a guide, plunger, or the like. It is used to position the spring and restrain lateral motion. It may provide a seat for the spring. Excludes HOLDER, SPRING.
Part Alternates: 001140074
Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
16 | 00-114-0074 | 24327 ( RETAINER, HELICAL COMPRESSION SPRING ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 1650-00-114-0074
Related Products | NSN 1650-00-114-0074
Technical Data | NSN 1650-00-114-0074
Characteristic | Specifications |
---|---|
MATERIAL | STEEL, AISI 303 |
MATERIAL HARDNESS RATING | NOT RATED |
CASEHARDENING INDICATOR | NOT CASEHARDENED |

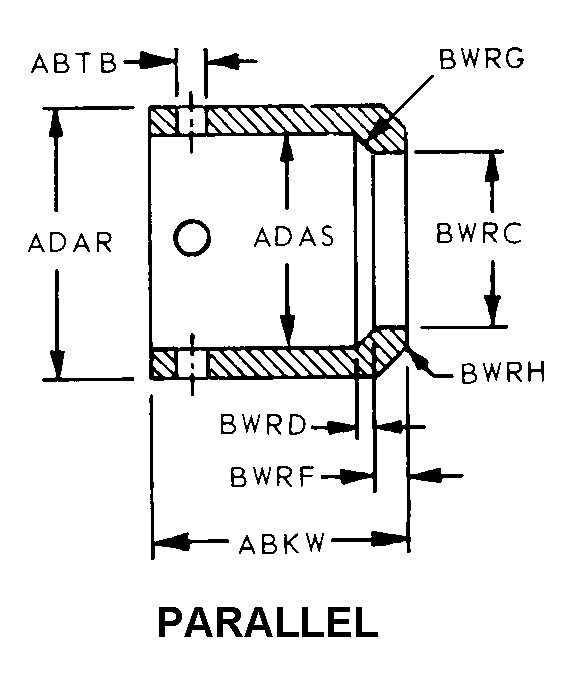

STYLE DESIGNATOR | C1 PARALLEL |
OVERALL HEIGHT | 0.250 INCHES NOMINAL |
MOUNTING HOLE DIAMETER | 0.025 INCHES NOMINAL |
BODY OUTSIDE DIAMETER | 0.750 INCHES MINIMUM AND 0.760 INCHES MAXIMUM |
BODY INSIDE DIAMETER | 0.635 INCHES NOMINAL |
END HOLE DIAMETER | 0.385 INCHES NOMINAL |
OUTSIDE CHAMFER DEPTH | 0.063 INCHES NOMINAL |
OUTSIDE CHAMFER ANGLE IN DEG | 45.0 |
Restrictions/Controls & Freight Information | NSN 1650-00-114-0074
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Category | Code | Description |
---|---|---|
No Freight Information |
