NSN 1650-00-052-6592 MS288978C, MS28897-8C, M8815/3-8C

Product Details | FLUID FILTER ELEMENT

1650-00-052-6592 A replaceable device designed to remove solid particles from fluids ranging in density from heavy liquids to gases. The removal of particles is accomplished by porous material (metallic or non-metallic), stacked disks, wound wire, or the like, constructed so the fluid can flow through the device while the solid particles are retained. It may be designed to fit into a FILTER, FLUID (or similar cavity), or it may have an integral outer casing and mounting facilities and be designed to connect directly to an engine, compressor, or the like. The degree of removal of particles must be nominally rated at less than 50 microns or absolutely rated at less than 75 microns. Excludes FILTER ELEMENT, AIR CONDITIONING. See also STRAINER ELEMENT, SEDIMENT.20916500058Aircraft Hydraulic, Vacuum, and De-icing System Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters5999000065300053Hospital Furniture, Equipment, Utensils, and Supplies66300029Chemical Analysis Instruments

Part Alternates: MS288978C, MS28897-8C, M8815/3-8C, M881538C, AC3255E8, AC3255E8Y1, AC-3255E-8Y1, MILF8815, MIL-F-8815, 049388, 049478, 2111402, 21-11402, 21167138C, 21-16713-8C, 21424-400 FIND 42, 21424400FIND42, 90564000, 9056-4000, 1650-00-052-6592, 00-052-6592, 1650000526592, 000526592

Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
16	01 JAN 1963	00-052-6592	32624 ( FILTER ELEMENT, FLUID )

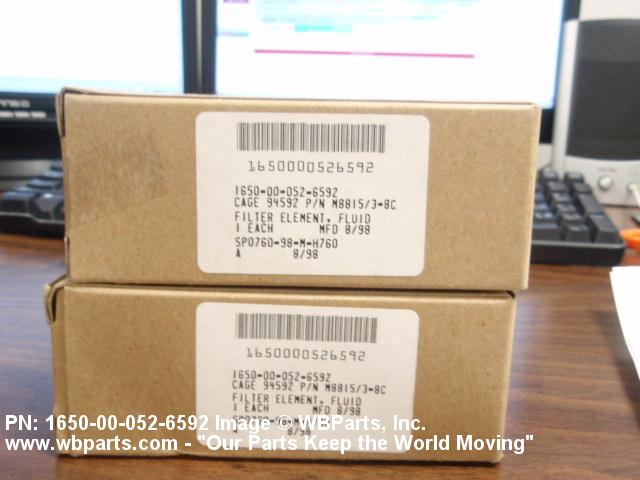

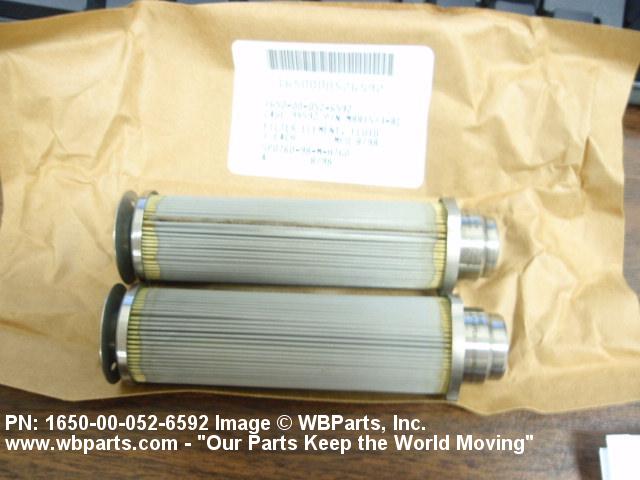

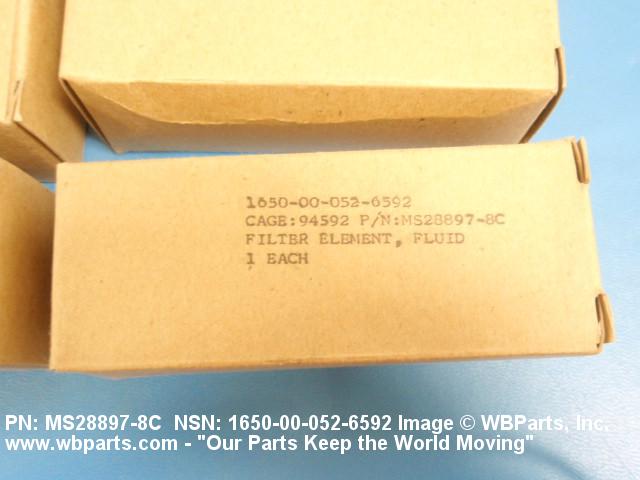

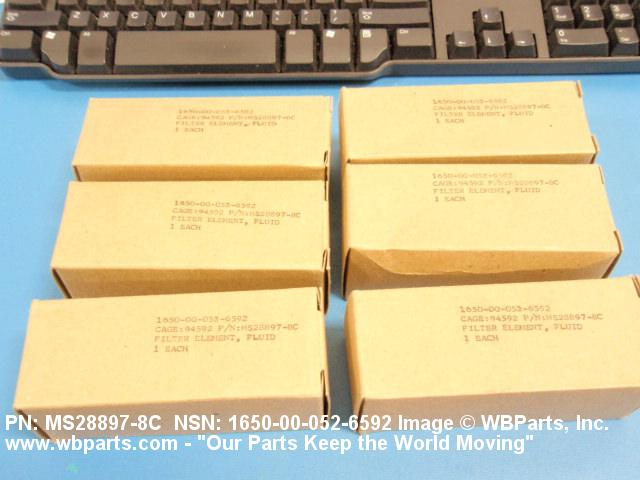

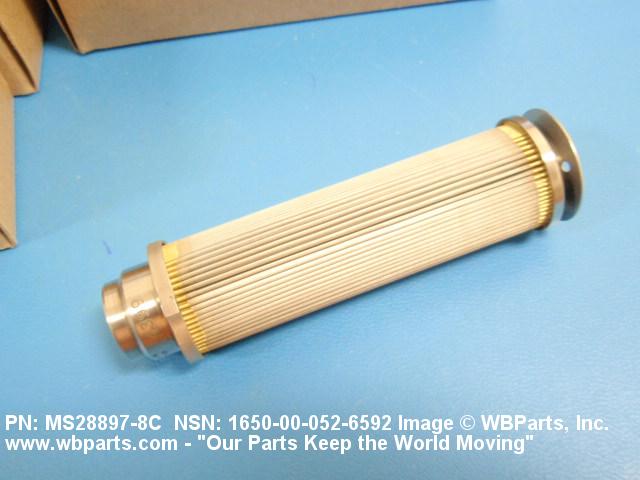

Drawings & Photos | NSN 1650-00-052-6592

Part Number	Request Date	QTY	Origin
1650-00-052-6592	2021-08-20	6	PH
M881538C	2021-05-06	6	Philippines
1650-00-052-6592	2020-05-28	1	US
1650-00-052-6592	2018-05-17	1	DIBBS-RFPs
1650-00-052-6592	2018-05-13	156	DIBBS
1650-00-052-6592	2017-12-04	170	DIBBS
1650-00-052-6592	2017-08-21	347	DIBBS
1650-00-052-6592	2015-02-11	2	IT
MS28897-8C	2014-05-29	2	US
MS288978C	2014-05-22	2	IT
MS28897-8C	2012-11-05	8
1650-00-052-6592	2012-03-25	110	DIBBS
1650-00-052-6592	2010-09-20	2	US
1650-00-052-6592	2010-09-15	2	US
1650-00-052-6592	2010-09-14	2	United States
1650-00-052-6592	2010-04-05	36	DIBBS
M881538C	2010-03-09	3	Spain
AC3255E8	2009-12-21	1	United States
MS288978C	2009-03-09	6	Italy
1650-00-052-6592	2006-05-18	71	DIBBS

Cross Reference | NSN 1650-00-052-6592

Part Number	Cage Code	Manufacturer
049388	90005	PUROLATOR FACET, INC.
049478	06840	BENDIX CORP THE
21-11402	81873	WOODWARD HRT, INC.
21-11402	96124	TRANSDIGM INC DBA AEROCONTROLEX
21-16713-8C	05228	PTI TECHNOLOGIES INC.
21424-400 FIND 42	78062	DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE
9056-4000	94592	FLUID CONDITIONING PRODUCTS, INC.
AC-3255E-8Y1	18350	PALL AEROPOWER CORPORATION
AC3255E8	18350	PALL AEROPOWER CORPORATION
M8815/3-8C	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-F-8815	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS28897-8C	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 1650-00-052-6592

Compare

Related Products | NSN 1650-00-052-6592

1650-00-052-6924, 1650-00-052-6925, 1650-00-052-6927, 1650-00-052-8098, 1650-00-052-8296

Technical Data | NSN 1650-00-052-6592

Characteristic	Specifications
STYLE DESIGNATOR	A10 CYLINDRICAL W/CONTAINER
BODY DIAMETER	1.137 INCHES NOMINAL
BODY INSIDE DIAMETER	0.670 INCHES NOMINAL
BODY OVERALL LENGTH	4.250 INCHES MINIMUM AND 4.260 INCHES MAXIMUM
MATERIAL	STEEL CORROSION RESISTING CONTAINER/CARTRIDGE STEEL CORROSION RESISTING FILTERING MEDIUM
FILTERING MEDIA DESIGN	MESH SINGLE FILTERING MEDIA RESPONSE
DESIGN TYPE	REUSABLE
FILTRATION RATING IN MICRONS	15.0 ABSOLUTE
FLOW DIRECTION	OUTSIDE IN
MEDIA FOR WHICH DESIGNED	FUEL/OIL, HYDROCARBON
TEMP RATING	-65.0 DEG FAHRENHEIT MINIMUM AND 275.0 DEG FAHRENHEIT MAXIMUM
DROP PRESSURE	15.0 POUNDS PER SQUARE INCH
DIFFERENTIAL PRESSURE	70.0 POUNDS PER SQUARE INCH
SPECIAL FEATURES	3 PRONGS AT 120 DEG SPACING IN FLANGE OF ONE END
III FSC APPLICATION DATA	HYDRAULIC FILTER,ACFT
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-F-8815
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M8815/3-8C

Restrictions/Controls & Freight Information | NSN 1650-00-052-6592

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	B	Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	011790	AIRCRAFT PARTS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	671	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 1650-00-052-6592

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
