NSN 1650-00-014-2038 SGT22011, SGT220-11, 166023
Product Details | SERVOCYLINDER

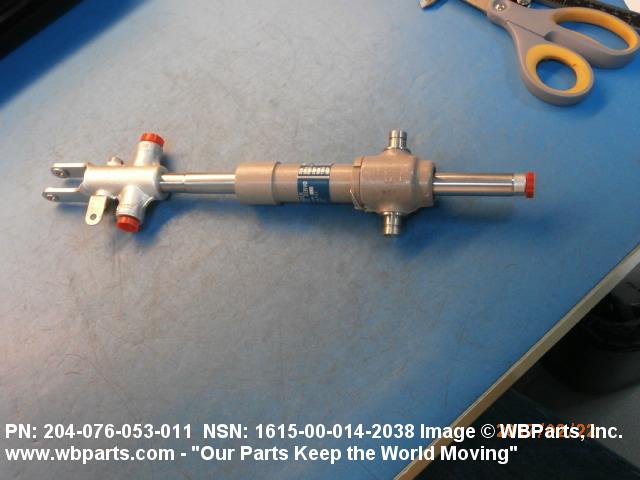

1650-00-014-2038 A hydraulically or pneumatically powered actuating cylinder with provisions for directional control (positioning) in direct relation with a primary control of comparatively low level force. The primary control input to the servocylinder may be mechanical and/or electrical.20412900036Miscellaneous Fire Control Equipment14200025Guided Missile Components16500058Aircraft Hydraulic, Vacuum, and De-icing System Components66150055Automatic Pilot Mechanisms and Airborne Gyro Components
Part Alternates: SGT22011, SGT220-11, 166023, 1660-23, 204076053011, 204-076-053-011, 20407605311, 204-076-053-11, 1650-00-014-2038, 00-014-2038, 1650000142038, 000142038
Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1961 | 00-014-2038 | 31309 ( SERVOCYLINDER ) |

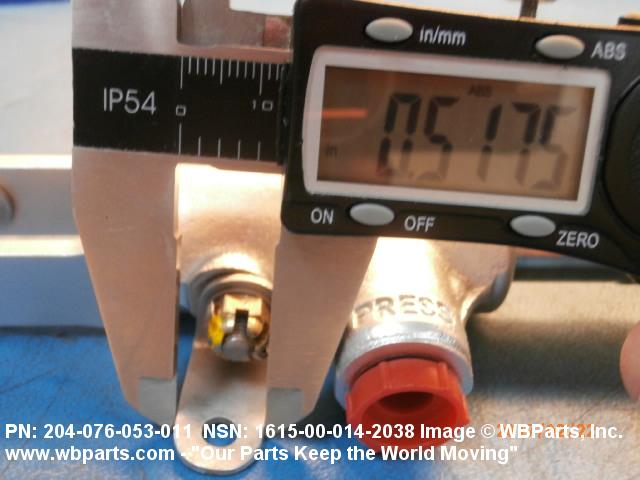

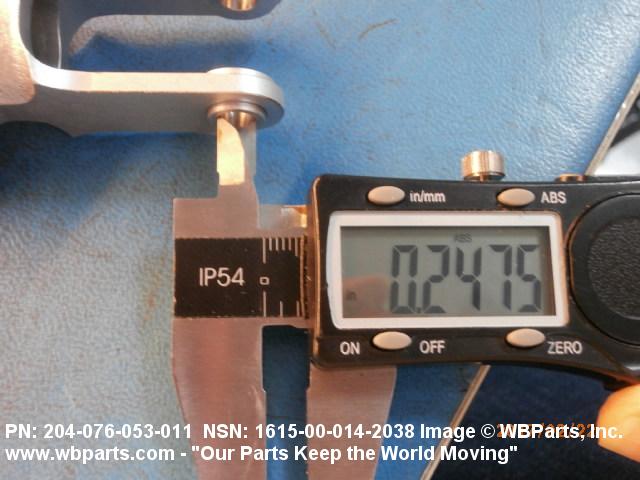

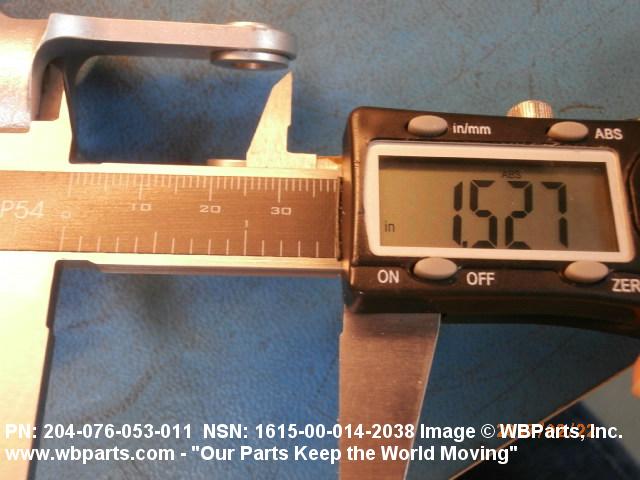

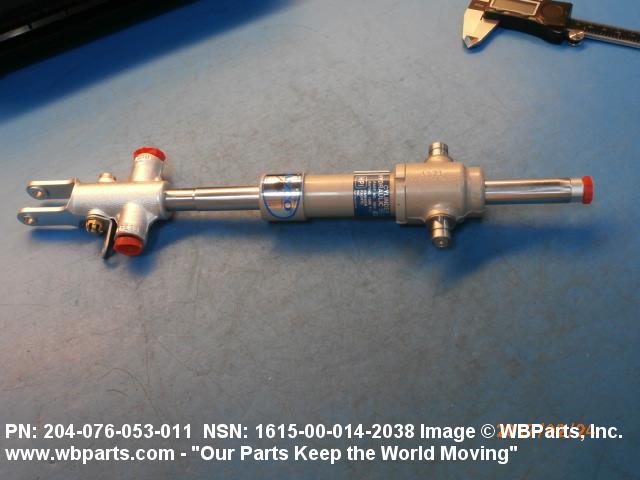

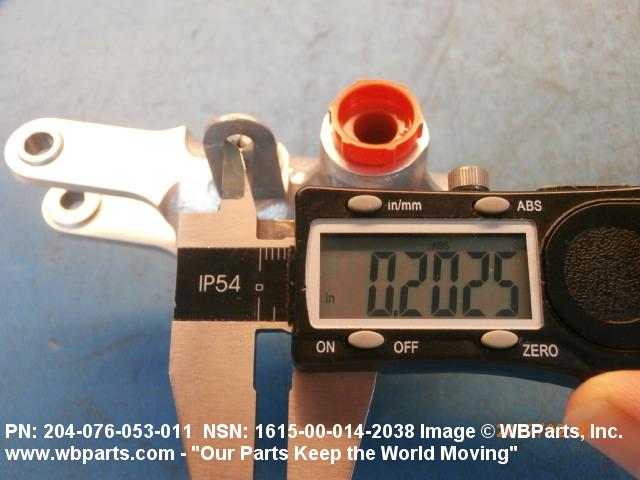

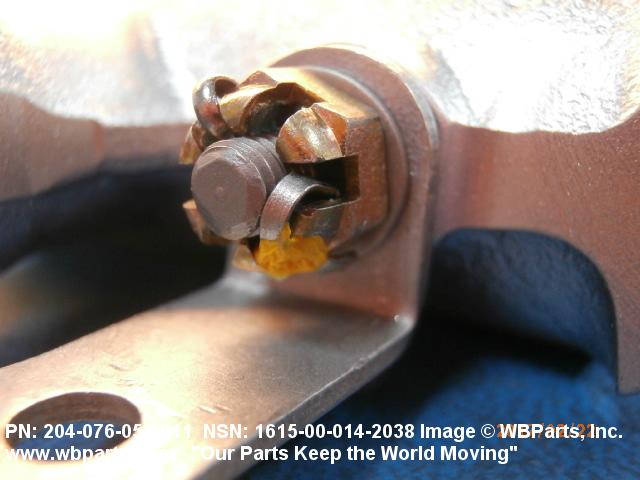

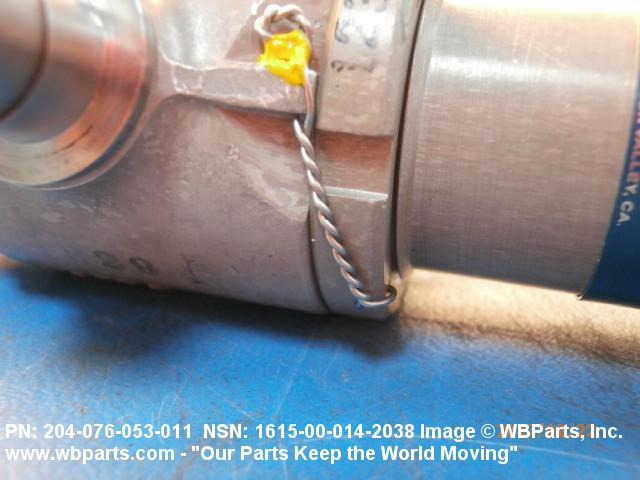

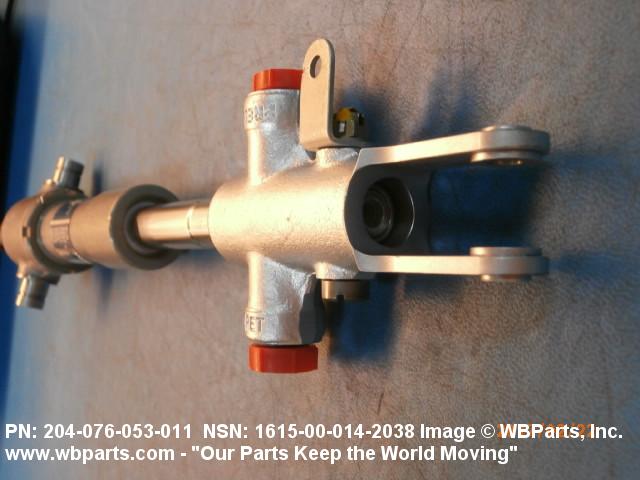

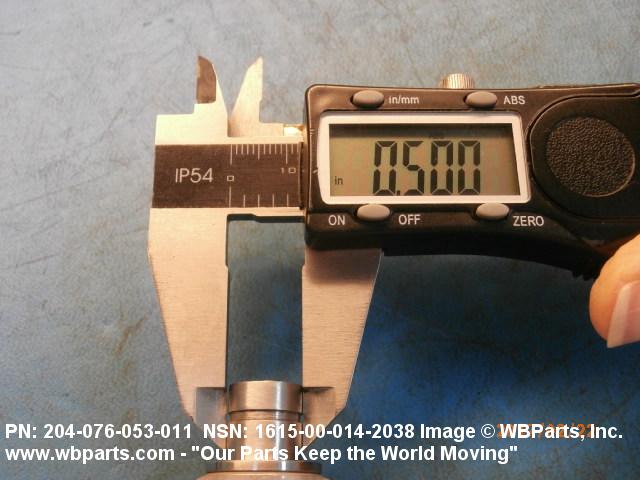

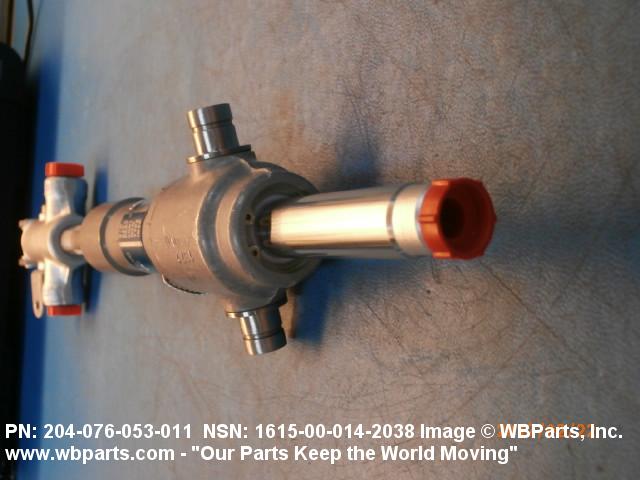

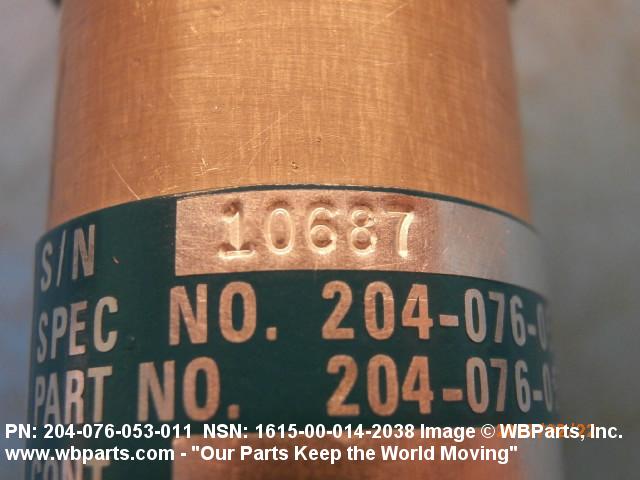

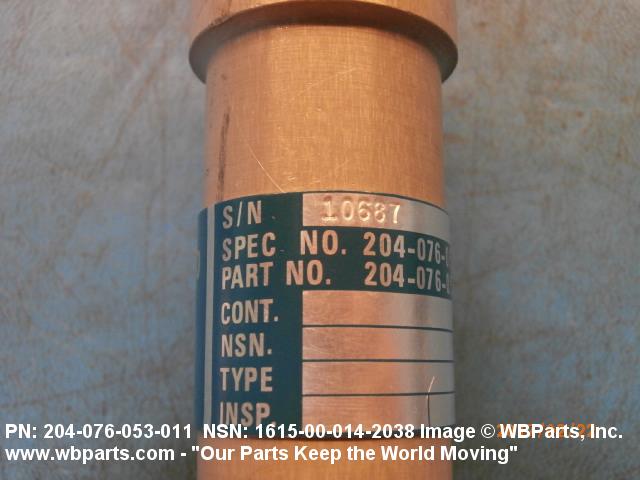

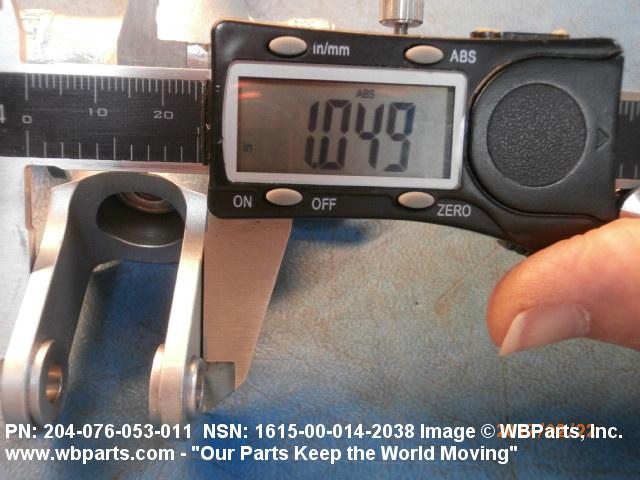

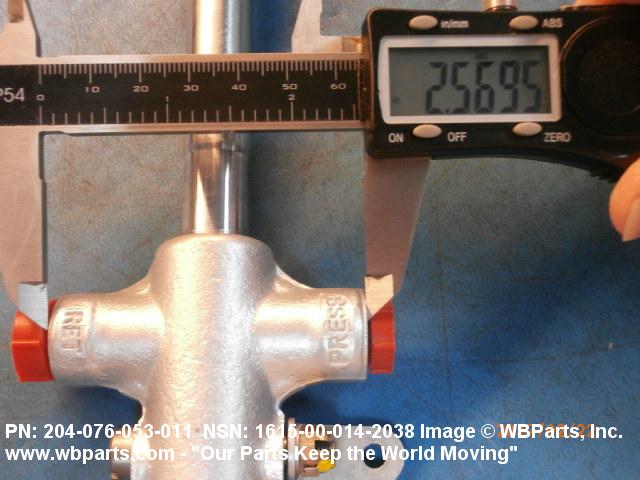

Drawings & Photos | NSN 1650-00-014-2038
Demand History | NSN 1650-00-014-2038
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1650-00-014-2038 | 2023-06-181 | 2 | Korea |
| 204-076-053-011 | 2023-05-151 | 2 | Philippines |
| 166023 | 2021-03-71 | 1 | United States |
| 20407605311 | 2020-06-161 | 2 | Philippines |
| 204076053011 | 2017-04-114 | 1 | United States |
| 204076053011 | 2017-04-109 | 1 | Lebanon |
| 20407605311 | 2016-04-98 | 4 | CA |
| 204076053011 | 2016-03-70 | 2 | AR |
| 1650-00-014-2038 | 2014-01-23 | 1 | AR |
| 1650-00-014-2038 | 2012-11-312 | 1 | Australia |
| 1650-00-014-2038 | 2009-05-147 | 10 | Taiwan |
Cross Reference | NSN 1650-00-014-2038

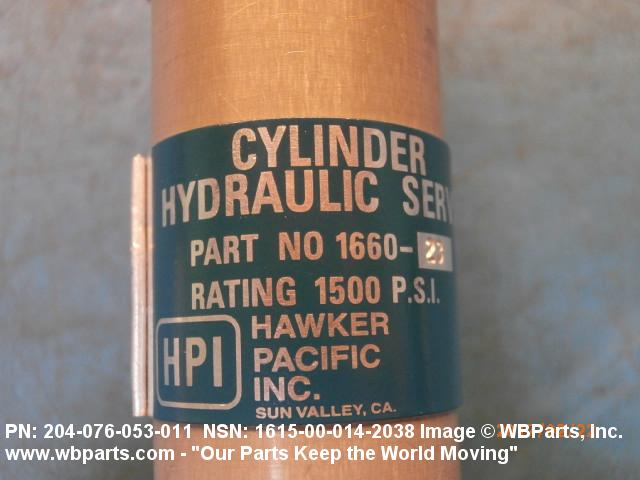

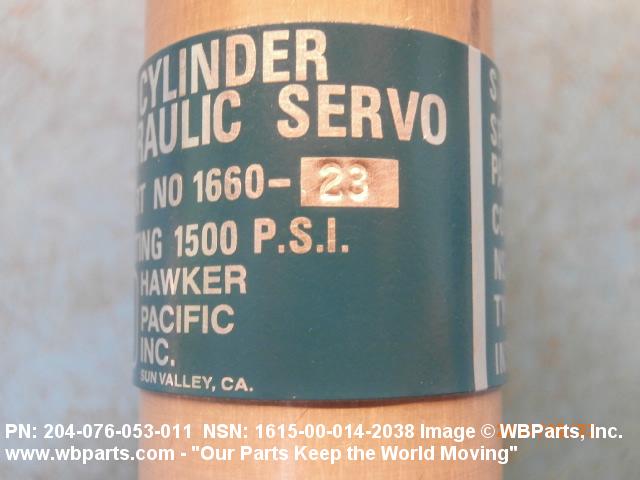

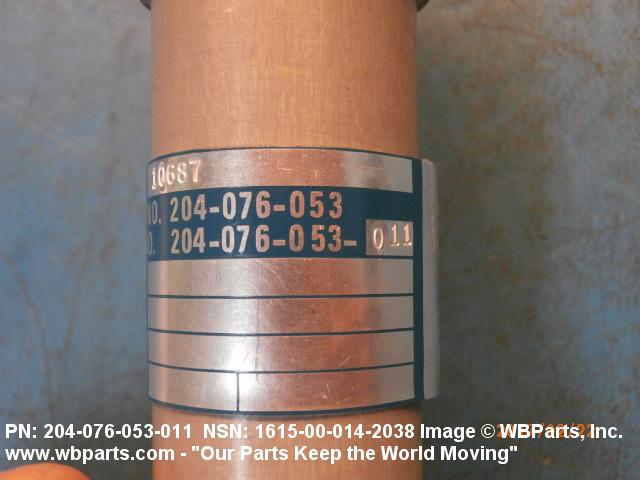

| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1660-23 | 53583 | HAWKER PACIFIC AEROSPACE |
| 204-076-053-011 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 204-076-053-11 | 04614 | TEXTRON SYSTEMS CORPORATION DBA TEXTRON DEFENSE SYSTEMS |
| 204-076-053-11 | 80070 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 204-076-053-11 | 81996 | U S ARMY AVIATION AND MISSILE COMMAND |
| 204-076-053-11 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 204-076-053-11 | D0216 | RUAG AEROSPACE SERVICES GMBH |
| SGT220-11 | 92003 | PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1650-00-014-2038
Related Products | NSN 1650-00-014-2038
Technical Data | NSN 1650-00-014-2038
| Characteristic | Specifications |
|---|---|
| DESIGN CHARACTERISTICS | DOUBLE ACTING SINGLE CYLINDER |
| INTEGRAL VALVE OPERATION METHOD | HYDRAULIC |
| OVERALL WIDTH | 2.600 INCHES MAXIMUM |
| OVERALL HEIGHT | 2.980 INCHES MINIMUM AND 3.030 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 1.390 INCHES MINIMUM AND 1.410 INCHES MAXIMUM |
| BODY MATERIAL | ALUMINUM ALLOY, QQ-A-268, COMP 2024, T4-CANCELED |
| BORE DIAMETER | 0.625 INCHES NOMINAL 0.801 INCHES NOMINAL 0.885 INCHES NOMINAL 0.938 INCHES NOMINAL 0.957 INCHES NOMINAL 1.000 INCHES NOMINAL 1.066 INCHES NOMINAL |

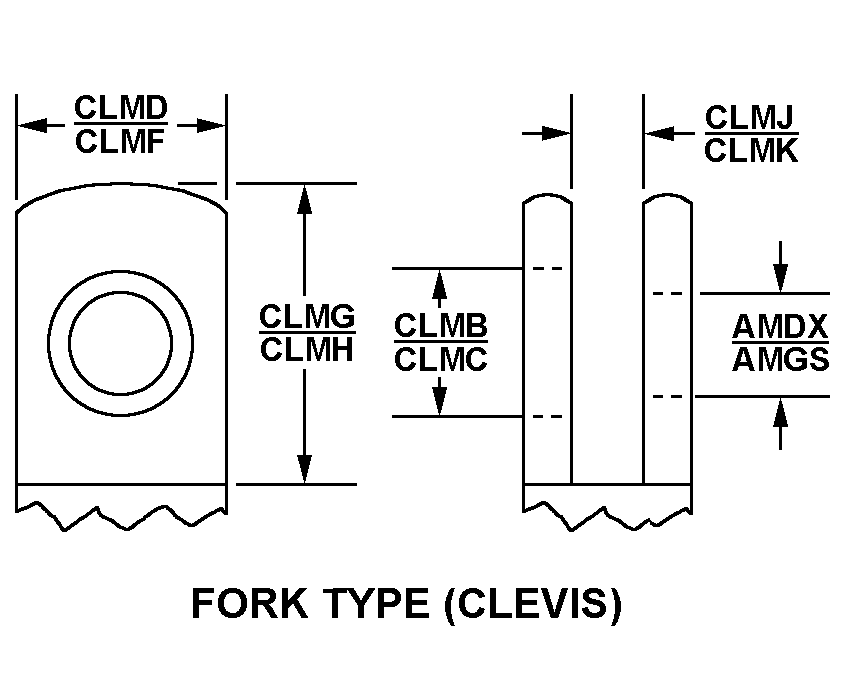

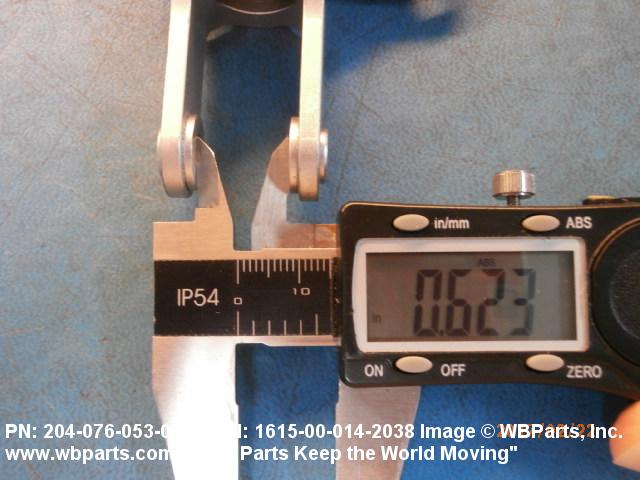

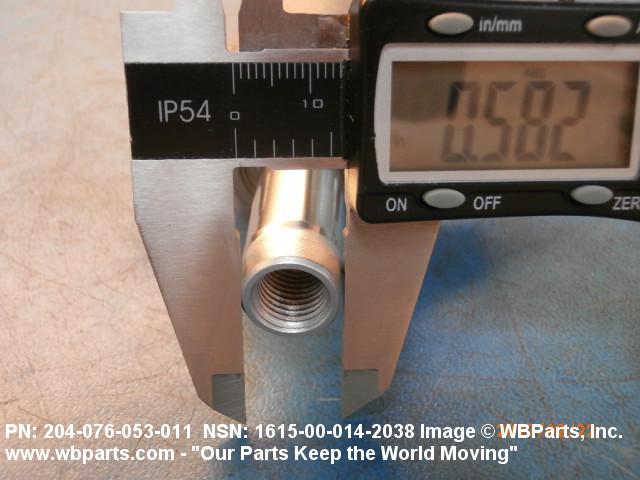

| FIRST PISTON ROD END STYLE | 4 FORK TYPE |
| FIRST END HOLE DIAMETER | 0.3437 INCHES NOMINAL |
| FIRST END LARGEST INSIDE DIAMETER | 0.249 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| FIRST END FORK WIDTH | 0.700 INCHES NOMINAL |
| FIRST END FORK DEPTH | 1.600 INCHES NOMINAL |
| FIRST END FORK SPAN WIDTH | 0.751 INCHES NOMINAL |
| (NON-CORE DATA) FIRST PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| SECOND END OUTSIDE DIAMETER | 0.593 INCHES NOMINAL |
| (NON-CORE DATA) SECOND PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| MOUNTING TYPE AND LOCATION | TRUNNION CENTER SECTION |
| MOUNTING PROVISION | PIN |
| MOUNTING FACILITY DIAMETER | 0.4986 INCHES MINIMUM 0.4991 INCHES MAXIMUM |
| MOUNTING FACILITY LENGTH | 0.500 INCHES NOMINAL |
| PORT LOCATION AND QUANTITY | 2 PISTON ROD END |
| PORT STYLE | 5 GASKET SEAL |
| PORT THREAD SERIES DESIGNATOR | UNJF |
| PORT THREAD DIAMETER | 0.437 INCHES NOMINAL |
| PORT THREAD QUANTITY PER INCH | 20 |
| PORT THREAD CLASS | 3B |
| SEAT ANGLE IN DEG | 120.0 |
| TEMP RATING | -65.0 DEG CELSIUS 180.0 DEG CELSIUS |
| MANUFACTURERS CODE | 97499 |
| MFR SOURCE CONTROLLING REFERENCE | 204-076-053-11 |
