Product Details | LANDING GEAR WHEEL

1630-01-331-2589 A wheel which balances and supports the weight of an airplane when in contact with solid surfaces. Includes wheels with solid molded tires.

Part Alternates: 04025300, 040-25300, 50039281, 5003928-1, 70250-12801-101, 1630-01-331-2589, 01-331-2589, 1630013312589, 7025012801101, 013312589

Aircraft Components and Accessories | Aircraft Wheel and Brake Systems

Supply Group (FSG) NSN Assign. NIIN
16 14 DEC 1990 01-331-2589

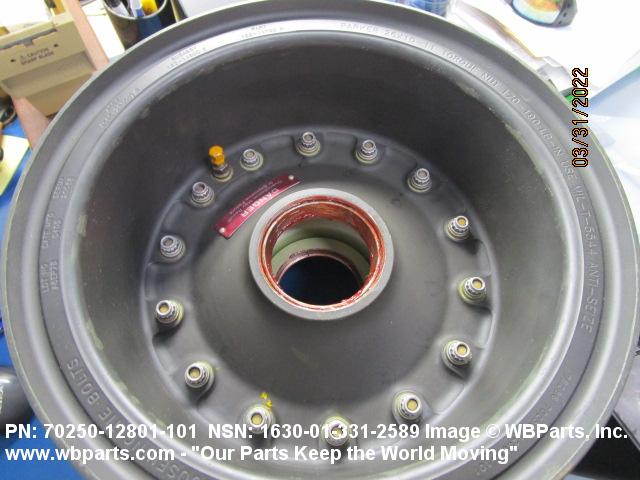

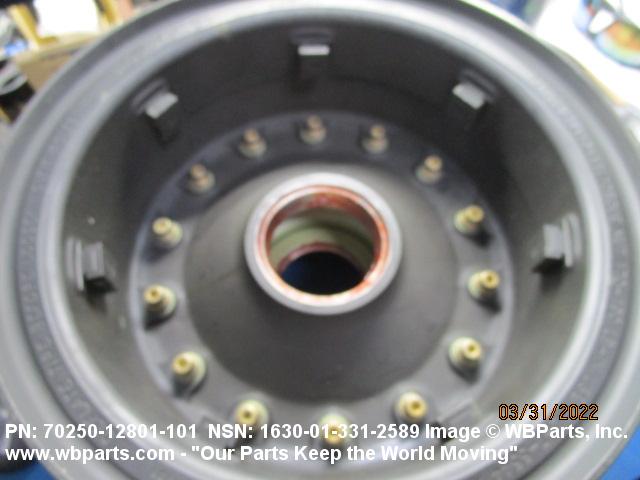

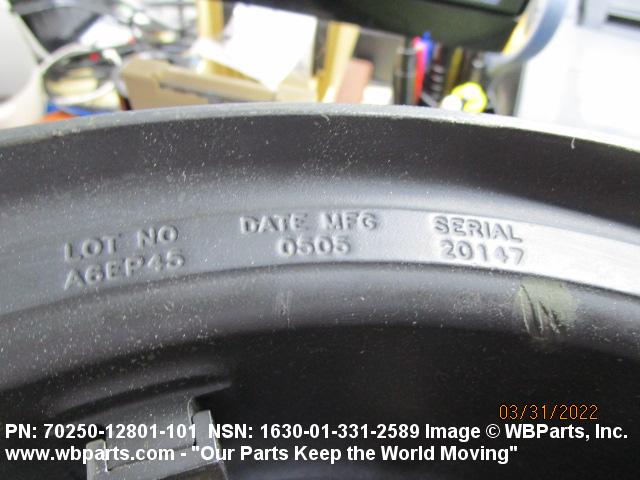

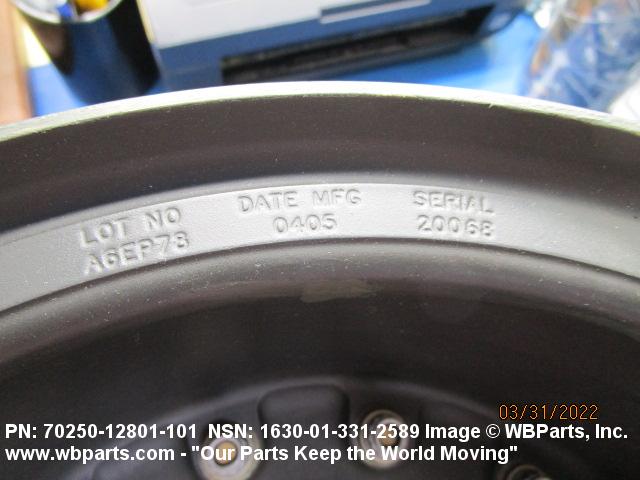

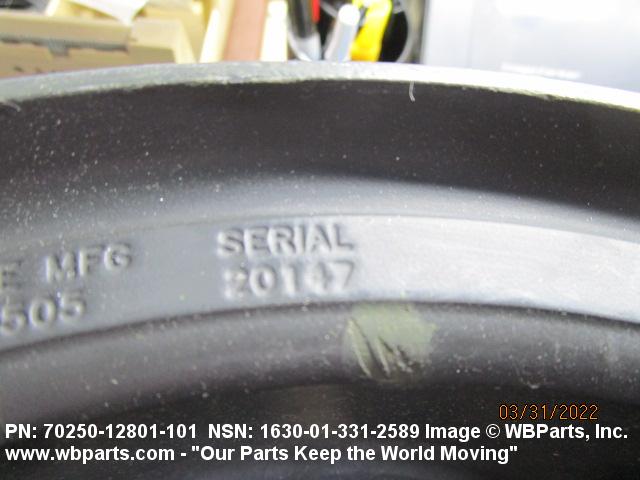

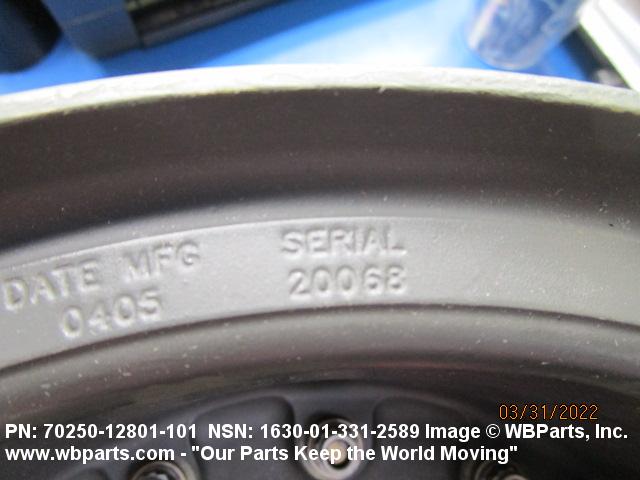

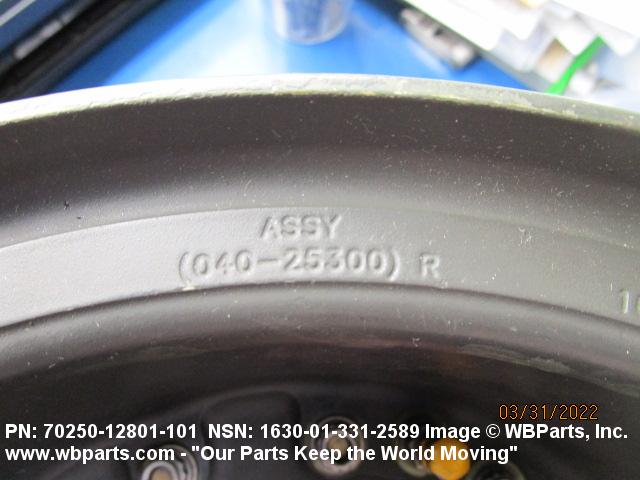

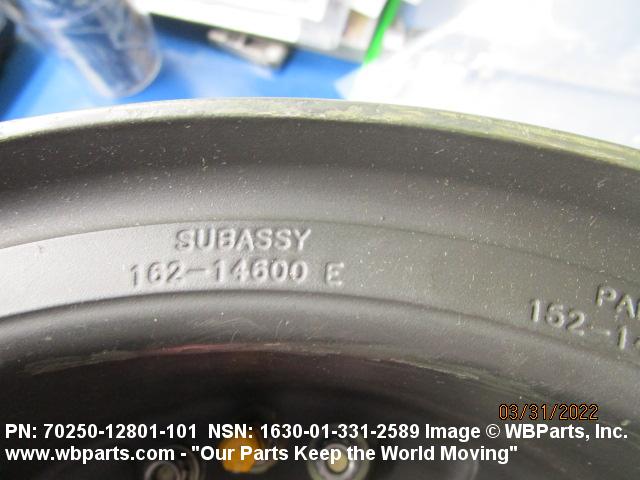

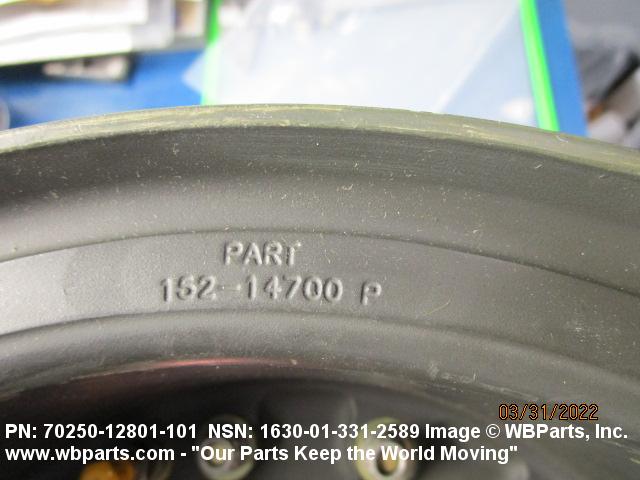

Drawings & Photos | NSN 1630-01-331-2589


Demand History | NSN 1630-01-331-2589

Part Number Request Date QTY Origin
040-25300 2024-06-172 124 DIBBS
040-25300 2023-11-313 85 DIBBS
040-25300 2023-10-277 73 DIBBS
040-25300 2023-08-243 88 DIBBS
1630-01-331-2589 2022-07-210 1 United States
1630-01-331-2589 2021-12-341 1 US
1630-01-331-2589 2021-12-337 1 US
1630-01-331-2589 2019-12-364 2 Singapore
1630-01-331-2589 2019-10-301 5 TR
040-25300 2019-03-62 5 DIBBS
1630-01-331-2589 2018-09-260 1 DIBBS-RFPs
50039281 2018-04-120 2 US
1630-01-331-2589 2015-08-243 1 MANUAL
70250-12801-101 2015-08-243 1 US
1630-01-331-2589 2015-08-224 10 US
1630-01-331-2589 2013-04-120 2 United States
7025-01-280-1101 2009-03-69 109 Turkey
04025300 2009-01-26 1 US
7025-01-280-1101 2009-01-23 1 US
04025300 2008-10-289 1 United States

Cross Reference | NSN 1630-01-331-2589

Part Number Cage Code Manufacturer
040-25300 33269 PARKER-HANNIFIN CORPORATION DBA PARKER HANNIFIN CORPORATION
5003928-1 0B9R9 MEGGITT AIRCRAFT BRAKING SYSTEMS CORPORATION
5003928-1 25500 LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
70250-12801-101 78286 SIKORSKY AIRCRAFT CORPORATION

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 1630-01-331-2589

Restrictions/Controls & Freight Information | NSN 1630-01-331-2589

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:BMunitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:NThe item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input).
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 012420 AIRCRAFT WHEELS
Less than car load rating
Less than truck load rating M 85.0
Water commodity Code 671 unknown
Originating Activity Code CT U.S. Army Aviation and Missile Command (AIR)
Redstone Arsenal, AL 35898-5230
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 1630-01-331-2589

Category Code Description
Materiel Category and Inventory ManagerH Aircraft, Air Materiel
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment1 REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
Specific Group/Generic CodeB Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous GroupBEUH-60
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplyB17US Army Aviation and Missile Command (Air)
ATTN: AMSMI-LC-MM-C
Redstone Arsenal, AL 35898-5230
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityFIf condemned or uneconomically repairable, then dispose at Direct Support (DS) level.
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation CodeGCTG:UH/60A BLACKHAWK
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of SupplyB17US Army Aviation and Missile Command (Air)
ATTN: AMSMI-LC-MM-C
Redstone Arsenal, AL 35898-5230
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityPStock Fund (except Munitions)
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9WNavy-owned stocks of material managed by the Army within the Army Troop Support and Aviation Materiel Readiness Command
Naval Inventory Control Point, Mechanicsburg
Source of SupplyB17US Army Aviation and Missile Command (Air)
ATTN: AMSMI-LC-MM-C
Redstone Arsenal, AL 35898-5230
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
