NSN 1630-01-104-1015 42109A, 42-109A, 01-104-1015
Product Details | ANTISKID CONTROL UNIT
1630-01-104-1015 An electronic device which processes wheel speed sensor signals and generates command signals to the brake control valve which meters hydraulic brake pressure at slightly less than skid producing level. It also prevents brake application prior to touchdown and may receive direct cockpit electrical input to initiate braking.
Part Alternates: 42109A, 42-109A, 1630-01-104-1015, 01-104-1015, 1630011041015, 011041015
Aircraft Components and Accessories | Aircraft Wheel and Brake Systems
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 27 NOV 1980 | 01-104-1015 | 49580 ( CONTROL UNIT, ANTISKID ) |

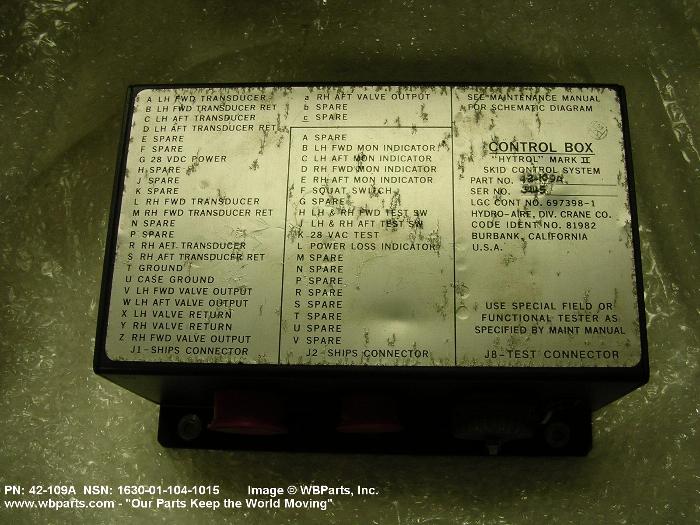

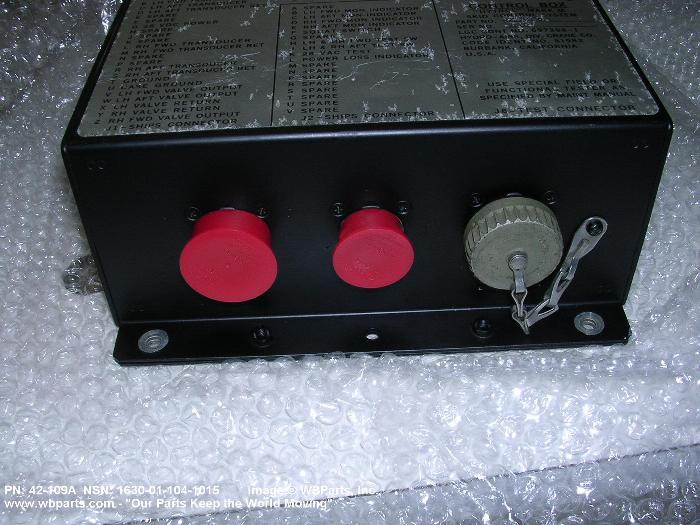

Drawings & Photos | NSN 1630-01-104-1015
Demand History | NSN 1630-01-104-1015
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1630-01-104-1015 | 2022-07-189 | 1 | United States |
| 1630-01-104-1015 | 2019-12-351 | 3 | Philippines |
| 1630-01-104-1015 | 2019-10-281 | 10 | US |
| 1630-01-104-1015 | 2017-06-156 | 1 | US |
| 42109A | 2015-11-306 | 1 | Malaysia |
| 42-109A | 2015-04-103 | 1 | Malaysia |
| 42-109A | 2015-04-103 | 1 | Malaysia |
| 42-109A | 2014-03-79 | 1 | Singapore |
| 42-109A | 2013-02-49 | 1 | MY |
| 1630-01-104-1015 | 2010-06-165 | 1 | Malaysia |
| 1630-01-104-1015 | 2010-06-154 | 1 | Malaysia |
| 1630-01-104-1015 | 2009-08-220 | 1 | Spain |
| 42109A | 2008-04-108 | 1 | Malaysia |
| 1630-01-104-1015 | 2008-03-78 | 1 | United States |
Cross Reference | NSN 1630-01-104-1015
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 42-109A | 81982 | HYDRO-AIRE, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1630-01-104-1015
Related Products | NSN 1630-01-104-1015
Technical Data | NSN 1630-01-104-1015
| Characteristic | Specifications |
|---|---|
| END ITEM IDENTIFICATION | C-130 AIRCRAFT MARK II ANTISKID SYSTEM |
| SPECIAL FEATURES | TO NAME: SKID CONTROL BOX |
| III REFERENCE DATA AND LITERATURE | TO 4BA8-25-4; NAVAIR 03-5CCR-12 |
Restrictions/Controls & Freight Information | NSN 1630-01-104-1015
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 011920 | AIRCRAFT BRAKES R PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | ||
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1630-01-104-1015
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | FGZ | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7R | Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia |
| Special Material ID | LC | CARGO/TRANSPORTAIRCRAFT(C130) |
| Issue Repair, or Requisition | AR | Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
