NSN 1630-00-650-5333 150908, 00-650-5333, 006505333
Product Details | BRAKE BACKING PLATE
1630-00-650-5333 A rigid circular shaped metal item with a centrally located aperture. It has mounting holes and is specifically designed to mount and position the components of a BRAKE (as modified). It also serves to prevent dirt and other foreign matter from entering the braking mechanism. Excludes items which are used as a dust shield only.20316300032Aircraft Wheel and Brake Systems25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: 150908, 1630-00-650-5333, 00-650-5333, 1630006505333, 006505333
Aircraft Components and Accessories | Aircraft Wheel and Brake Systems
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1963 | 00-650-5333 | 22097 ( PLATE, BACKING, BRAKE ) |

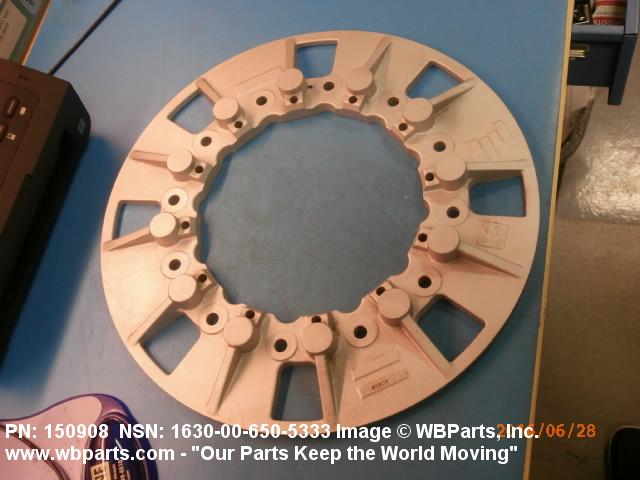

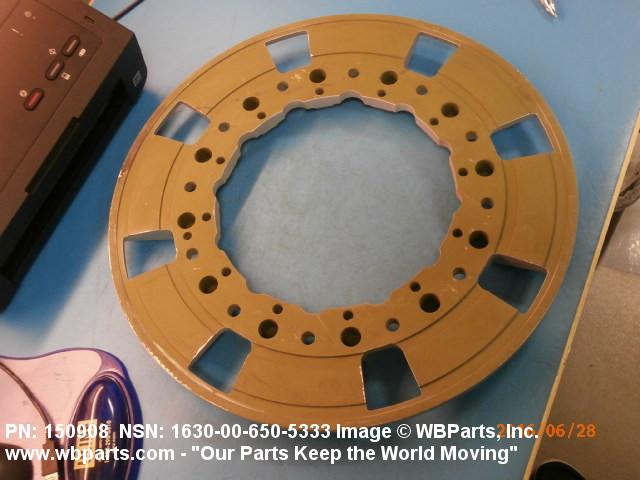

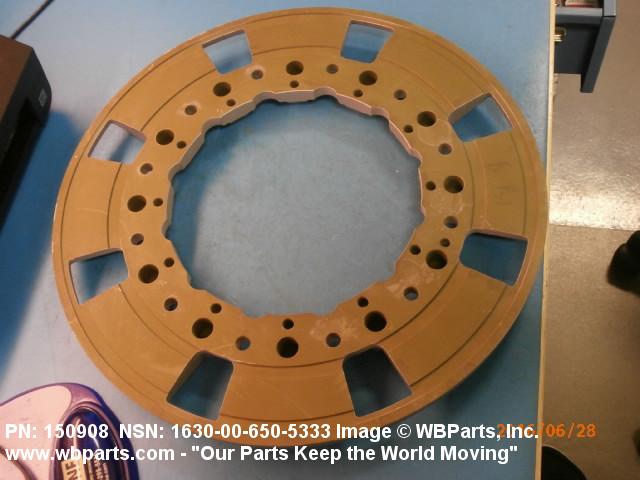

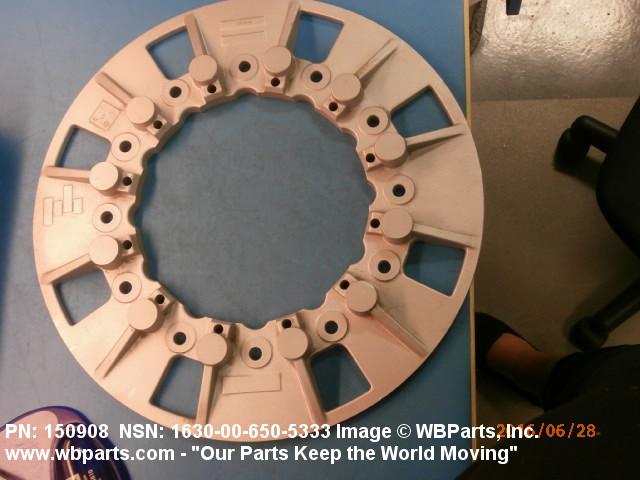

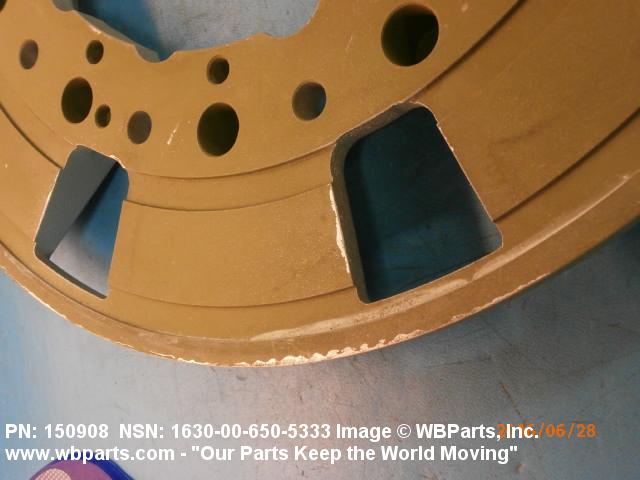

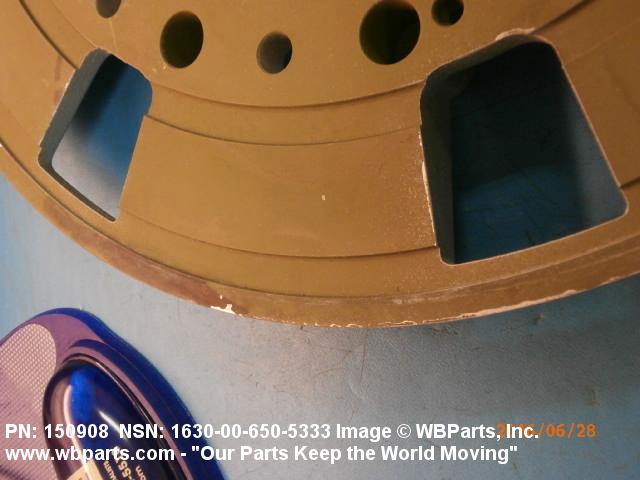

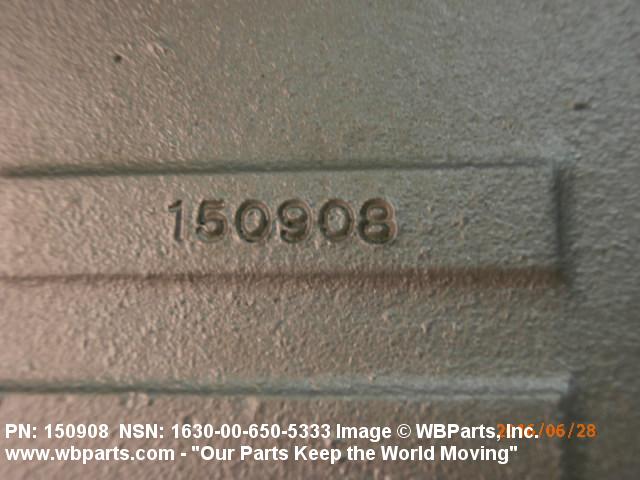

Drawings & Photos | NSN 1630-00-650-5333

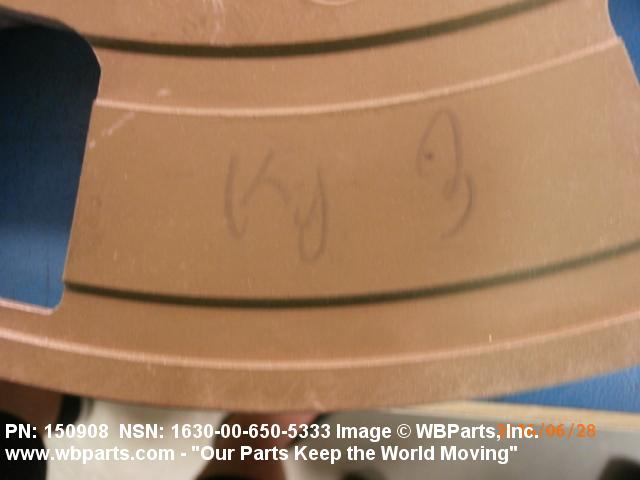

Demand History | NSN 1630-00-650-5333
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 150908 | 2018-04-103 | 1 | United States |
| 150908 | 2016-05-131 | 2 | United States |
Cross Reference | NSN 1630-00-650-5333
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 150908 | 9E598 | HOWARD AIRCRAFT CORP |
