NSN 1620-00-030-6906 914746, 9147-46, 00-030-6906
Product Details | LANDING GEAR TORQUE ARM ASSEMBLY
1620-00-030-6906 A landing gear component consisting of an arm and bushing. Designed to connect the inner and outer cylinder of an aircraft landing gear and retain the wheel in an alignment.
Part Alternates: 914746, 9147-46, 1620-00-030-6906, 00-030-6906, 1620000306906, 000306906
Aircraft Components and Accessories | Aircraft Landing Gear Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1963 | 00-030-6906 | 61573 ( ARM ASSEMBLY, TORQUE, LANDING GEAR ) |

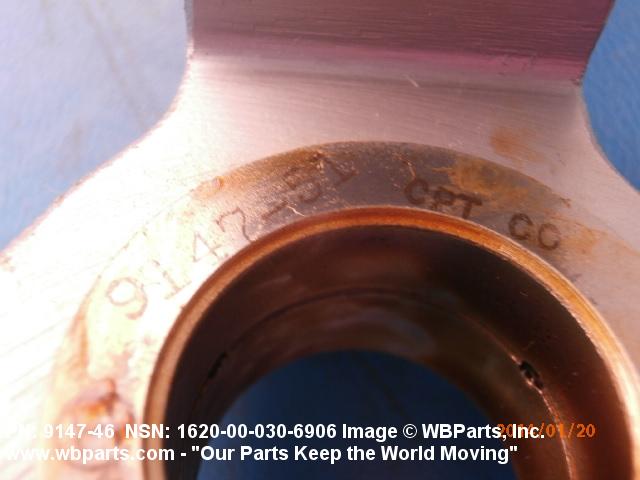

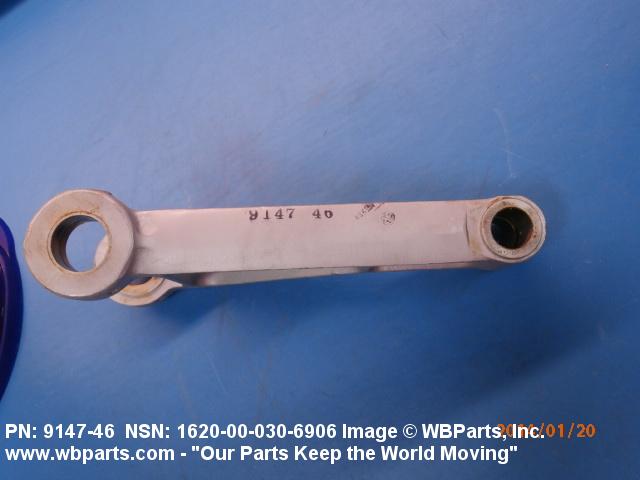

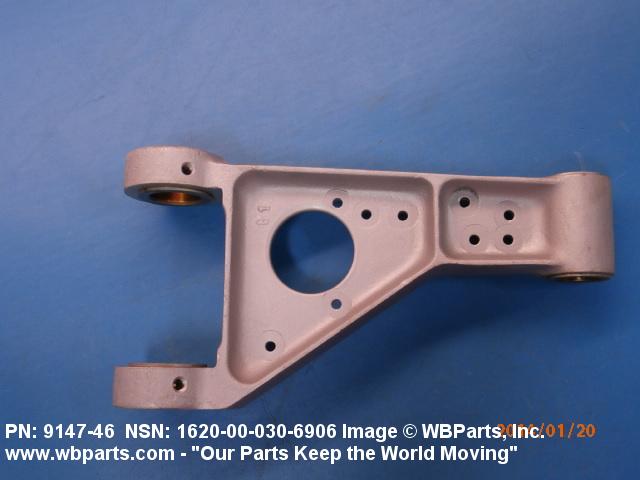

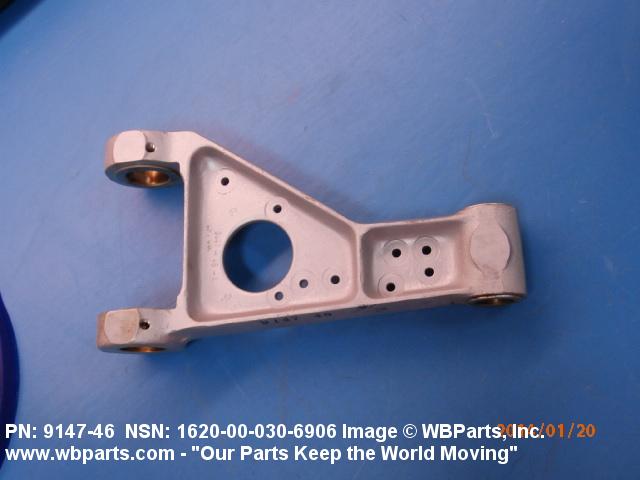

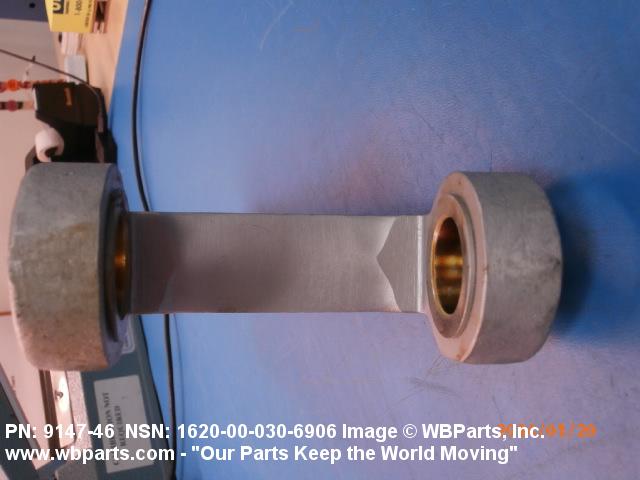

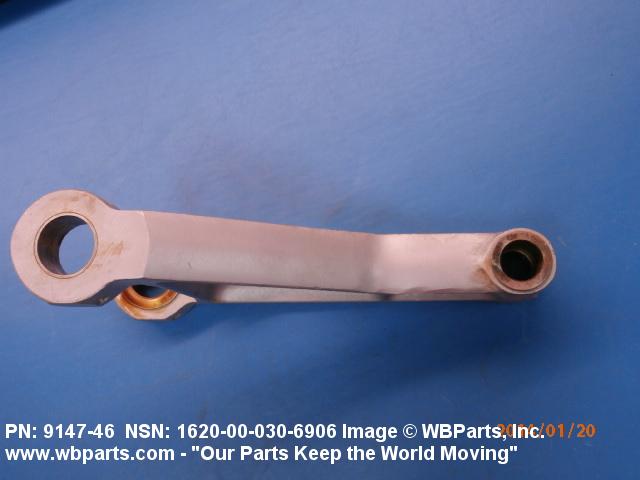

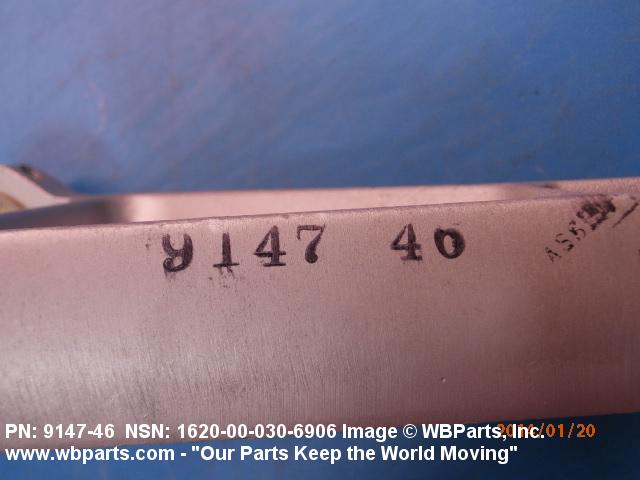

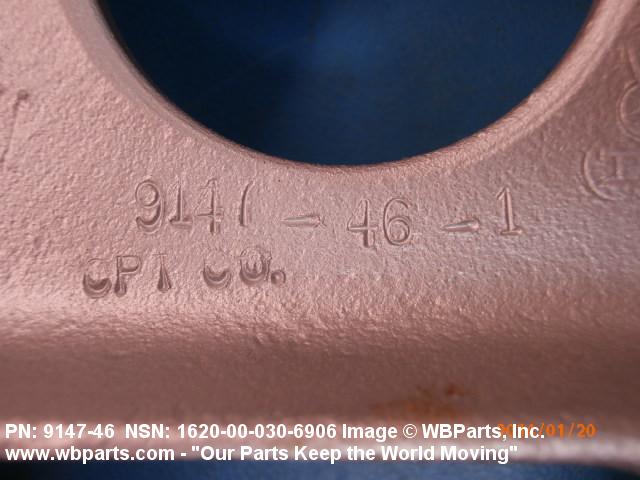

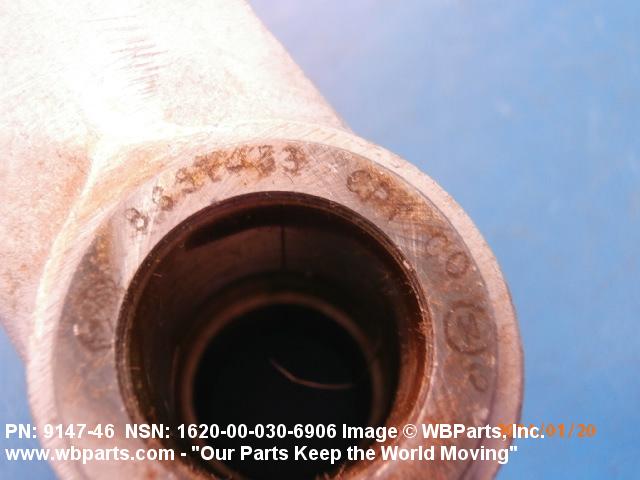

Drawings & Photos | NSN 1620-00-030-6906
Demand History | NSN 1620-00-030-6906
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 914746 | 2014-01-03 | 4 | United Kingdom |
| 914746 | 2013-12-345 | 4 | United Kingdom |
| 1620-00-030-6906 | 2013-12-345 | 4 | United Kingdom |
Cross Reference | NSN 1620-00-030-6906
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9147-46 | 13002 | GOODRICH CORPORATION DBA GOODRICH LANDING GEAR DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1620-00-030-6906
Technical Data | NSN 1620-00-030-6906
| Characteristic | Specifications |
|---|---|
| BASIC MATERIAL | STEEL |

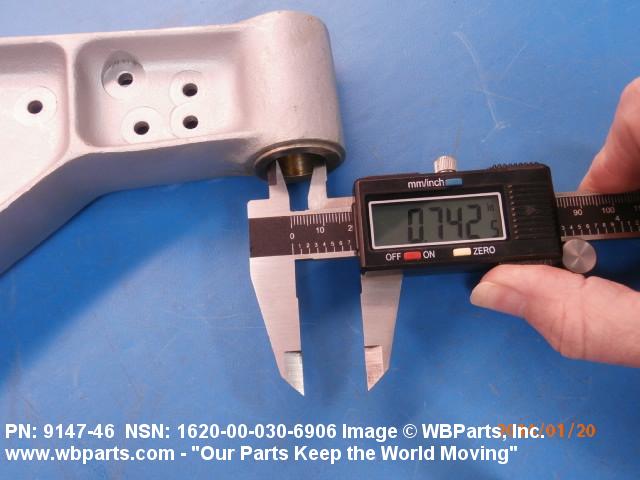

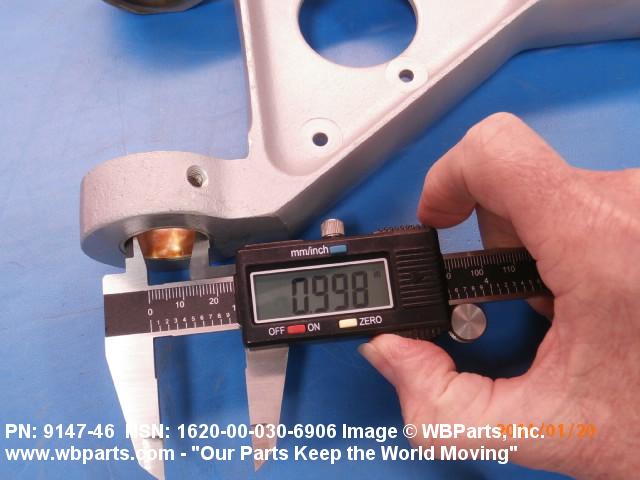

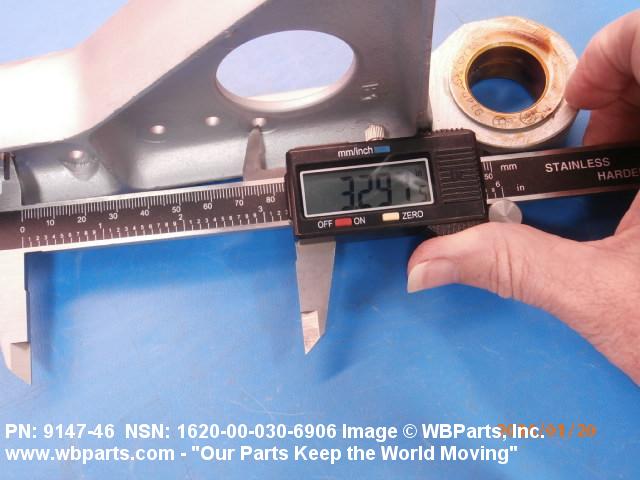

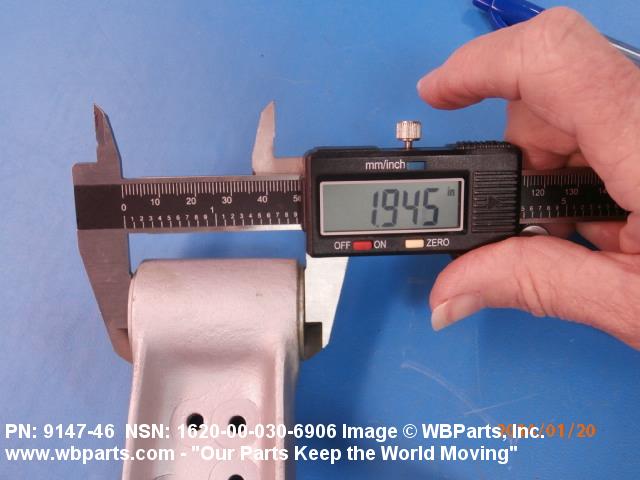

| SPECIAL FEATURES | TORQUE ARM 1,BUSHING 4;0.750 IN. DIA X 1.936 IN. LG THRU HOLE 1ST END;TWO 1.000 IN. DIA HOLES IN-LINE SPACED 3.251 IN. 2ND END,MTG HOLES ON 7.750 IN. MTG CTR |
| MANUFACTURERS CODE | 13002 |
| DESIGN CONTROL REFERENCE | 9147-46 |
Restrictions/Controls & Freight Information | NSN 1620-00-030-6906
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 1620-00-030-6906
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9I | Navy-owned stocks of consumable material managed by the Air Force within the Odgen Air Logistics Center Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | FGZ | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
