Product Details | TAIL ROTOR SLIDER
1615-00-859-6111
Part Alternates: 204010720003, 204-010-720-003, 2040107203, 204-010-720-3, 1615-00-859-6111, 00-859-6111, 1615008596111, 008596111
Aircraft Components and Accessories | Helicopter Rotor Blades, Drive Mechanisms and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1962 | 00-859-6111 | 77777 ( ) |

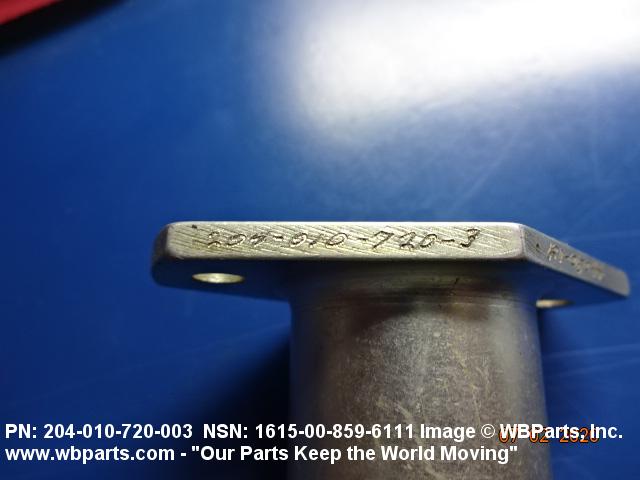

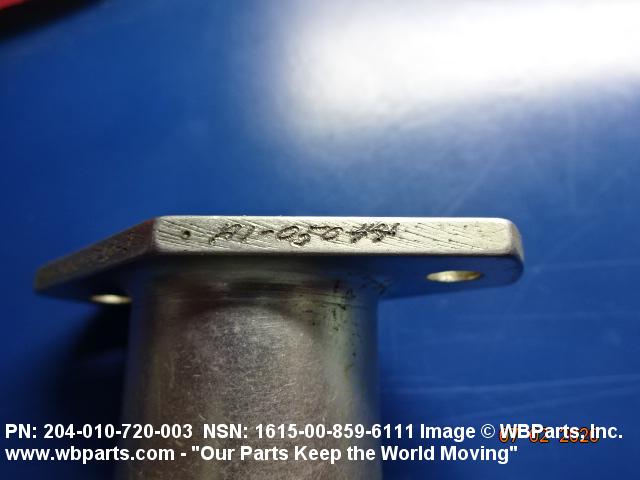

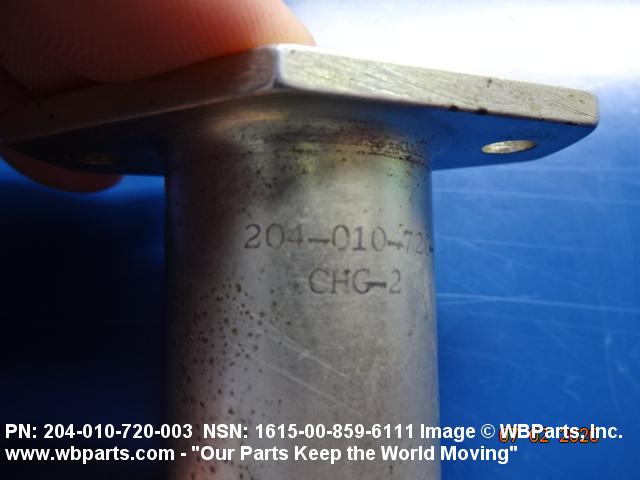

Drawings & Photos | NSN 1615-00-859-6111
Demand History | NSN 1615-00-859-6111
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1615-00-859-6111 | 2023-09-258 | 5 | Turkey |
| 204-010-720-3 | 2023-05-151 | 2 | Philippines |
| 1615-00-859-6111 | 2021-11-320 | 1 | Philippines |
| 1615-00-859-6111 | 2020-08-223 | 1 | United States |
| 1615-00-859-6111 | 2020-06-178 | 1 | United States |
| 204010720003 | 2020-06-167 | 1 | United States |
| 204010720003 | 2020-03-78 | 1 | United States |
| 204010720003 | 2017-11-319 | 1 | BR |
| 1615-00-859-6111 | 2016-12-342 | 9 | DIBBS |
| 1615-00-859-6111 | 2016-07-186 | 70 | DIBBS |
| 1615-00-859-6111 | 2015-08-225 | 106 | DIBBS |
| 1615-00-859-6111 | 2015-05-149 | 36 | DIBBS |
| 2040107203 | 2014-09-245 | 4 | Turkey |
| 2040107203 | 2012-06-180 | 1 | Philippines |
| 1615-00-859-6111 | 2011-02-41 | 49 | DIBBS |
| 1615-00-859-6111 | 2009-02-55 | 1 | Philippines |
| 204010720003 | 2006-07-187 | 4 | US |
| 204010720003 | 2006-04-116 | 40 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1615-00-859-6111
Related Products | NSN 1615-00-859-6111
Technical Data | NSN 1615-00-859-6111
| Characteristic | Specifications |
|---|---|

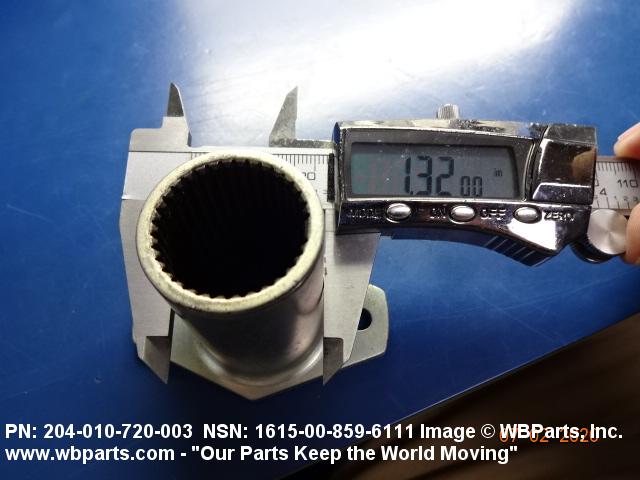

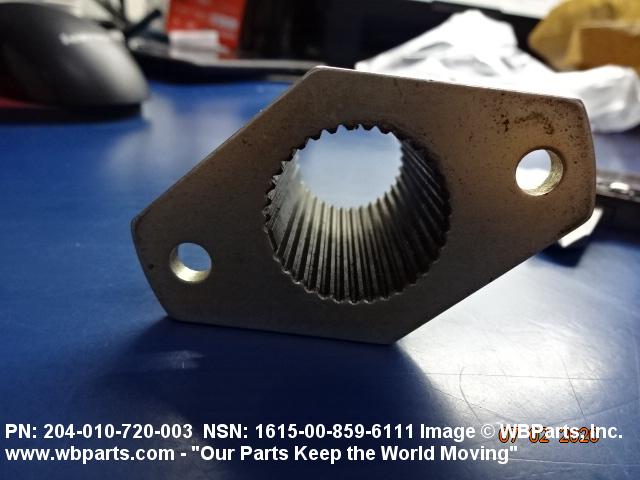

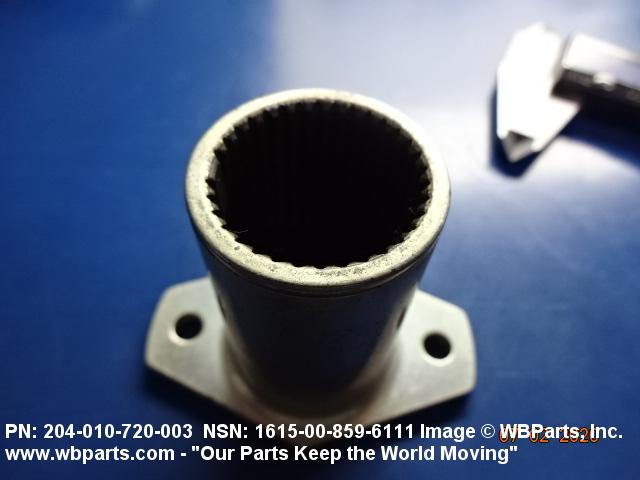

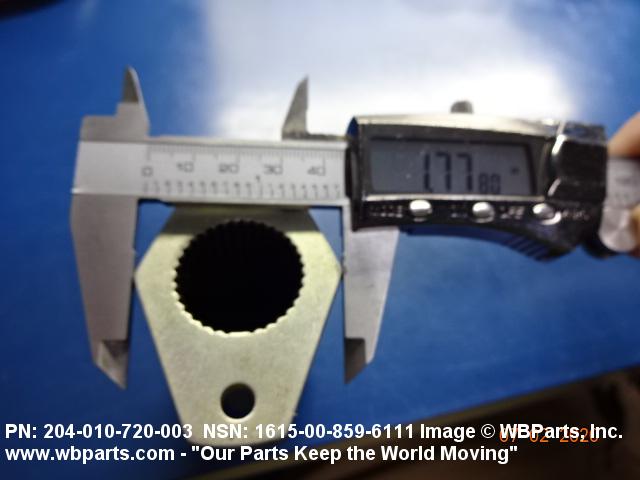

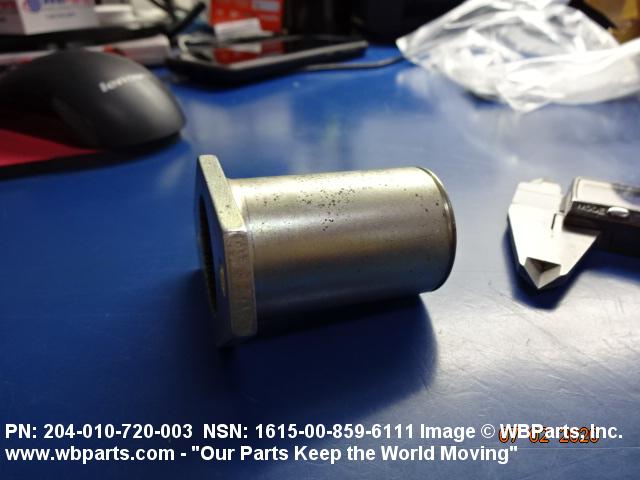

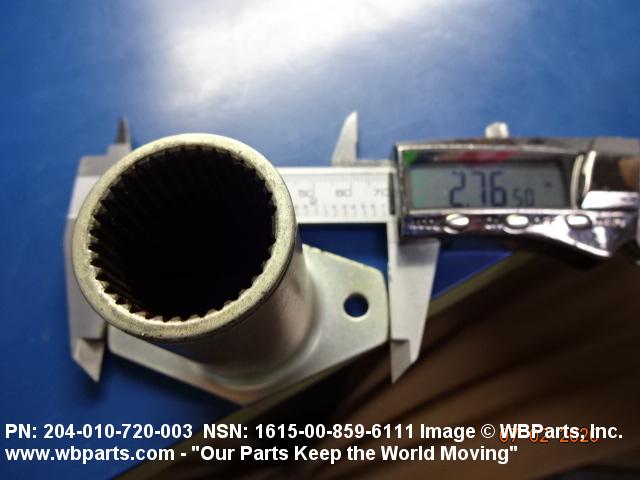

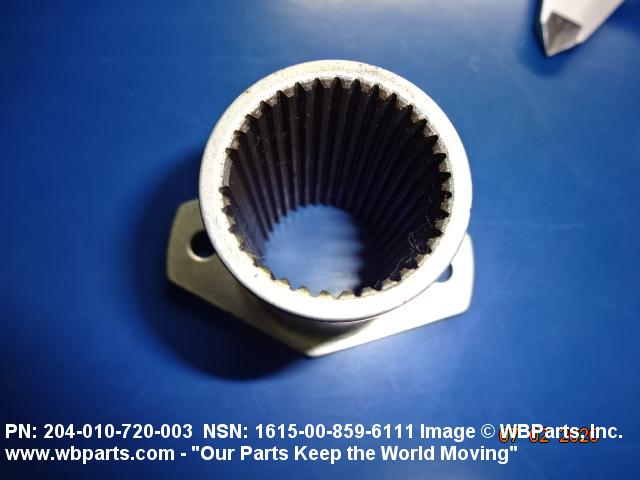

| GENERAL CHARACTERISTICS ITEM DESCRIPTION | STEEL MIL-S-5626 COMP 4140 COND D4 OR MIL-S-5000 COMP 4340 COND C1,CADMIUM-PLATED BPS FW4006 CLASS 2 TYPE 2 BODY,PHOSPHATE COATED BPS FW4384 TYPE 1SPLINE AND LUBRICATED PER MIL-G-25537,DIM.,2.188 IN. NOM LG,2.750 IN. NOM FLANGE LG,1.760 IN. NOM FLANGE CENTER W,0.160 IN. NOM FLANGE THK,1.312 IN. BODY OD,ID SPLINE DATA,INVOLUTE FLAT ROOTSPLINE SIDE BEARING SLIDING CLASS A FIT,34 TEETH ONE TOOTH OMITTED FOR INDEXING AT 180.0 DEG,30.0 DEG PRESSURE ANGLE,32/64 DIAMETRAL PITCH,1.0625 IN. PITCH DIA,1.0310 IN. MIN,1.0328 IN. MAX MINOR DIA,1.1040 IN. MIN,1.1121 IN. MAX MAJOR DIA,TWO MOUNTING HOLES ON FLANGE 0.259 IN. DIA 2.126 IN. C TO C DISTANCE,ONE OD GROOVE 0.060 IN. W,1.250 IN. DIA LOCATED 0.030 IN. FROM RIGHT END |
| MANUFACTURERS CODE | 97499 |
| DESIGN CONTROL REFERENCE | 204-010-720-3 |
Restrictions/Controls & Freight Information | NSN 1615-00-859-6111
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
