NSN 1615-00-815-6683 204010740005, 204-010-740-005, 2040107405
Product Details | QUILL CONTROL ASSEMBLY
1615-00-815-6683
Part Alternates: 204010740005, 204-010-740-005, 2040107405, 204-010-740-5, 204-010740-5, 1615-00-815-6683, 00-815-6683, 1615008156683, 008156683
Aircraft Components and Accessories | Helicopter Rotor Blades, Drive Mechanisms and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1962 | 00-815-6683 | 77777 ( ) |

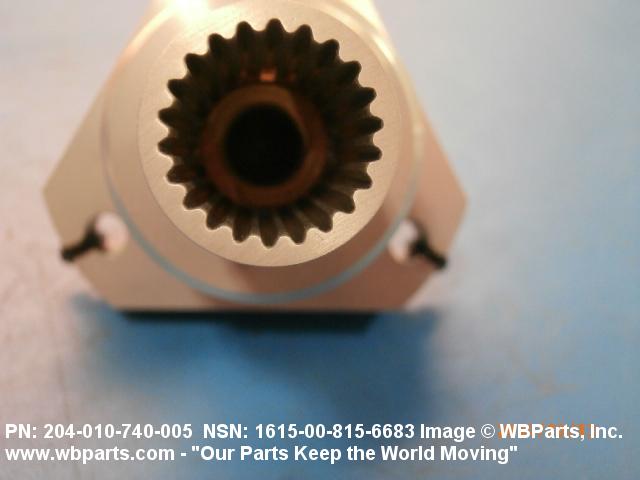

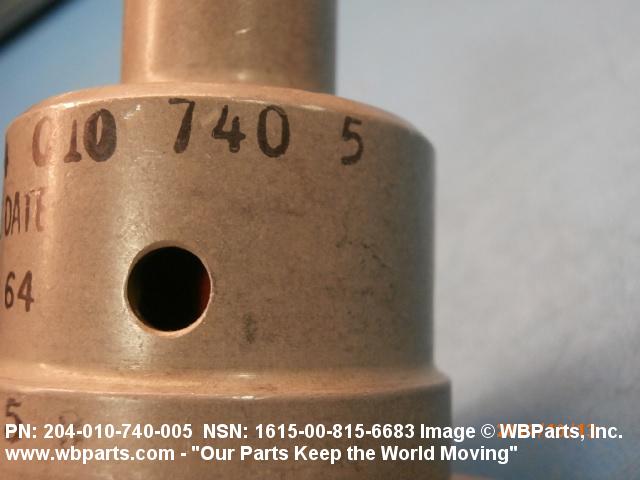

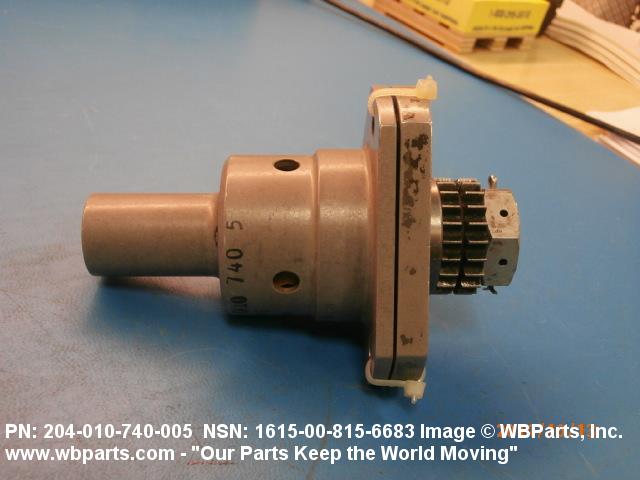

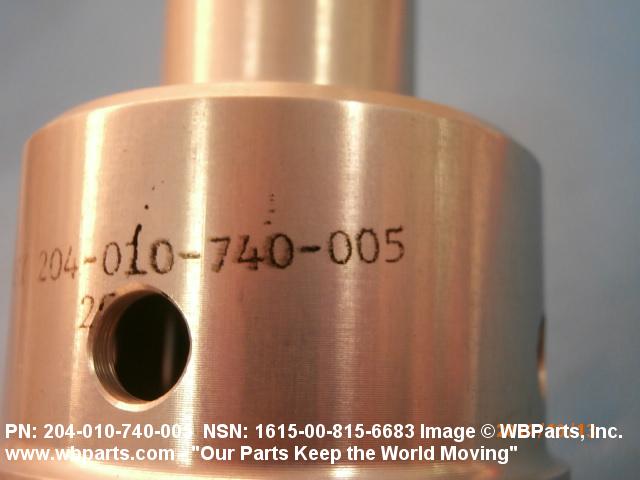

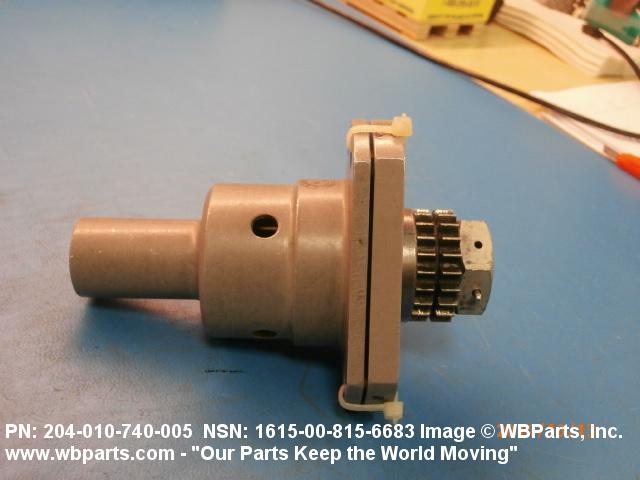

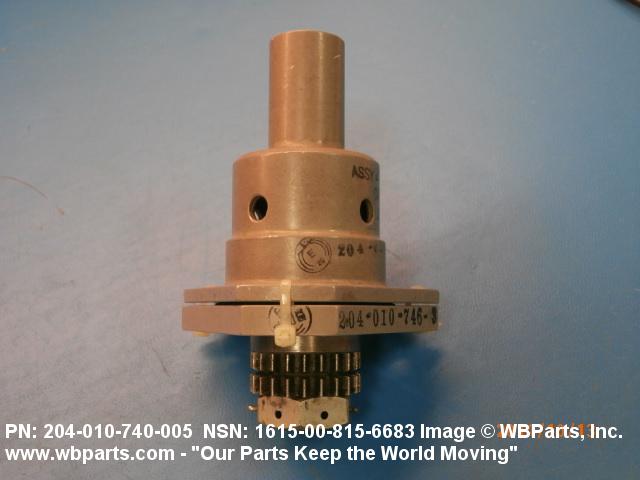

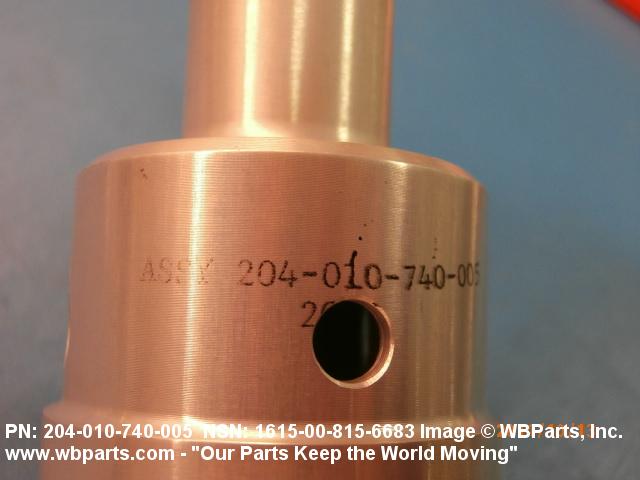

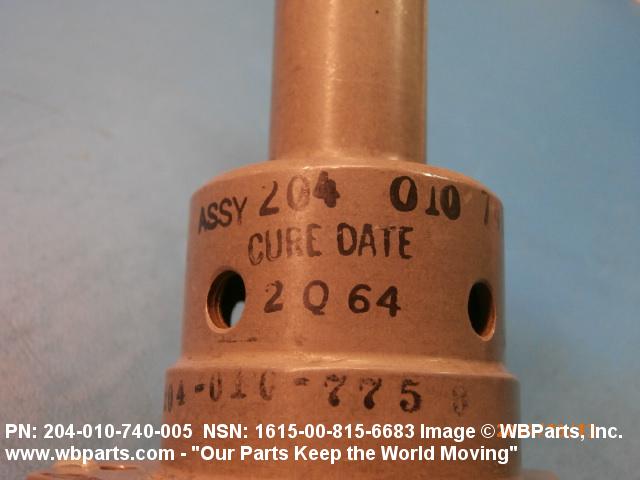

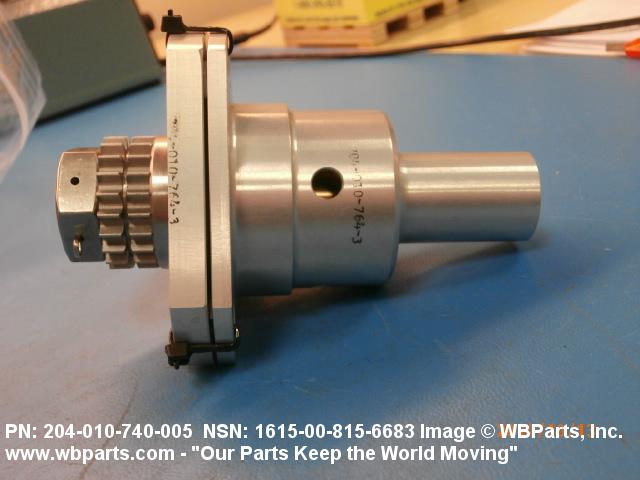

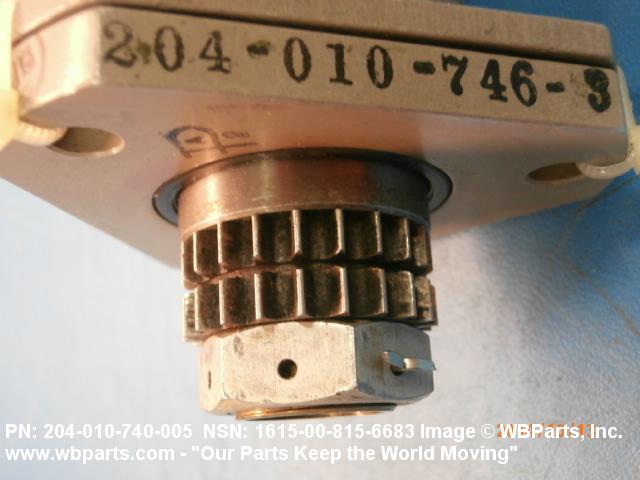

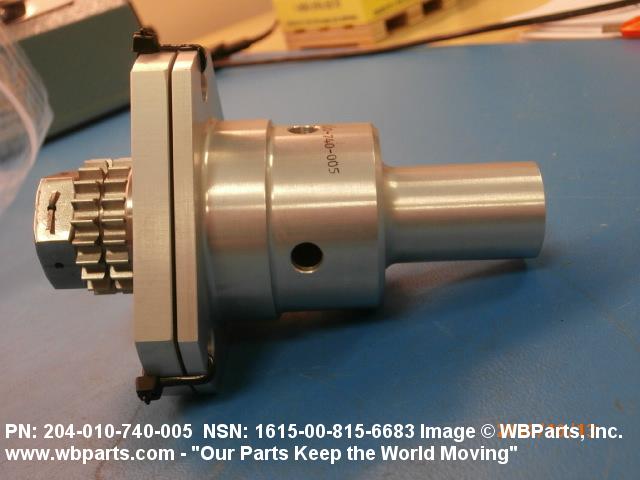

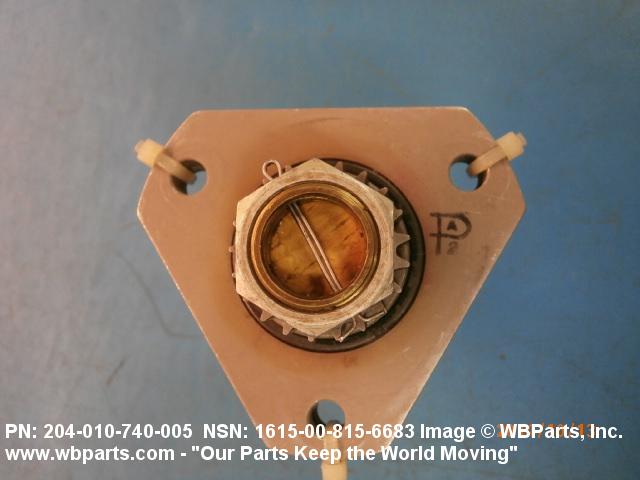

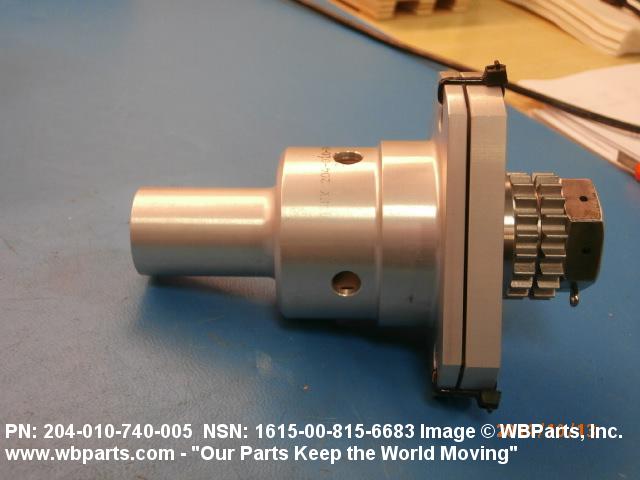

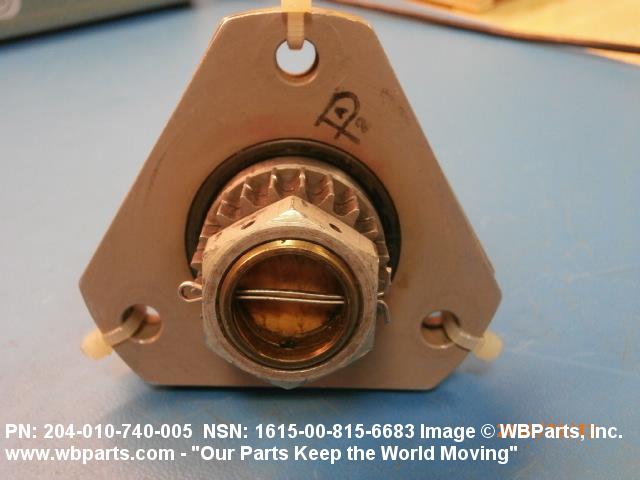

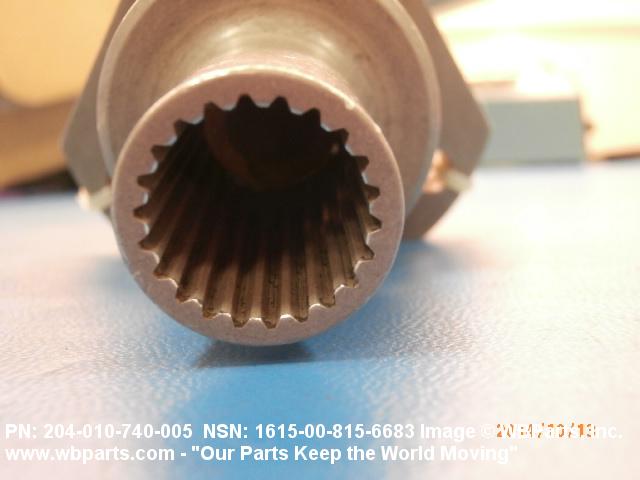

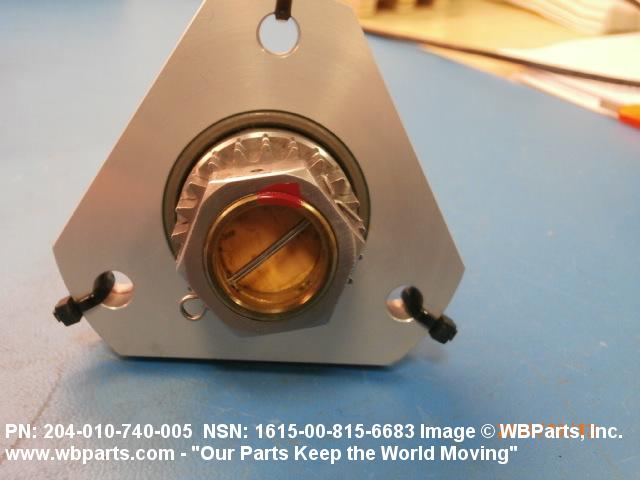

Drawings & Photos | NSN 1615-00-815-6683
Demand History | NSN 1615-00-815-6683
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2040107405 | 2021-12-342 | 1 | United States |
| 1615-00-815-6683 | 2016-11-321 | 1 | Taiwan |
| 204010740005 | 2015-02-34 | 15 | United States |
| 204010740005 | 2014-09-272 | 1 | United States |
| 204010740005 | 2014-09-265 | 1 | United States |
| 2040107405 | 2014-09-245 | 5 | Turkey |
| 1615-00-815-6683 | 2013-09-270 | 20 | US |
| 1615-00-815-6683 | 2013-08-240 | 1 | Philippines |
| 1615-00-815-6683 | 2013-08-240 | 1 | Philippines |
| 1615-00-815-6683 | 2013-08-221 | 1 | TW |
| 1615-00-815-6683 | 2013-02-58 | 1 | Seychelles |
| 204010740005 | 2012-01-17 | 20 | United States |
| 1615-00-815-6683 | 2012-01-13 | 20 | MANUAL |
| 204-010-740-005 | 2012-01-13 | 20 | United States |
| 1615-00-815-6683 | 2011-12-347 | 20 | United States |
| 204010740005 | 2010-06-155 | 1 | MX |
| 204010740005 | 2010-02-49 | 54 | US |
| 1615-00-815-6683 | 2008-01-18 | 21 | South Korea |
| 1615-00-815-6683 | 2007-03-86 | 16 | South Korea |
| 1615-00-815-6683 | 2006-10-277 | 95 | US |
| 1615-00-815-6683 | 2006-08-237 | 95 | US |
Cross Reference | NSN 1615-00-815-6683
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 204-010-740-005 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 204-010-740-5 | 34336 | TECT AEROSPACE INC. DBA TECT AEROSPACE SOUTHWEST |
| 204-010-740-5 | 4J831 | A.C.R. MACHINE, INC. |
| 204-010-740-5 | 58822 | HUTSON AEROSPACE INC SUB OF TELEFLEX INC |
| 204-010-740-5 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 204-010-740-5 | D0216 | RUAG AEROSPACE SERVICES GMBH |
| 204-010740-5 | 62083 | QUALITY AVIATION INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1615-00-815-6683
Related Products | NSN 1615-00-815-6683
Technical Data | NSN 1615-00-815-6683
| Characteristic | Specifications |
|---|---|
| GENERAL CHARACTERISTICS ITEM DESCRIPTION | C/O 1 EA CONTROL NUT ASSY,SPROCKET,QUILL HOUSING,SPACER,NUT,COTTERPIN,RETA INER,SEAL;2 O-RINGS;1 SET BEARINGS |
| III END ITEM IDENTIFICATION | 1615-00-488-7598 |
Restrictions/Controls & Freight Information | NSN 1615-00-815-6683
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 011790 | AIRCRAFT PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1615-00-815-6683
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | F | If condemned or uneconomically repairable, then dispose at Direct Support (DS) level. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | GA | TG:H-1 IROQUOIS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | P | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
