NSN 1615-00-782-9880 369A70033, 369A7003-3, 00-782-9880
Product Details | SWASHPLATE BEARING ASSEMBLY
1615-00-782-9880
Part Alternates: 369A70033, 369A7003-3, 1615-00-782-9880, 00-782-9880, 1615007829880, 007829880
Aircraft Components and Accessories | Helicopter Rotor Blades, Drive Mechanisms and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 14 FEB 1968 | 00-782-9880 | 77777 ( ) |

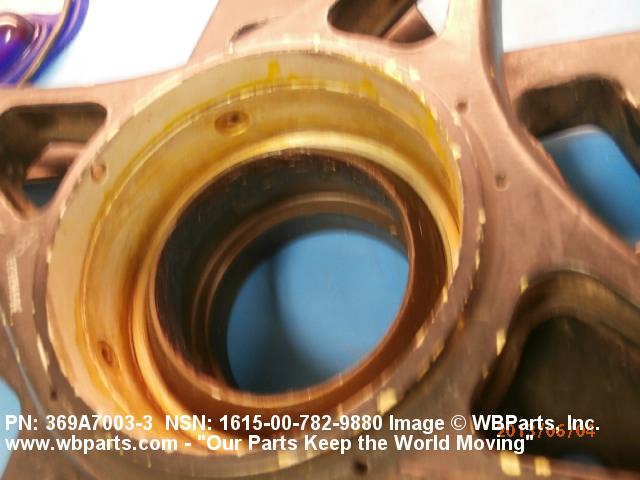

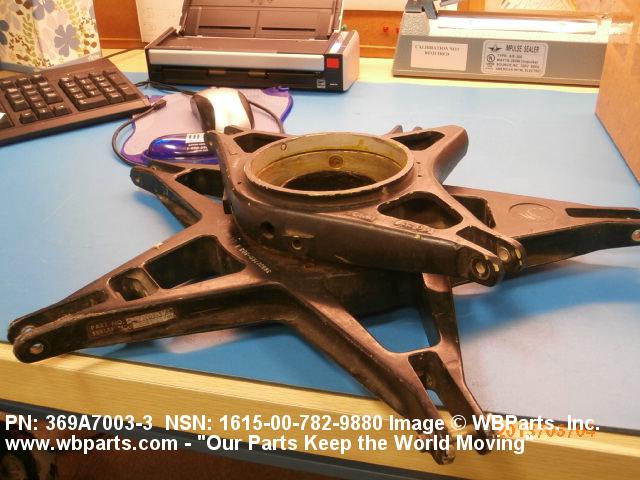

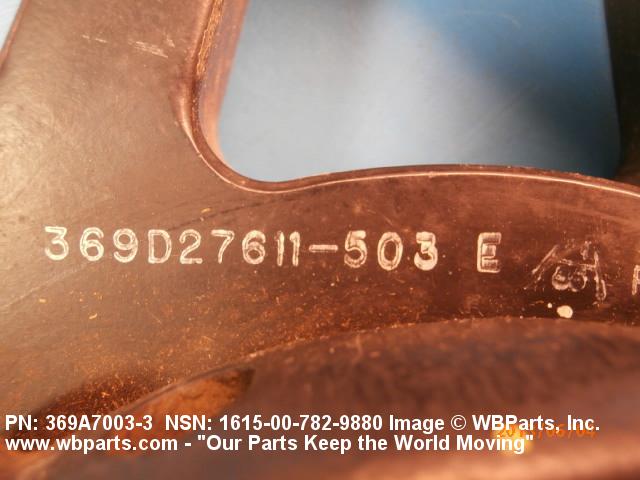

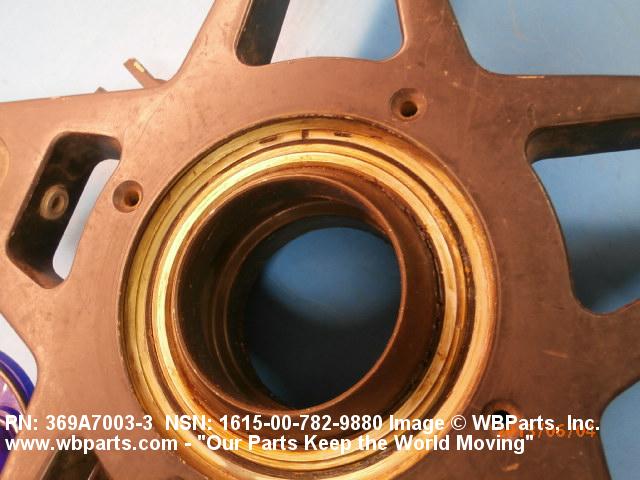

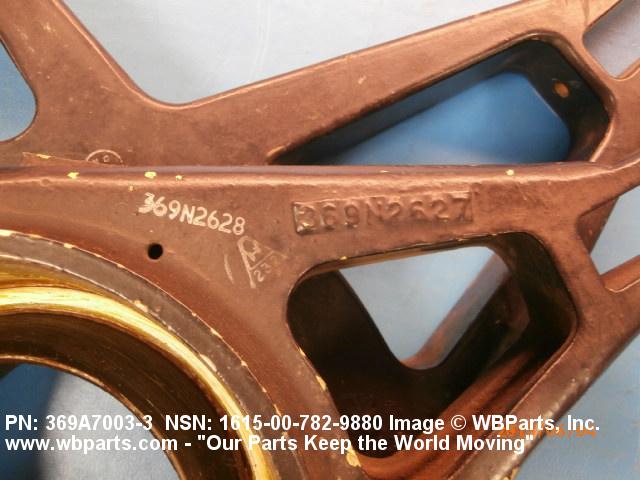

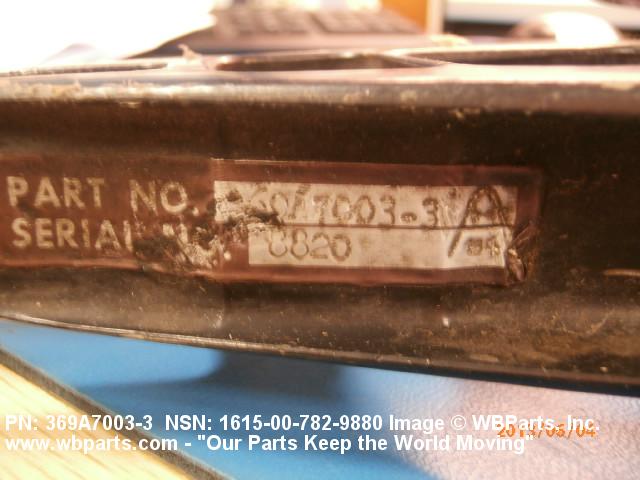

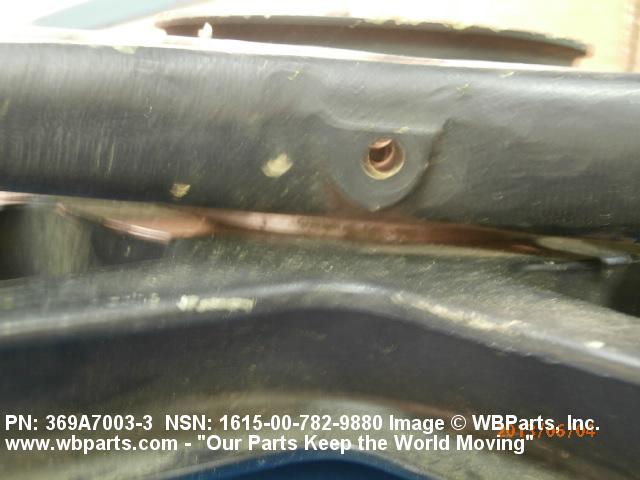

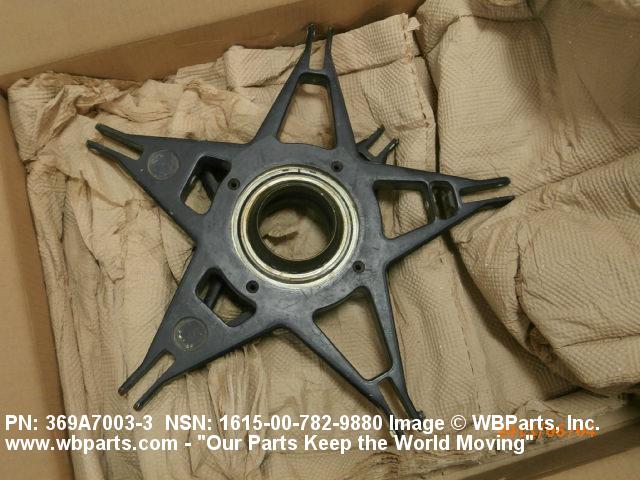

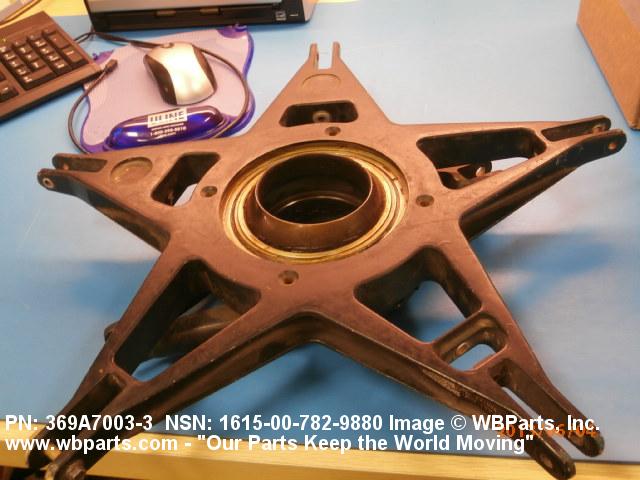

Drawings & Photos | NSN 1615-00-782-9880
Demand History | NSN 1615-00-782-9880
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 369A70033 | 2024-06-165 | 2 | United States |
| 369A70033 | 2022-10-277 | 2 | El Salvador |
| 1615-00-782-9880 | 2020-01-08 | 10 | KR |
| 369A70033 | 2019-01-16 | 11 | South Korea |
| 1615-00-782-9880 | 2018-01-10 | 2 | US |
| 1615-00-782-9880 | 2017-12-354 | 2 | US |
| 1615-00-782-9880 | 2017-08-213 | 1 | United States |
| 1615-00-782-9880 | 2017-04-110 | 15 | US |
| 369A70033 | 2016-06-172 | 4 | Philippines |
| 369A70033 | 2016-05-150 | 7 | United States |
| 369A7003-3 | 2016-05-132 | 1 | AE |
| 369A70033 | 2015-07-183 | 1 | New Zealand |
| 369A70033 | 2014-12-339 | 3 | United States |
| 1615-00-782-9880 | 2014-12-337 | 9 | United States |
| 369A70033 | 2013-11-330 | 1 | US |
| 369A70033 | 2013-09-254 | 9 | US |
| 369A7003-3 | 2013-08-238 | 10 | KE |
| 1615-00-782-9880 | 2013-08-213 | 9 | US |
| 369A70033 | 2013-05-134 | 1 | New Zealand |
| 1615-00-782-9880 | 2013-05-127 | 1 | US |
| 1615-00-782-9880 | 2013-04-111 | 15 | US |
| 1615-00-782-9880 | 2013-04-95 | 1 | US |
| 1615-00-782-9880 | 2013-04-93 | 35 | US |
| 1615-00-782-9880 | 2013-04-91 | 15 | US |
| 1615-00-782-9880 | 2013-03-87 | 1 | US |
| 369A70033 | 2012-11-310 | 1 | US |
| 369A70033 | 2012-05-137 | 16 | US |
| 369A7003-3 | 2012-04-115 | 16 | United States |
| 369A7003-3 | 2012-04-114 | 16 | United States |
| 369A70033 | 2012-01-17 | 16 | United States |
| 1615-00-782-9880 | 2011-12-349 | 16 | United States |
| 1615-00-782-9880 | 2011-03-70 | 1 | US |
| 1615-00-782-9880 | 2010-12-357 | 15 | KR |
| 1615-00-782-9880 | 2009-03-72 | 42 | US |
| 369A70033 | 2009-03-68 | 2 | US |
| 369A70033 | 2008-08-237 | 1 | PA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1615-00-782-9880
Related Products | NSN 1615-00-782-9880
Technical Data | NSN 1615-00-782-9880
| Characteristic | Specifications |
|---|---|
| GENERAL CHARACTERISTICS ITEM DESCRIPTION | ALUMINUM ALLOY,SPHERICAL BALL AND RACE,STEEL,FED STD 66 COMP 52100BEARING RACES W/ROCKWELL HARDNESS RATING C SCALE 58 TO 62,SPRING STEELRETAINING RINGS,STEEL RETAINER,STEEL BALL BEARINGS,25 PER ROW,TWO SYNTHETICRUBBER SEALS,ANODIZED PER MIL-A-8625 TYPE 1 SPHERICAL BALL AND RACECADMIUM-PLATED PER QQ-P-416 CLASS 2 TYPE 2 ALL EXPOSED STEEL SURFACESTEFLON,REINFORCED,SPHERIC AL BALL LINER AND ID SLEEVE,DIM.,SPHERICAL BALL3.9375 IN. NOM SPHERICAL OD,3.000 IN. NOM ID,2.998 IN. MIN,3.000 IN. MAXSHAFT DIA,2.380 IN. NOM BALL HEIGHT,17.5 DEG MAX MISALIGNMENT IN EITHERDIRECTION,1.312 IN. MIN,1.332 IN. MAX W RACE INSERT,4.187 IN. NOM OD RACEINSERT,DUPLEX BEARING,SINGLE ROW DUPLEX PAIR,FACE TO FACE MOUNTING W/INNERRING EXTENSION ON ONE BEARING 1.625 IN. LG,5.3742 IN. MIN,5.3750 IN. MAX OD4.307 IN. MIN,4.317 IN. MAX ID,1.122 IN. MIN,1.125 IN. MAX TOTAL OUTER RINGWIDTH,BEARINGS PRELUBRICATED W/MIL-G-23827 GREASE,FOUR MOUNTING HOLES 0.2495IN. MIN,0.2505 IN. MAX DIA LOCATED ON BEARING EXTENSION |
| MANUFACTURERS CODE | 8V613 |
| DESIGN CONTROL REFERENCE | 369A7003-3 |
Restrictions/Controls & Freight Information | NSN 1615-00-782-9880
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1615-00-782-9880
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9W | Navy-owned stocks of material managed by the Army within the Army Troop Support and Aviation Materiel Readiness Command Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | B17 | US Army Aviation and Missile Command (Air) ATTN: AMSMI-LC-MM-C Redstone Arsenal, AL 35898-5230 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
