NSN 1615-00-759-8304 114H68282, 114H6828-2, 00-759-8304
Product Details | SHOCK ABSORBER RETAINER
1615-00-759-8304
Part Alternates: 114H68282, 114H6828-2, 1615-00-759-8304, 00-759-8304, 1615007598304, 007598304
Aircraft Components and Accessories | Helicopter Rotor Blades, Drive Mechanisms and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 MAR 1968 | 00-759-8304 | 77777 ( ) |

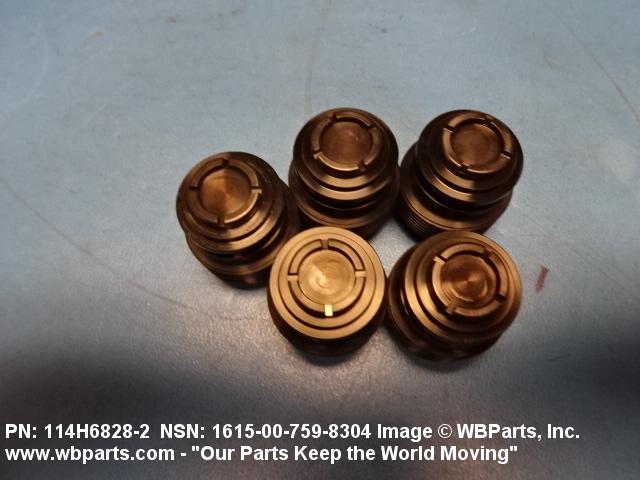

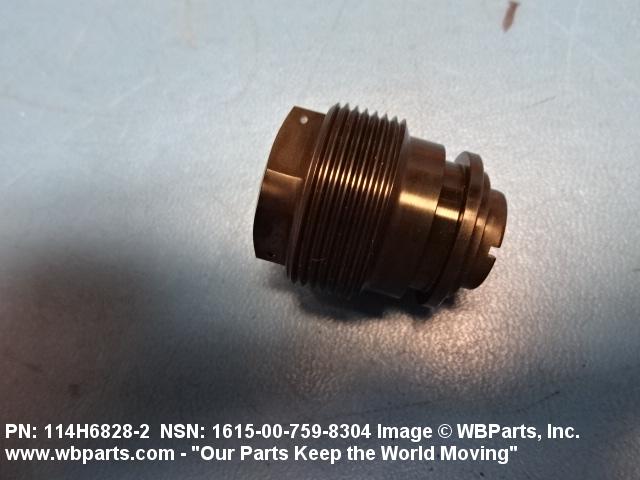

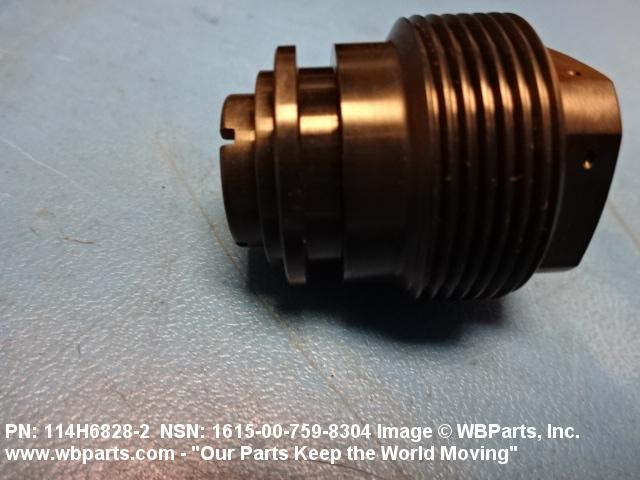

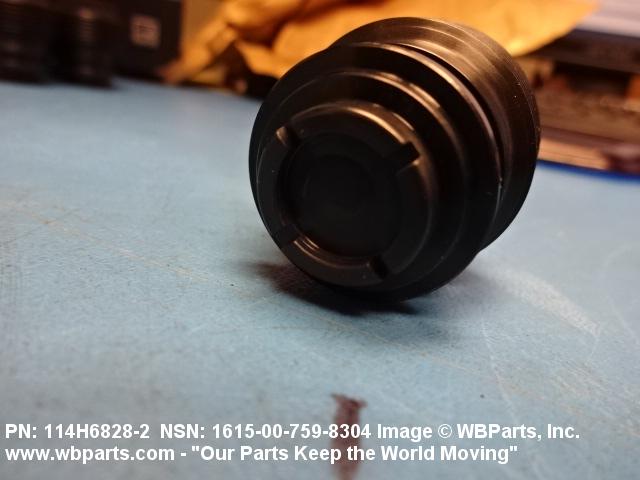

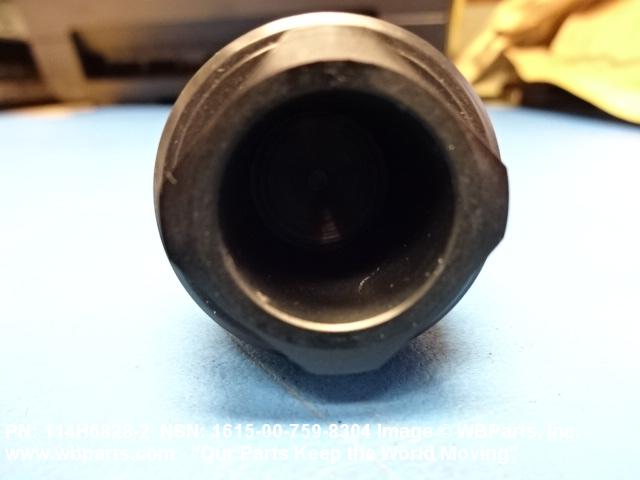

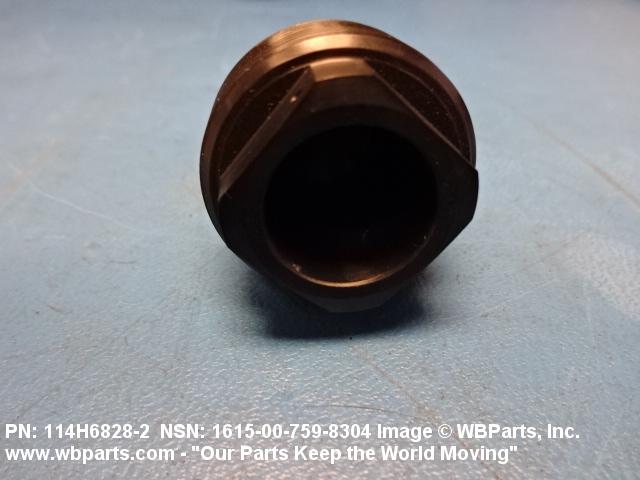

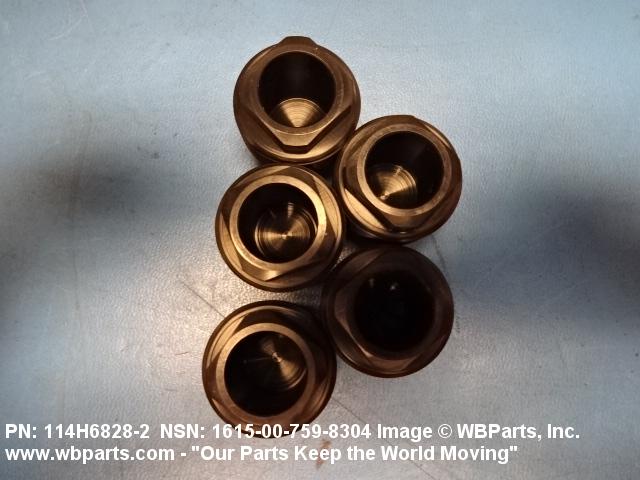

Drawings & Photos | NSN 1615-00-759-8304
Demand History | NSN 1615-00-759-8304
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1615-00-759-8304 | 2019-01-15 | 5 | United States |
| 1615-00-759-8304 | 2018-08-220 | 5 | DIBBS |
Cross Reference | NSN 1615-00-759-8304
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 114H6828-2 | 77272 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1615-00-759-8304
Related Products | NSN 1615-00-759-8304
Technical Data | NSN 1615-00-759-8304
| Characteristic | Specifications |
|---|---|

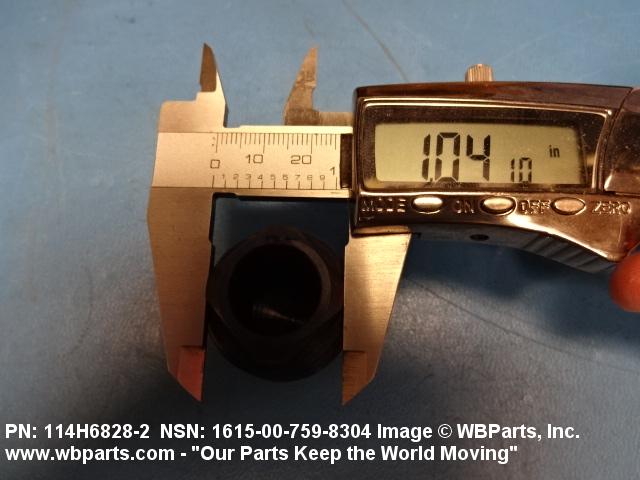

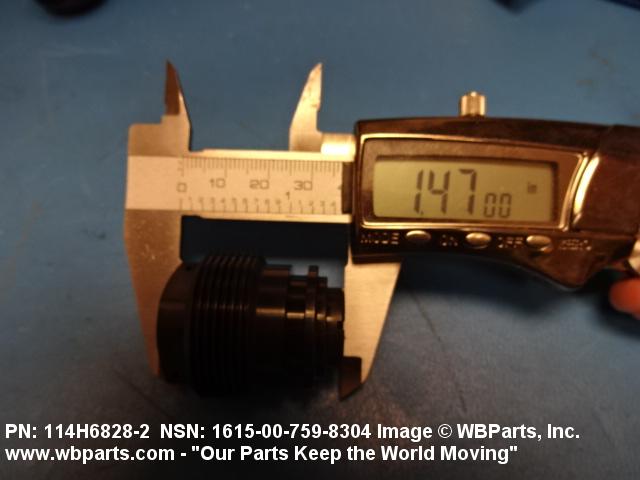

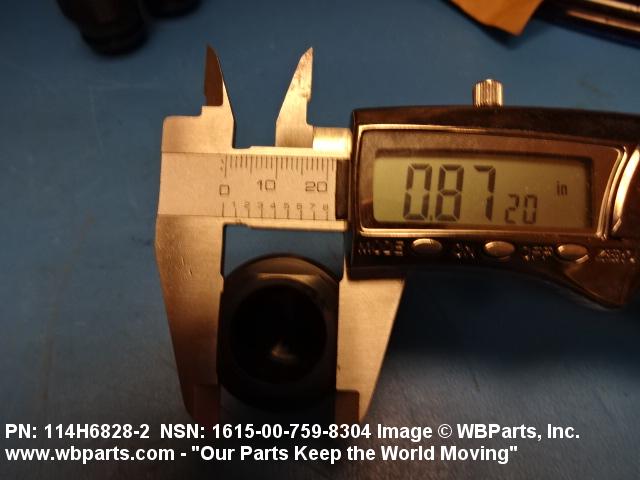

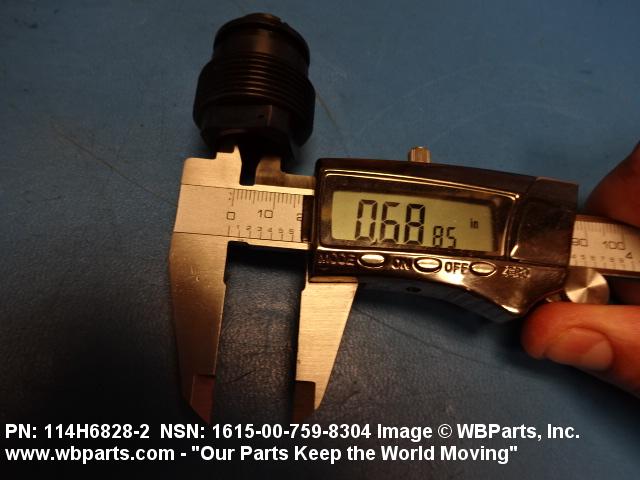

| GENERAL CHARACTERISTICS ITEM DESCRIPTION | ALUMINUM ALLOY QQ-A-225/6 COMP 2024-T4,ANODIZED MIL-A-8625 TYPE 1 DYED BLACK NO. 37038 OVERALL,DIM.,1.470 IN.NOM LG,1.050 IN. NOM BODY OD,THREADED FLANGE 0.250 IN. FROM RIGHT END W/1.250-16 UN CLASS 3A THREADS 0.550 IN. LG,ONE OD GROOVE 0.315 IN. FROM LEFT END 0.141 IN. W BY 0.878 IN. OD,0.685 IN. LEFT END OD BY 0.150 IN. LG W/FOUR EQUALLY SPACED NOTCHES 0.060 IN. W BY 0.060 IN. DEEP,0.500 IN. ID BY 0.080 IN. DEEP,0.690 IN. NOM RIGHT END ID BY 1.060 IN. DEEP,0.876 IN. SQ WRENCHING FLATS ON RIGHT END OD W/TWO 0.046 IN. DIALOCKWIRE HOLES 180.0 DEG APART,ITEM USED ON BLADE LAG SHOCK ABSORBER |
| MANUFACTURERS CODE | 77272 |
| DESIGN CONTROL REFERENCE | 114H6828-2 |
Restrictions/Controls & Freight Information | NSN 1615-00-759-8304
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1615-00-759-8304
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
