NSN 1615-00-141-0080 204011268003, 204-011-268-003, 2040112683

1615-00-141-0080

Part Alternates: 204011268003, 204-011-268-003, 2040112683, 204-011-268-3, 1615-00-141-0080, 00-141-0080, 1615001410080, 001410080

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
16	29 AUG 1971	00-141-0080	77777 ( )

Part Number	Request Date	QTY	Origin
1615-00-141-0080	2016-08-236	1	DIBBS
2040112683	2015-02-42	2	United States
1615-00-141-0080	2012-08-217	10	DIBBS
1615-00-141-0080	2012-02-35	50	DIBBS

Part Number	Cage Code	Manufacturer
204-011-268-003	97499	BELL HELICOPTER TEXTRON INC.
204-011-268-3	97499	BELL HELICOPTER TEXTRON INC.

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 1615-00-141-0080

Compare

1615-00-144-2474, 1615-00-146-8126, 1615-00-146-8127, 1615-00-147-3056, 1615-00-148-6439

Characteristic	Specifications

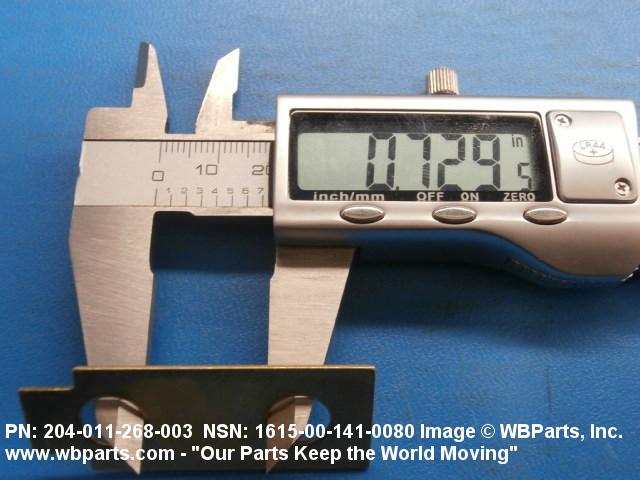

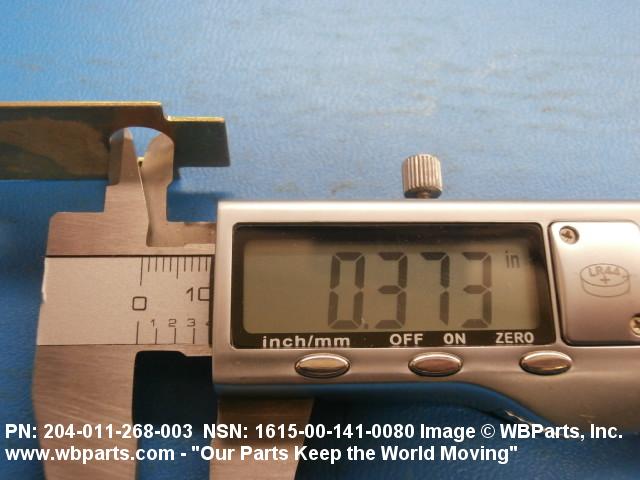

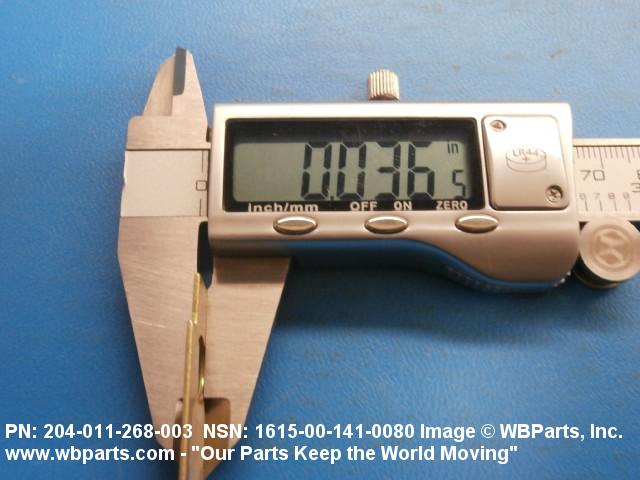

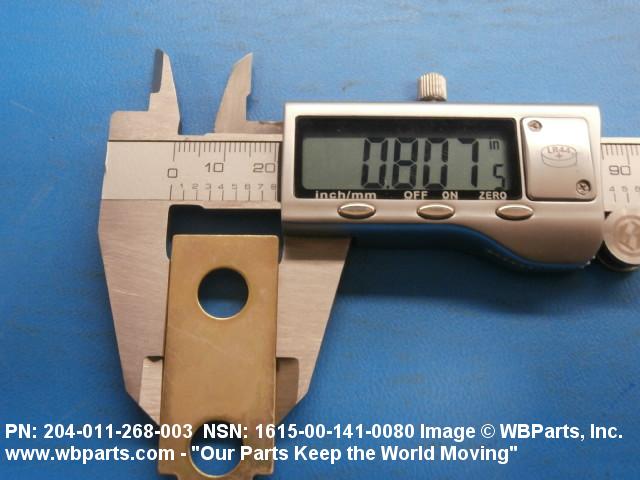

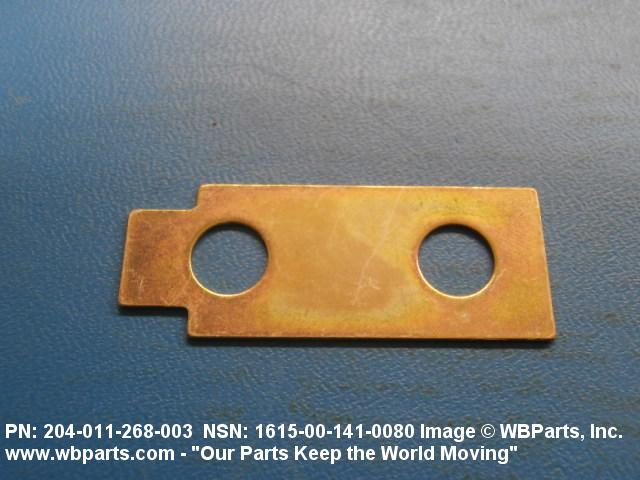

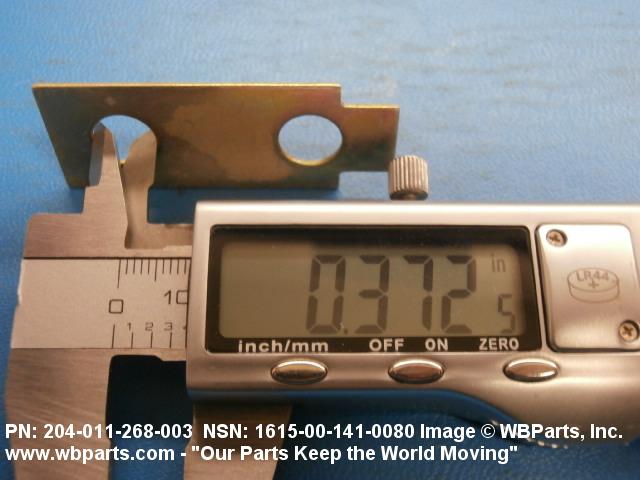

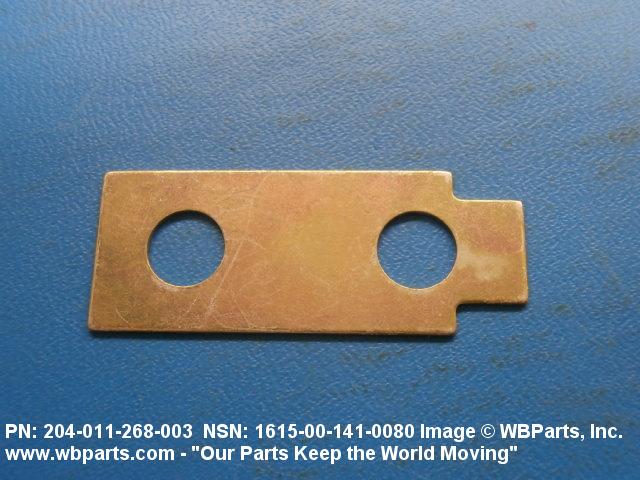

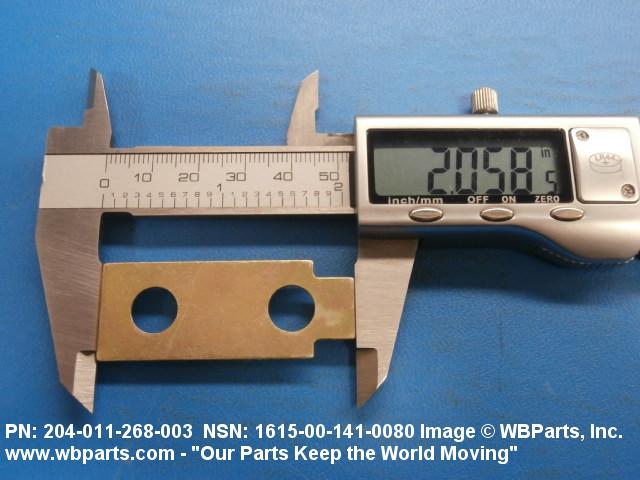

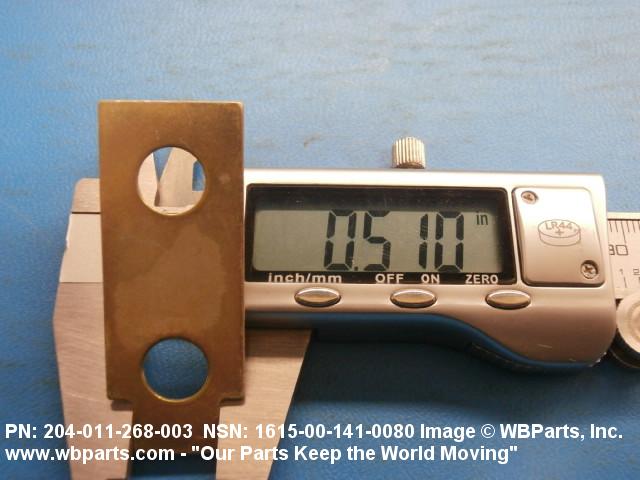

GENERAL CHARACTERISTICS ITEM DESCRIPTION	STEEL,COMP 1010 THRU 1025,CADMIUM-PLATED QQ-P-416 CLASS 2 TYPE 2,DIM.,2.050 IN. NOM LG,0.800 IN. NOM W,0.032 IN. NOM THICK,TWO HOLES 0.380 IN. DIADRILLED THRU ON VERTICAL CENTERLINE AND 0.510 IN. FROM NOTCHED END W/1.100IN. CENTER TO CENTER DISTANCE,ONE NOTCH ON EACH SIDE OF VERTICAL CENTERLINE0.150 IN. W BY 0.330 IN. LG W/CENTER SECTION 0.500 IN. WIDE
MANUFACTURERS CODE	97499
DESIGN CONTROL REFERENCE	204-011-268-3

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	B	Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	011790	AIRCRAFT PARTS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	671	unknown
Originating Activity Code	CT	U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	GA	TG:H-1 IROQUOIS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
