Product Details | ROTARY WING HEAD

1615-00-124-4771 A power dirven manually or automatically controlled mechanism. Its function is to support, control and transmit motion to the rotary wing blades.

Part Alternates: S6110264022, S6110-26402-2, 1615-00-124-4771, 00-124-4771, 1615001244771, 001244771

Aircraft Components and Accessories | Helicopter Rotor Blades, Drive Mechanisms and Components

Supply Group (FSG) NSN Assign. NIIN
16 06 NOV 1968 00-124-4771

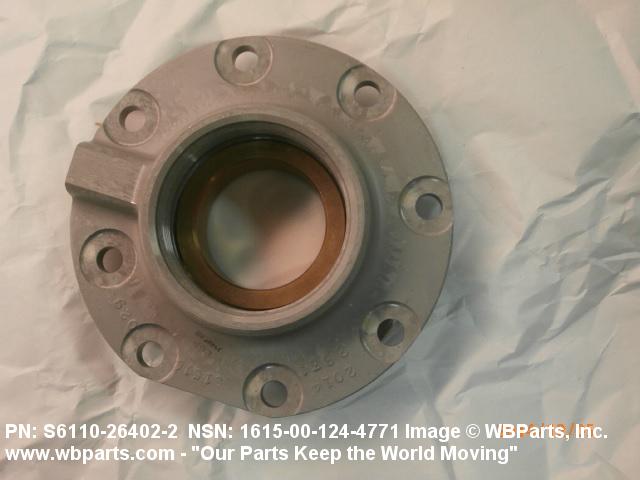

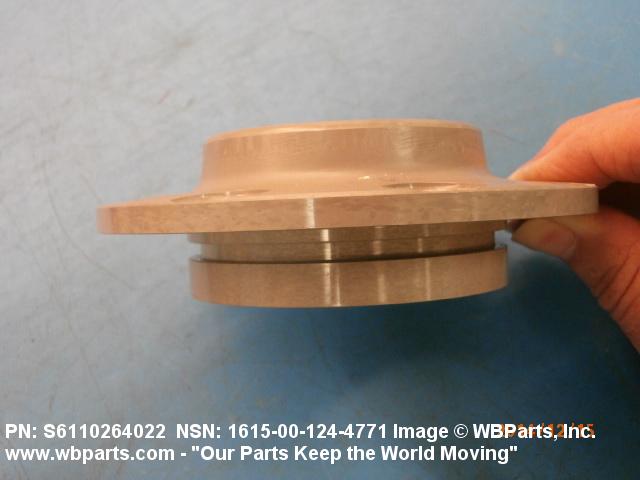

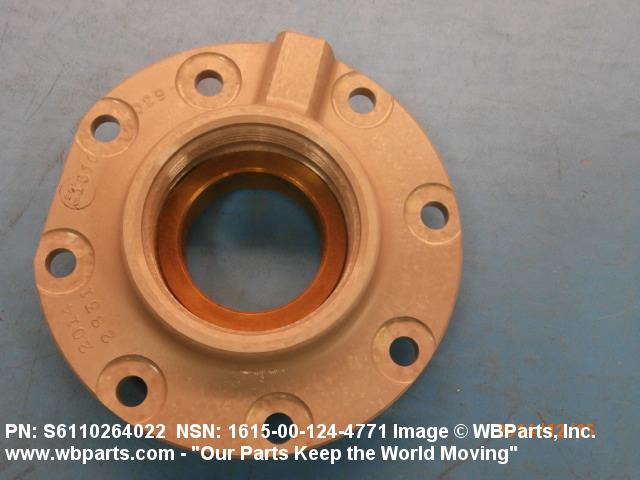

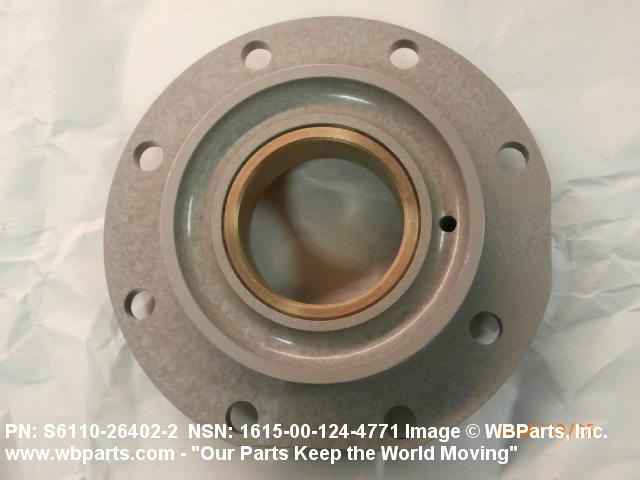

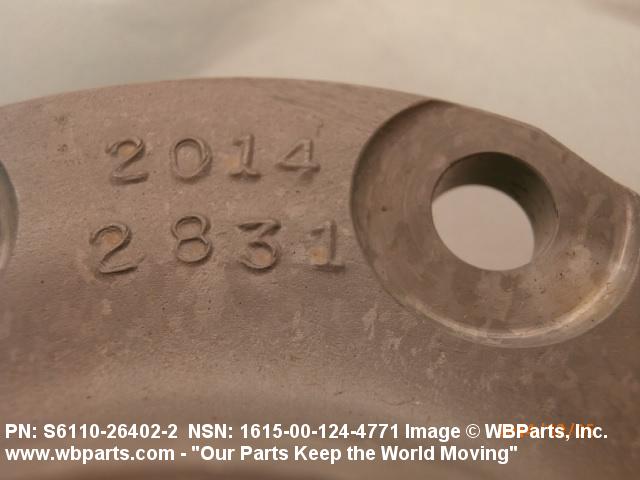

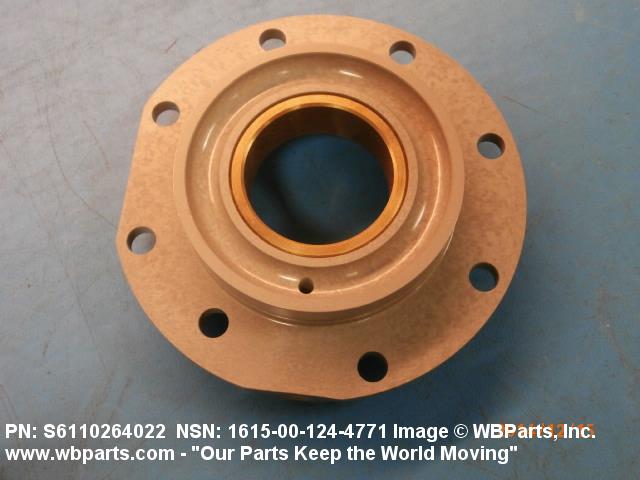

Drawings & Photos | NSN 1615-00-124-4771


Demand History | NSN 1615-00-124-4771

Part Number Request Date QTY Origin
S6110264022 2014-11-310 1 Canada
S6110264022 2014-01-20 1 Canada
S6110264022 2014-01-20 5 Canada

Cross Reference | NSN 1615-00-124-4771

Part Number Cage Code Manufacturer
S6110-26402-2 78286 SIKORSKY AIRCRAFT CORPORATION

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 1615-00-124-4771

Technical Data | NSN 1615-00-124-4771

Characteristic Specifications

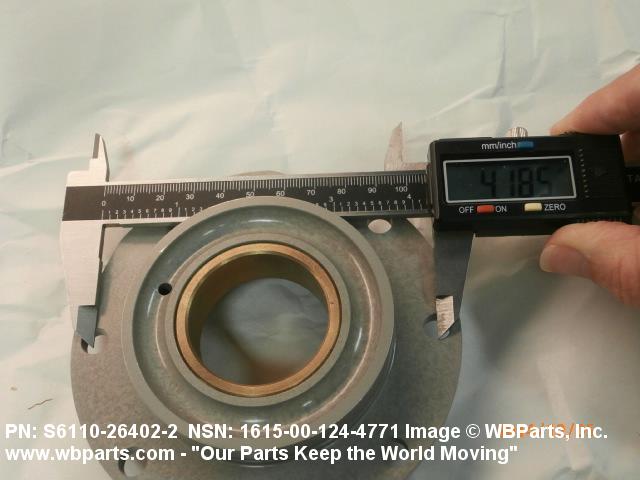

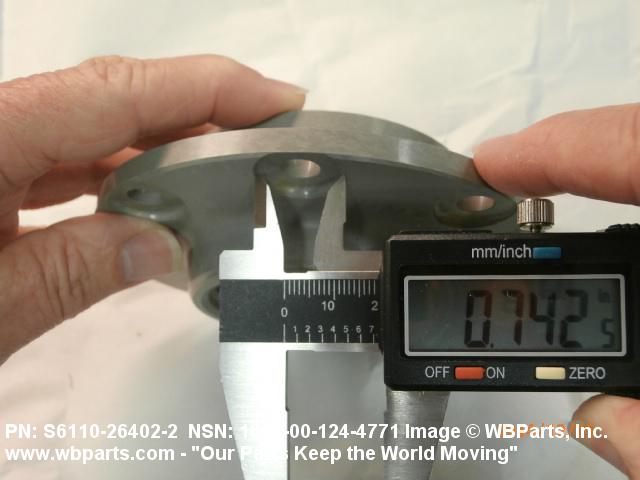

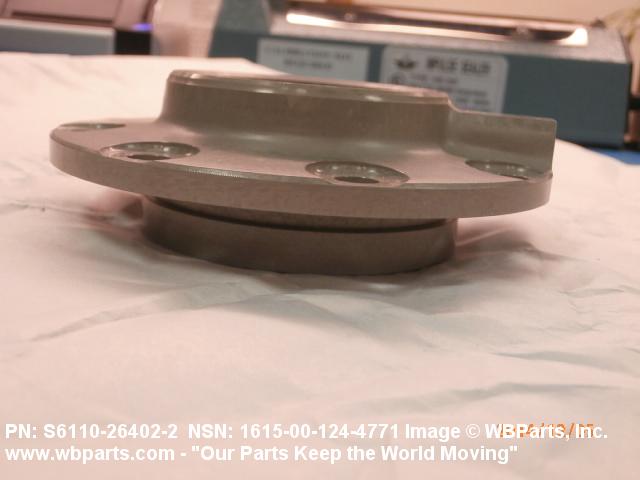

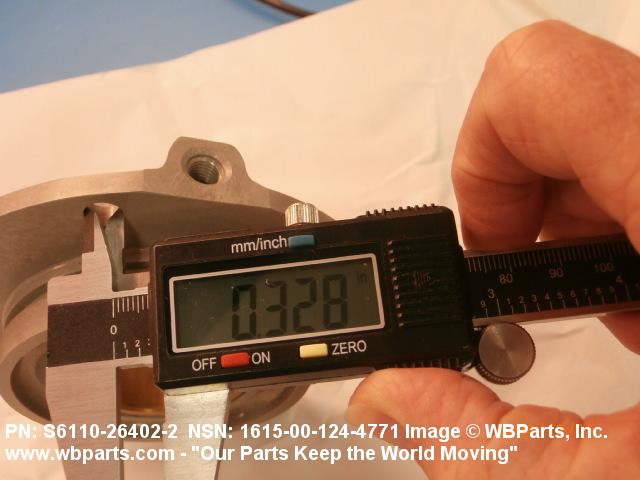

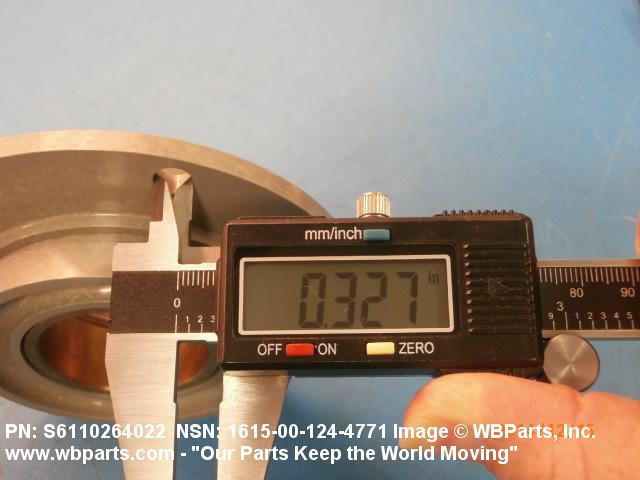

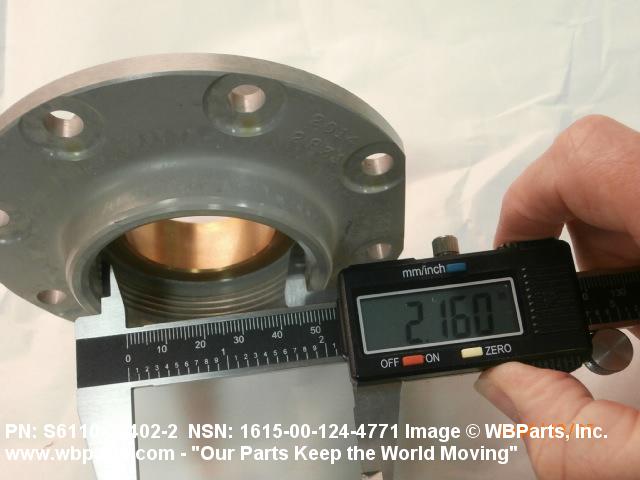

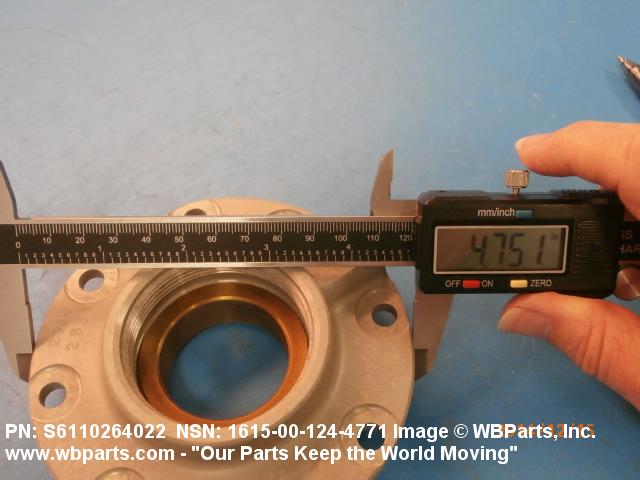

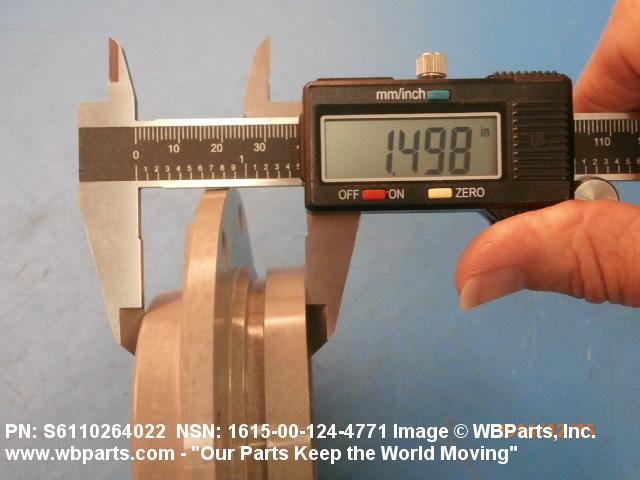

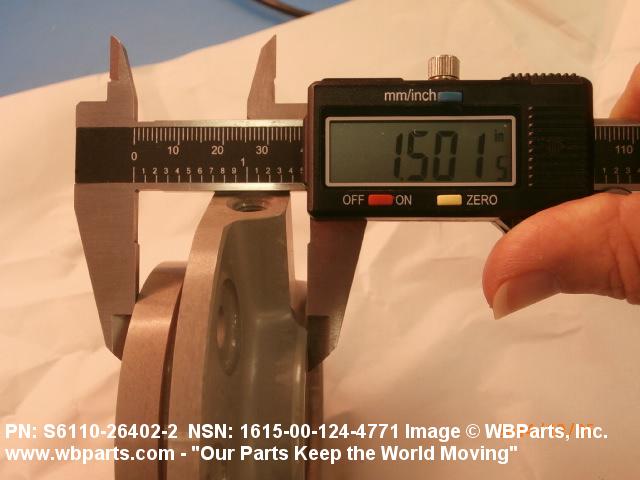

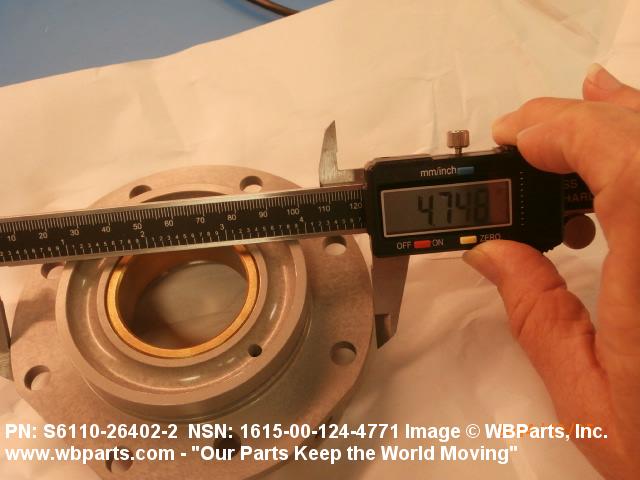

GENERAL CHARACTERISTICS ITEM DESCRIPTION AL ALLOY;ANODIZE PER MIL-A-8625;90 AA MICROINCHES SURFACE ROUGH;4.750 IN. DIA BY 1.500 IN. THK O/A;SEVEN 0.328 IN. DIA HOLES ON THE BASIS OF EIGHT EQUALLY SPACED SPOTFACE 0.750 IN. DIA BY 0.062 RADIUS ON A 4.188 IN. DIA BC;ONE 0.328 IN. DIA HOLE 0.970 IN. FROM CENTER;2.150 IN. DIA MINOR BORE BY 2.440 IN. DIA MAJOR BORE
III END ITEM IDENTIFICATION 1615-00-124-4787
MANUFACTURERS CODE 78286
DESIGN CONTROL REFERENCE S6110-26402-2

Restrictions/Controls & Freight Information | NSN 1615-00-124-4771

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:BMunitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 133300 MACHINERY/MACHINES NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 671 unknown
Originating Activity Code TG Warner-Robins Air Logistics Center
Robins AFB, GA 31098-5609
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling Z No special handling required.
Special Handling Code Z unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 1615-00-124-4771

Category Code Description
Cognizance Codes9FNavy-owned stocks of material managed by the Air Force within the Warner Robins Air Logistics Center
Naval Inventory Control Point, Mechanicsburg
Source of SupplyFLZWarner Robins Air Logistics Center
Robins AFB, GA 31098-5609
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
