NSN 1615-00-003-1153 114R365011, 114R3650-11, 00-003-1153
Product Details | ROTARY WING HEAD BOLT ASSEMBLY
1615-00-003-1153
Part Alternates: 114R365011, 114R3650-11, 1615-00-003-1153, 00-003-1153, 1615000031153, 000031153
Aircraft Components and Accessories | Helicopter Rotor Blades, Drive Mechanisms and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 21 MAY 1972 | 00-003-1153 | 77777 ( ) |

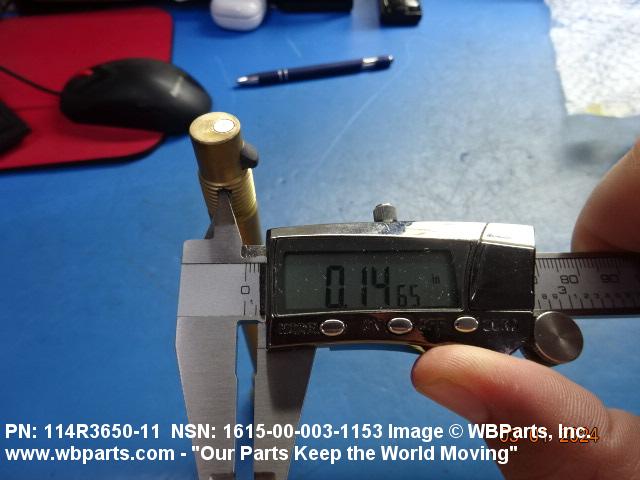

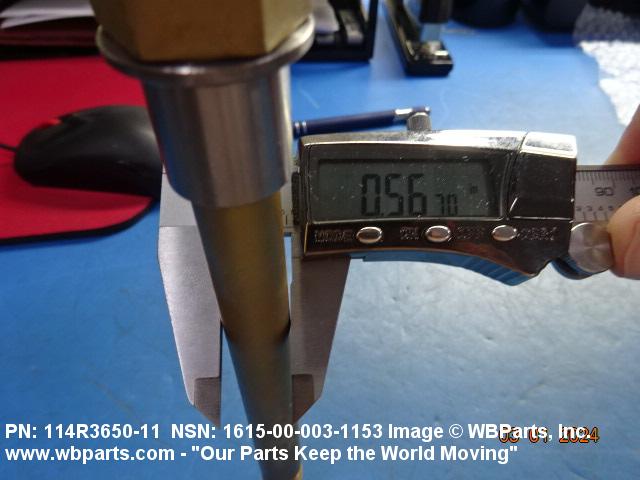

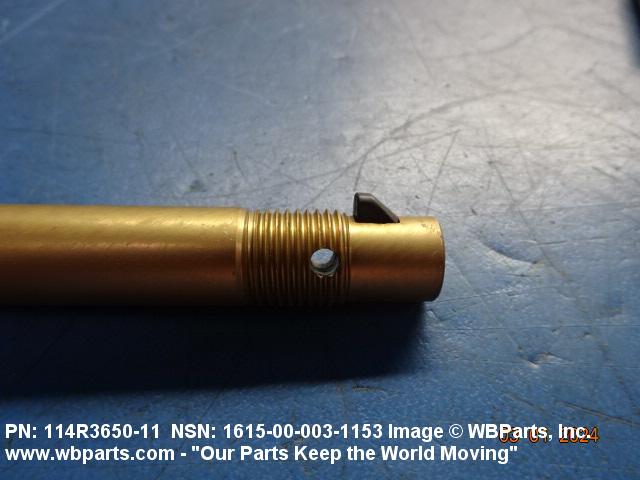

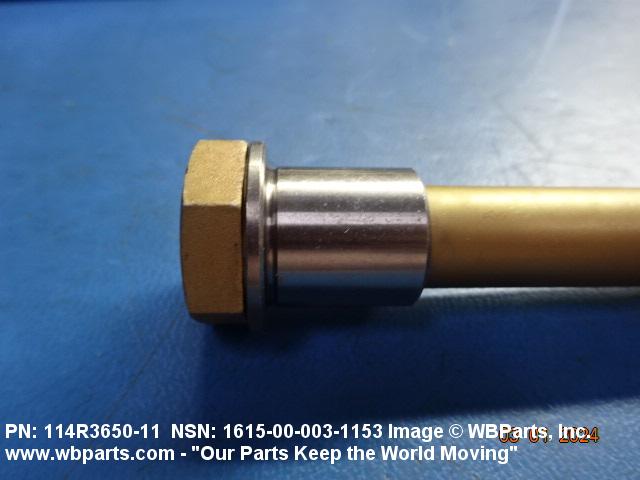

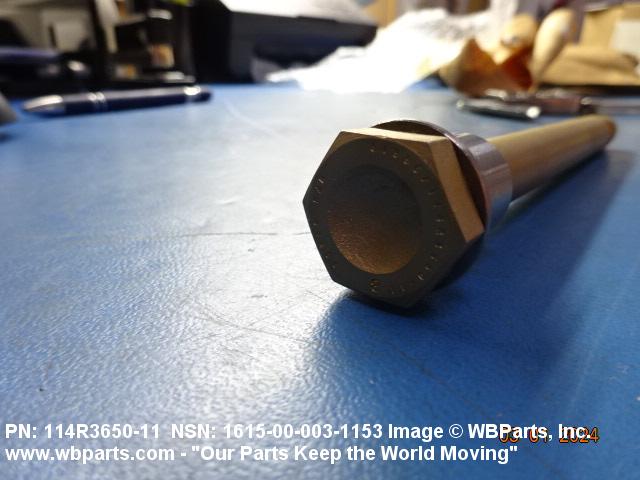

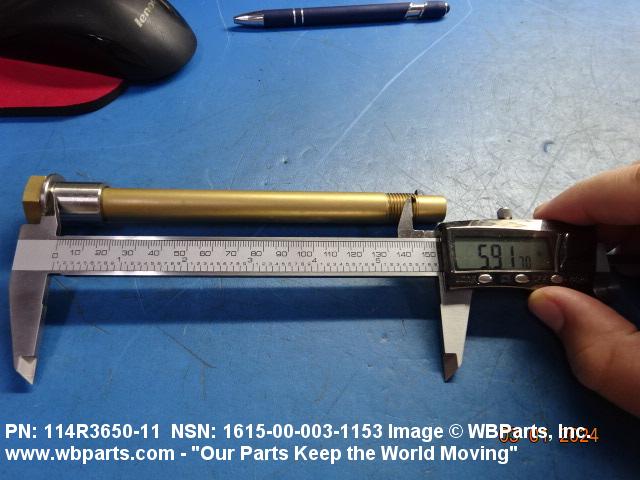

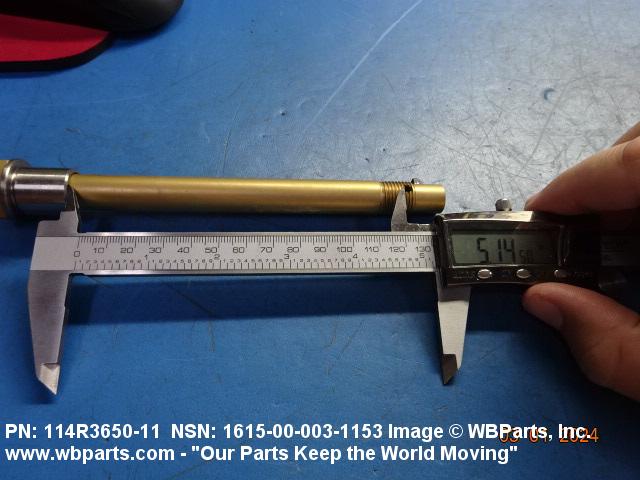

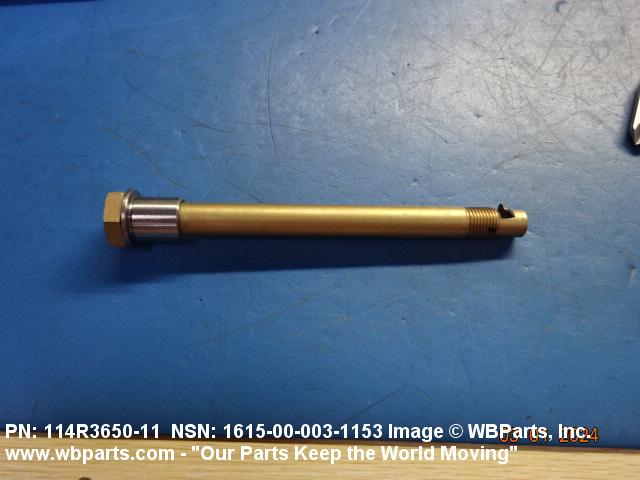

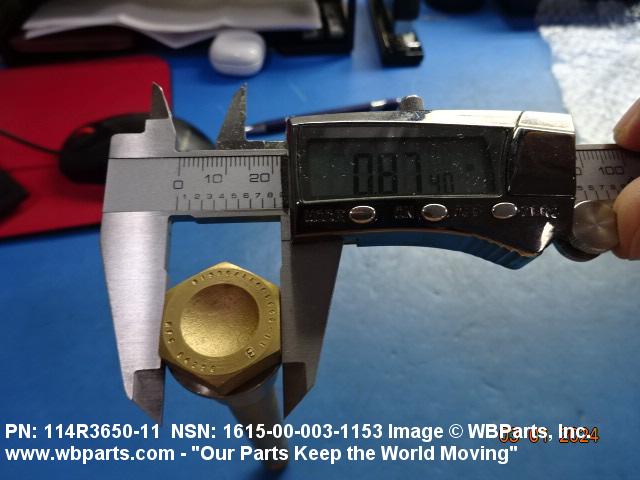

Drawings & Photos | NSN 1615-00-003-1153
Demand History | NSN 1615-00-003-1153
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1615-00-003-1153 | 2024-02-53 | 1 | United States |
| 114R365011 | 2024-01-24 | 1 | United States |
| 114R365011 | 2023-08-215 | 2 | United States |
| 114R365011 | 2023-08-214 | 2 | United States |
| 114R365011 | 2023-03-83 | 1 | United States |
| 114R3650-11 | 2020-10-287 | 868 | DIBBS |
| 114R3650-11 | 2020-07-204 | 635 | DIBBS |
| 114R3650-11 | 2020-06-156 | 124 | DIBBS |
| 114R3650-11 | 2020-04-105 | 814 | DIBBS |
| 114R3650-11 | 2020-03-63 | 698 | DIBBS |
| 114R3650-11 | 2020-02-41 | 675 | DIBBS |
| 114R3650-11 | 2019-05-136 | 899 | DIBBS |
| 1615-00-003-1153 | 2018-12-359 | 358 | DIBBS |
| 1615-00-003-1153 | 2018-09-247 | 10 | TR |
| 1615-00-003-1153 | 2018-08-233 | 10 | US |
| 1615-00-003-1153 | 2018-05-129 | 290 | DIBBS |
| 1615-00-003-1153 | 2018-04-99 | 150 | DIBBS |
| 1615-00-003-1153 | 2018-03-67 | 101 | DIBBS |
| 1615-00-003-1153 | 2018-02-39 | 63 | DIBBS |
| 1615-00-003-1153 | 2017-10-278 | 65 | DIBBS |
| 1615-00-003-1153 | 2017-09-255 | 133 | DIBBS |
| 1615-00-003-1153 | 2017-04-114 | 115 | DIBBS |
| 1615-00-003-1153 | 2016-12-356 | 52 | DIBBS |
| 1615-00-003-1153 | 2016-07-201 | 64 | DIBBS |
| 1615-00-003-1153 | 2016-06-159 | 50 | DIBBS |
| 1615-00-003-1153 | 2013-05-132 | 93 | DIBBS |
| 1615-00-003-1153 | 2010-06-153 | 163 | DIBBS |
| 1615-00-003-1153 | 2010-01-07 | 76 | DIBBS |
| 1615-00-003-1153 | 2009-06-170 | 10 | United States |
| 114R365011 | 2008-11-309 | 100 | us |
| 1615-00-003-1153 | 2007-08-225 | 61 | DIBBS |
| 1615-00-003-1153 | 2007-03-88 | 73 | DIBBS |
| 1615-00-003-1153 | 2006-06-153 | 276 | DIBBS |
| 1615-00-003-1153 | 2006-02-40 | 501 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1615-00-003-1153
Related Products | NSN 1615-00-003-1153
Technical Data | NSN 1615-00-003-1153
| Characteristic | Specifications |
|---|---|
| GENERAL CHARACTERISTICS ITEM DESCRIPTION | ITEM C/O ONE BOLT,SELF-RETAINING AND ONE BUSHING,SLEEVE,BOLTMATERIAL,ALLOY STEEL AND CRES,6.984 IN. MIN,7.029 IN. MAX O/A LG,0.5608 IN. MIN,0.5615 IN. MAX LARGEST OD,0.865 IN. MIN,0.877 IN.MAX W ACROSS FLATS OF BOLT HEX. HEAD,THD DESIGNATION,0.5625-18 UNFJ-3A,BUSHING MATERIAL,CRES,0.854 IN. MIN,0.864 IN. MAX O/A LG,0.5607 IN. MIN,0.5612 IN. MAX ID,0.756 IN. MIN,0.759 IN. MAX OD OF BODY,1.000 IN. NOM ODOF FLANGE |
| CRITICALITY CODE JUSTIFICATION | TEXT |
| MANUFACTURERS CODE | 77272 |
| DESIGN CONTROL REFERENCE | 114R3650-11 |
Restrictions/Controls & Freight Information | NSN 1615-00-003-1153
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 139820 | NICKEL BOLTS/NAILS/NUTS/RIVETS ETC |
| Less than car load rating | Q | 70 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1615-00-003-1153
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
