NSN 1610-00-201-9809 544601, 54460-1, 00-201-9809
Product Details | AIRCRAFT PROPELLER
1610-00-201-9809 A propeller designed to provide thrust for a fixed or tilt wing aircraft. It may be of solid or built-up construction; constant or controllable speed type; adjustable, fixed or variable pitch design with reversing and/or feathering capabilities during aircraft operation. Variable pitch propellers have integral facilities for changing the pitch angle of the blades while aircraft is in flight. Excludes HUB-BLADE ASSEMBLY, PROPELLER, AIRCRAFT. See also TEST CLUB.
Part Alternates: 544601, 54460-1, 1610-00-201-9809, 00-201-9809, 1610002019809, 002019809
Aircraft Components and Accessories | Aircraft Propellers and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 06 APR 1973 | 00-201-9809 | 30770 ( PROPELLER, AIRCRAFT ) |
Drawings & Photos | NSN 1610-00-201-9809
Cross Reference | NSN 1610-00-201-9809
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 54460-1 | 73030 | HAMILTON SUNDSTRAND CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1610-00-201-9809
Technical Data | NSN 1610-00-201-9809
| Characteristic | Specifications |
|---|---|
| ROTATION DIRECTION | RIGHT-HAND |
| SPAN MAXIMUM DIAMETER | 13.417 FEET |
| BLADE QUANTITY | 4 |

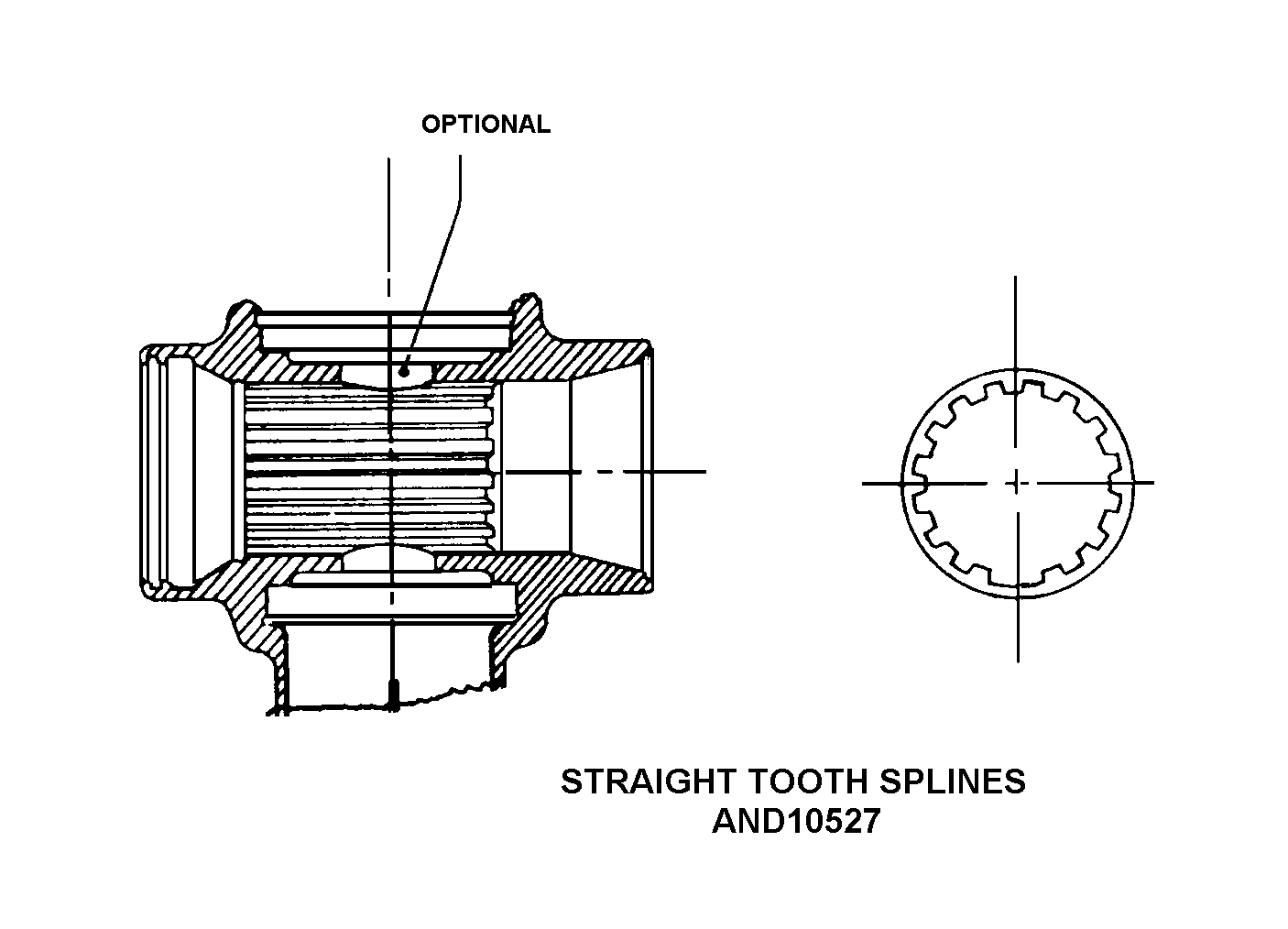

| HUB SHAFT ACCOMMODATION STYLE | 15 STRAIGHT TOOTH SPLINES AND10527 |
| MANUFACTURERS CODE | 73030 |
| DESIGN CONTROL REFERENCE | 54460-1 |
Restrictions/Controls & Freight Information | NSN 1610-00-201-9809
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 012280 | AIRCRAFT PROPELLER BLADES |
| Less than car load rating | M | 85 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1610-00-201-9809
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7R | Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia |
| Special Material ID | BE | SPECIAL ELECTRONICAIRCRAFT(E2/C2) |
| Issue Repair, or Requisition | AR | Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | E | (1) IRAM Program Intensive Management Reparables (2) Material (expendable ordnance) Requiring Lot and Serial Number Control but which is Reported by Serial Number Only |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
