NSN 1560-01-534-9427 70217-01030-045, 01-534-9427, 7021701030045
Product Details | AIRCRAFT DOOR HINGE
1560-01-534-9427 A hinge designed to facilitate the opening and closing of various configurations of doors. See also HINGE, AIRCRAFT.
Part Alternates: 70217-01030-045, 1560-01-534-9427, 01-534-9427, 1560015349427, 7021701030045, 015349427
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 08 NOV 2005 | 01-534-9427 | 52611 ( HINGE, DOOR, AIRCRAFT ) |

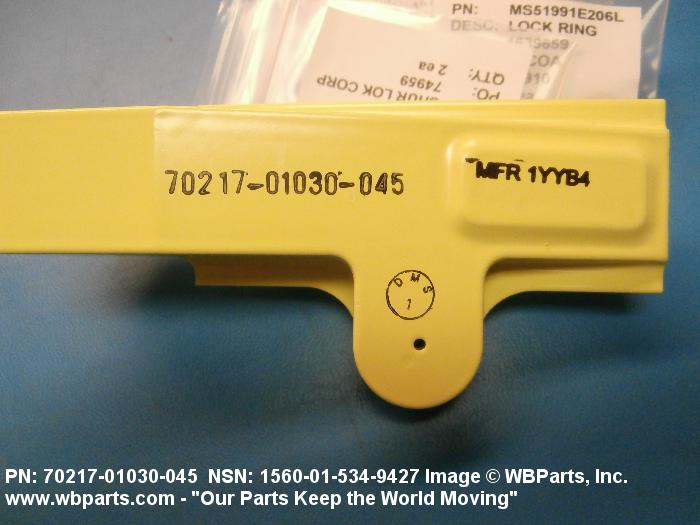

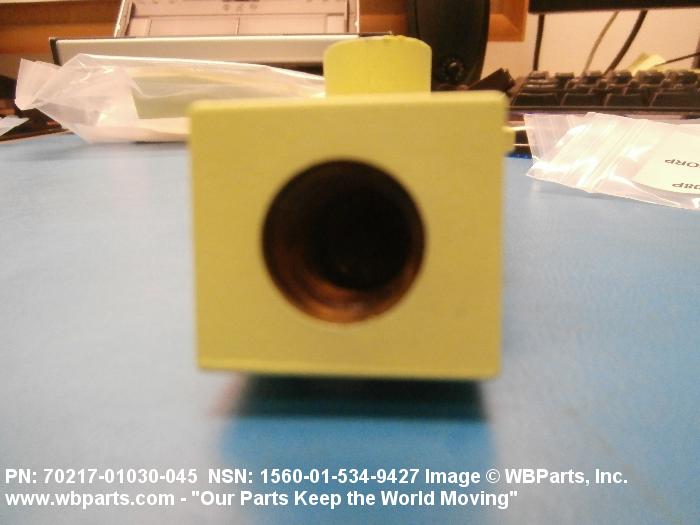

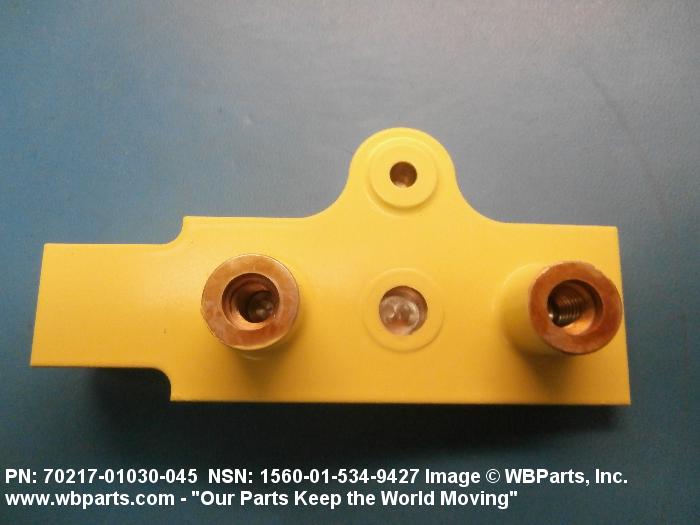

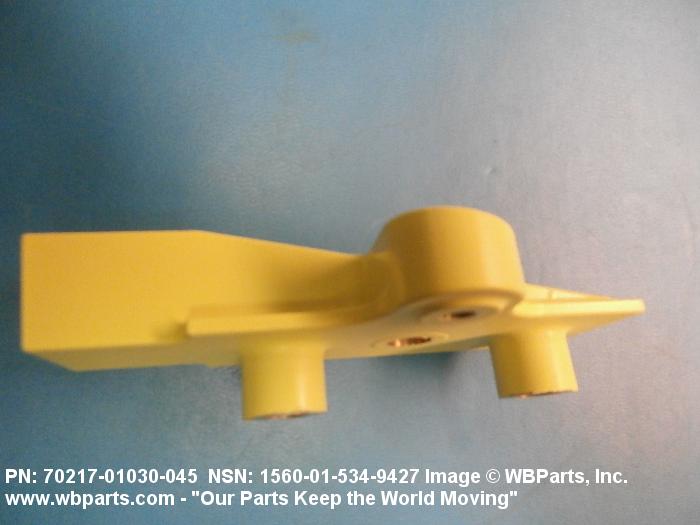

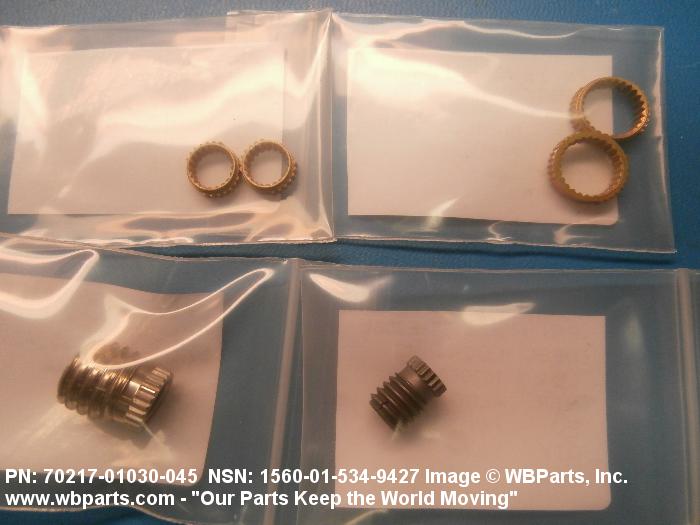

Drawings & Photos | NSN 1560-01-534-9427
Demand History | NSN 1560-01-534-9427
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1560-01-534-9427 | 2015-08-243 | 1 | MANUAL |
| 70217-01030-045 | 2015-08-243 | 1 | US |
| 1560-01-534-9427 | 2015-01-09 | 2 | United States |
| 1560-01-534-9427 | 2014-10-302 | 2 | United States |
Cross Reference | NSN 1560-01-534-9427
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 70217-01030-045 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1560-01-534-9427
Technical Data | NSN 1560-01-534-9427
| Characteristic | Specifications |
|---|---|
| AIRCRAFT LOCATION | CREW DOOR |
| SIDE FOR WHICH DESIGNED | LEFT SIDE |
| AIRCRAFT MISSION DESIGN SERIES | TG2 |
Restrictions/Controls & Freight Information | NSN 1560-01-534-9427
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
