Product Details | AIRCRAFT CHANNEL

1560-01-452-0704 A channel-shaped item with or without mounting hardware, designed to be mounted on the airframe. It supports and/or protects electrical cable (s), air and/or fuel line (s), and the like.

Part Alternates: S612062530003, S6120-62530-003, S6120625303, S6120-62530-3, 1560-01-452-0704, 01-452-0704, 1560014520704, 014520704

Aircraft and Airframe Structural Components | Airframe Structural Components

Supply Group (FSG) NSN Assign. NIIN
15 14 JAN 1998 01-452-0704

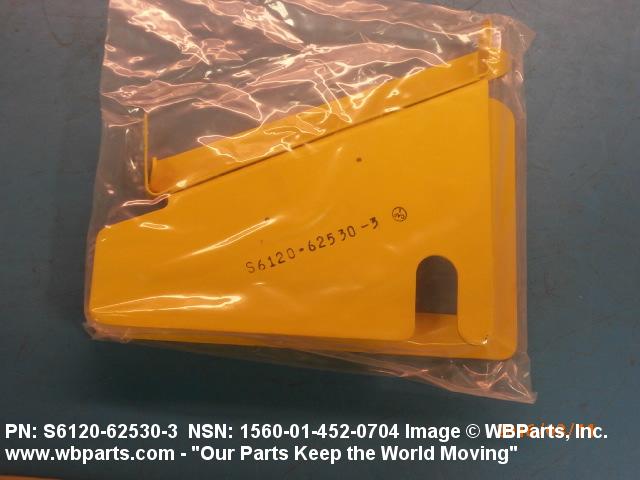

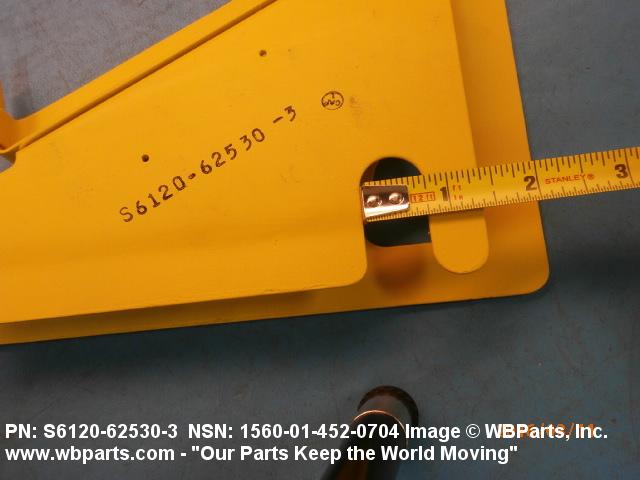

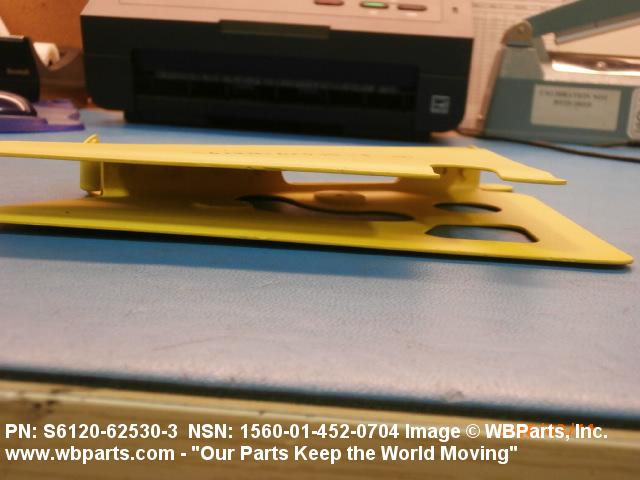

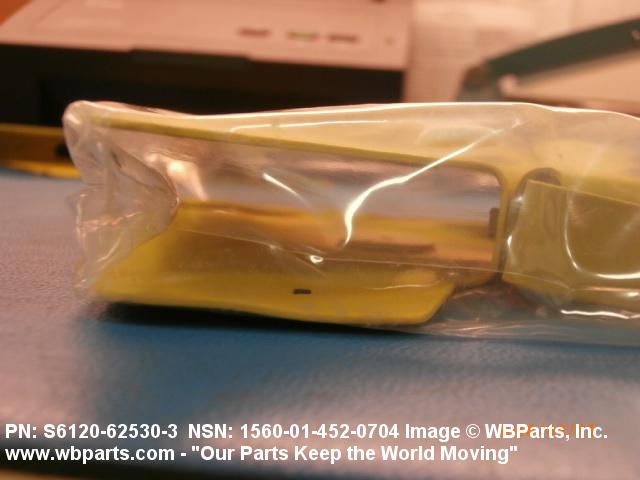

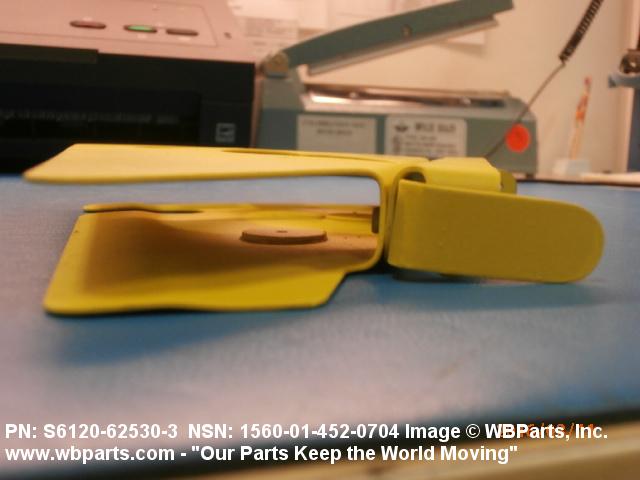

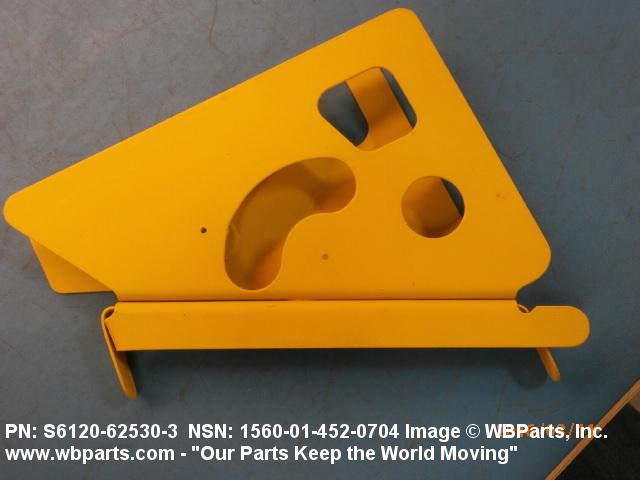

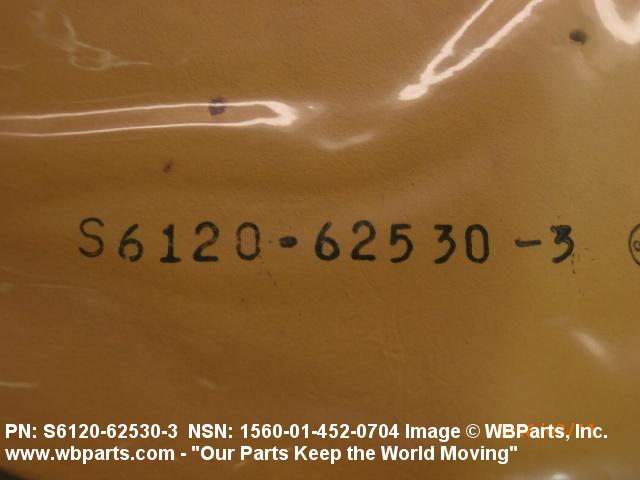

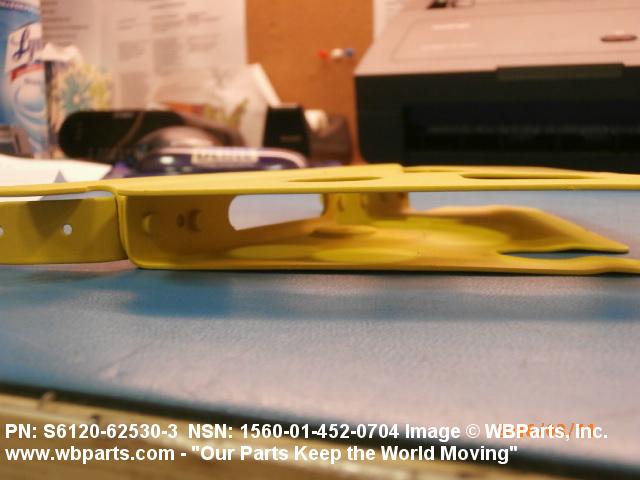

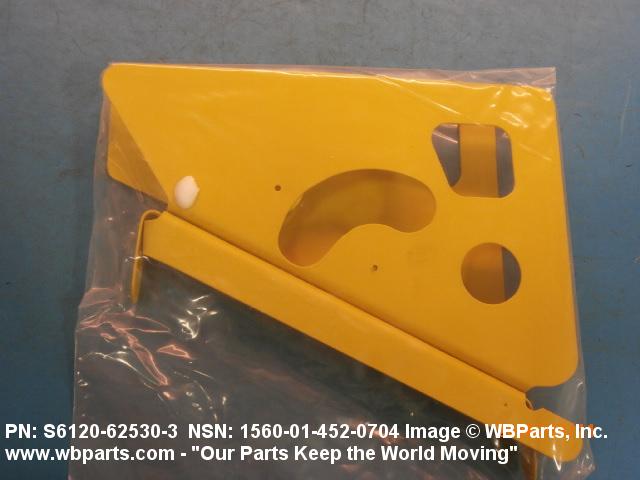

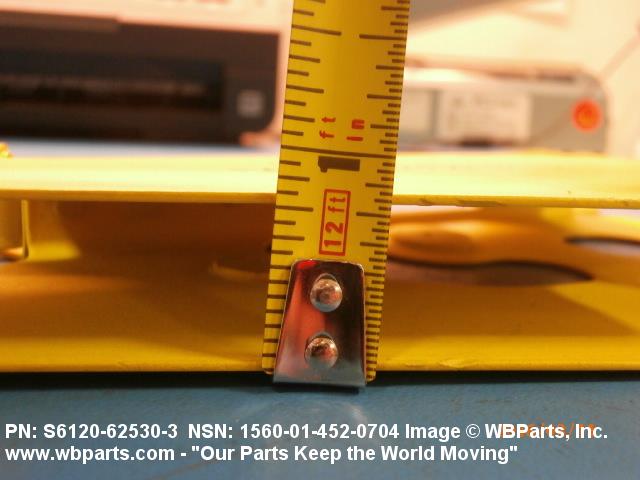

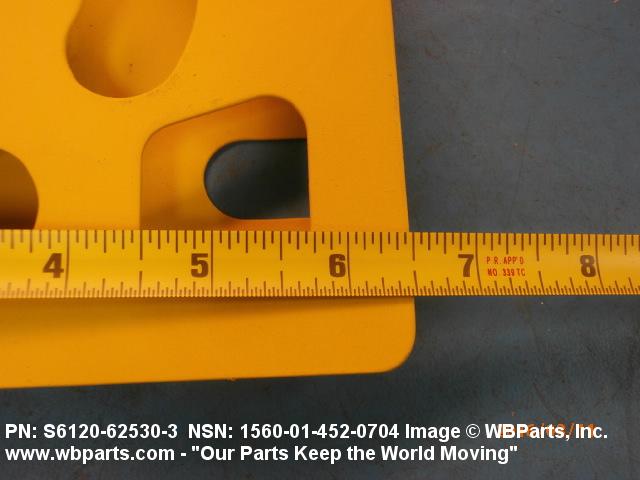

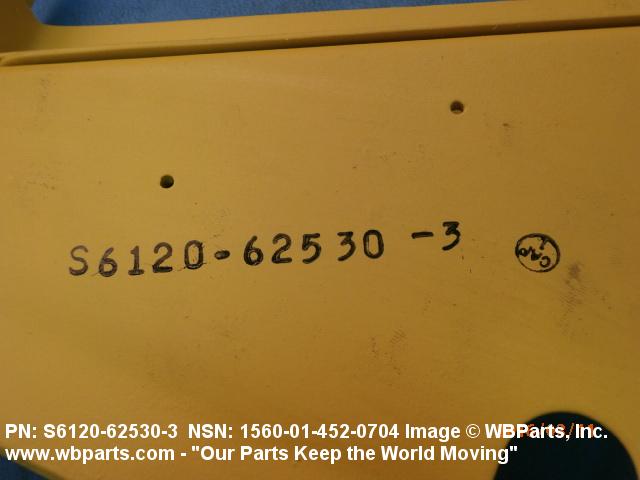

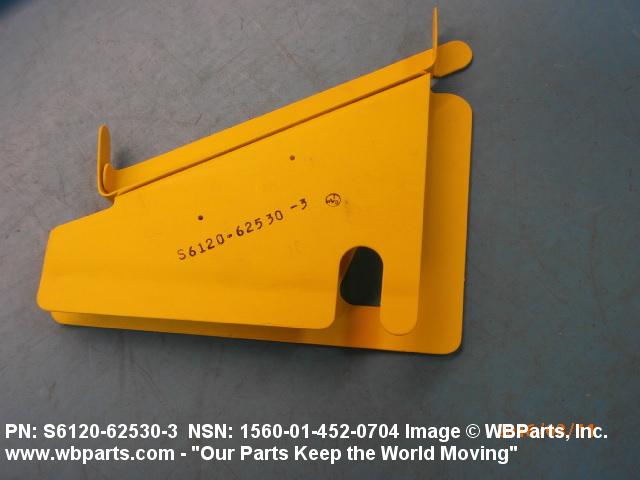

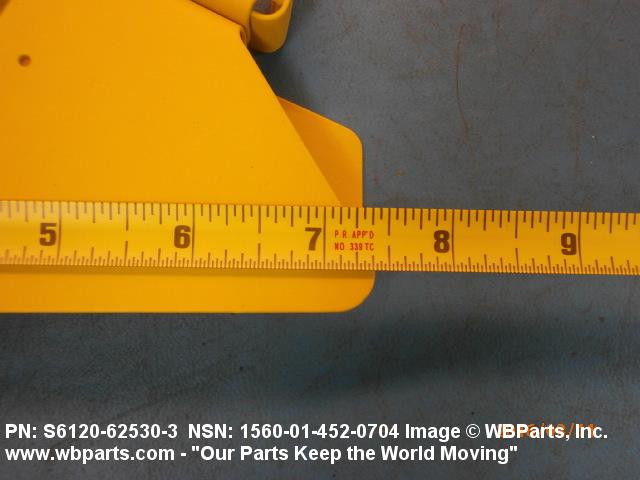

Drawings & Photos | NSN 1560-01-452-0704


Demand History | NSN 1560-01-452-0704

Part Number Request Date QTY Origin
1560-01-452-0704 2016-03-68 2 Canada
1560-01-452-0704 2016-02-46 2 DIBBS
1560-01-452-0704 2016-01-27 3 Canada

Cross Reference | NSN 1560-01-452-0704

Part Number Cage Code Manufacturer
S6120-62530-003 78286 SIKORSKY AIRCRAFT CORPORATION
S6120-62530-3 78286 SIKORSKY AIRCRAFT CORPORATION

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 1560-01-452-0704

Technical Data | NSN 1560-01-452-0704

Characteristic Specifications
AIRCRAFT LOCATION CARGO DOOR
III END ITEM IDENTIFICATION HELICOPTER, MODEL CH124/SH3D

Restrictions/Controls & Freight Information | NSN 1560-01-452-0704

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:BMunitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:UUNCLASSIFIED
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 011790 AIRCRAFT PARTS NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 671 unknown
Originating Activity Code ZC Canada
ZD
ZE
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 1560-01-452-0704

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
