NSN 1560-01-448-0169 35355715, 353557-15, 35355719
Product Details | BLEED AIR DUCT ASSEMBLY
1560-01-448-0169 An item specifically designed to transfer warmed high pressure gases (bleed air) from the engine to various systems of an aircraft.
Part Alternates: 35355715, 353557-15, 35355719, 353557-19, 1560-01-448-0169, 01-448-0169, 1560014480169, 014480169
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 19 AUG 1997 | 01-448-0169 | 48964 ( DUCT ASSEMBLY, BLEED AIR ) |

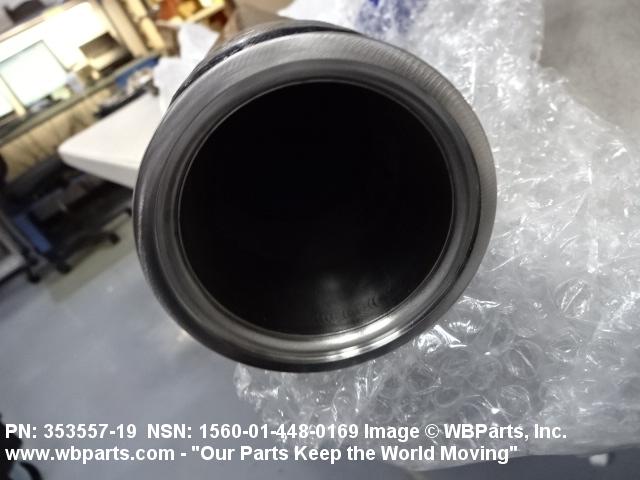

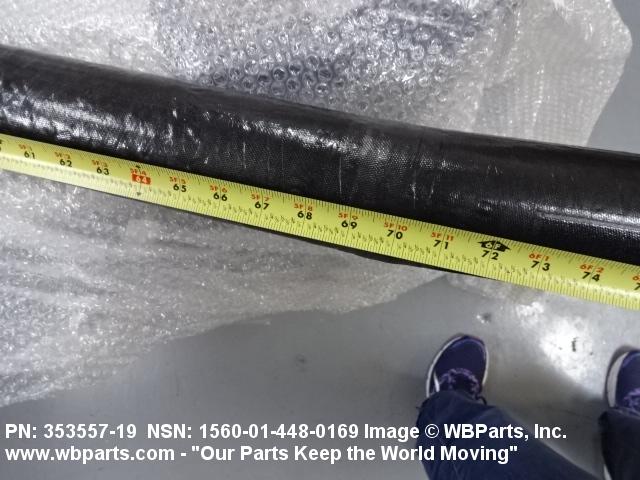

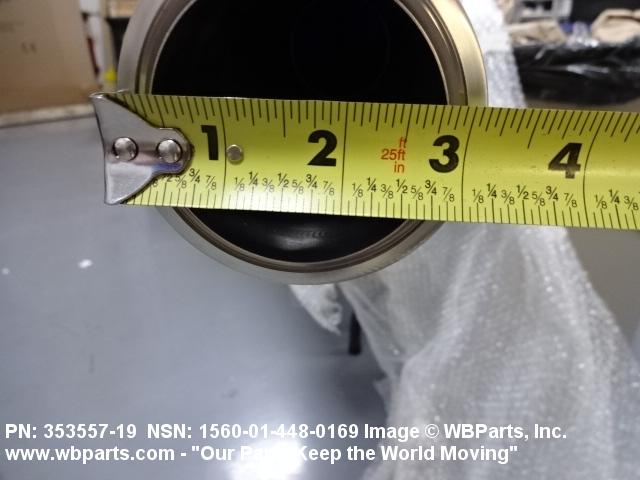

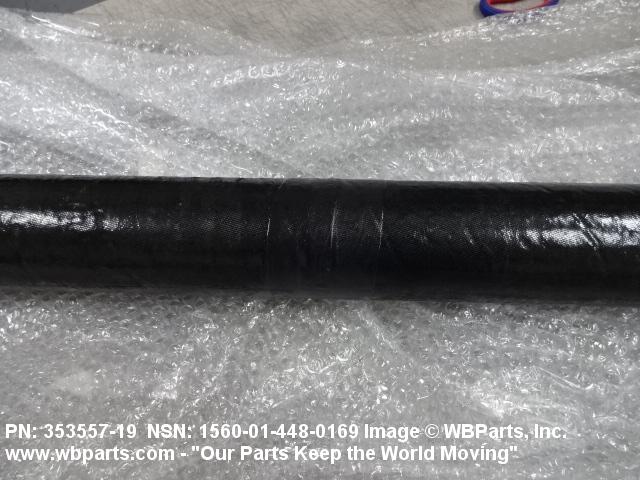

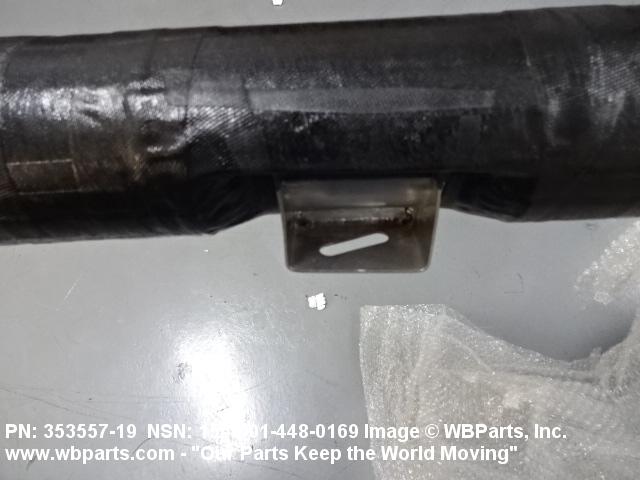

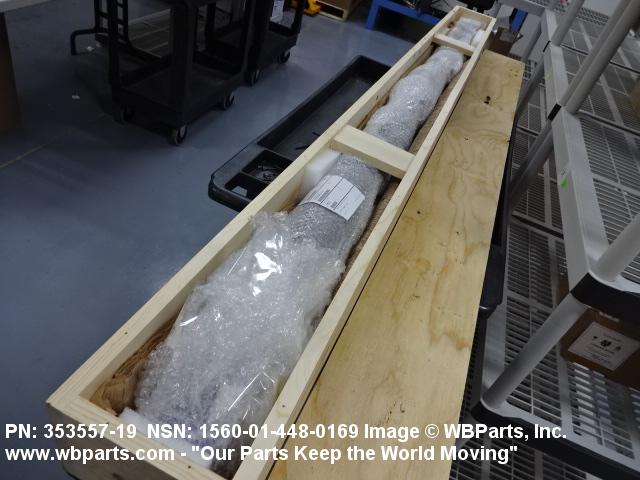

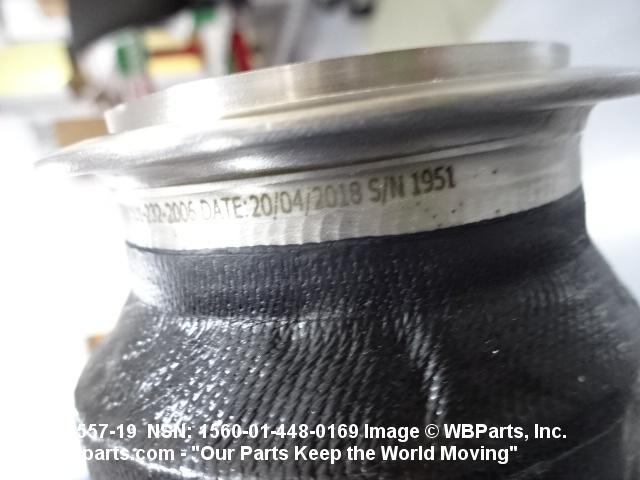

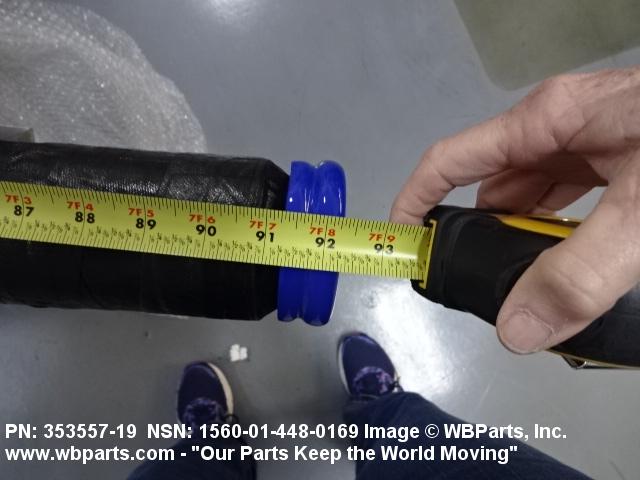

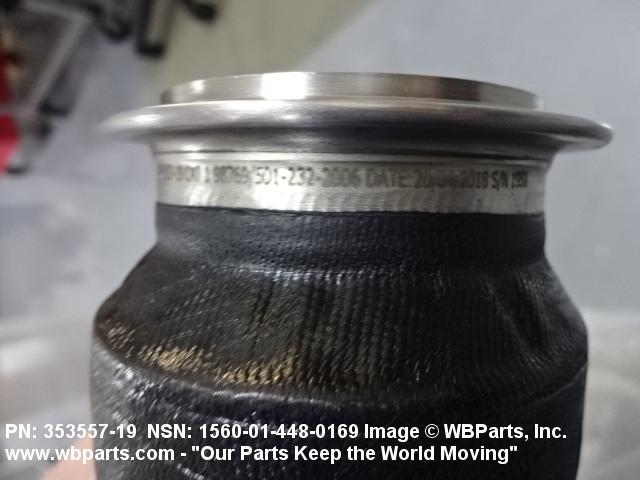

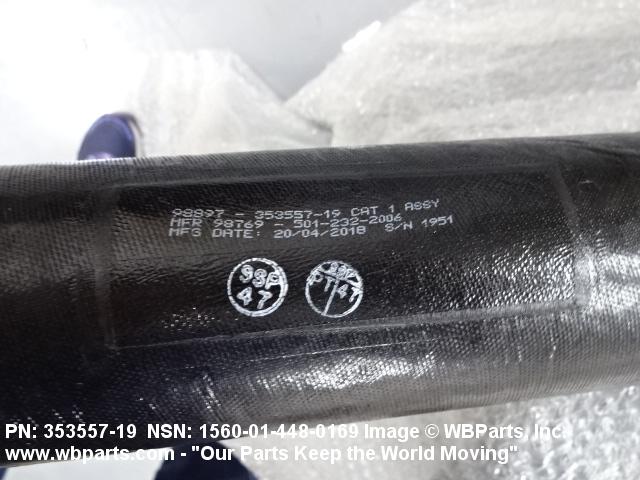

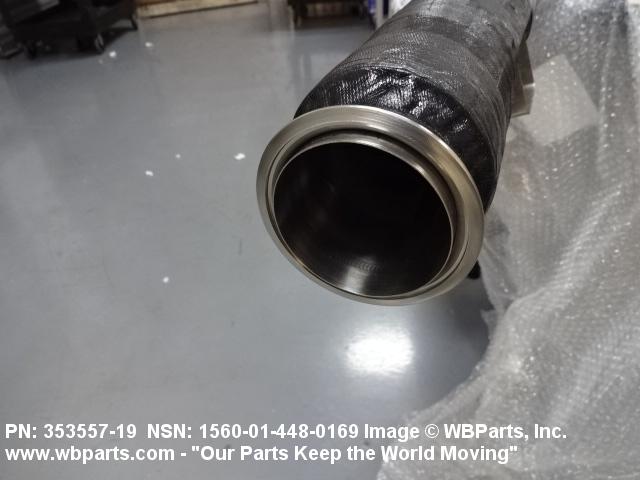

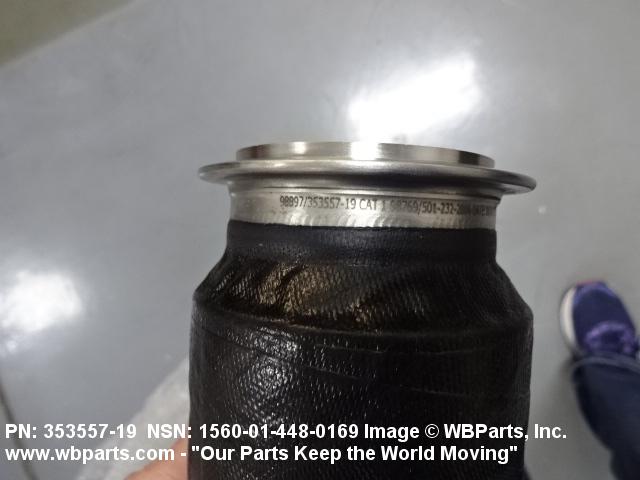

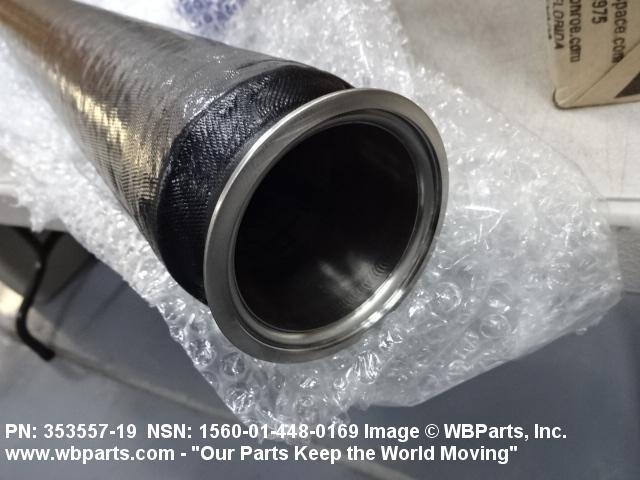

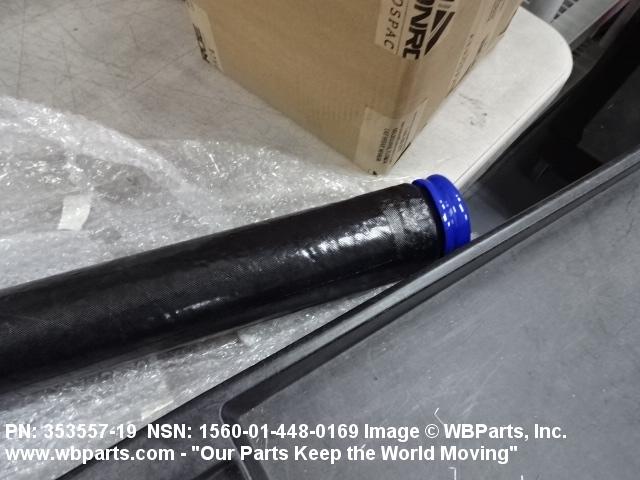

Drawings & Photos | NSN 1560-01-448-0169
Demand History | NSN 1560-01-448-0169
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 353557-19 | 2024-09-259 | 14 | DIBBS |
| 353557-19 | 2022-07-205 | 2 | DIBBS |
| 353557-19 | 2022-02-55 | 3 | DIBBS |
| 353557-19 | 2021-07-201 | 1 | DIBBS |
| 353557-19 | 2020-11-322 | 2 | DIBBS |
| 353557-19 | 2020-07-205 | 6 | DIBBS |
| 353557-19 | 2020-04-104 | 8 | DIBBS |
| 1560-01-448-0169 | 2019-01-31 | 1 | DIBBS-RFPs |
| 1560-01-448-0169 | 2018-12-344 | 1 | DIBBS-RFPs |
| 1560-01-448-0169 | 2018-05-139 | 1 | Canada |
| 1560-01-448-0169 | 2017-11-332 | 24 | DIBBS |
| 35355719 | 2017-05-135 | 2 | SA |
| 353557-19 | 2017-05-135 | 2 | SA |
| 1560-01-448-0169 | 2015-10-303 | 9 | DIBBS |
| 1560-01-448-0169 | 2015-09-267 | 1 | DIBBS-RFPs |
| 353557-19 | 2015-02-57 | 10 | United States |
| 35355719 | 2015-01-26 | 10 | United States |
| 1560-01-448-0169 | 2014-08-214 | 1 | DIBBS-RFPs |
| 35355715 | 2014-05-149 | 3 | PR |
| 1560-01-448-0169 | 2014-02-36 | 6 | DIBBS |
| 1560-01-448-0169 | 2014-01-06 | 5 | DIBBS |
| 1560-01-448-0169 | 2013-11-316 | 9 | DIBBS |
| 1560-01-448-0169 | 2013-11-308 | 5 | DIBBS |
| 1560-01-448-0169 | 2013-05-126 | 8 | DIBBS |
| 1560-01-448-0169 | 2007-10-279 | 22 | DIBBS |
| 1560-01-448-0169 | 2007-06-171 | 18 | DIBBS |
| 1560-01-448-0169 | 2007-05-130 | 51 | DIBBS |
| 1560-01-448-0169 | 2006-06-177 | 6 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1560-01-448-0169
Related Products | NSN 1560-01-448-0169
Technical Data | NSN 1560-01-448-0169
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| AIRCRAFT LOCATION | FLIGHT DECK |
| AIRCRAFT STATION NUMBER | 330.0 |
| AIRCRAFT MISSION DESIGN SERIES | C130-J |
Restrictions/Controls & Freight Information | NSN 1560-01-448-0169
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 011790 | AIRCRAFT PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | QH | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1560-01-448-0169
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
