Product Details | AIRCRAFT STRUCTURAL COMPONENT BRACKET
1560-01-396-8897 An item of various configuration that is an integral member of the airframe structure. It is specifically designed for the purpose of maintaining, positioning, joining, and strengthening the aircraft structure. It may include holes for mounting purposes or to form an assembly.
Part Alternates: 72111236255, 7-211123625-5, 1560-01-396-8897, 01-396-8897, 1560013968897, 013968897
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 28 SEP 1994 | 01-396-8897 | 41017 ( BRACKET, STRUCTURAL COMPONENT, AIRCRAFT ) |

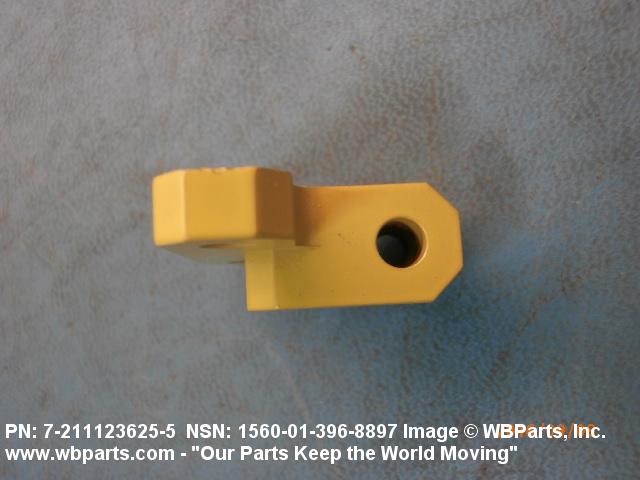

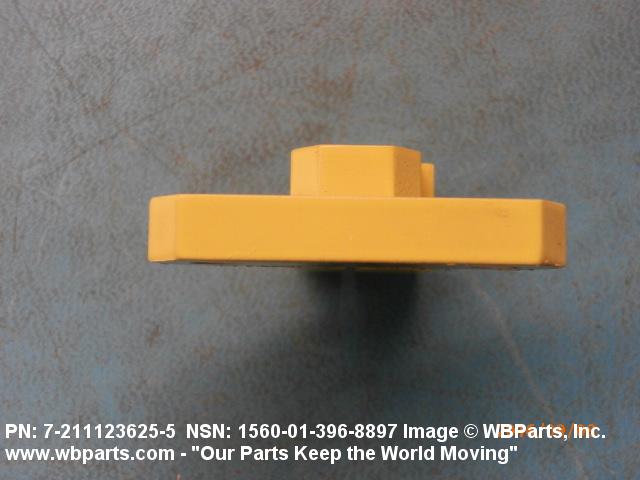

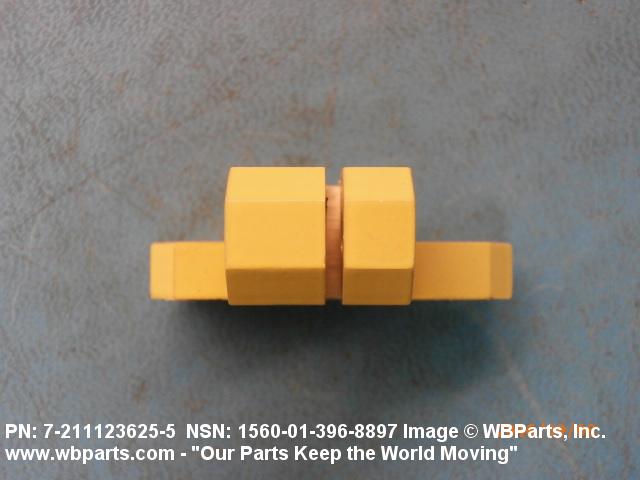

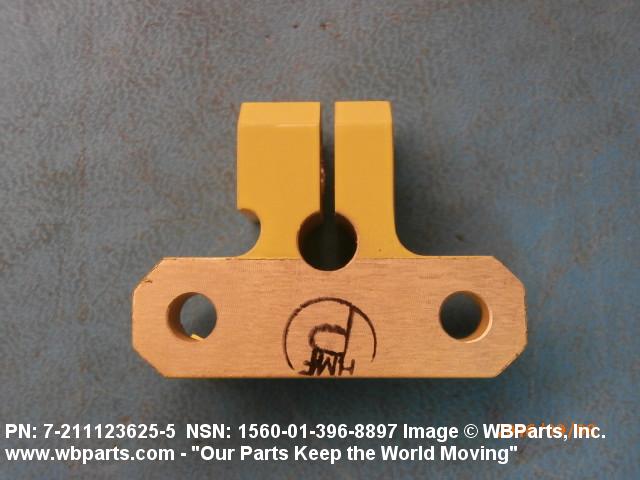

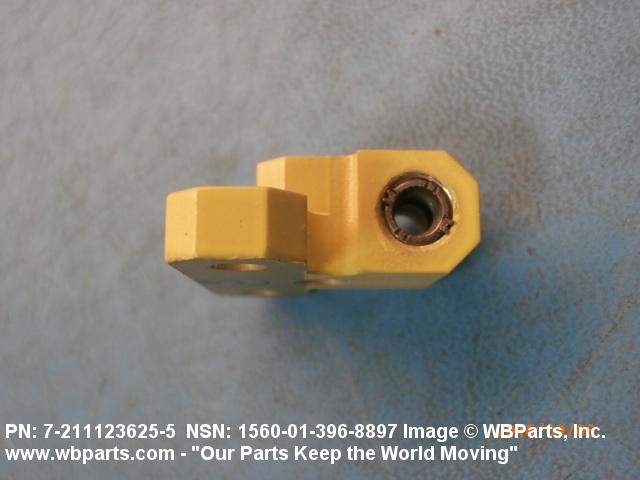

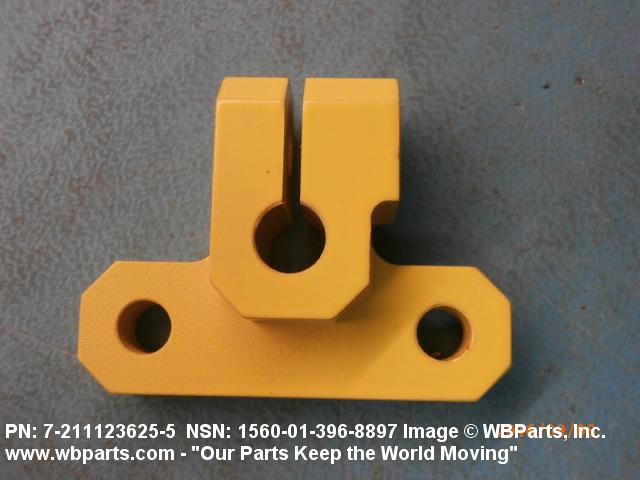

Drawings & Photos | NSN 1560-01-396-8897
Demand History | NSN 1560-01-396-8897
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1560-01-396-8897 | 2018-05-128 | 136 | DIBBS |
| 1560-01-396-8897 | 2018-02-38 | 76 | DIBBS |
| 72111236255 | 2016-09-259 | 3 | United States |
| 72111236255 | 2016-08-222 | 1 | United States |
| 1560-01-396-8897 | 2016-01-19 | 1 | US |
| 1560-01-396-8897 | 2014-04-96 | 125 | DIBBS |
| 1560-01-396-8897 | 2013-08-213 | 119 | DIBBS |
| 1560-01-396-8897 | 2013-06-157 | 64 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1560-01-396-8897
Related Products | NSN 1560-01-396-8897
Technical Data | NSN 1560-01-396-8897
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/6 COND T4 FED SPEC SINGLE MATERIAL RESPONSE |
| AIRCRAFT LOCATION | STABILATOR ASSEMBLY |
| AIRCRAFT STATION NUMBER | STA552.500 |
| AIRCRAFT MISSION DESIGN SERIES | AH-64A |

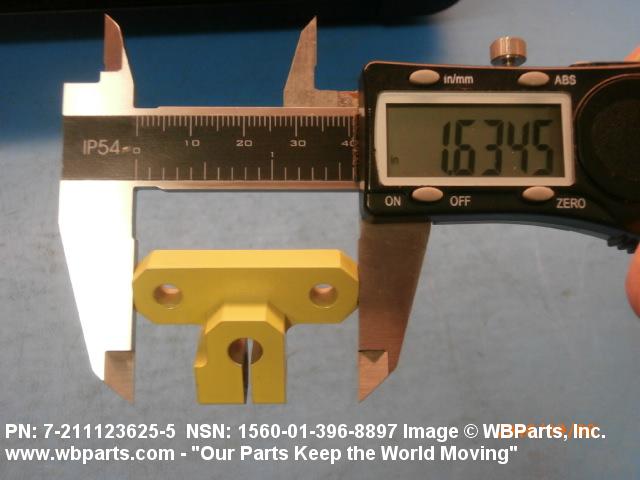

| OVERALL LENGTH | 1.630 INCHES NOMINAL |
| OVERALL WIDTH | 1.190 INCHES NOMINAL |

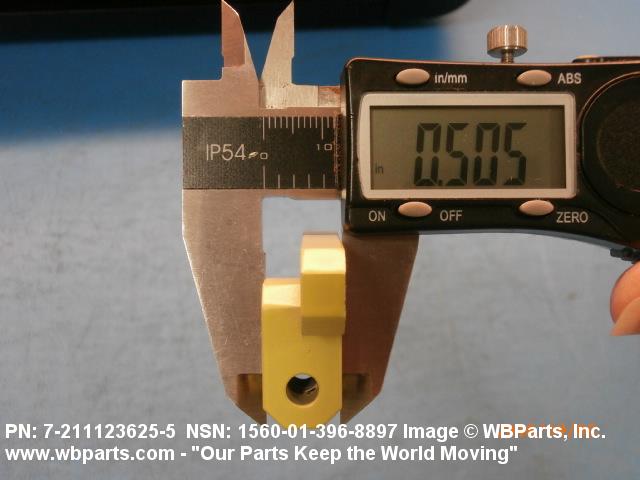

| MATERIAL THICKNESS | 0.500 INCHES NOMINAL |
