Product Details | ACCESS COVER

1560-01-369-2917 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.20310050018Guns, through 30mm2590000053400020Hardware, Commercial

Part Alternates: 013692917

Aircraft and Airframe Structural Components | Airframe Structural Components

Supply Group (FSG) NSN Assign. NIIN
15 01-369-2917

Drawings & Photos | NSN 1560-01-369-2917


Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 1560-01-369-2917

Technical Data | NSN 1560-01-369-2917

Characteristic Specifications

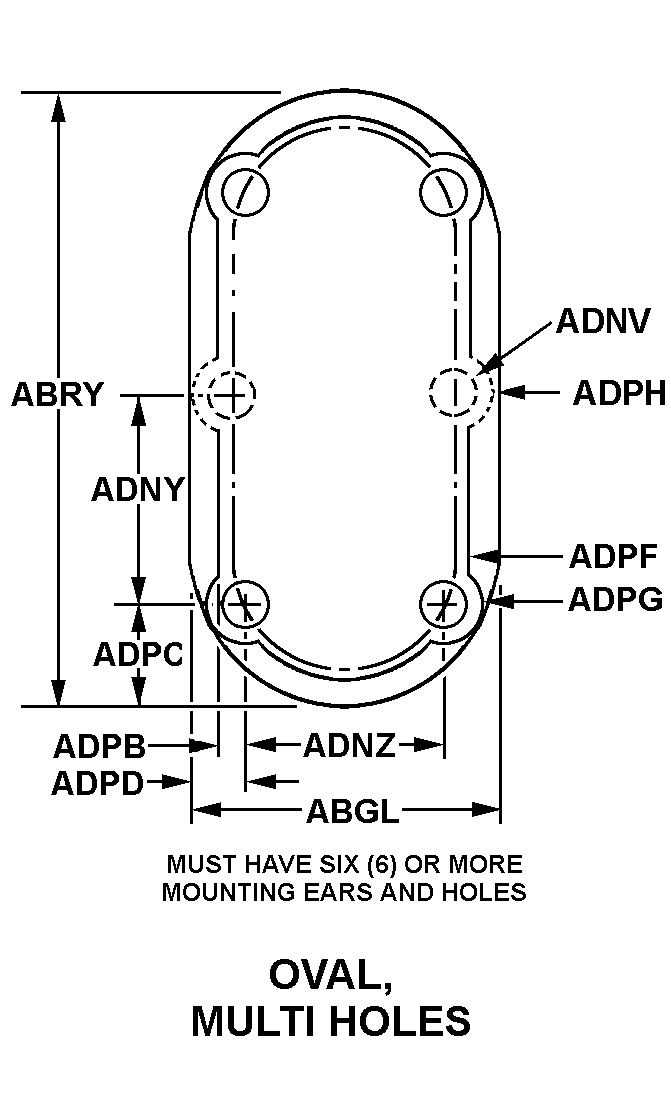

PERIPHERAL SHAPE STYLE 108 OVAL, MULTI HOLES
LENGTH 5.240 INCHES NOMINAL
SPECIAL FEATURES CONSIST OF: 1 EA. 7-314200003 BRACKET,1 EA.7-314200007 COVER PLATE,1EA. 7-314200008 GASKET,2 EA. MS20426AD4 RIVET,1 EA. M39012/89-3002 RECEPTACLE
END ITEM IDENTIFICATION AH-64A APACHE HELICOPTER

Restrictions/Controls & Freight Information | NSN 1560-01-369-2917

Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Controlled Inventory Item Code:7NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Category Code Description
No Freight Information
