NSN 1560-01-284-0602 124P5233, 124P523-3, 01-284-0602
Product Details | EXHAUST PIPE
1560-01-284-0602 A rigid tubular item designed to direct the exhaust gases away from an engine, heater, or the like. For flexible items, see HOSE, METALLIC.20415600030Airframe Structural Components25400035Vehicular Furniture and Accessories29900045Miscellaneous Engine Accessories, Nonaircraft45200033Space and Water Heating Equipment
Part Alternates: 124P5233, 124P523-3, 1560-01-284-0602, 01-284-0602, 1560012840602, 012840602
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 18 AUG 1988 | 01-284-0602 | 60804 ( PIPE, EXHAUST ) |

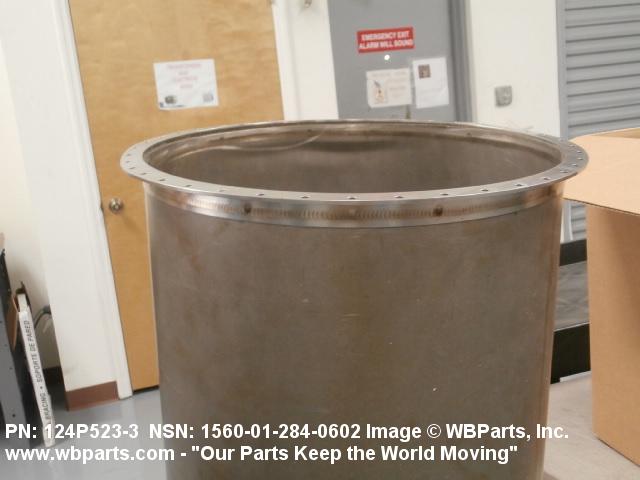

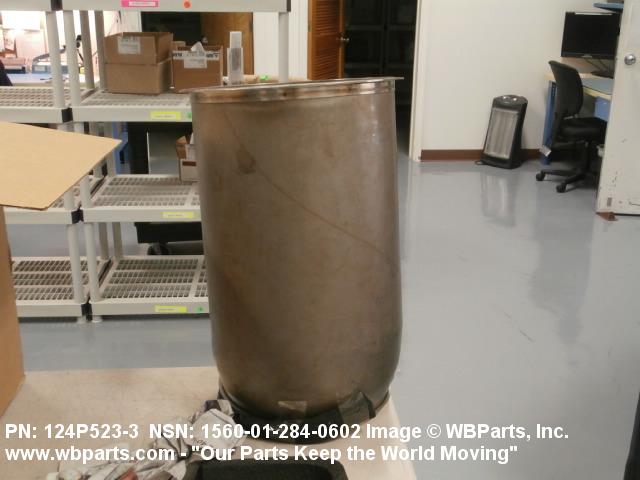

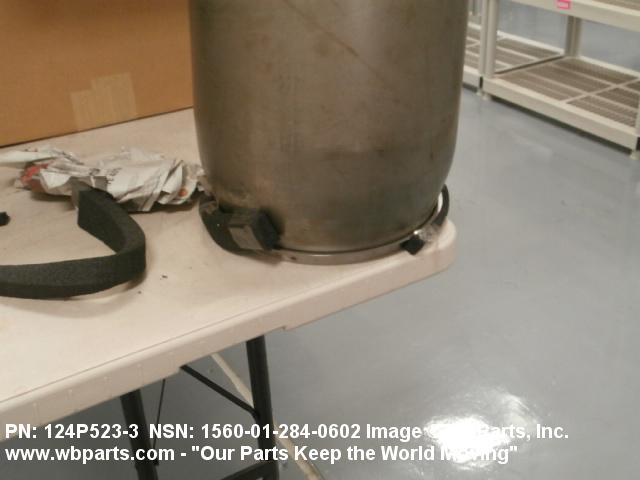

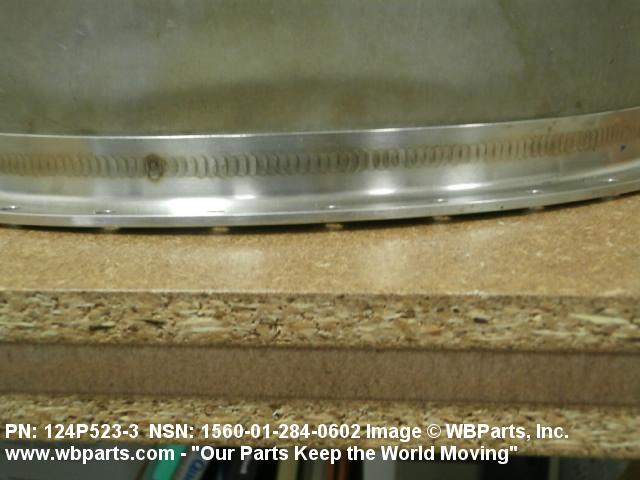

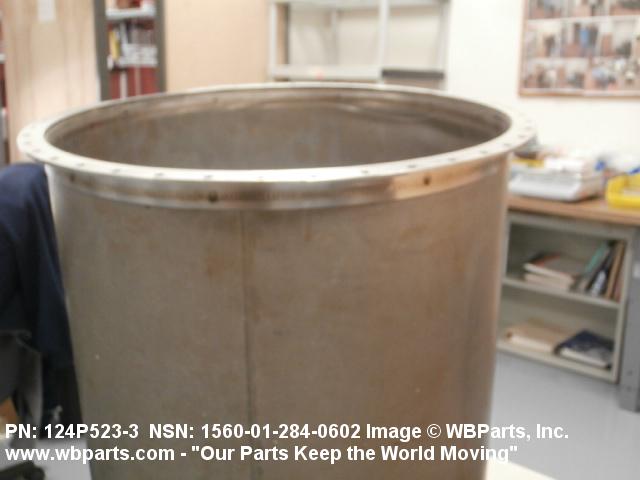

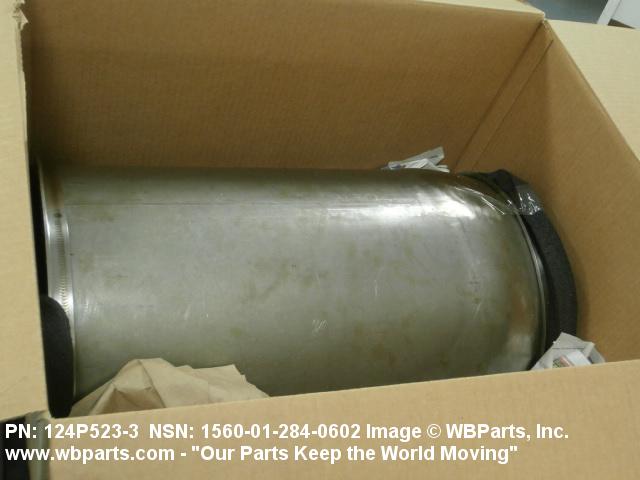

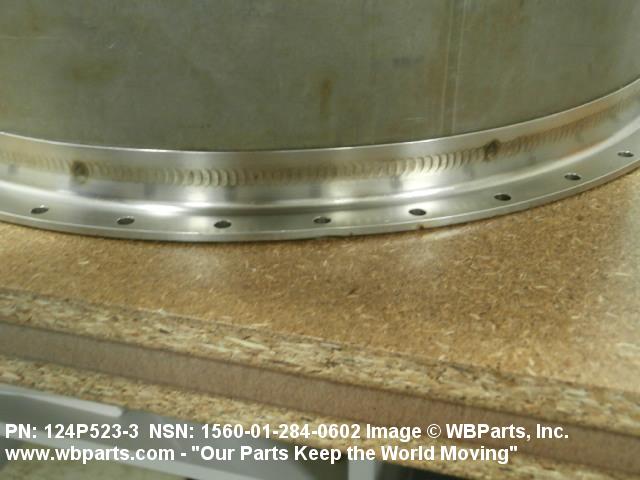

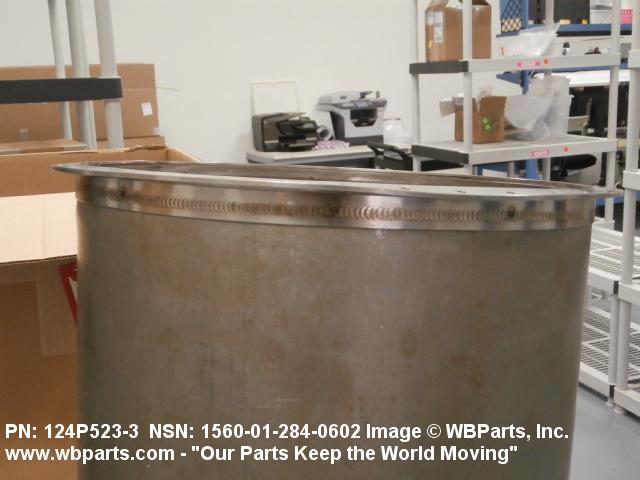

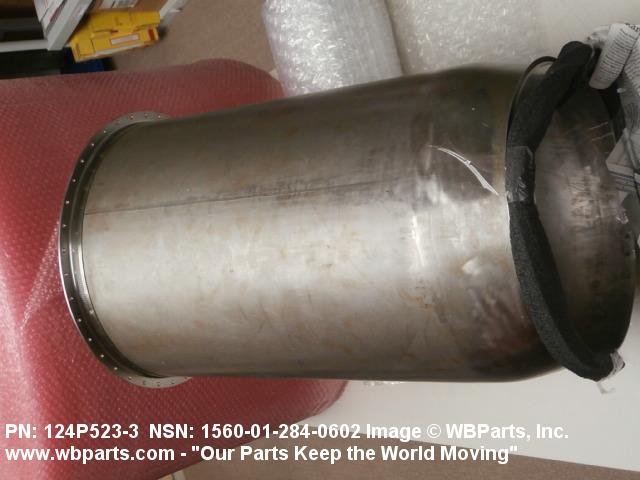

Drawings & Photos | NSN 1560-01-284-0602
Demand History | NSN 1560-01-284-0602
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1560-01-284-0602 | 2014-04-92 | 10 | US |
| 124P5233 | 2014-02-50 | 1 | US |
| 1560-01-284-0602 | 2013-11-322 | 1 | United States |
| 1560-01-284-0602 | 2013-10-290 | 1 | DIBBS |
Cross Reference | NSN 1560-01-284-0602
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 124P523-3 | 78022 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1560-01-284-0602
Technical Data | NSN 1560-01-284-0602
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | CRES TYPE 321 PER AMS 5512,COND A |
| III END ITEM IDENTIFICATION | BQM-34A TARGET DRONE |
| MANUFACTURERS CODE | 78022 |
| DESIGN CONTROL REFERENCE | 124P523-3 |
Restrictions/Controls & Freight Information | NSN 1560-01-284-0602
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 011790 | AIRCRAFT PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1560-01-284-0602
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
