NSN 1560-01-274-6216 9180973, 918097-3, 01-274-6216

1560-01-274-6216

Part Alternates: 9180973, 918097-3, 1560-01-274-6216, 01-274-6216, 1560012746216, 012746216

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
15	11 MAR 1988	01-274-6216	77777 ( )

Part Number	Request Date	QTY	Origin	SBA
9180973	2010-05-139	1	United States

Part Number	Cage Code	Manufacturer
918097-3	98897	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 1560-01-274-6216

Compare

1560-01-274-6217, 1560-01-274-6236, 1560-01-274-6237, 1560-01-274-6238, 1560-01-274-6239

Characteristic	Specifications

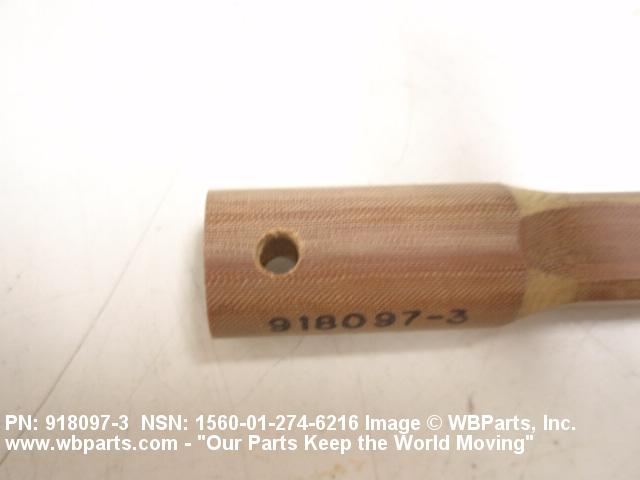

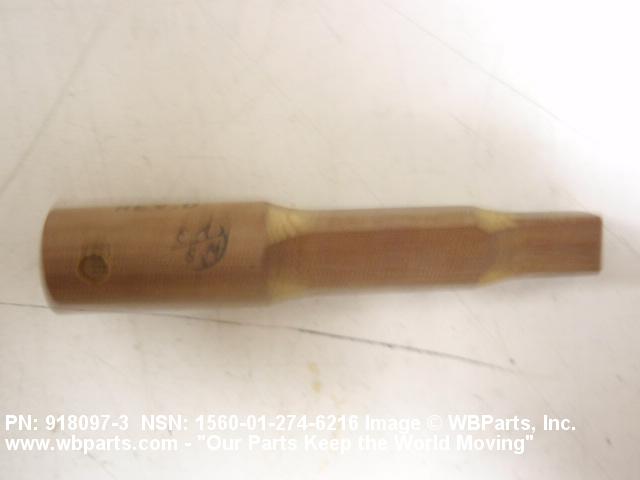

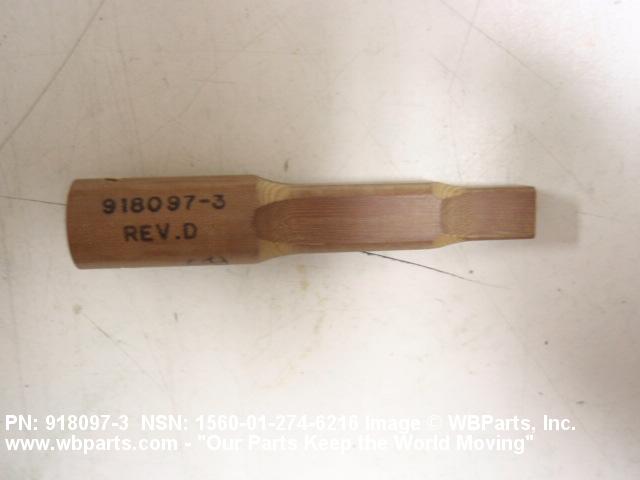

GENERAL CHARACTERISTICS ITEM DESCRIPTION	PHENOLIC RESIN AND COTTON FABRIC LAMINATE,MIL-P-79; 3.750 IN. LG; 0.740 IN. MIN 0.748 IN. MAX OD ONE END W/AXIAL HOLE 0.499 IN. MIN 0.506 IN. MAX ID BY 1.290 IN. MIN 1.410 IN. MAX DP; OTHER END 0.550 IN. OD W/THRU AXIAL HOLE; TWO IN LINE RADIAL HOLES 0.187 IN MIN 0.192 IN. MAX DIA SPACED 0.360 IN. FROM LARGE END

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	B	Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	133300	MACHINERY/MACHINES NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	671	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	X	SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
