NSN 1560-01-243-3890 9131881, 913188-1, 01-243-3890
Product Details | METAL MOLDING
1560-01-243-3890 A shaped piece of metal having a plane or curved surface, either sunk or projecting, used for ornamental or other application.20616800049Miscellaneous Aircraft Accessories and Components20400030Marine Hardware and Hull Items25900034Miscellaneous Vehicular Components56700034Building Components, Prefabricated95200017Structural Shapes95400040Structural Shapes, Nonferrous Base Metal
Part Alternates: 9131881, 913188-1, 1560-01-243-3890, 01-243-3890, 1560012433890, 012433890
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 24 OCT 1986 | 01-243-3890 | 04153 ( MOLDING, METAL ) |
Drawings & Photos | NSN 1560-01-243-3890
Demand History | NSN 1560-01-243-3890
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 913188-1 | 2023-06-157 | 1 | DIBBS |
| 913188-1 | 2022-10-276 | 1 | DIBBS |
| 913188-1 | 2019-05-128 | 3 | DIBBS |
| 1560-01-243-3890 | 2015-05-130 | 4 | DIBBS |
| 1560-01-243-3890 | 2013-05-133 | 4 | DIBBS |
| 1560-01-243-3890 | 2013-05-125 | 4 | DIBBS |
| 1560-01-243-3890 | 2010-09-272 | 3 | DIBBS |
| 1560-01-243-3890 | 2009-12-351 | 2 | DIBBS |
| 1560-01-243-3890 | 2009-11-307 | 3 | DIBBS |
| 1560-01-243-3890 | 2009-06-155 | 2 | DIBBS |
| 1560-01-243-3890 | 2009-04-105 | 2 | DIBBS |
| 1560-01-243-3890 | 2007-07-205 | 3 | DIBBS |
| 1560-01-243-3890 | 2007-05-136 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1560-01-243-3890
Technical Data | NSN 1560-01-243-3890
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | PAINTED |

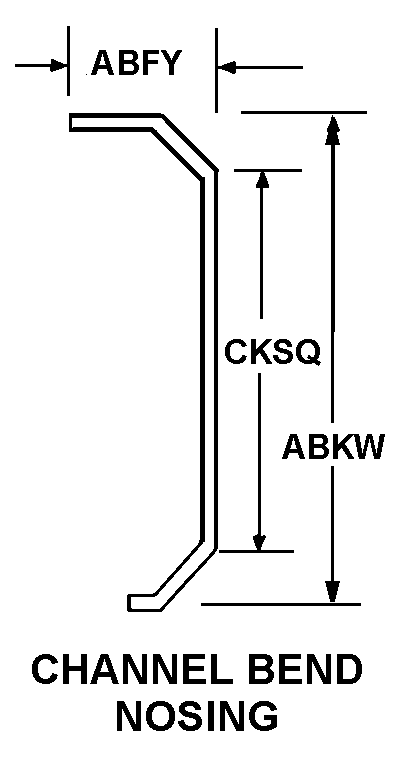

| STYLE DESIGNATOR | 175 CHANNEL BEND NOSING |
| OVERALL DEPTH | 0.430 INCHES NOMINAL |
| RAISED SURFACE WIDTH | 1.120 INCHES NOMINAL |
| ISSUE FORM | SPECIFIC LENGTH |
| LENGTH | 81.950 INCHES NOMINAL |
| MOUNTING METHOD | HOLE |
| MANUFACTURERS CODE | 98897 |
| DESIGN CONTROL REFERENCE | 913188-1 |
Restrictions/Controls & Freight Information | NSN 1560-01-243-3890
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 138230 | MOLDS RUBBER/PLASTIC MOLDING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1560-01-243-3890
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
