NSN 1560-01-190-9782 5-83978-504, 01-190-9782, 583978504
Product Details | AIRCRAFT STIFFENER RIB
1560-01-190-9782 A vertical, relatively short, rib located in a fuselage, nacelle, pod, and the like. It follows the periphery and provides additional rigidity. It may join various components such as stringers, longerons, and the like. It is supplementary to the frames and blukheads. See also RIB (1), AIRFOIL.
Part Alternates: 5-83978-504, 1560-01-190-9782, 01-190-9782, 1560011909782, 583978504, 011909782
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 04 OCT 1984 | 01-190-9782 | 41027 ( RIB, STIFFENER, AIRCRAFT ) |

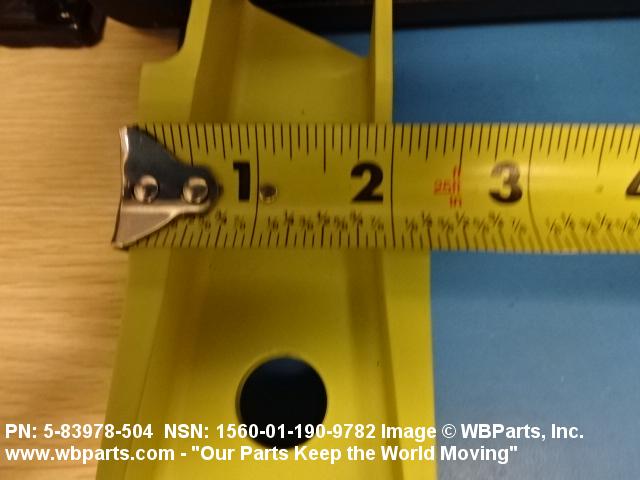

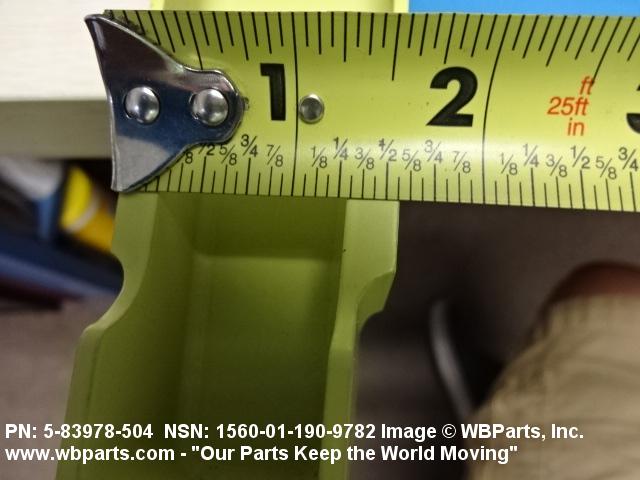

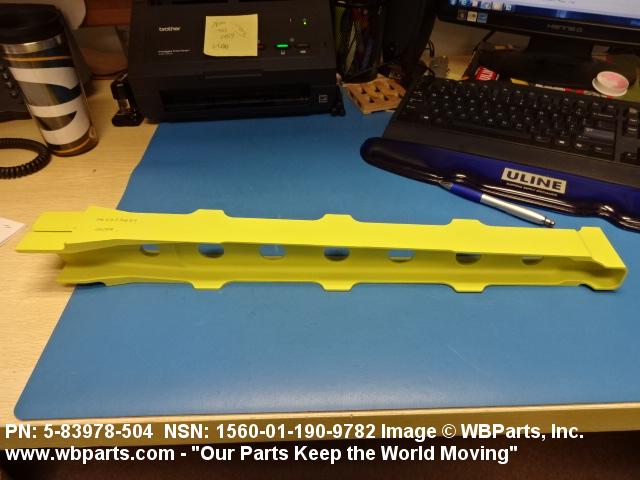

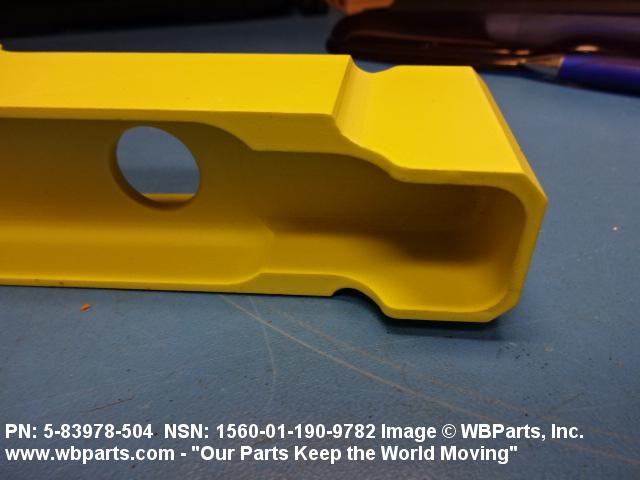

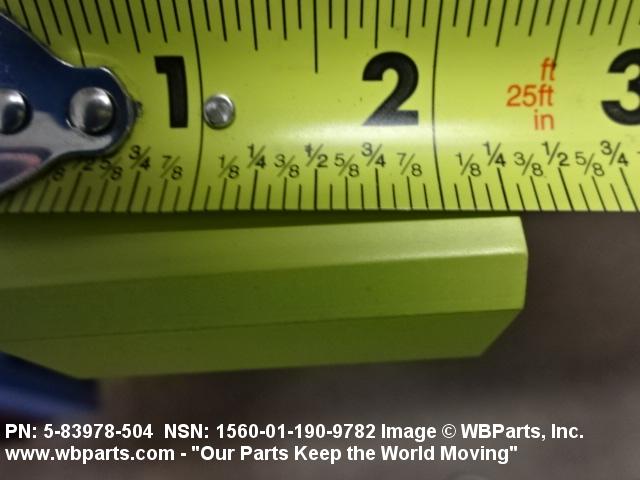

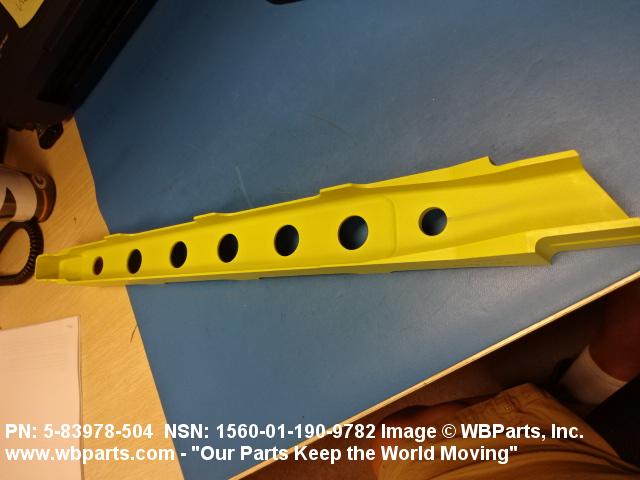

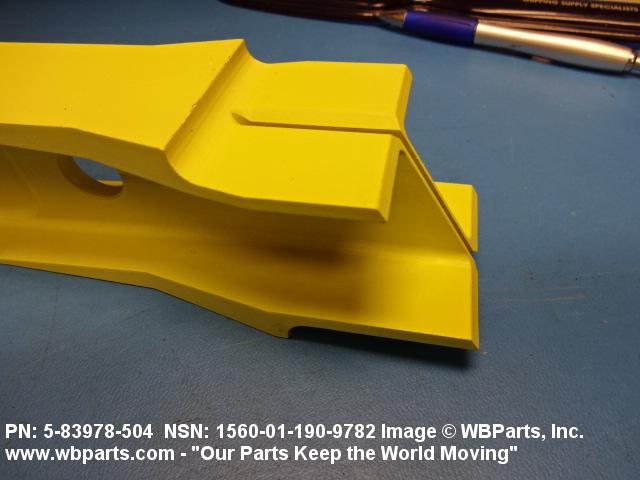

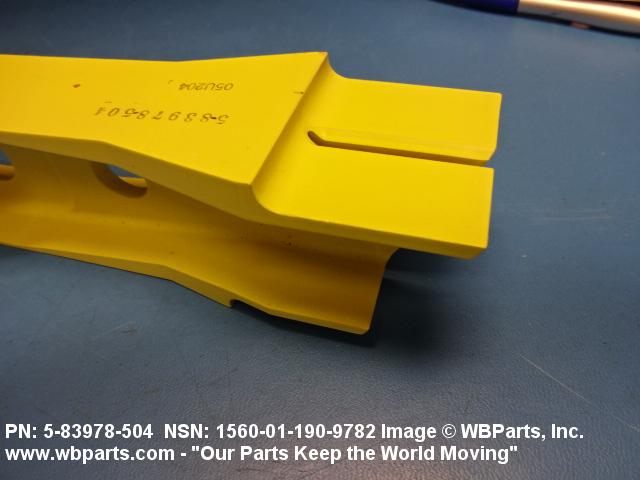

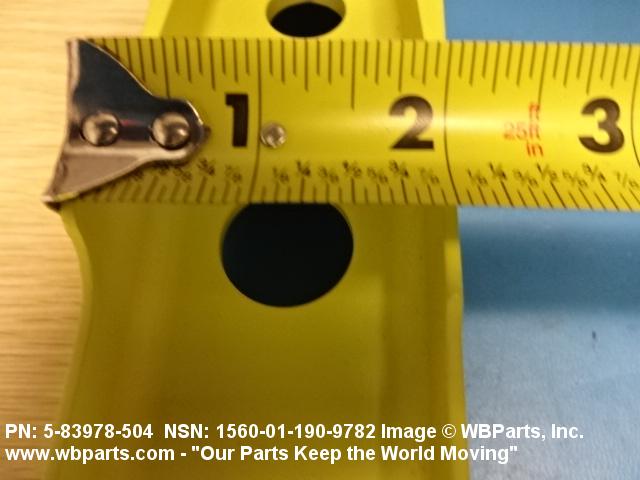

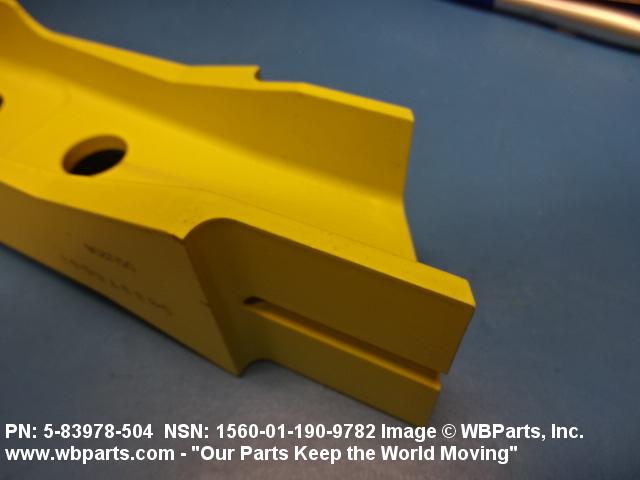

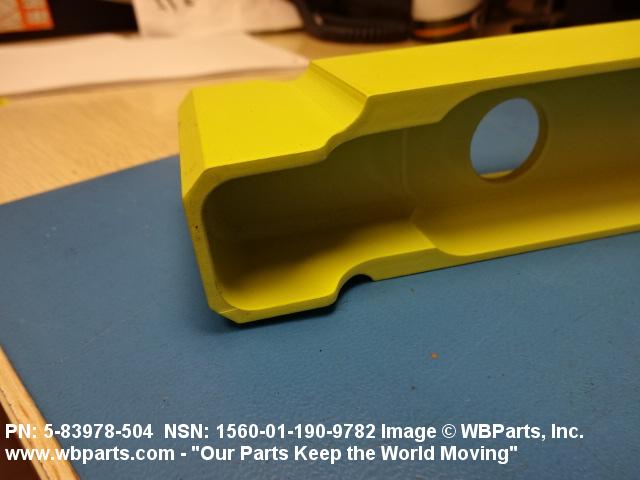

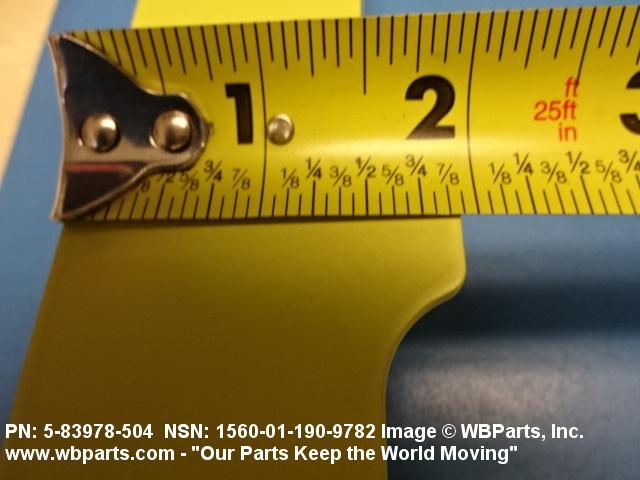

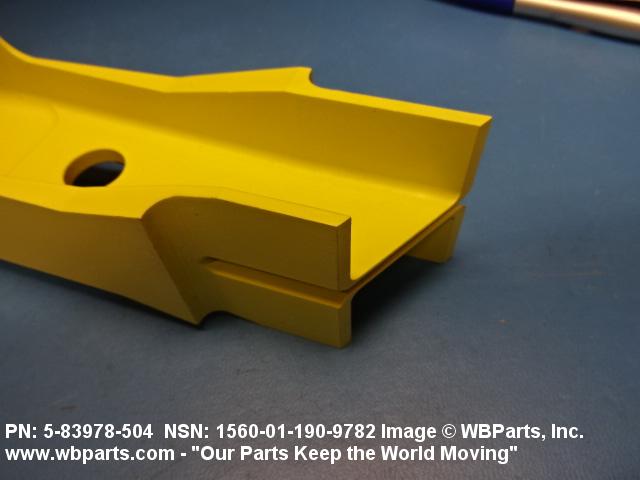

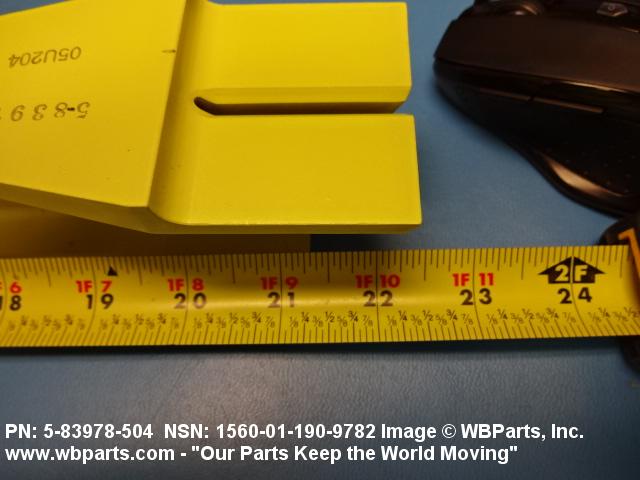

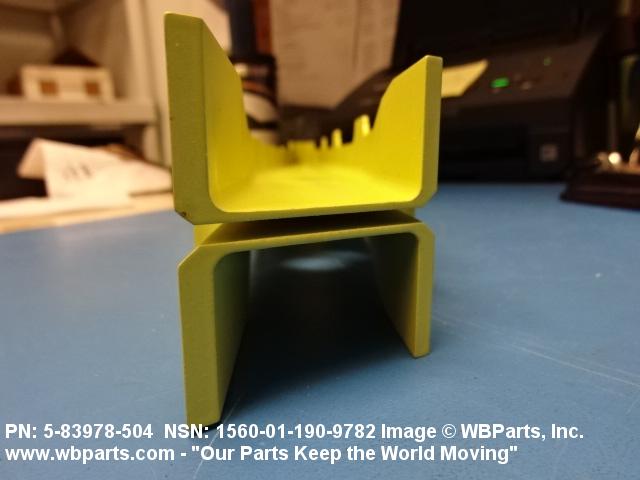

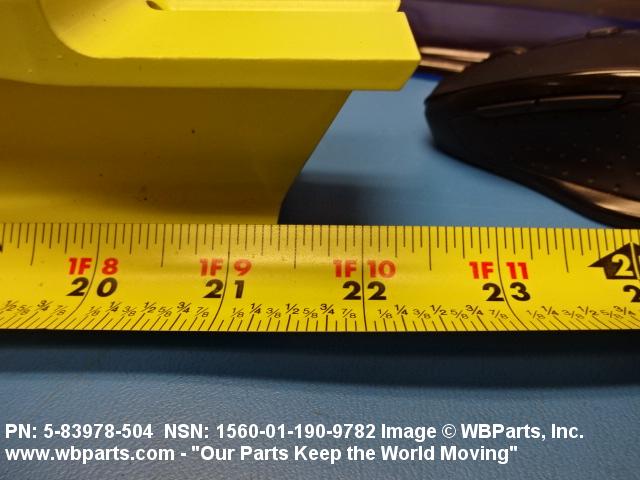

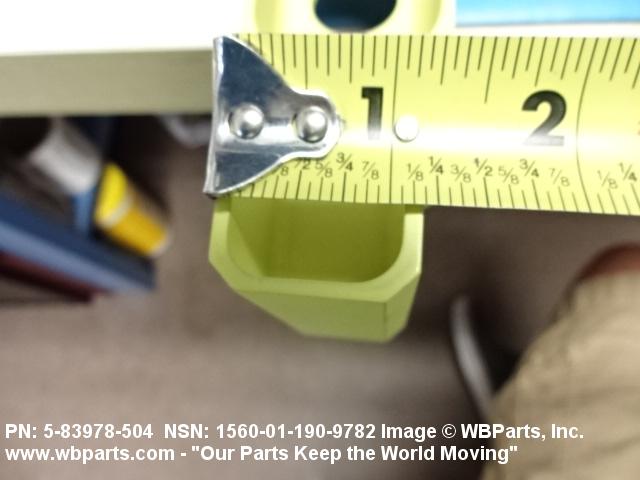

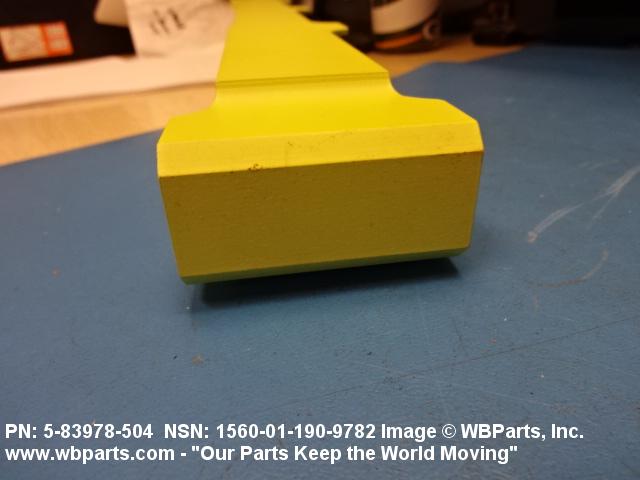

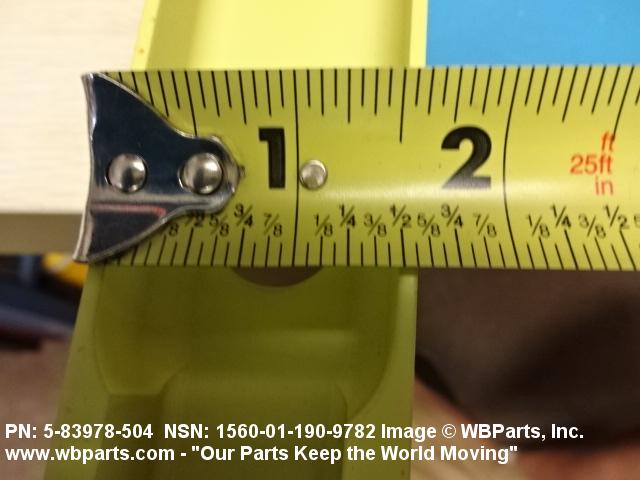

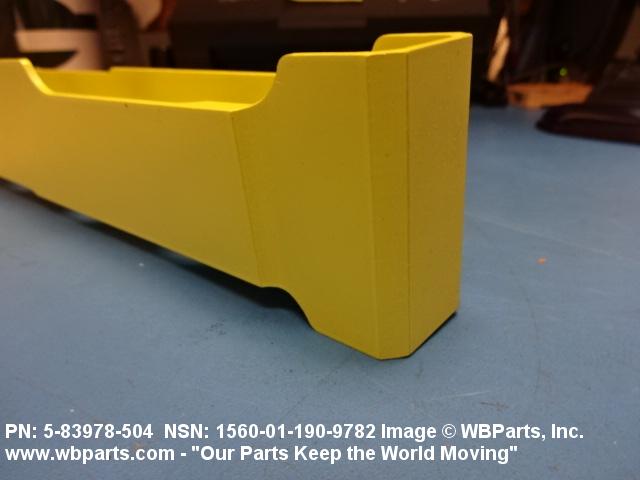

Drawings & Photos | NSN 1560-01-190-9782
Demand History | NSN 1560-01-190-9782
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5-83978-504 | 2023-07-193 | 35 | DIBBS |
| 1560-01-190-9782 | 2023-07-188 | 27 | US |
| 5-83978-504 | 2023-07-187 | 27 | DIBBS |
| 5-83978-504 | 2022-06-158 | 9 | DIBBS |
| 5-83978-504 | 2022-05-123 | 10 | DIBBS |
| 5-83978-504 | 2021-12-350 | 6 | DIBBS |
| 1560-01-190-9782 | 2020-10-281 | 14 | DIBBS |
| 1560-01-190-9782 | 2020-03-65 | 4 | DIBBS |
| 1560-01-190-9782 | 2020-03-65 | 4 | DIBBS |
| 1560-01-190-9782 | 2018-10-283 | 10 | DIBBS |
| 1560-01-190-9782 | 2018-08-219 | 2 | DIBBS |
| 1560-01-190-9782 | 2018-05-128 | 3 | DIBBS |
| 1560-01-190-9782 | 2018-05-128 | 1 | DIBBS |
| 1560-01-190-9782 | 2017-05-145 | 1 | United States |
| 1560-01-190-9782 | 2017-04-101 | 1 | DIBBS |
| 1560-01-190-9782 | 2016-08-215 | 2 | DIBBS |
| 1560-01-190-9782 | 2013-11-323 | 16 | DIBBS |
Cross Reference | NSN 1560-01-190-9782
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5-83978-504 | 82918 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1560-01-190-9782
Related Products | NSN 1560-01-190-9782
Technical Data | NSN 1560-01-190-9782
| Characteristic | Specifications |
|---|---|
| AIRCRAFT LOCATION | RIB,SPOILER |
| AIRCRAFT MISSION DESIGN SERIES | B-52 |
| OVERALL LENGTH | 22.240 INCHES NOMINAL |
| OVERALL WIDTH | 2.3000 INCHES NOMINAL |
| MATERIAL THICKNESS | 2.330 INCHES NOMINAL |
| SPECIAL FEATURES | MADE FROM 5-83972;FINISH F-2.30; OPPOSITE -503;NHA 35-2684-701 |
| MANUFACTURERS CODE | 82918 |
| DESIGN CONTROL REFERENCE | 5-83978-504 |
Restrictions/Controls & Freight Information | NSN 1560-01-190-9782
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 011760 | AIRCRAFT/AIRCRAFT PART VIZ: |
| Less than car load rating | ||
| Less than truck load rating | D | 200.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1560-01-190-9782
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
