NSN 1560-01-170-4770 9107473, 910747-3, 01-170-4770
Product Details | METAL MOLDING
1560-01-170-4770 A shaped piece of metal having a plane or curved surface, either sunk or projecting, used for ornamental or other application.20616800049Miscellaneous Aircraft Accessories and Components20400030Marine Hardware and Hull Items25900034Miscellaneous Vehicular Components56700034Building Components, Prefabricated95200017Structural Shapes95400040Structural Shapes, Nonferrous Base Metal
Part Alternates: 9107473, 910747-3, 1560-01-170-4770, 01-170-4770, 1560011704770, 011704770
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 25 JAN 1984 | 01-170-4770 | 04153 ( MOLDING, METAL ) |
Drawings & Photos | NSN 1560-01-170-4770
Demand History | NSN 1560-01-170-4770
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1560-01-170-4770 | 2017-01-18 | 1 | DIBBS-RFPs |
| 1560-01-170-4770 | 2016-10-294 | 10 | DIBBS |
| 1560-01-170-4770 | 2016-10-286 | 10 | DIBBS |
| 1560-01-170-4770 | 2016-09-251 | 24 | DIBBS |
| 1560-01-170-4770 | 2016-08-220 | 10 | DIBBS |
| 1560-01-170-4770 | 2016-07-200 | 10 | DIBBS |
| 1560-01-170-4770 | 2016-07-192 | 10 | DIBBS |
| 1560-01-170-4770 | 2015-07-195 | 28 | DIBBS |
| 1560-01-170-4770 | 2013-04-92 | 77 | DIBBS |
| 1560-01-170-4770 | 2011-08-217 | 41 | DIBBS |
| 1560-01-170-4770 | 2010-11-319 | 39 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1560-01-170-4770
Technical Data | NSN 1560-01-170-4770
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | PAINTED |
| FABRICATION METHOD | EXTRUDED |

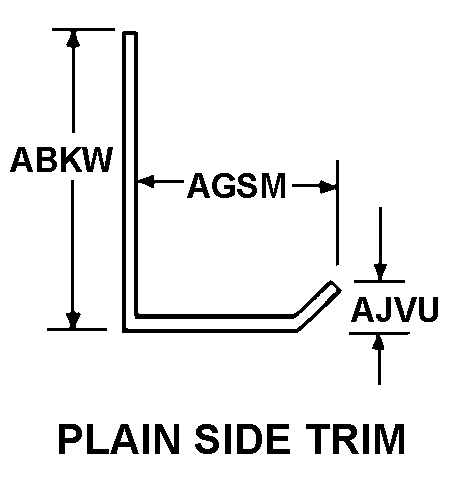

| STYLE DESIGNATOR | 150 PLAIN SIDE TRIM |
| OVERALL HEIGHT | 0.750 INCHES NOMINAL |
| MATERIAL ACCOMMODATED THICKNESS | 0.848 INCHES NOMINAL |
| EXPOSURE WIDTH | 0.090 INCHES NOMINAL |
| ISSUE FORM | SPECIFIC LENGTH |
| LENGTH | 12.700 INCHES NOMINAL |
| DESIGN FORM | STRIP |
| MOUNTING METHOD | SHEET METAL SCREW |
| SPECIAL FEATURES | CURVED ARCH 7.920 IN. RADIUS; 5 HOLES 0.175 IN. MAX DIA FOR MOUNTING; COLOR ORANGE FED-STD 595 NO. 13538 |
Restrictions/Controls & Freight Information | NSN 1560-01-170-4770
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 138230 | MOLDS RUBBER/PLASTIC MOLDING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1560-01-170-4770
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
