NSN 1560-01-168-8086 011688086
Product Details | AIRCRAFT AIR CONDITIONING-HEATING DUCT ASSEMBLY
1560-01-168-8086 A hollow body used to transport air to various parts of the aircraft for the purpose of heating, cooling, pressurizing, de-icing, and the like. It may include flange(s), bracket(s), and the like for mounting purposes. Excludes pipes used in aircraft exhaust systems and pipes used in non-aircraft applications. Excludes PIPE, EXHAUST and PIPE, AIR CONDITIONING-HEATING.
Part Alternates: 011688086
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 01-168-8086 | 32351 ( DUCT ASSEMBLY, AIR CONDITIONING-HEATING, AIRCRAFT ) |

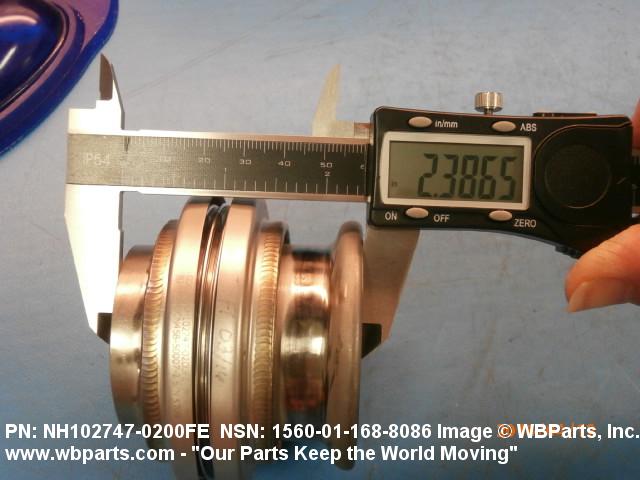

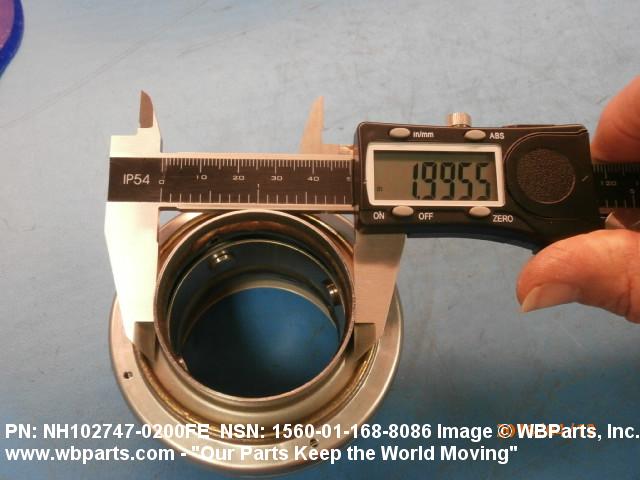

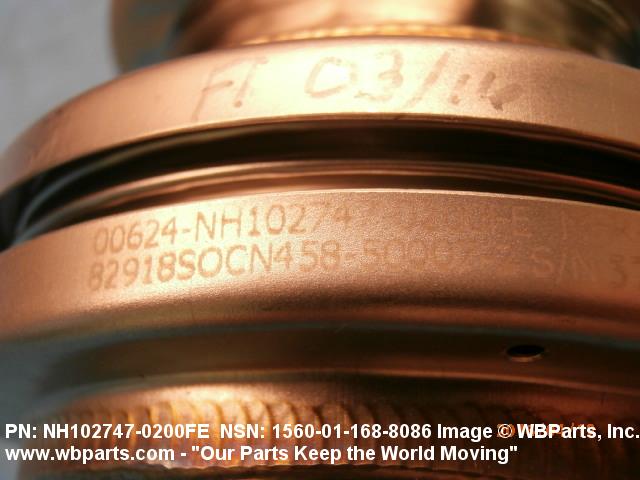

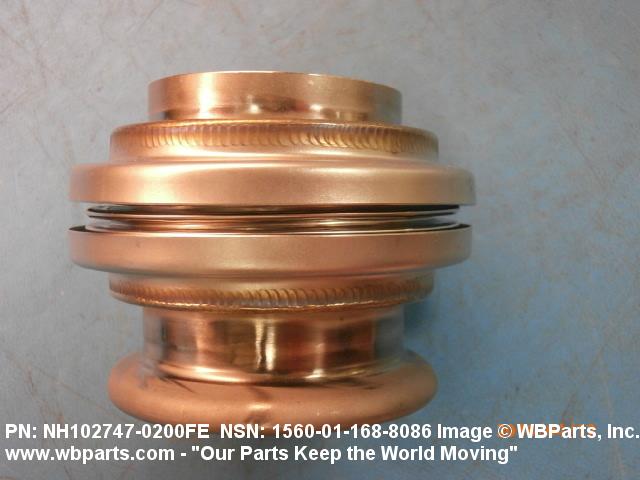

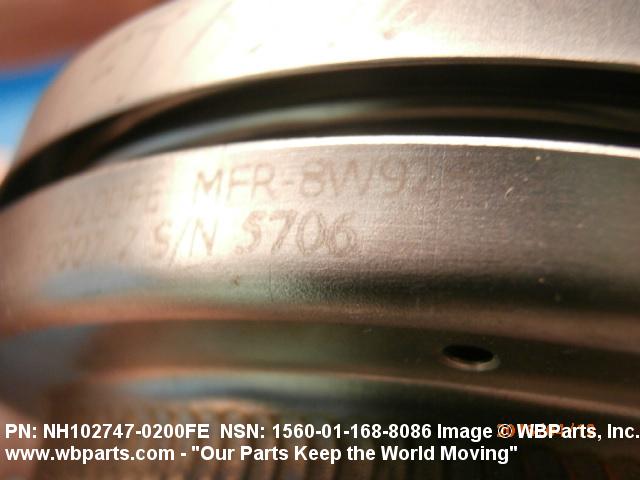

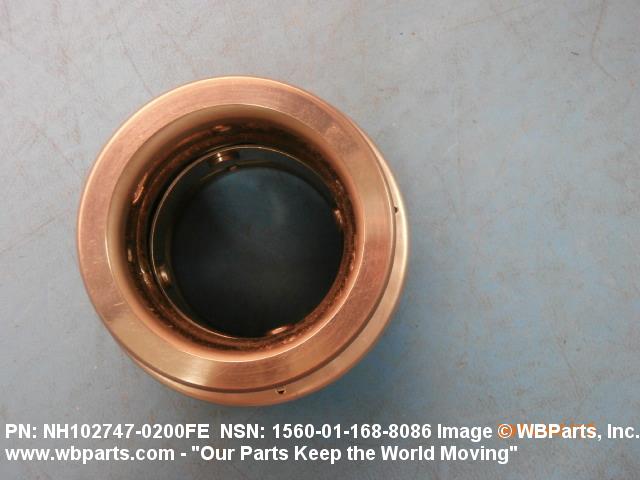

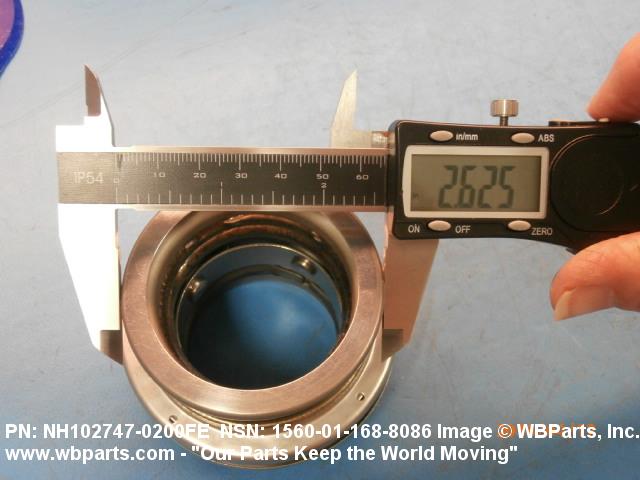

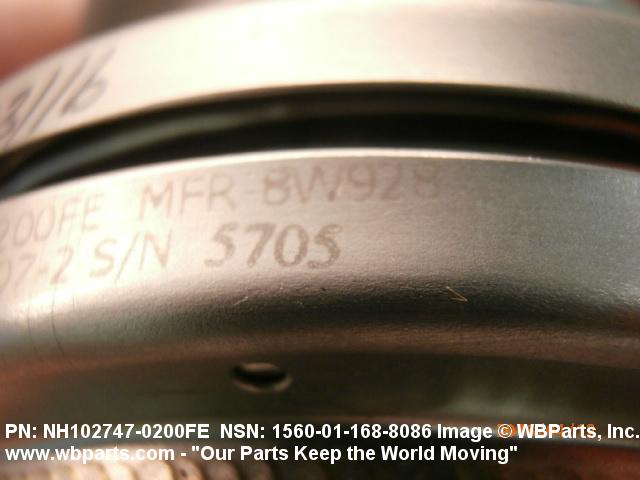

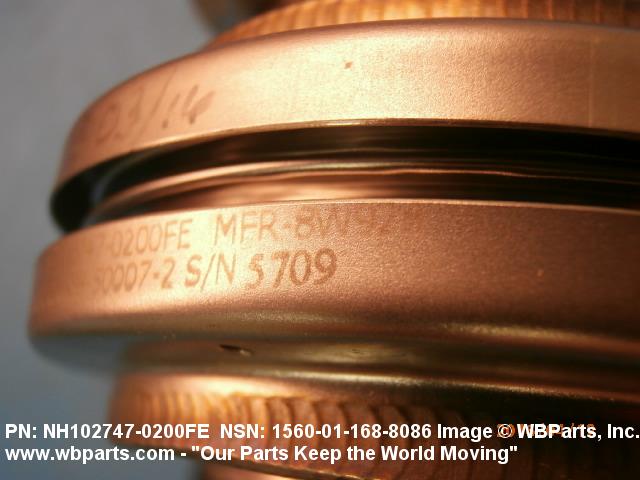

Drawings & Photos | NSN 1560-01-168-8086
Demand History | NSN 1560-01-168-8086
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 458500072 | 2015-05-149 | 24 | United States |
| 458500072 | 2010-07-201 | 30 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1560-01-168-8086
Technical Data | NSN 1560-01-168-8086
| Characteristic | Specifications |
|---|---|
| AIRCRAFT LOCATION | FLEXIBLE PNEUMATIC DUCT SECTION |
| AIRCRAFT MISSION DESIGN SERIES | B-1B |
| OVERALL LENGTH | 2.390 INCHES NOMINAL |
| SPECIAL FEATURES | 3.150 IN. DUCT OD; 2.000 IN. OD PLAIN END; BOTH ENDS TWO FLANGES,P/N BACF22AD200 OR EQUIV; NHA 65C18614 |
| III END ITEM IDENTIFICATION | B-1B AIRCRAFT |
| MANUFACTURERS CODE | 82918 |
| MFR SOURCE CONTROLLING REFERENCE | 458-50007-2 |
Restrictions/Controls & Freight Information | NSN 1560-01-168-8086
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
